Keyless Entry

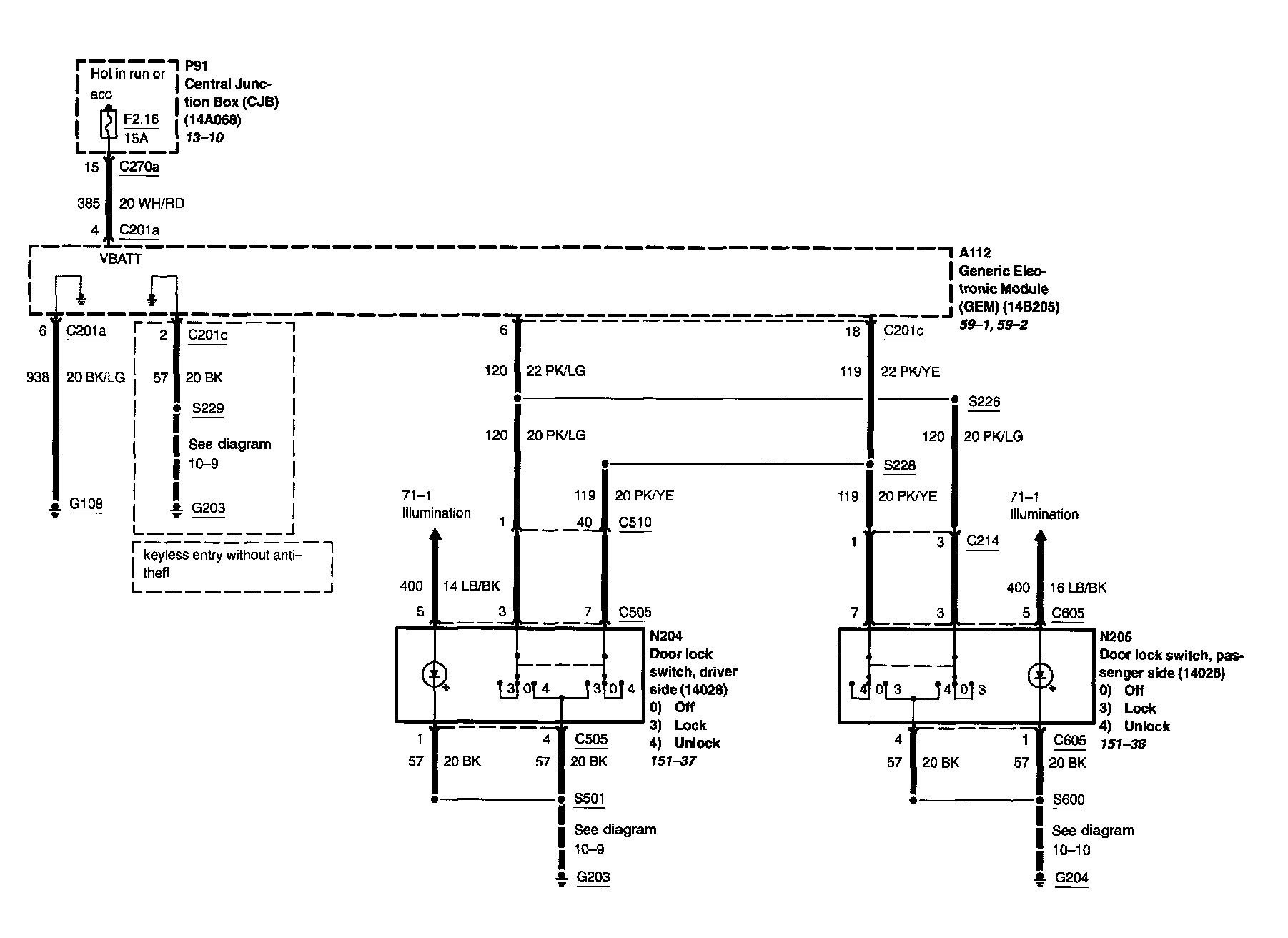

Diagram 117-1:

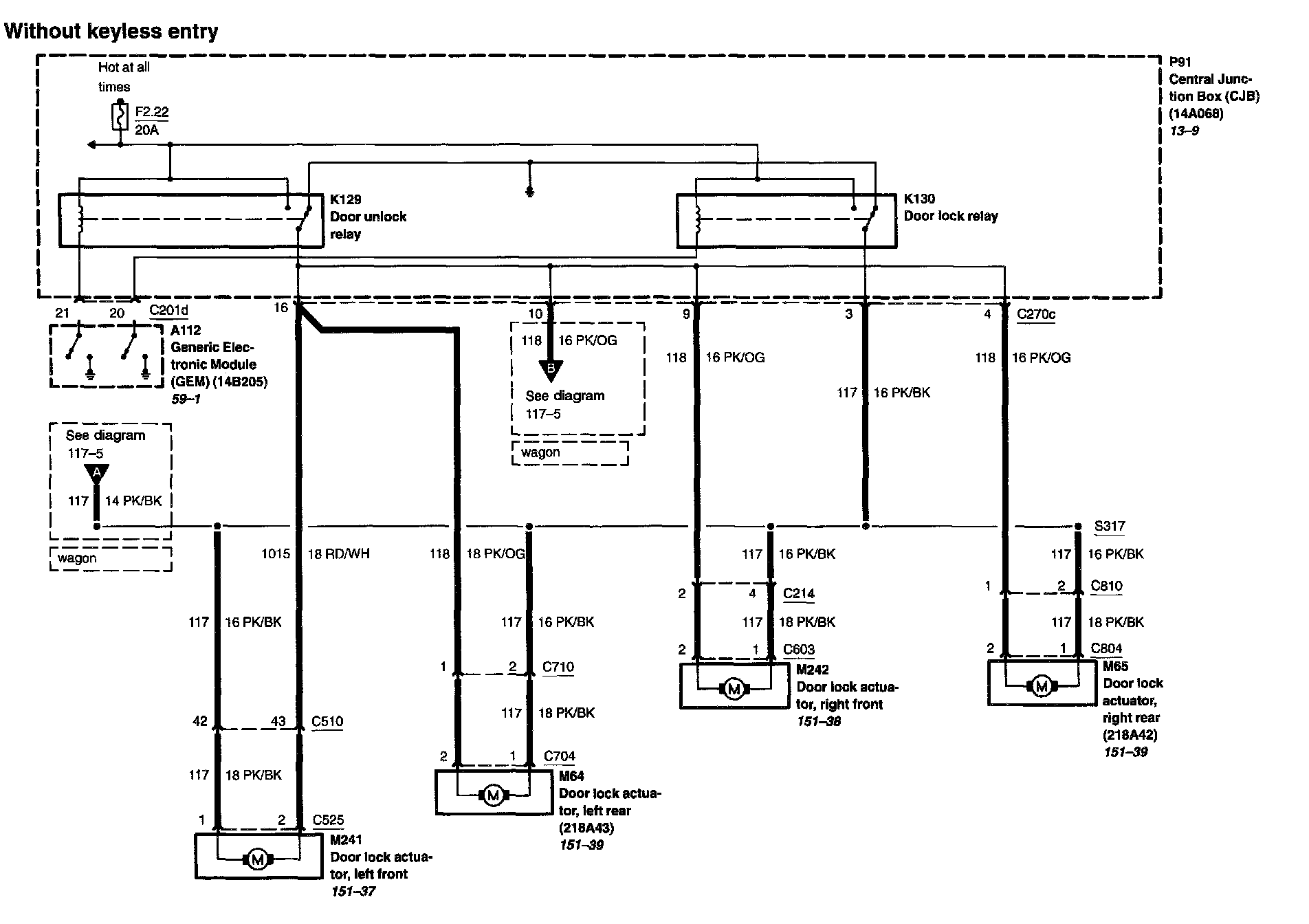

Diagram 117-2:

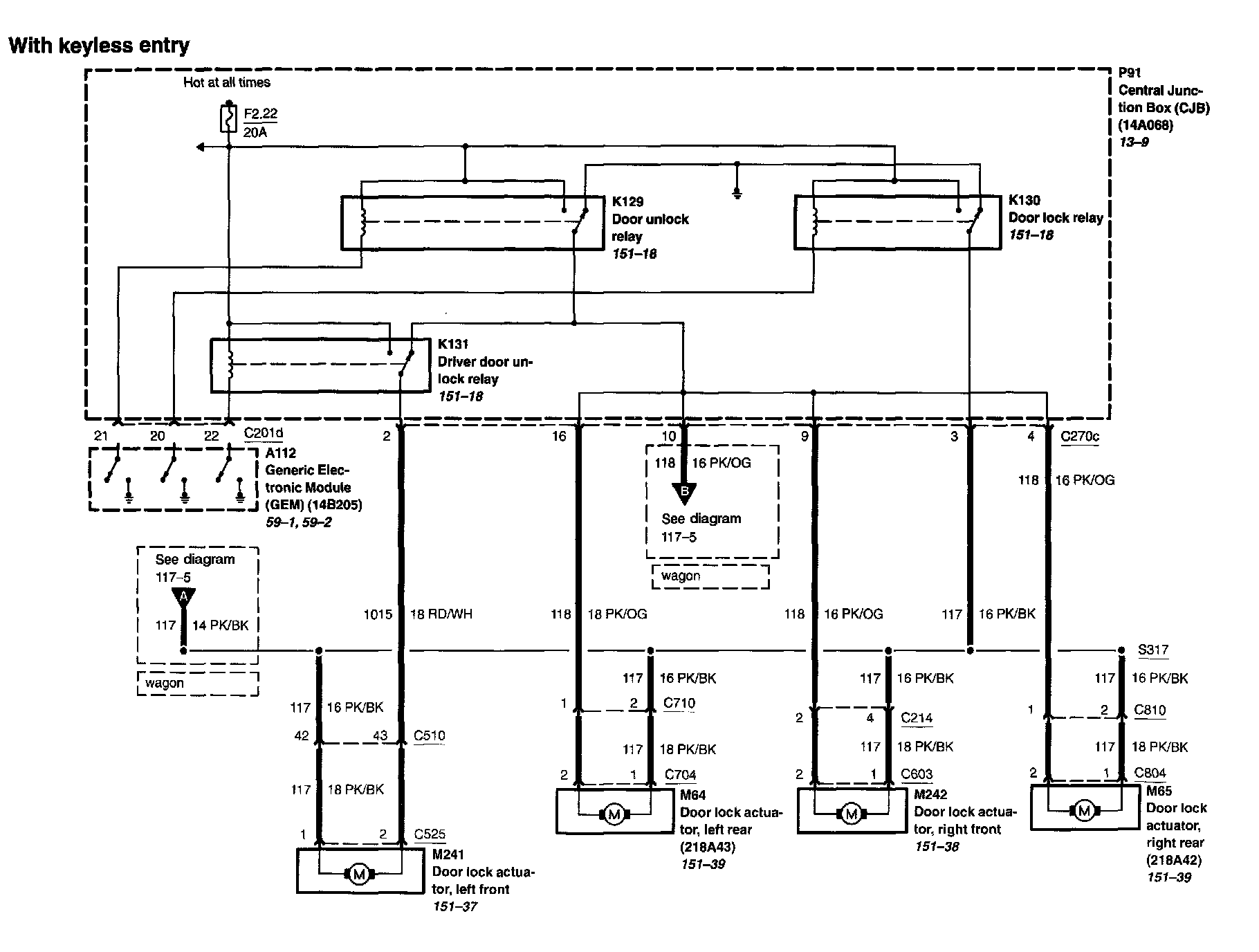

Diagram 117-3:

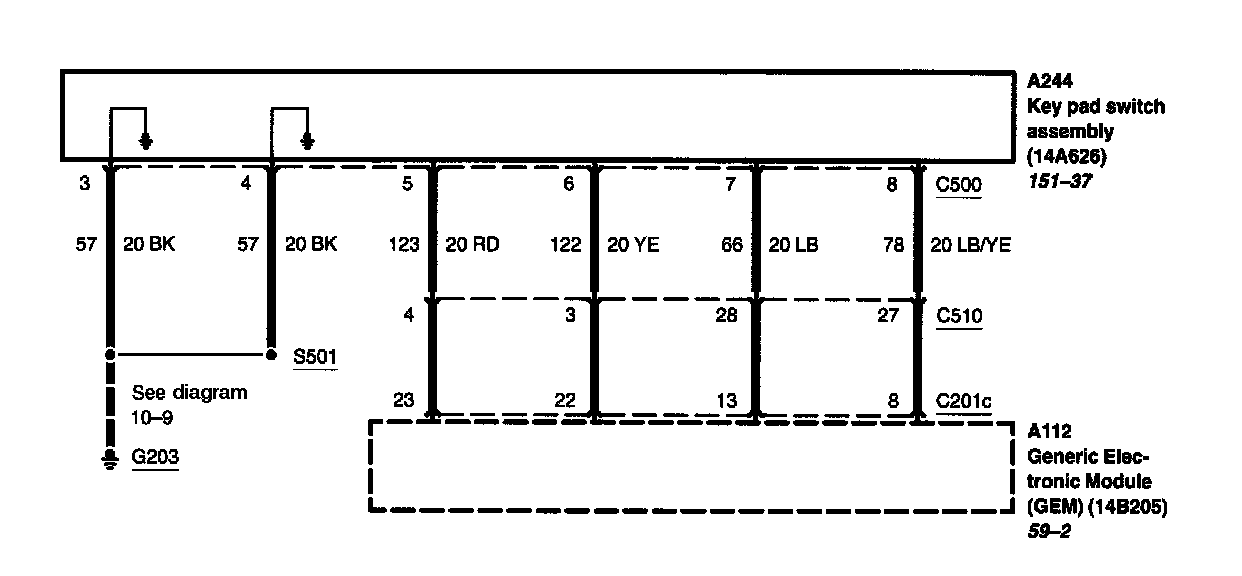

Diagram 117-4:

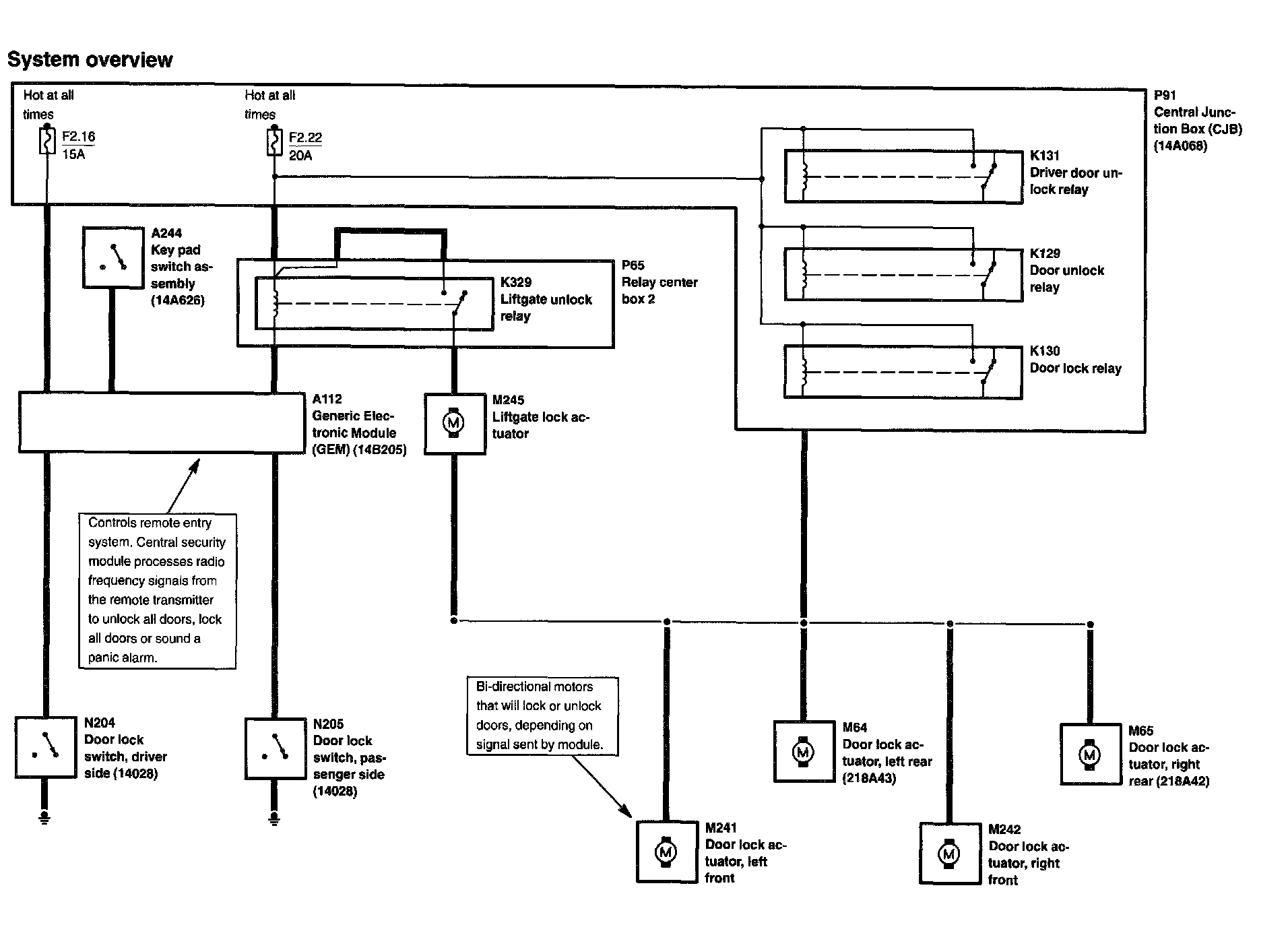

Diagram 117-5:

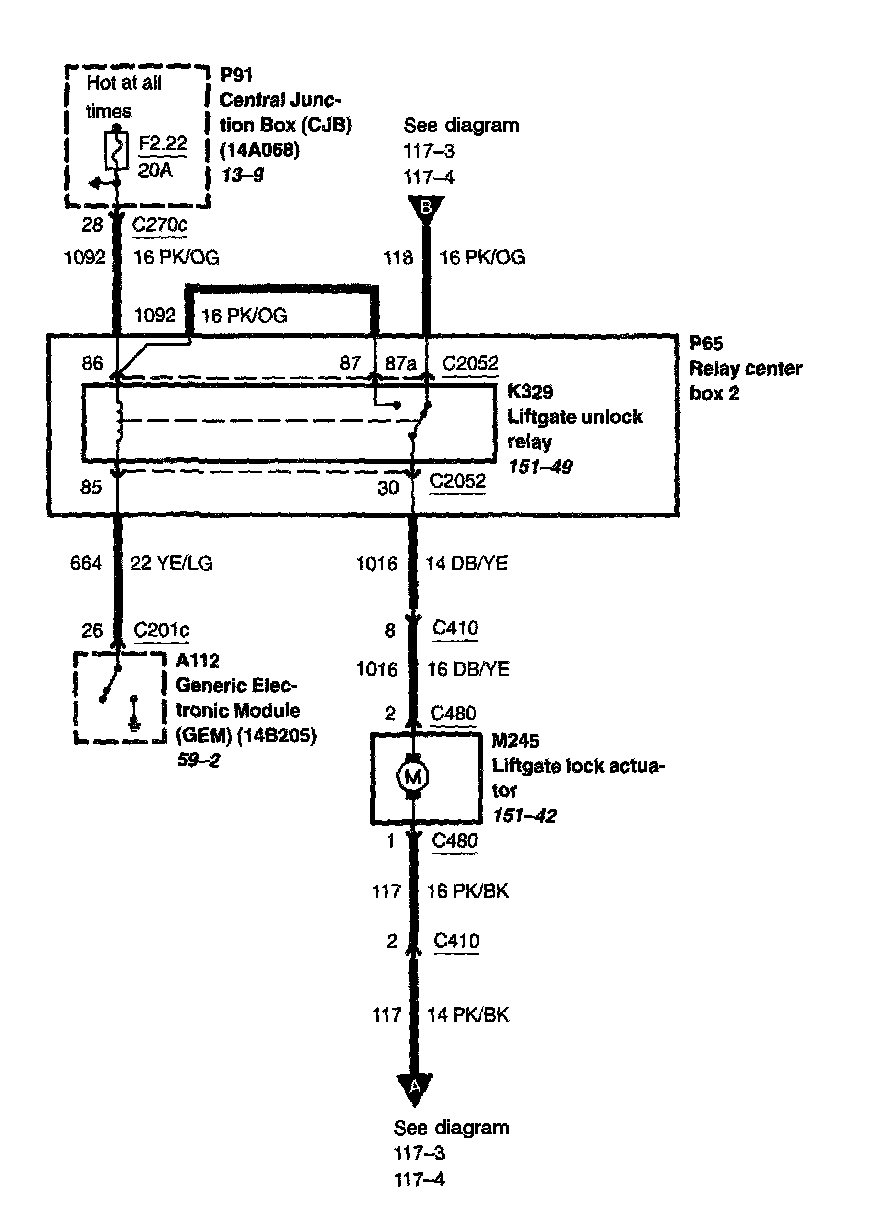

Diagram 117-6:
