Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D: Courtesy Lamps Do Not Turn On With One Door Open
Test D: Courtesy Lamps Do Not Turn On With One Door Open

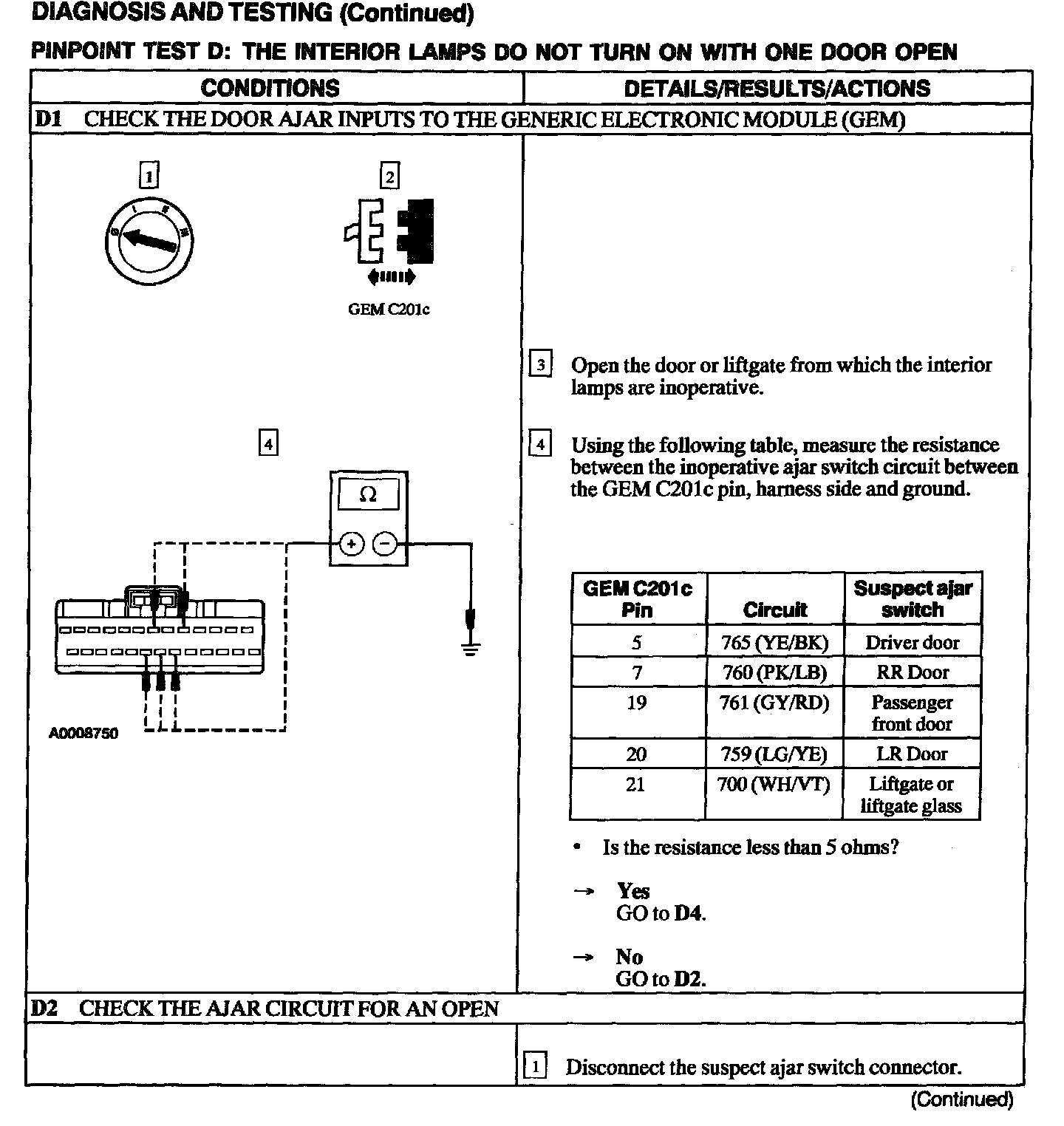

D1 - D2:

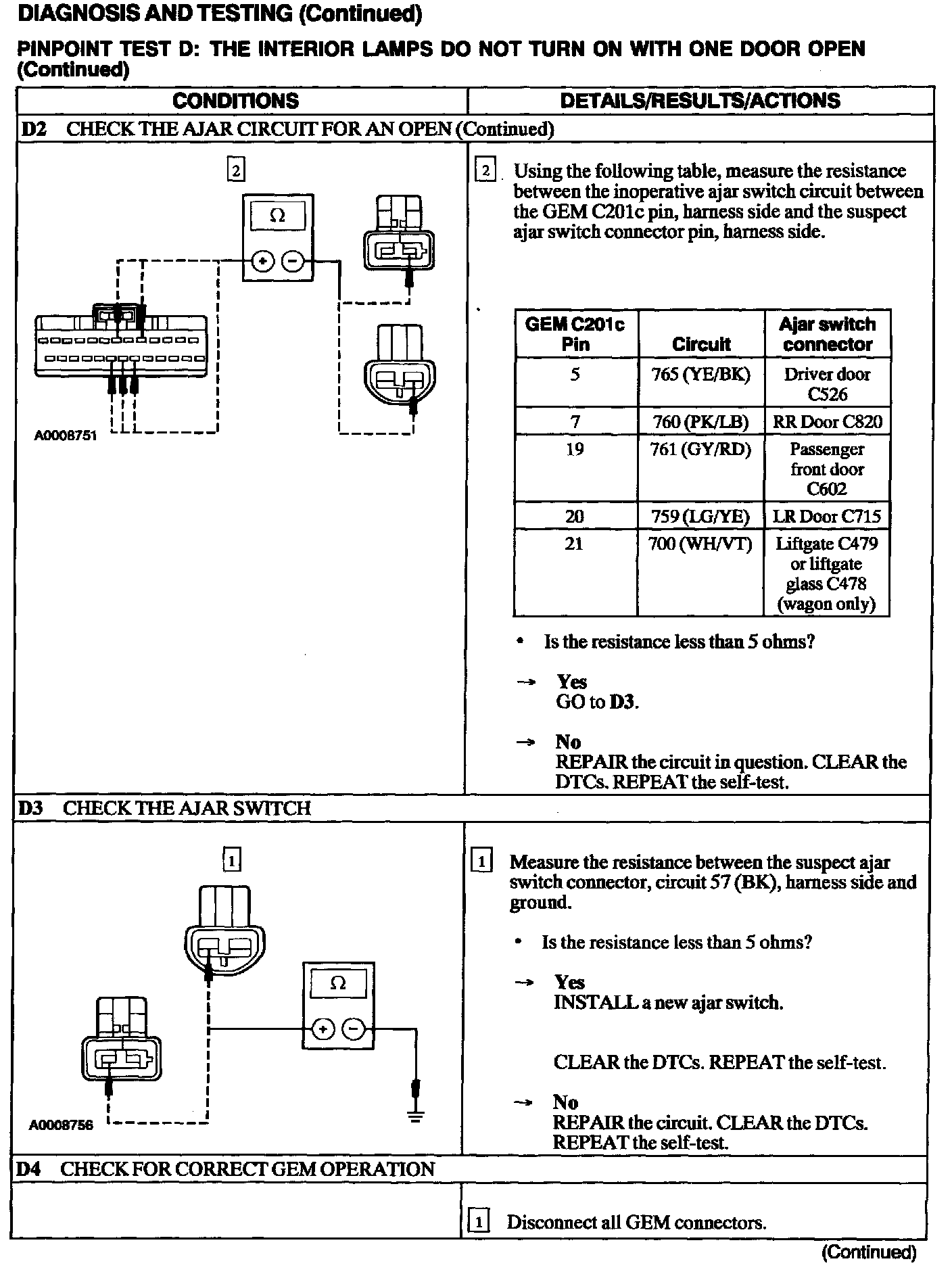

D2 - D4:

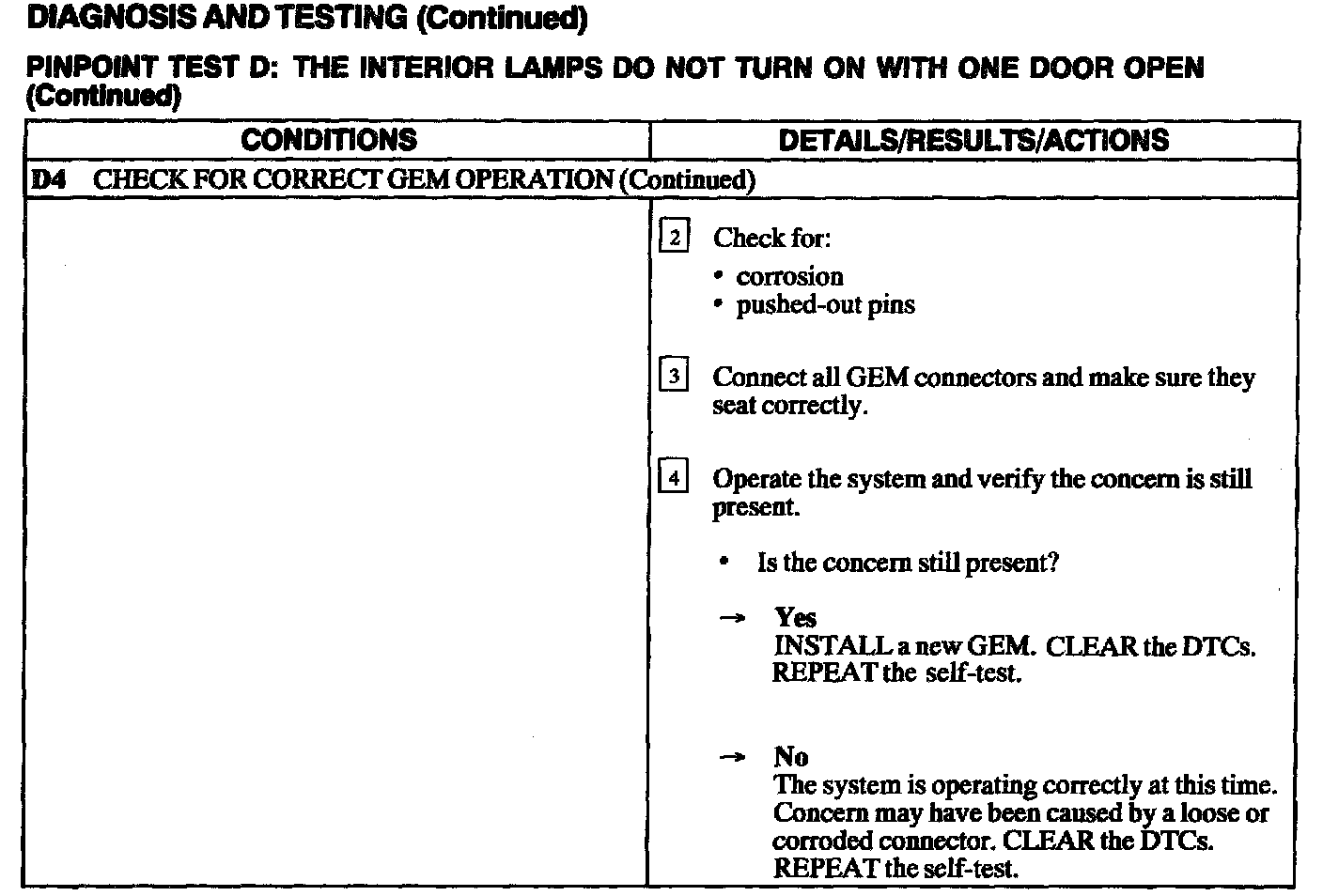

D4:
