Ambient Temperature Sensor / Switch HVAC: Service and Repair
REMOVAL 1.
Raise the vehicle.
2.

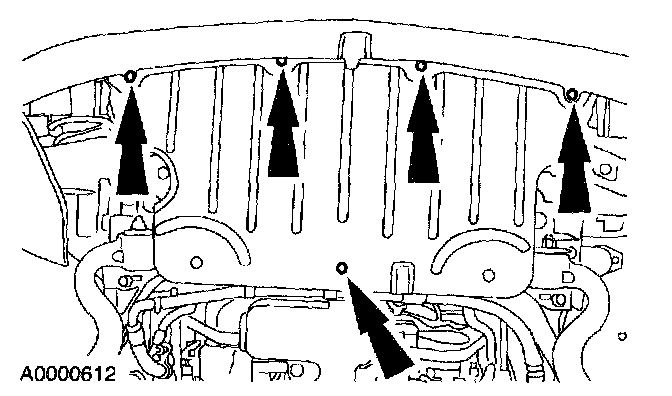

Remove the screws and remove the splash shield.
3.
Detach the ambient air temperature sensor and disconnect the electrical connector.
INSTALLATION 1.
To install, reverse the removal procedure.
