Receiver Drier

REMOVAL
1. Recover the refrigerant.
2. Disconnect the air outlet tube.

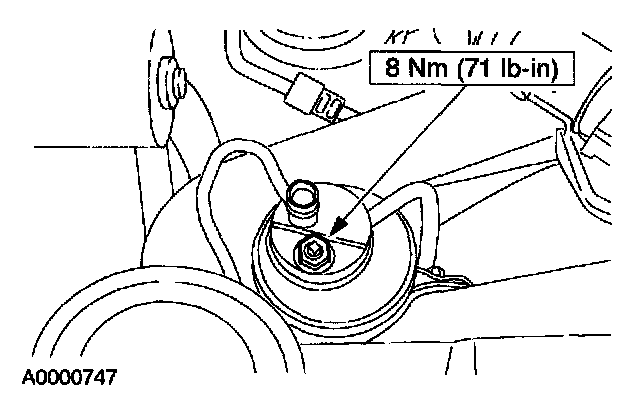

3. Remove the nut and disconnect the manifold from the receiver/drier.

4. Remove the bolt and remove the receiver/drier.
5. Remove the bracket from the receiver/drier.

INSTALLATION
1. To install, reverse the removal procedure.
- Install new O-rings lubricated in clean PAG oil.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.
