Home >> Ford >> 2002 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-16 (Starter Sub-System)

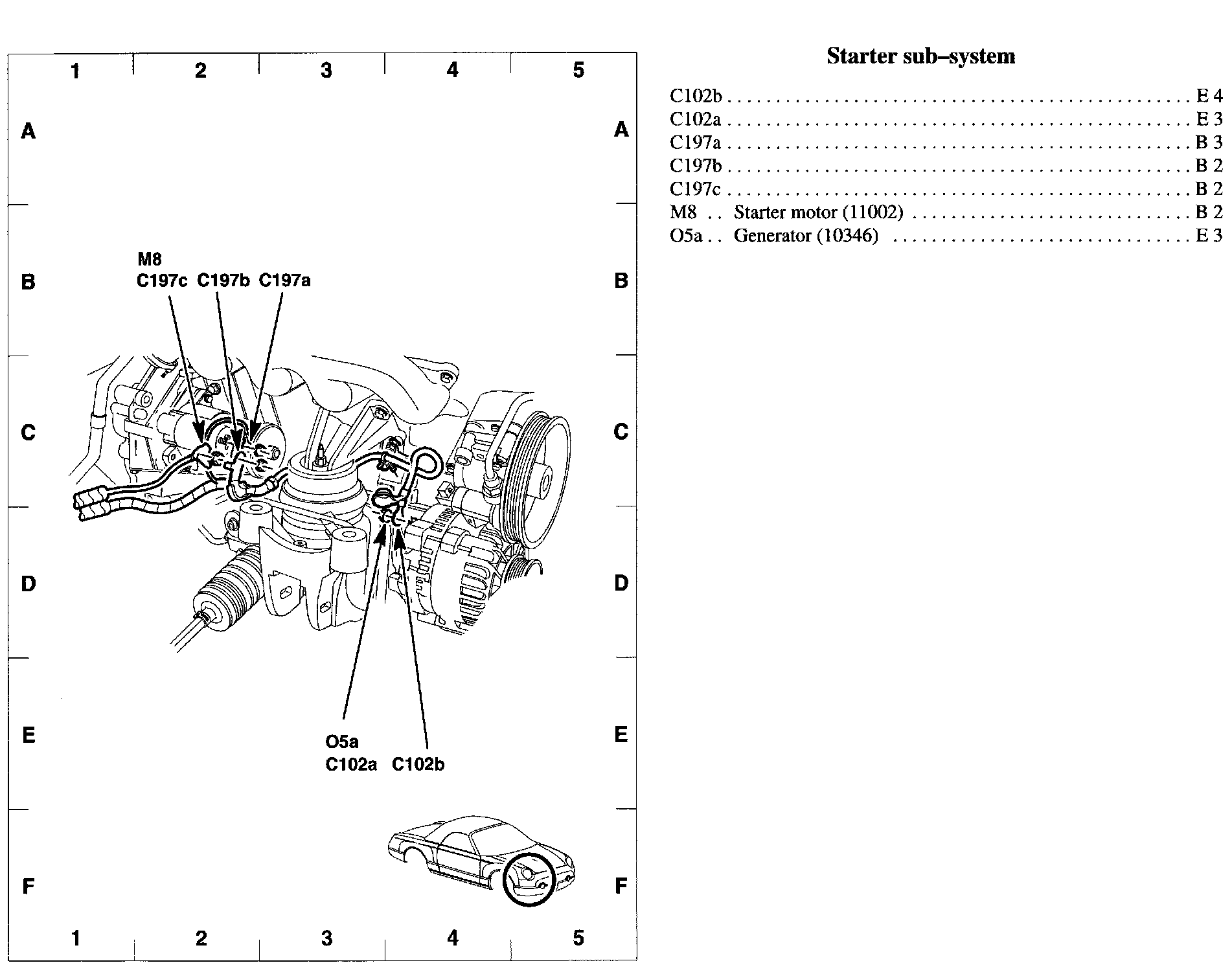

View 151-16 (Starter Sub-System)

View 151-16:
