Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation
1. Remove the air cleaner outlet tube.

2. Rotate the tensioner counterclockwise and remove the drive belt from the water pump pulley.
3. Remove the belt tensioner.

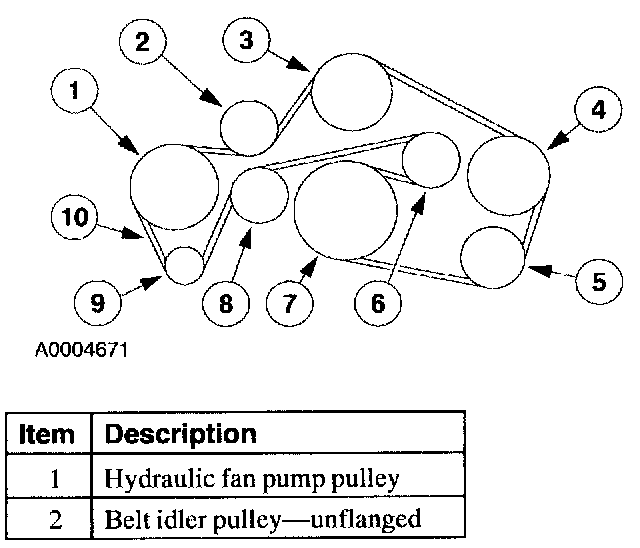

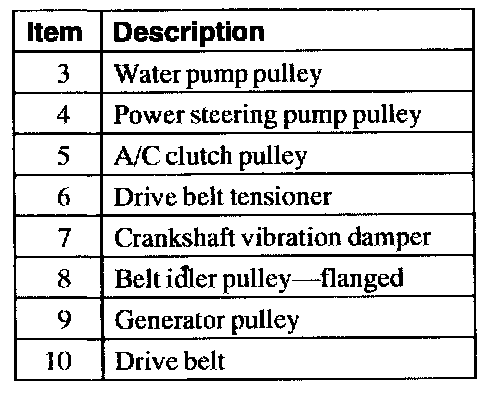

4. CAUTION: Incorrect drive belt installation will cause premature drive belt failure.

NOTE: Make sure the drive belt correctly installed on each pulley.

To install, reverse the removal procedure.
