EGR Valve: Service and Repair
REMOVAL 1.

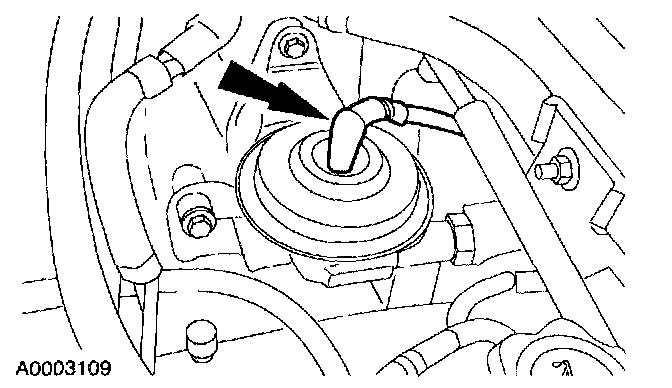

Disconnect the vacuum hose.
2.

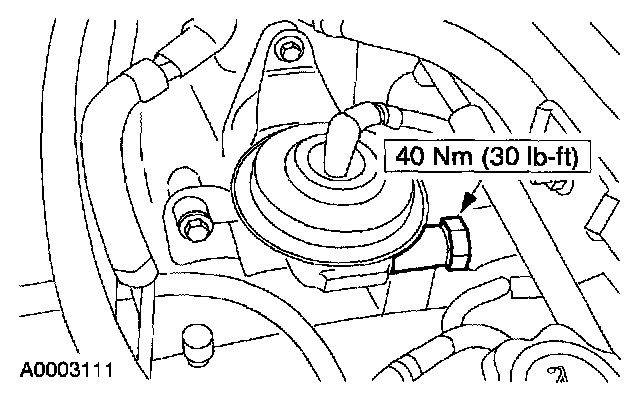

Disconnect the
Exhaust Gas Recirculation (EGR) tube from the
EGR valve.
3.

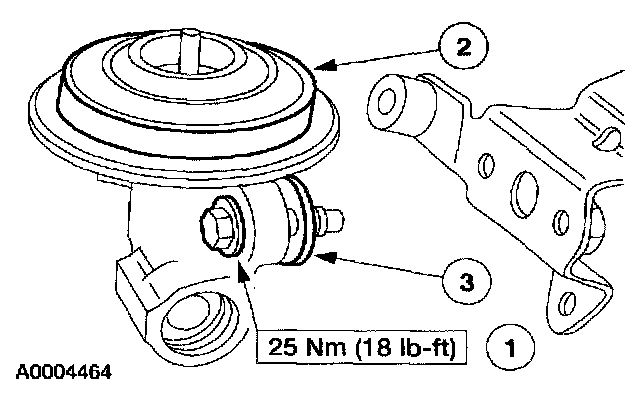

Remove the
EGR valve.
1
Remove the bolts.
2
Remove the
EGR valve.
3
Remove and discard the gasket and clean the sealing surfaces.
INSTALLATION 1.
To install, reverse the removal procedure.
^
Install a new gasket.
