Starter Motor: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable
2.
Raise and support the vehicle.
3.
Disconnect the
ground strap.

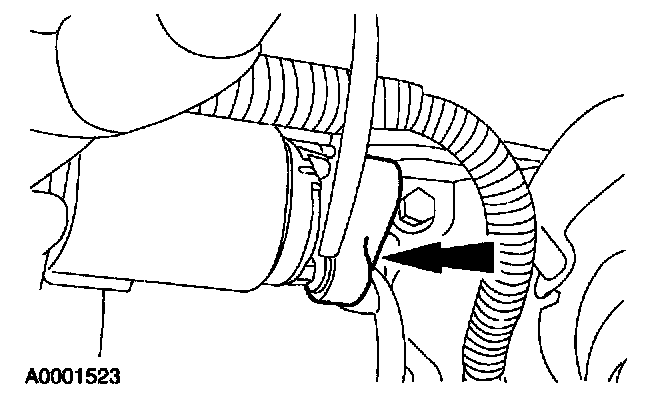

4.
Remove the cover.
5.
Remove the nuts and position the cables aside.
6.

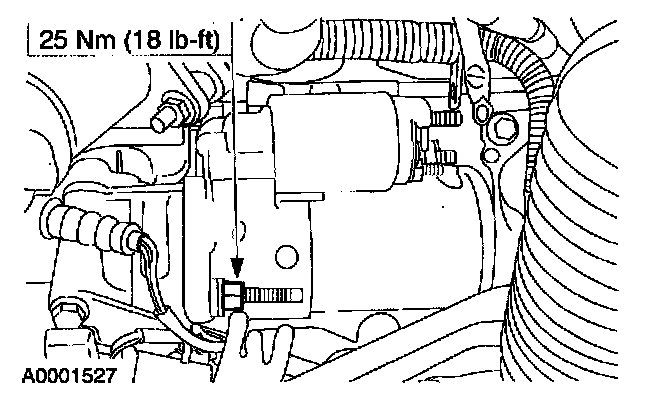

Remove the bolt, stud bolt and the
starter motor.
INSTALLATION 1.
To install, reverse the removal procedure.
