Front Door Window Regulator: Service and Repair
REMOVAL 1.
Remove the door window glass.
2.
Remove the door window regulator and motor assembly.
1
Disconnect the electrical connector.
2
Remove the window regulator motor nuts.
3
Remove the window regulator nuts.
3.

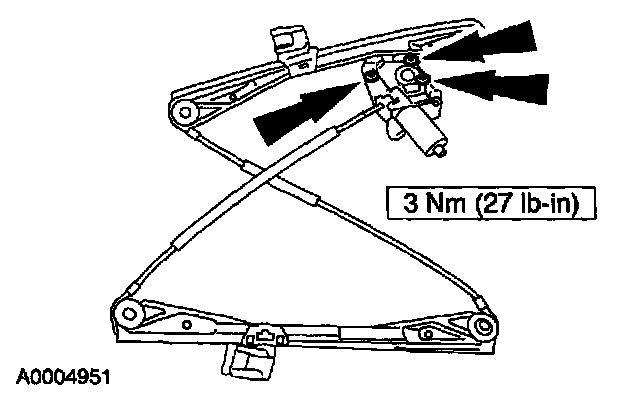

Remove the screws and the motor from the front door window regulator.
INSTALLATION 1.
To install, reverse the removal procedure.
