Home >> Ford >> 2002 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Accessories and Optional Equipment >> General Module >> Testing and Inspection >> Pinpoint Tests >> Front Electronic Module (FEM)

Front Electronic Module (FEM)

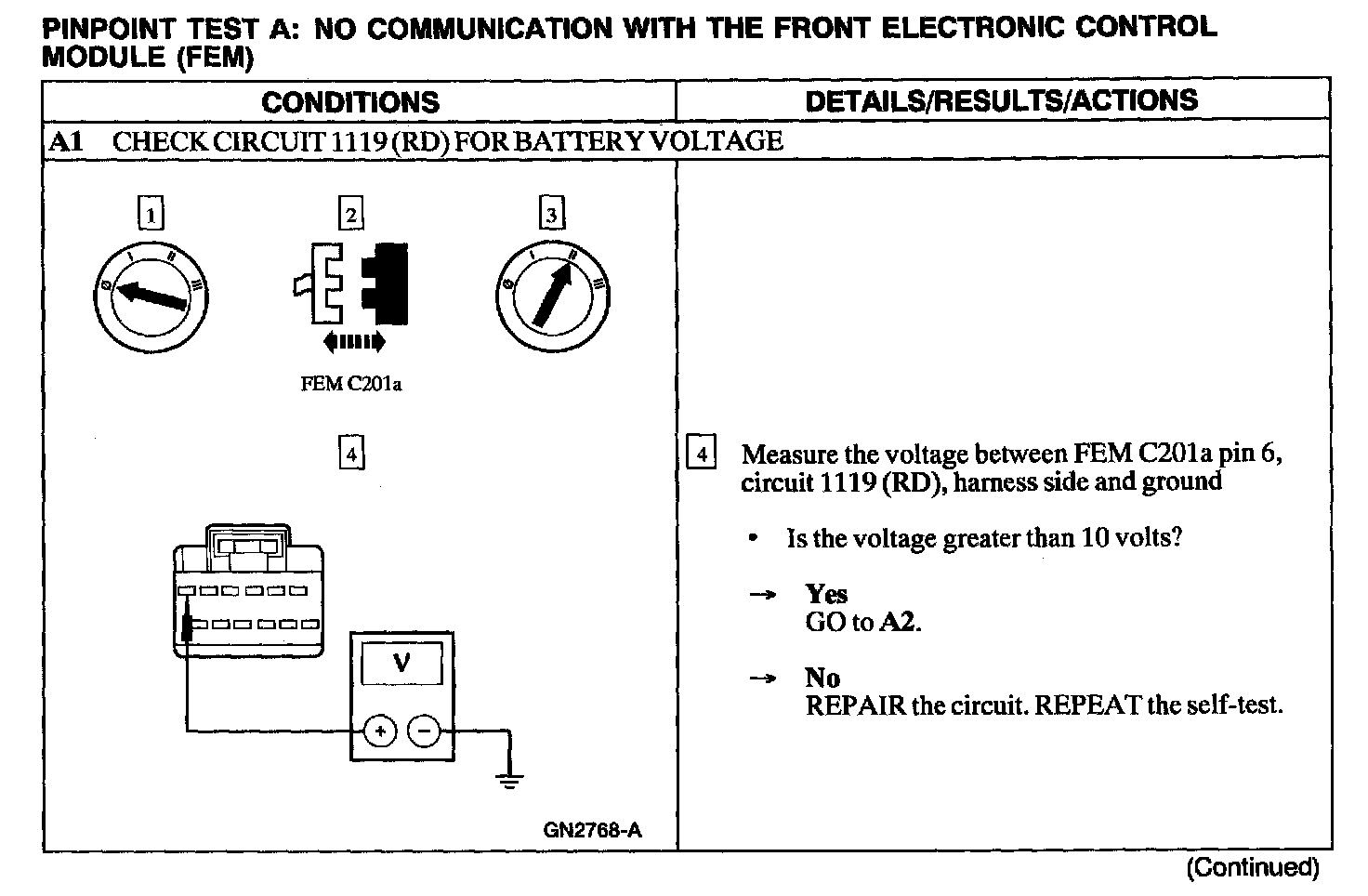

A1:

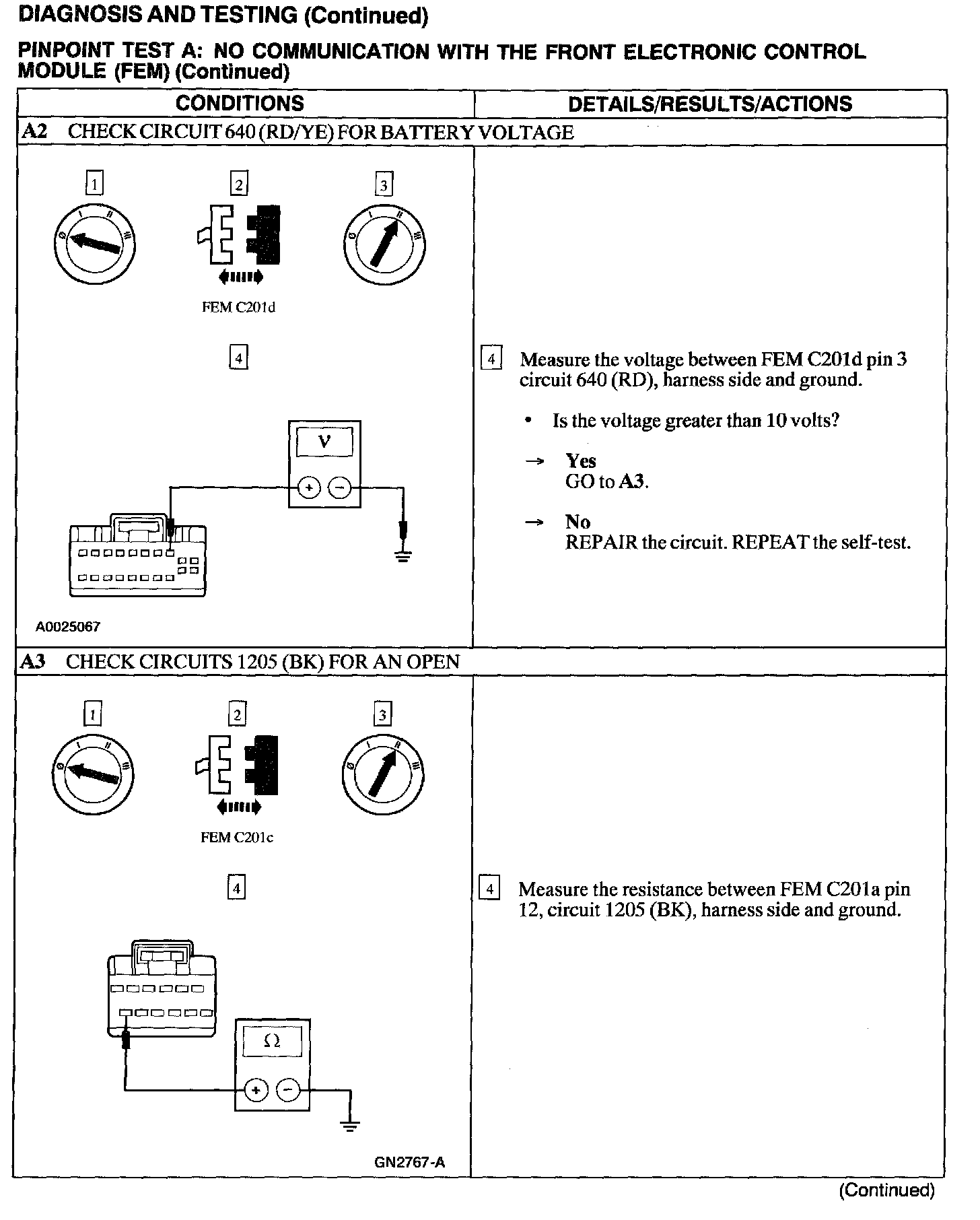

A2 - A3:

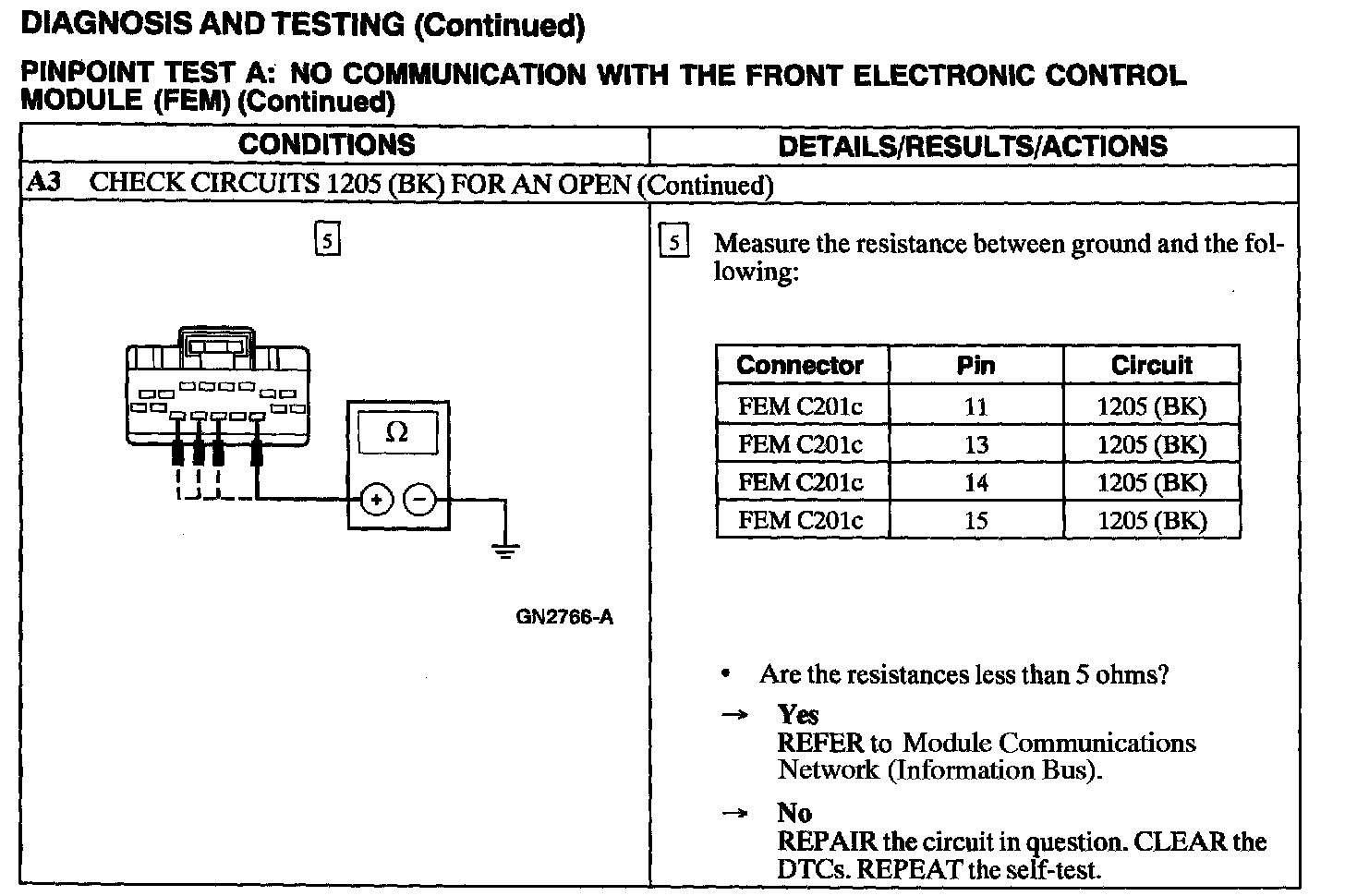

A3:
