Power Seat Switch: Service and Repair
Special Tool(s):
SPECIAL TOOL(S)
REMOVAL
WARNING:
^ ALWAYS WEAR SAFETY GLASSES WHEN REPAIRING AN AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) VEHICLE AND WHEN HANDLING AN AIR BAG MODULE. THIS WILL REDUCE THE RISK OF INJURY IN THE EVENT OF AN ACCIDENTAL DEPLOYMENT.
^ NEVER PROBE THE CONNECTORS ON THE AIR BAG MODULE. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT, WHICH CAN RESULT IN PERSONAL INJURY.
Vehicles with side air bags
1. Prepare the vehicle for seat control switch removal.
1 Disconnect the battery ground cable and wait at least one minute.
WARNING: TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY FRONT OR SIDE AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS AND BEFORE SERVICING, REPLACING, ADJUSTING OR STRIKING COMPONENTS NEAR THE FRONT OR SIDE AIR BAG SENSORS, SUCH AS DOORS, INSTRUMENT PANEL, CONSOLE, DOOR LATCHES, STRIKERS, SEATS AND HOOD LATCHES.
PLEASE REFER TO THE APPROPRIATE COMPONENT OR SYSTEM TO DETERMINE LOCATION OF THE FRONT AIR BAG SENSORS.
THE SIDE AIR BAG SENSORS ARE LOCATED AT OR NEAR THE BASE OF THE B-PILLAR.
TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT AT LEAST ONE MINUTE. BE SURE TO DISCONNECT AUXILIARY BATTERIES AND POWER SUPPLIES (IF EQUIPPED).
2 Deactivate the Supplemental Restraint System (SRS).
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION/REACTIVATION PROCEDURE.
3 Remove the affected seat.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SEAT REMOVAL AND INSTALLATION PROCEDURE.
Vehicles without side air bags
2. Remove the affected seat
All vehicles

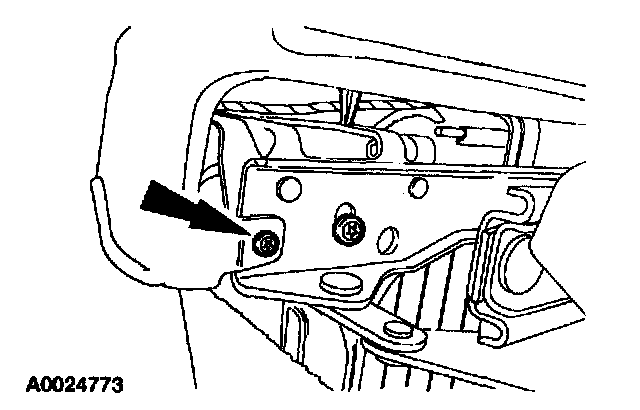

3. Remove the outboard side shield screw.
4. Push in where indicated, lift, and pull out, releasing the retaining clip.

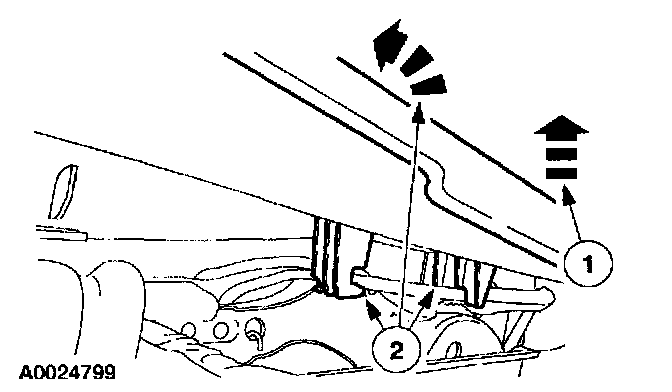

5. Release the outboard side shield retainers
1 Lift and release the retainer.
2 While holding the side shield up, rotate the side shield, disengaging the retainers.

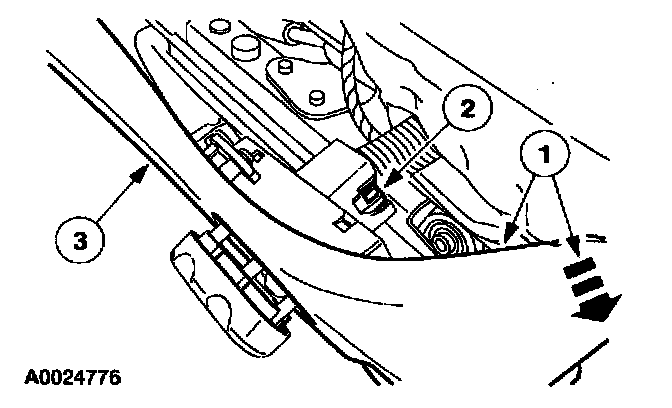

6. Remove the outboard side shield.
1 Using a suitable pin-type retainer removal tool, remove the side shield front retainer (not shown).
2 Disconnect the power seat switch electrical connector.
3 Remove the outboard side shield.

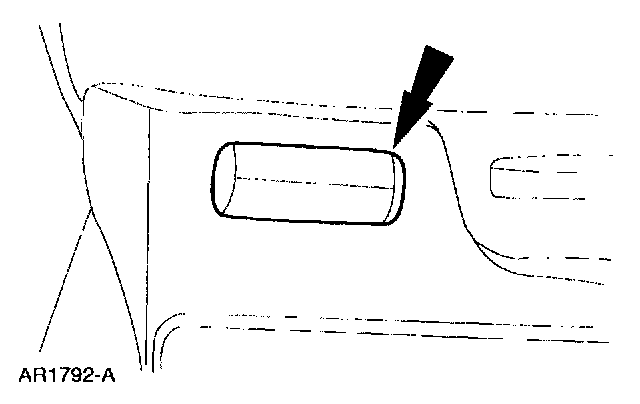

7. Remove the seat control switch knob.

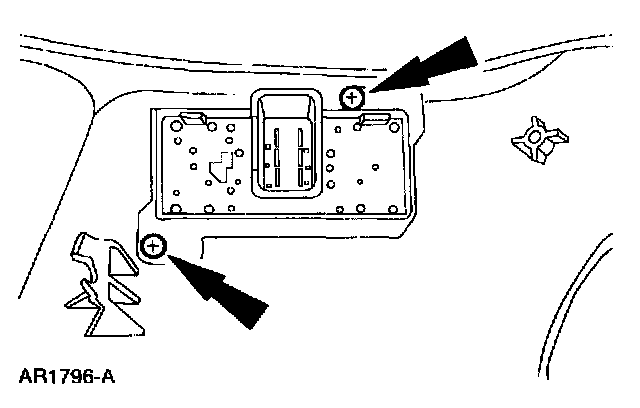

8. Remove the screws and the seat control switch.
INSTALLATION
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, AND NOTES AT THE BEGINNING OF THE REMOVAL PROCEDURE.
All vehicles
1. Position the seat control switch. Install the screws.
2. Install the seat control switch knob.
3. Position the outboard side shield.
1 Connect the power seat switch electrical connector.
2 Install the outboard side shield front retainer (not shown).

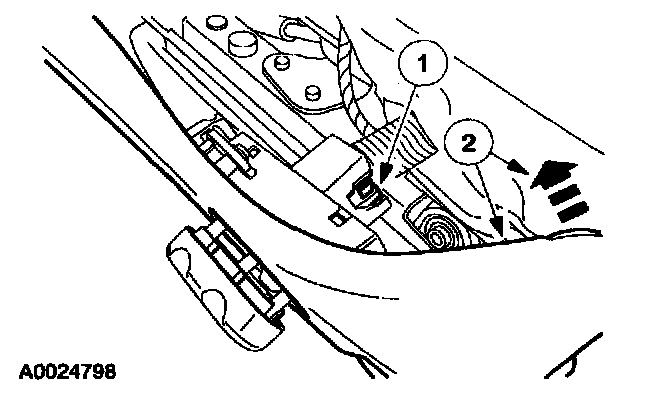

4. Engage the outboard side shield retainers
1 Lift the outboard side shield.
2 While holding the side shield up, rotate the side shield, engaging the retainers.
5. Lift, push in and then down, engaging the side shield retainer.
6. Install the outboard side shield screw.
7. Install the affected seat
^ Check the active restraint system for correct operation.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SEAT REMOVAL AND INSTALLATION PROCEDURE.
Vehicles with side air bags
8. Restore the vehicle to operating condition.
1 Install the affected seat.
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SEAT REMOVAL AND INSTALLATION PROCEDURE.
2 Reactivate the supplemental restraint system (SRS).
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS, NOTES, AND INSTRUCTIONS IN THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION/REACTIVATION PROCEDURE.
3 With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
WARNING: THE RESTRAINT SYSTEM DIAGNOSTIC TOOL IS FOR RESTRAINT SYSTEM SERVICE ONLY. REMOVE FROM THE VEHICLE PRIOR TO ROAD USE. FAILURE TO REMOVE COULD RESULT IN INJURY AND POSSIBLE VIOLATION OF VEHICLE SAFETY STANDARDS.
4 Check the active restraint system for correct operation.
