Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

Removal and Installation
1. Disconnect the battery ground cable.

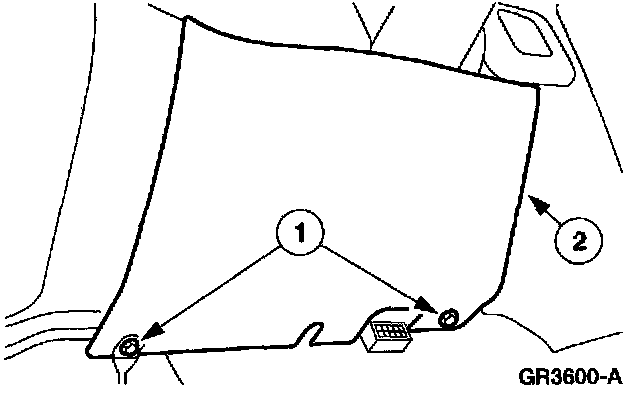

2. Remove the instrument panel lower steering column opening cover.
1 Remove the screws.
2 Remove the instrument panel lower steering column opening cover.

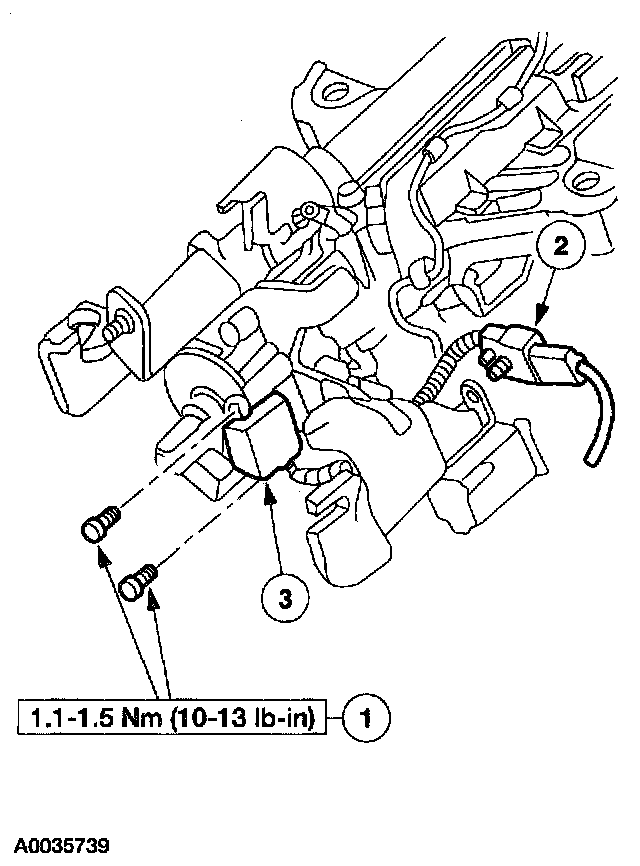

3. Remove the steering wheel rotation sensor.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the steering wheel rotation sensor.
