Automatic Transmission/Transaxle

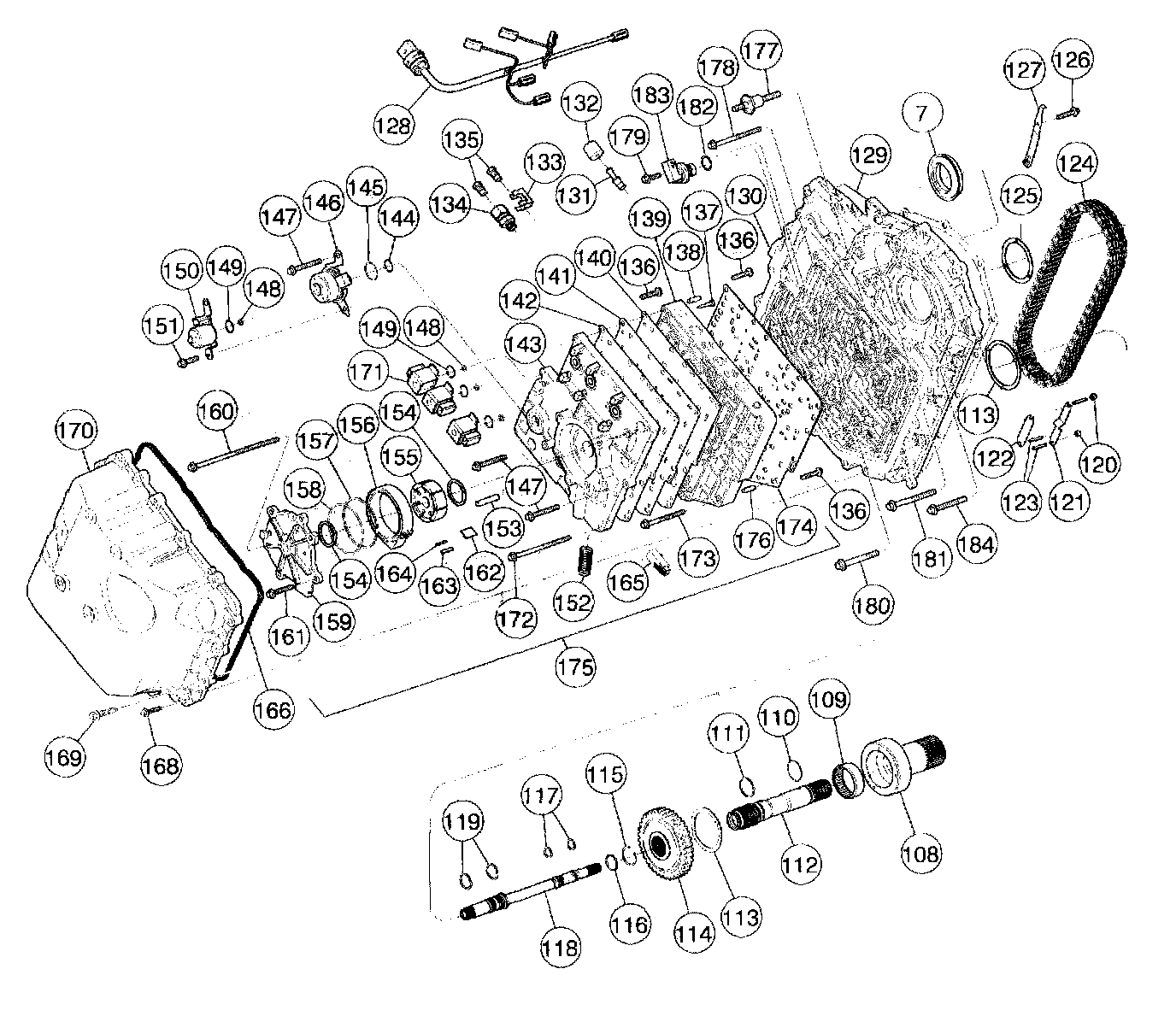

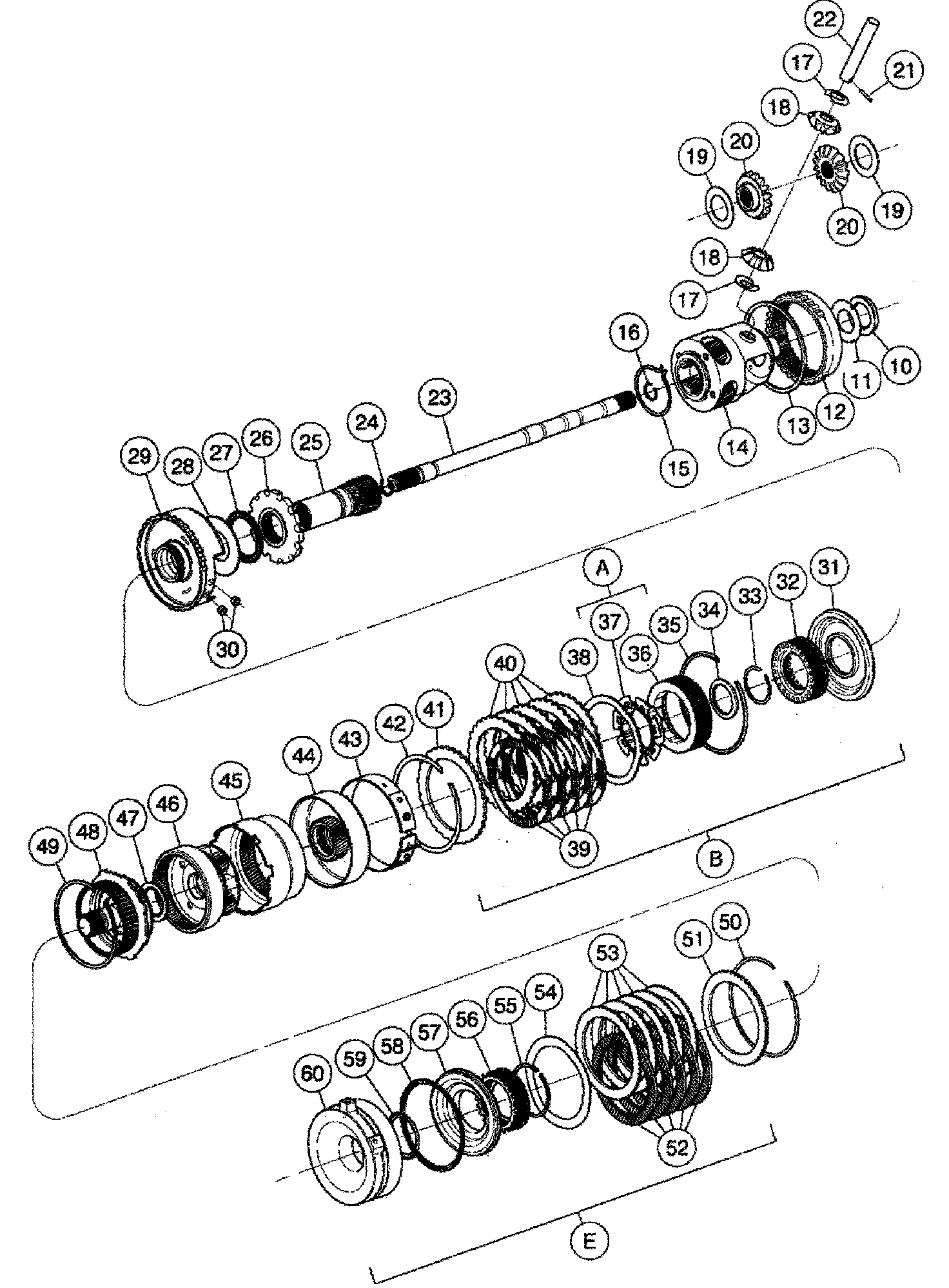

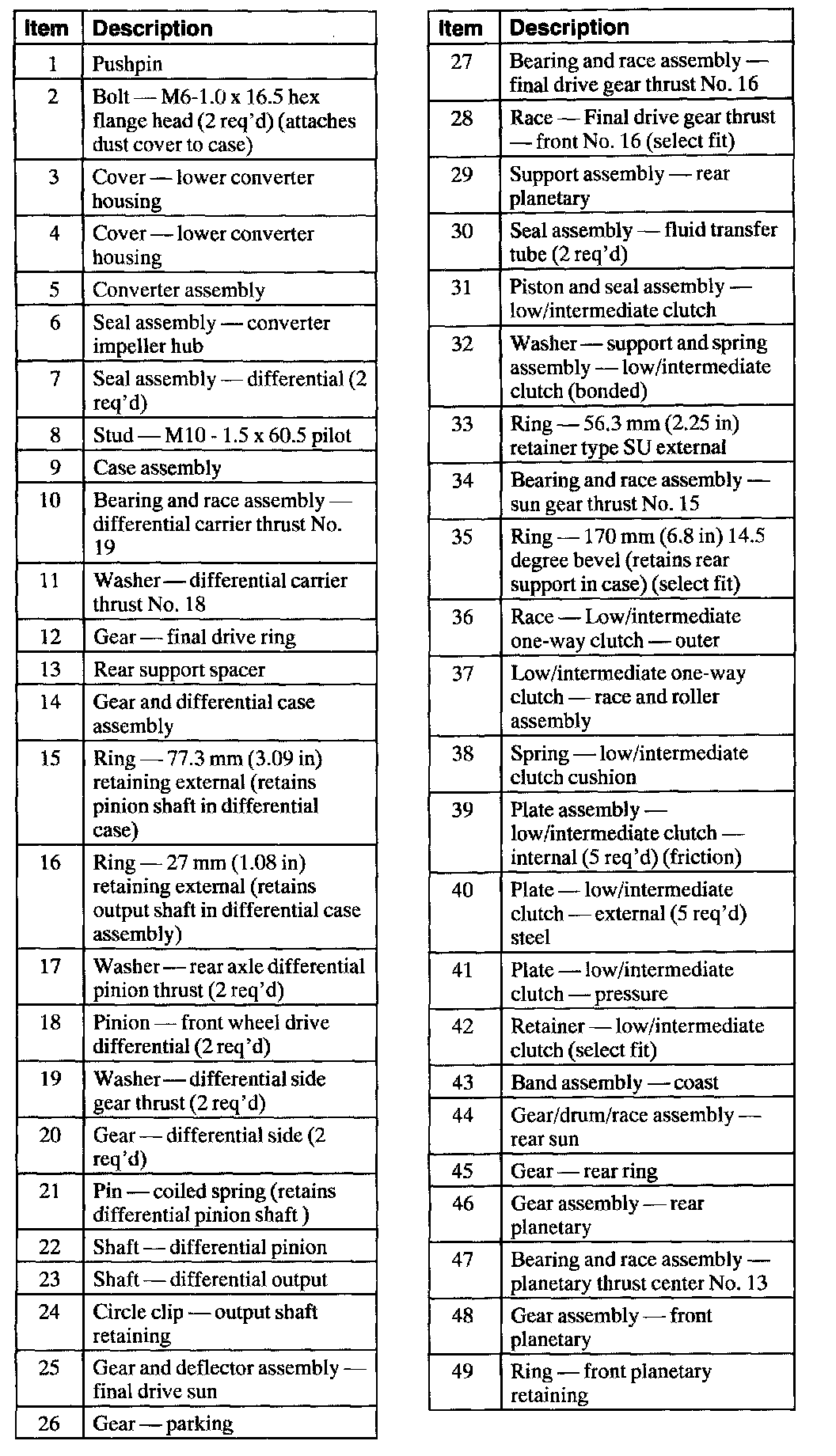

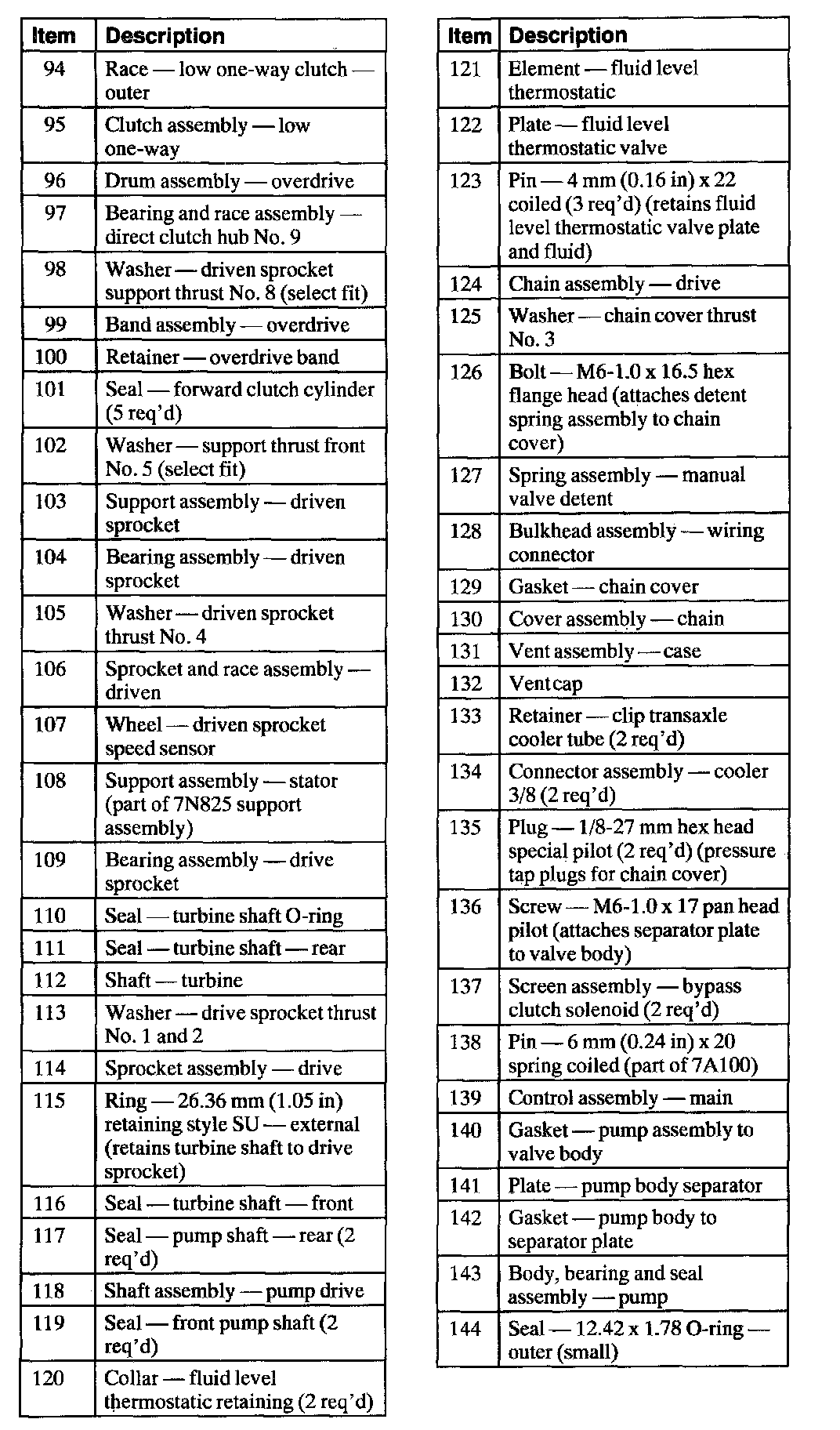

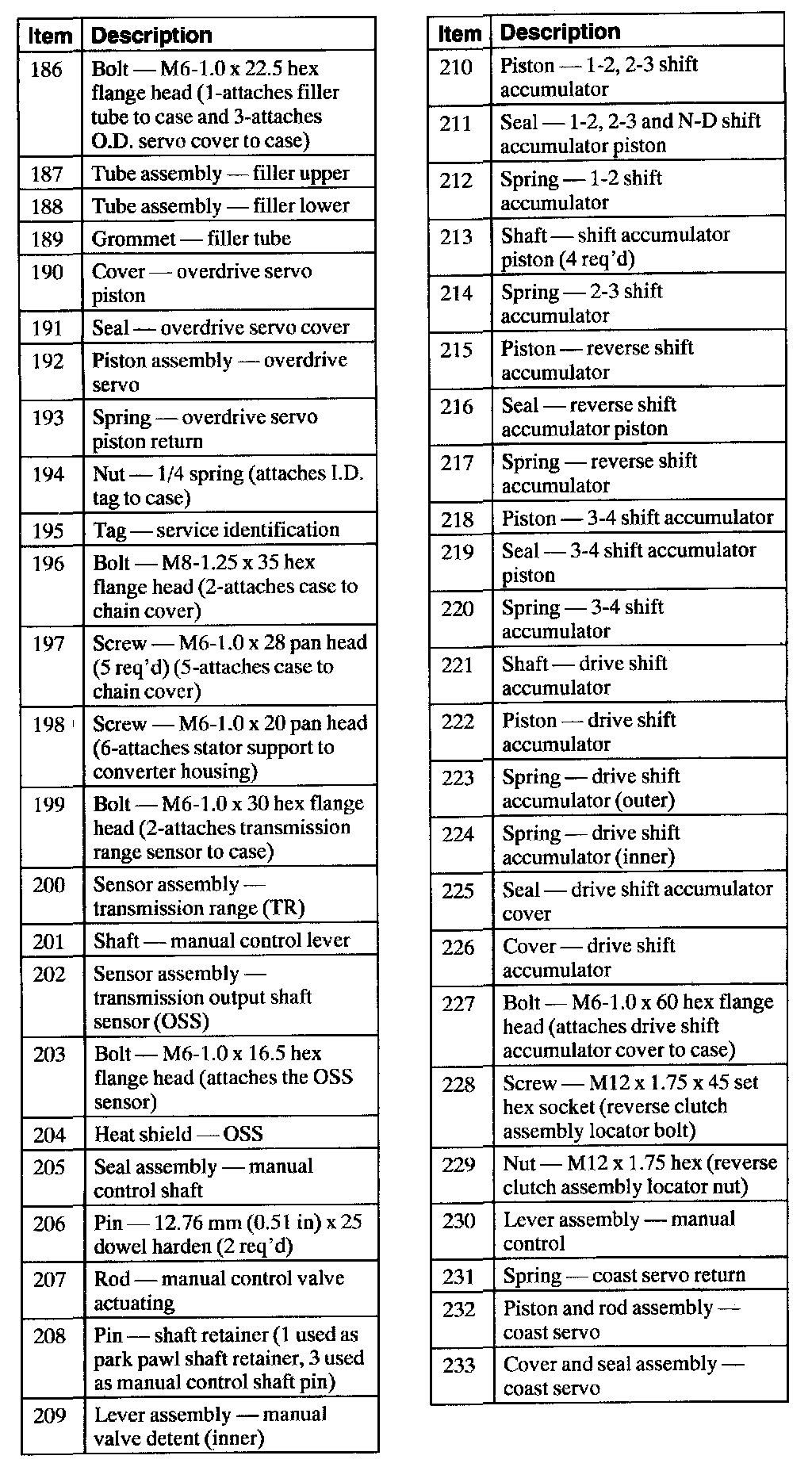

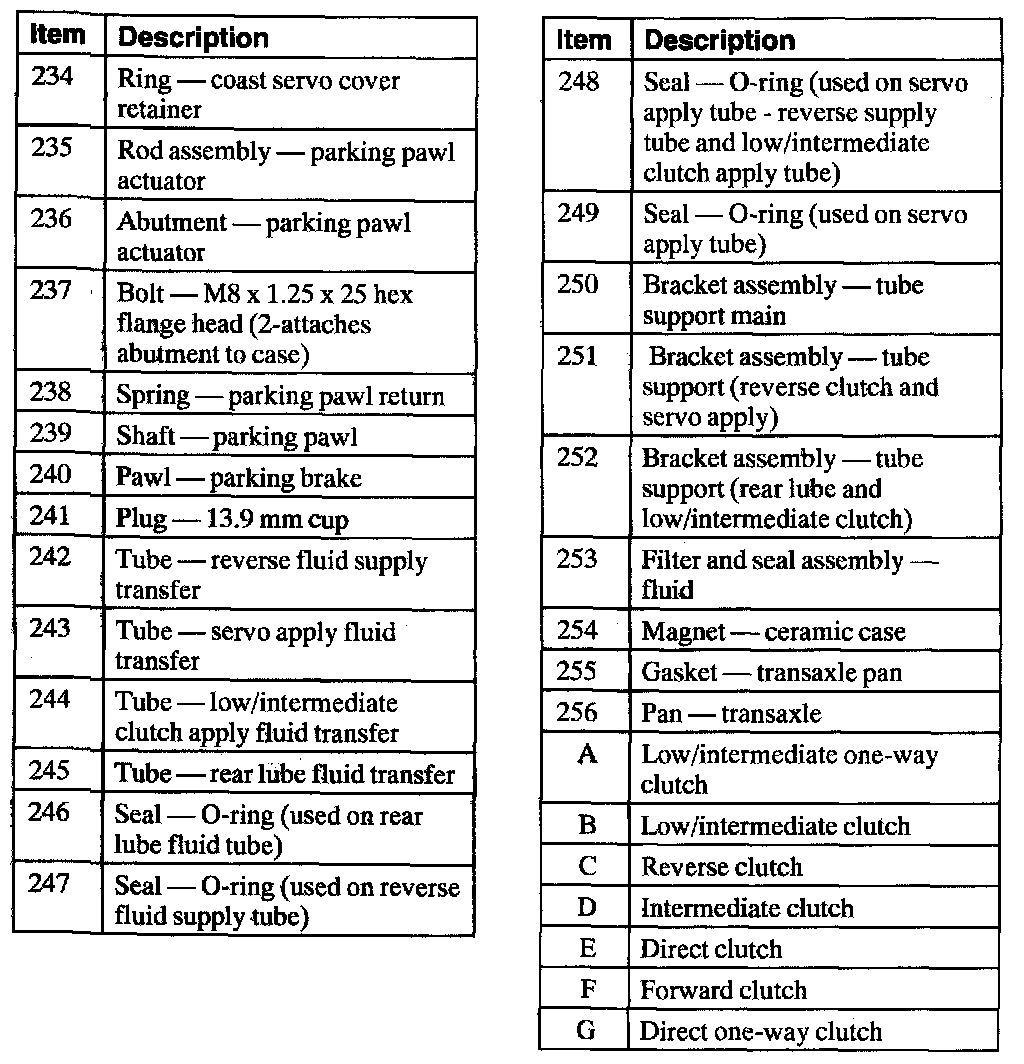

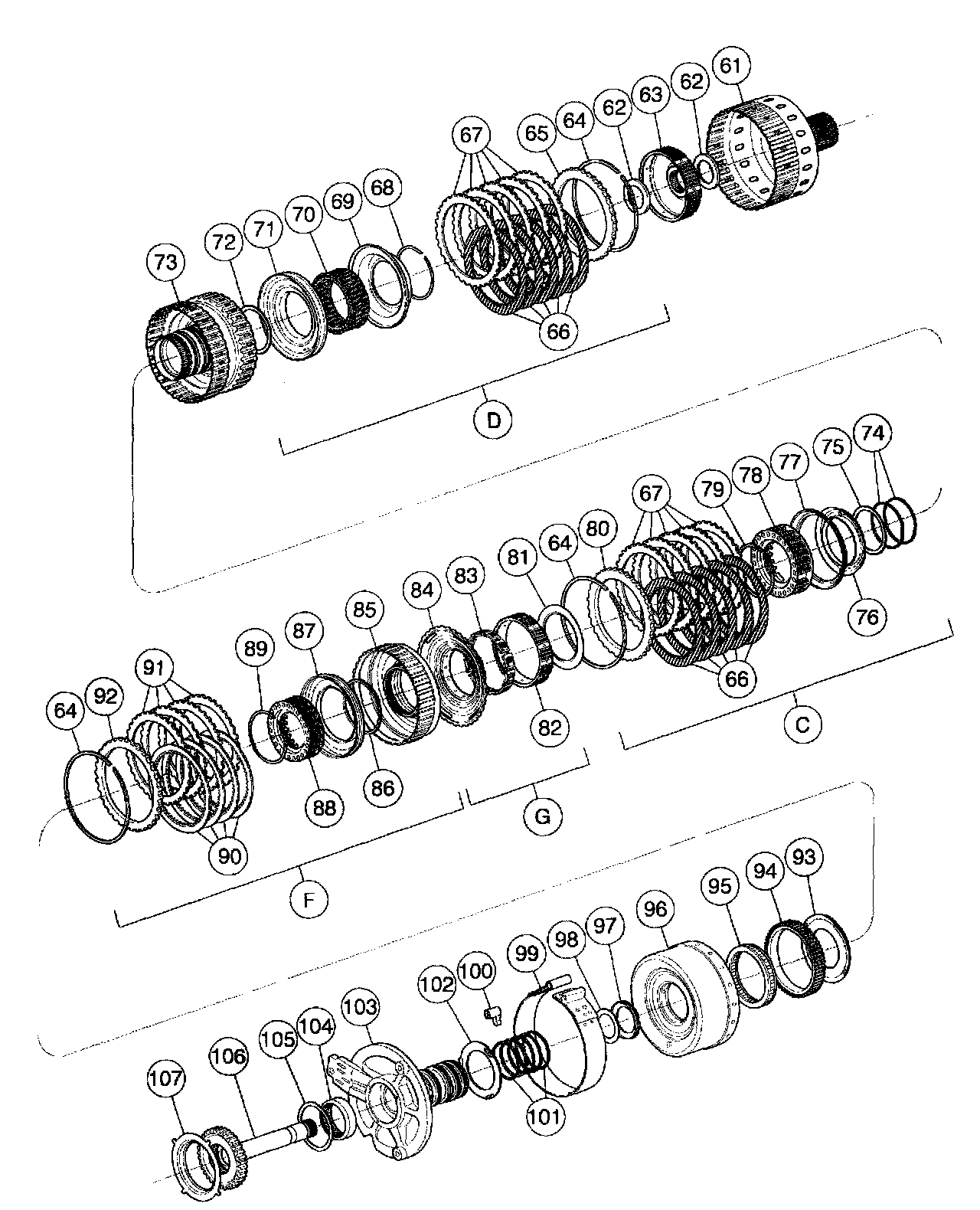

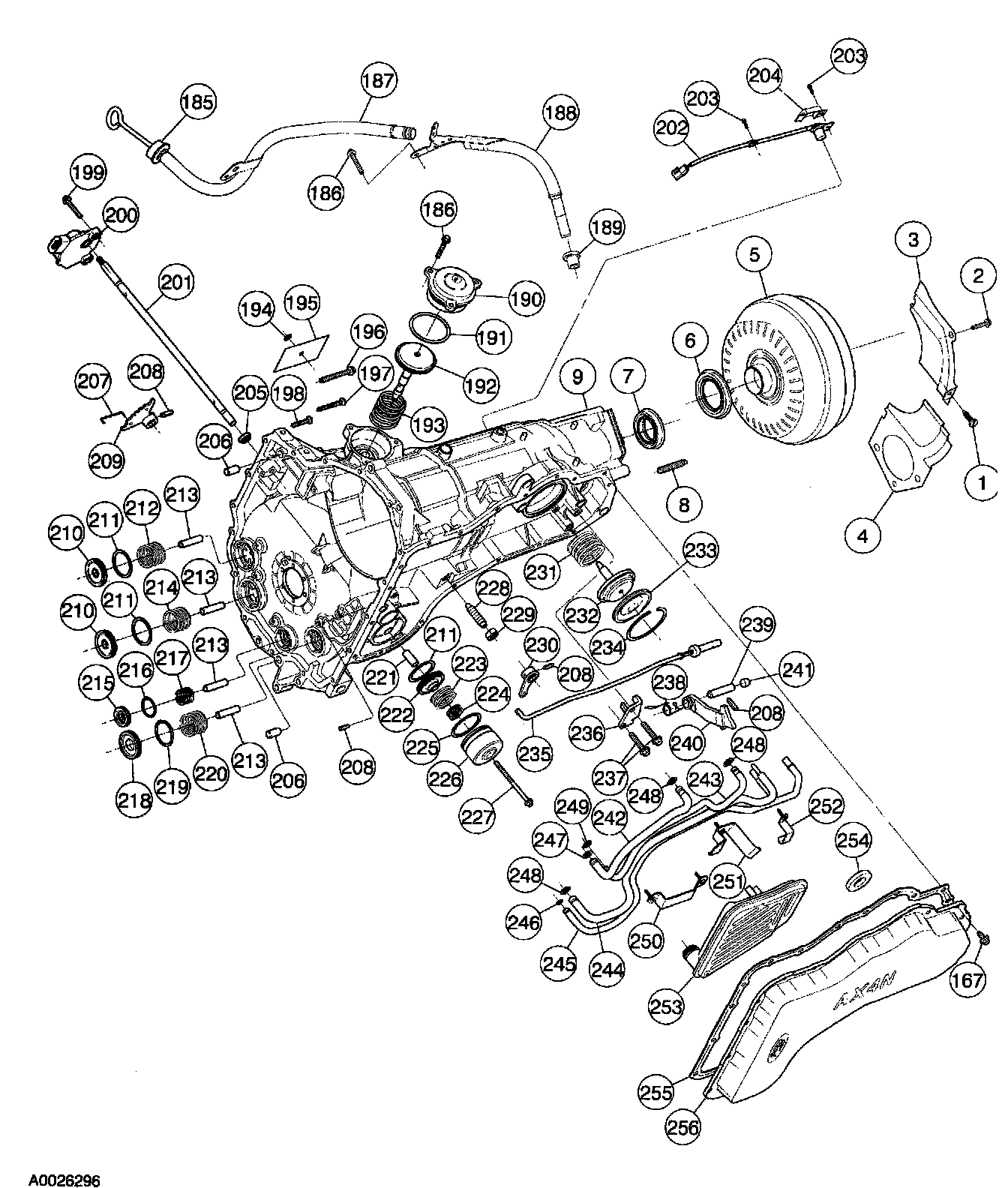

Disassembled Views





Part 1 of 10





Part 2 of 10





Part 3 of 10





Part 4 of 10





Part 5 of 10





Part 6 of 10





Part 7 of 10





Part 8 of 10





Part 9 of 10





Part 10 of 10
