Accumulator HVAC: Service and Repair

REMOVAL
1. Disconnect the battery.
2. Recover the refrigerant.

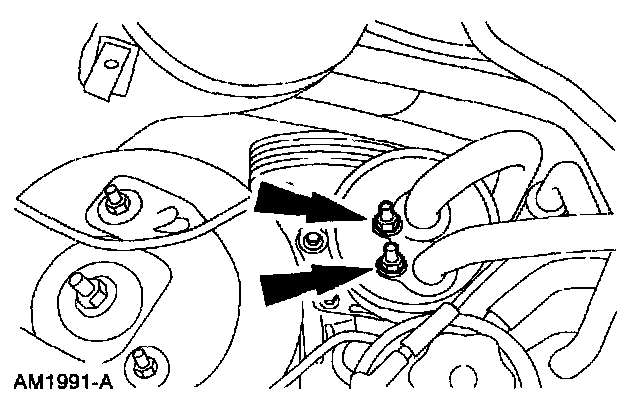

3. Disconnect the fittings.

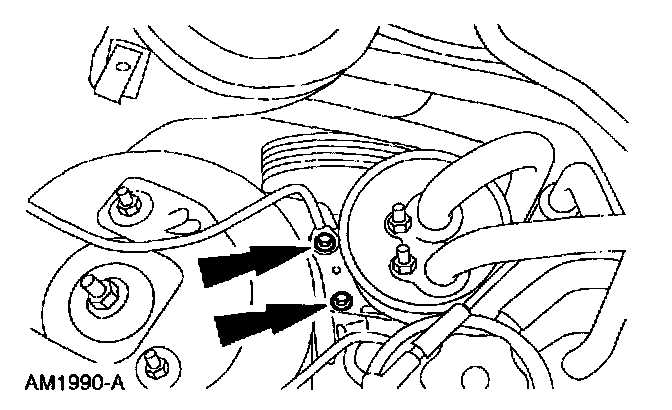

4. Remove the bolts.

INSTALLATION







1. To install, reverse the removal procedure.
^ Fill the new suction accumulator/drier with the correct amount of PAG Compressor Oil (R-134a Systems) or equivalent.
