Auxiliary Climate Control

Auxiliary Climate Control

Resistor-Relay

REMOVAL
1. Remove the trim panels.

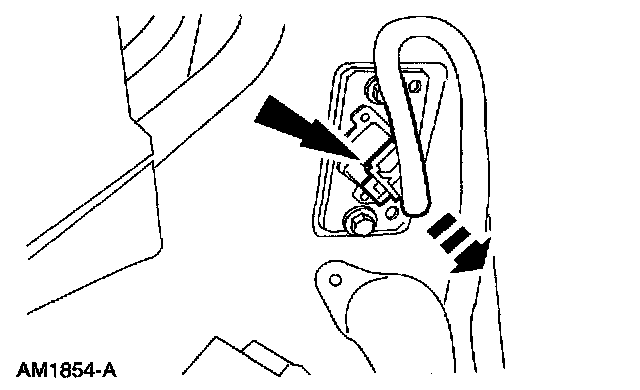

2. Disconnect the heater blower motor switch resistor connector.

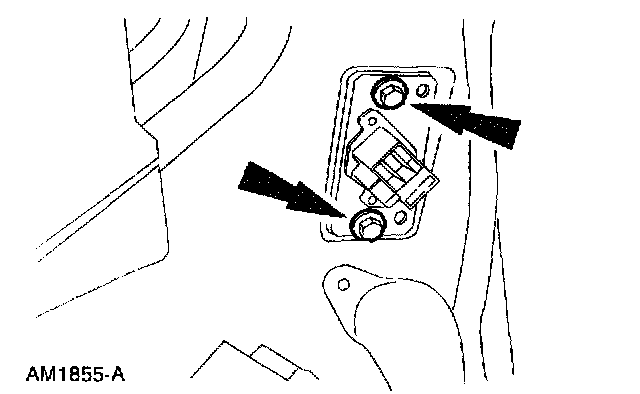

3. Remove the heater blower motor switch resistor.
1 Remove the screws.
2 Remove the heater blower motor switch resistor.

INSTALLATION
1. To install, reverse the removal procedure.
