Auxiliary Climate Control

REMOVAL
1. Disconnect the battery.

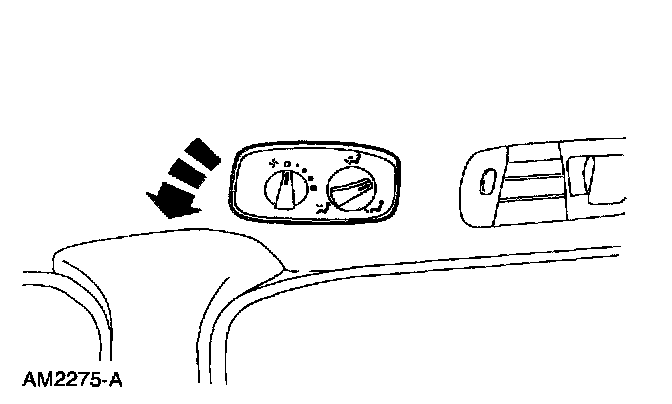

2. Firmly pull down on the control head to release the locks.

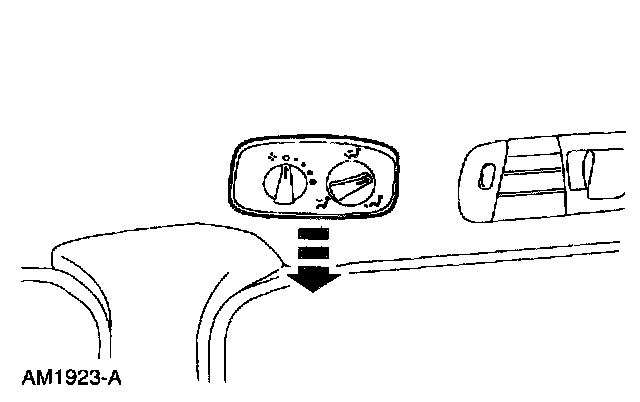

3. Roll the control head out of the headliner.

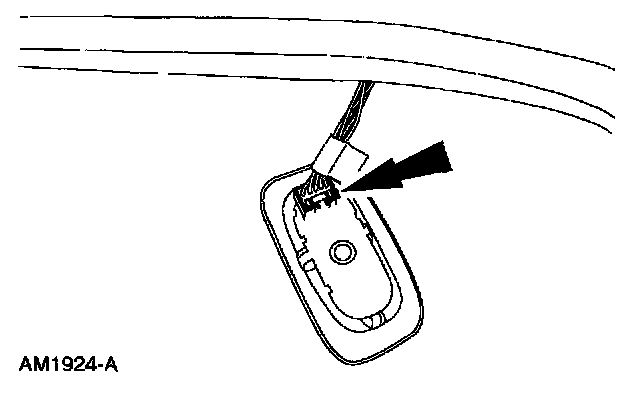

4. Disconnect the electrical connector.

INSTALLATION

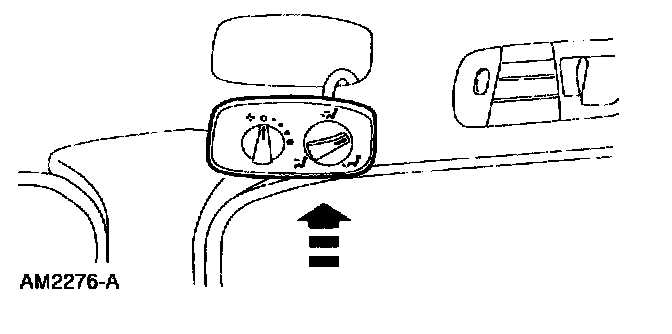

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
