A/C Selector Switch

REMOVAL
1. Remove the control assembly.

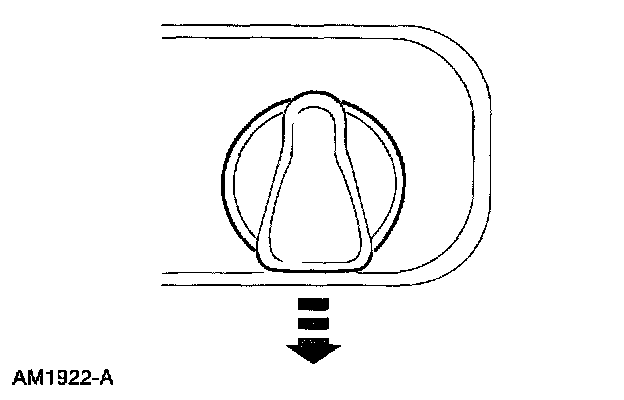

2. Remove the knob.







3. Unsnap the switch.

INSTALLATION
1. To install, reverse the removal procedure.
