A/C Cycling Switch

REMOVAL

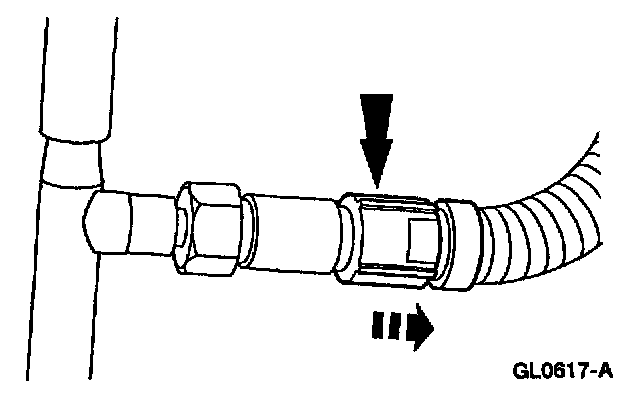

1. Disconnect the A/C cycling pressure switch electrical connector.

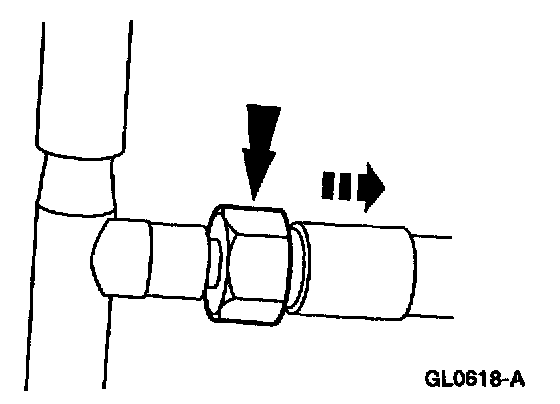

2. Remove the A/C cycling switch.

INSTALLATION

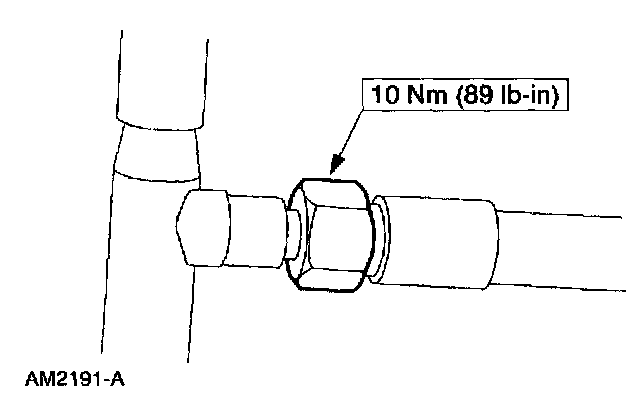

1. To install, reverse the removal procedure.
^ Lubricate the O-ring seal with PAG Compressor Oil (R-134a Systems) or equivalent.
^ CARRY OUT refrigerant system Leak Detection.
