Test F: A/C Does Not Operate or Does Not Operate Correctly
Test F: A/C Does Not Operate or Does Not Operate Correctly

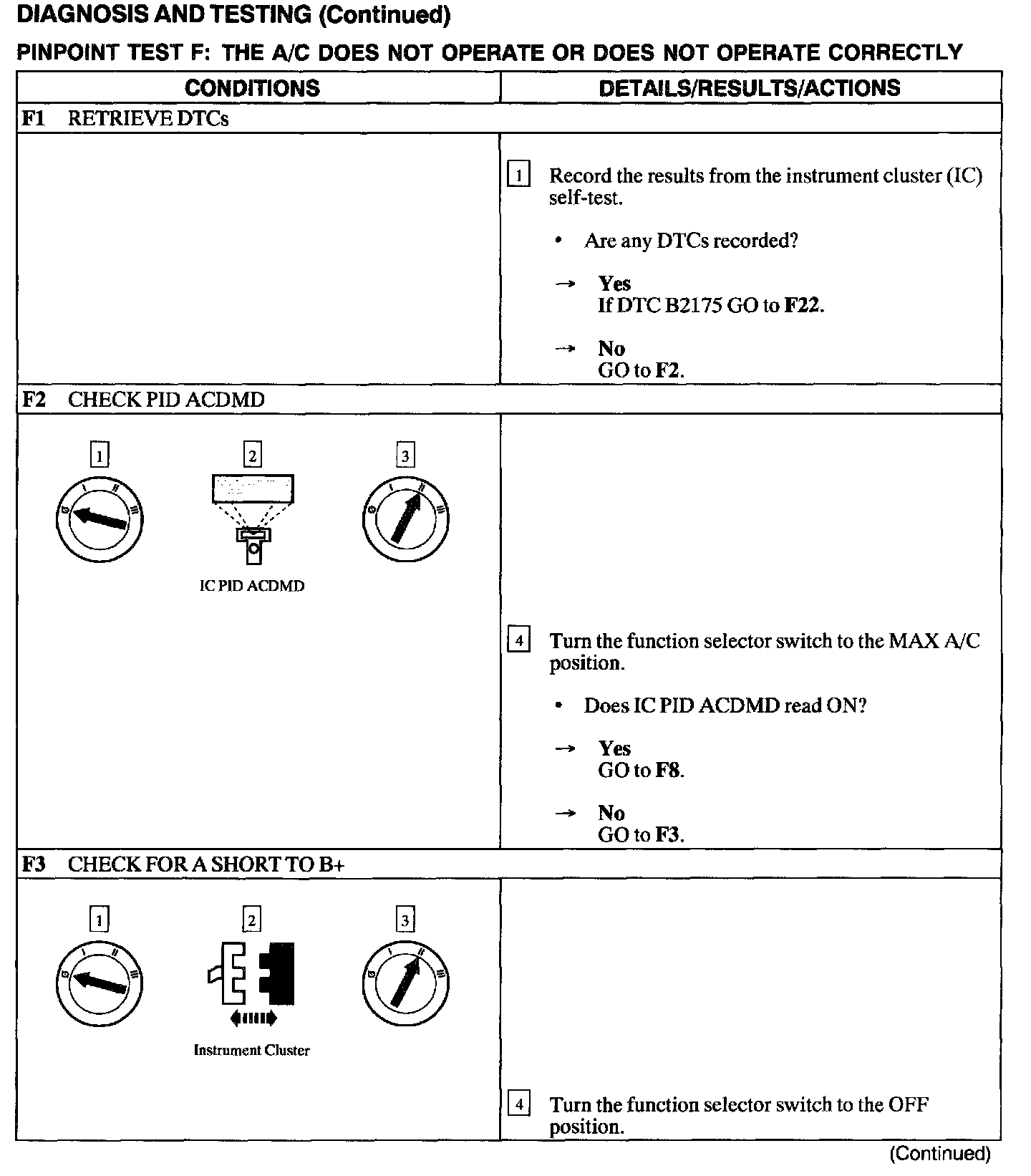

F1 - F3:

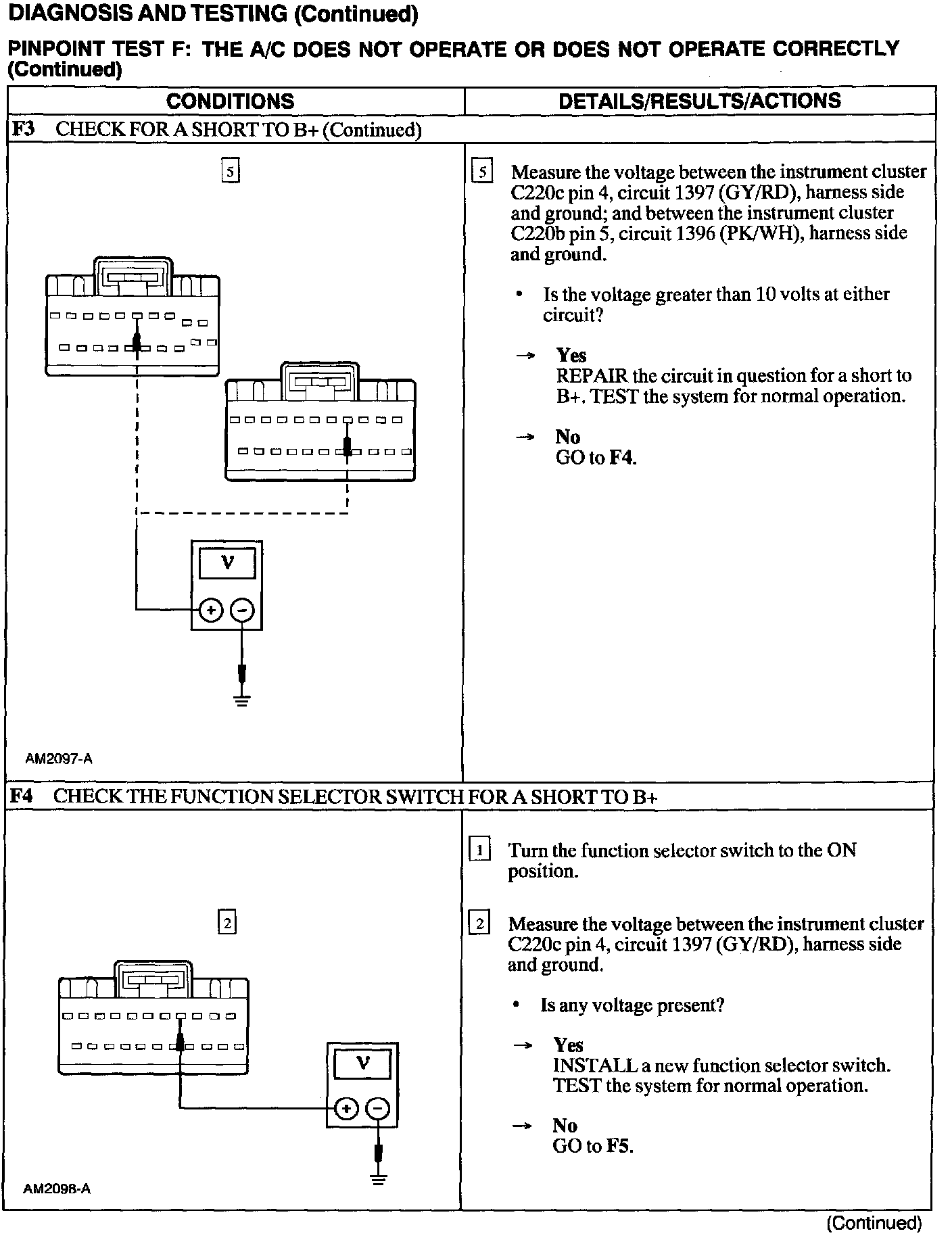

F3 - F4:

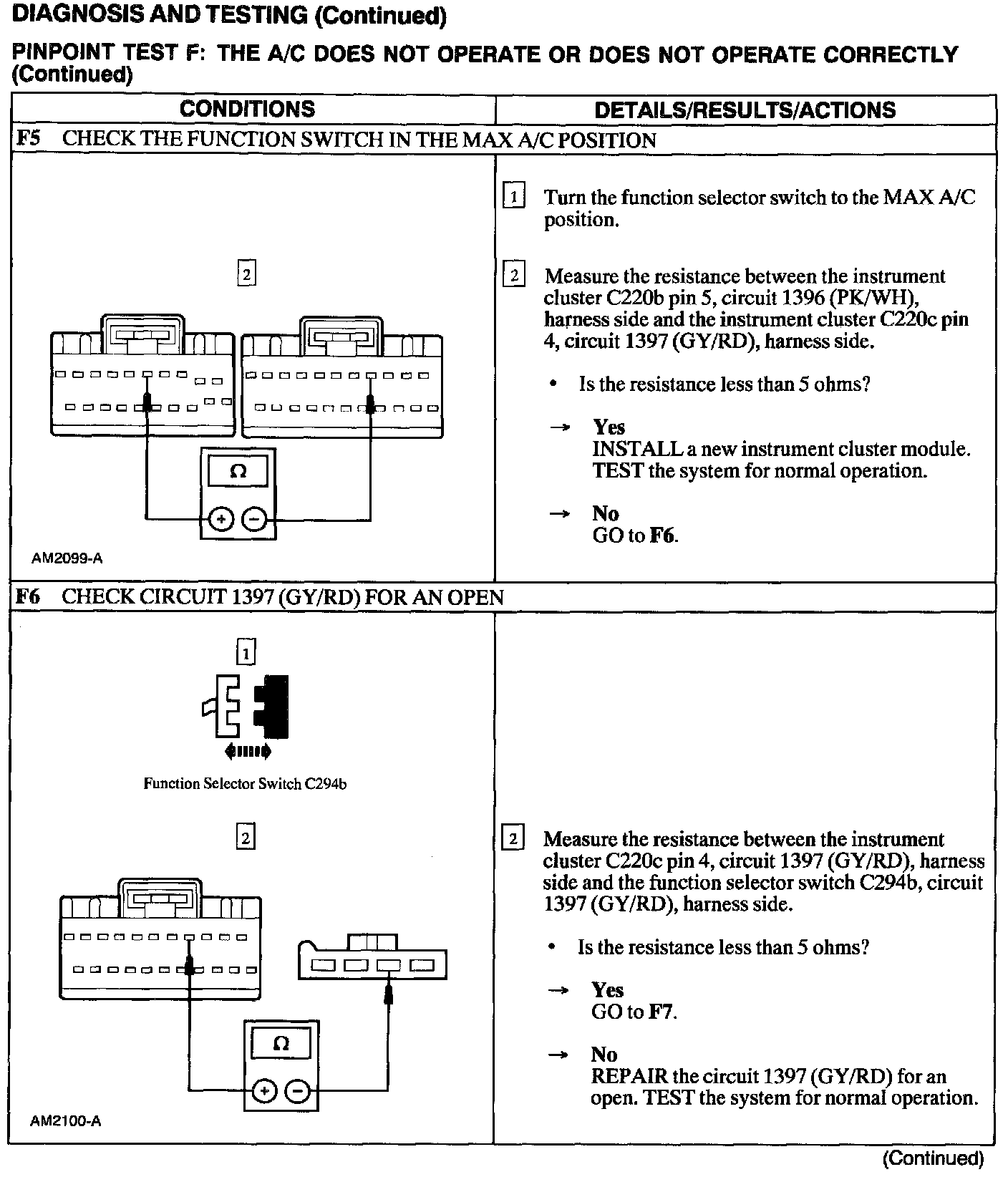

F5 - F6:
F7 - F8:

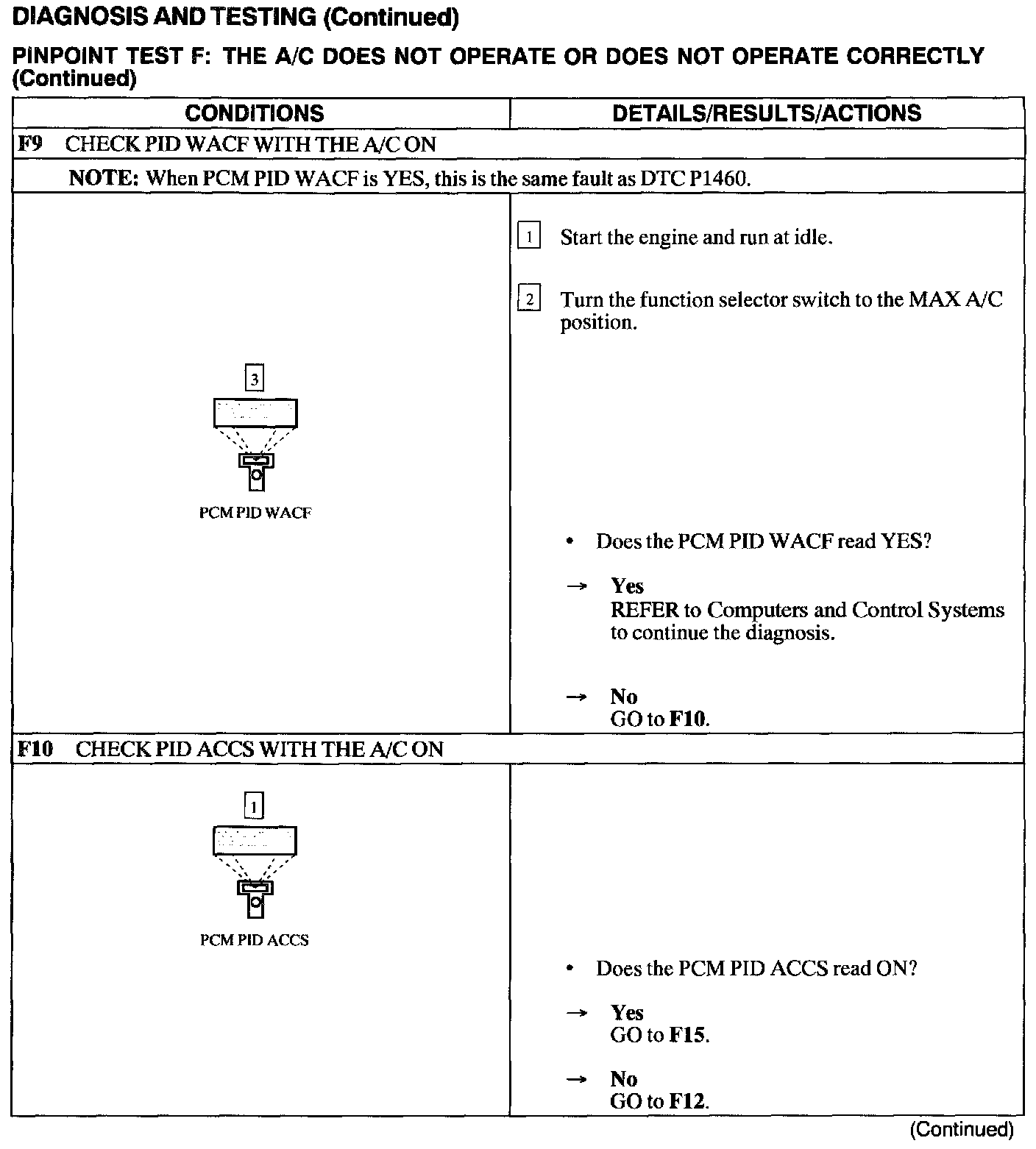

F9 - F10:

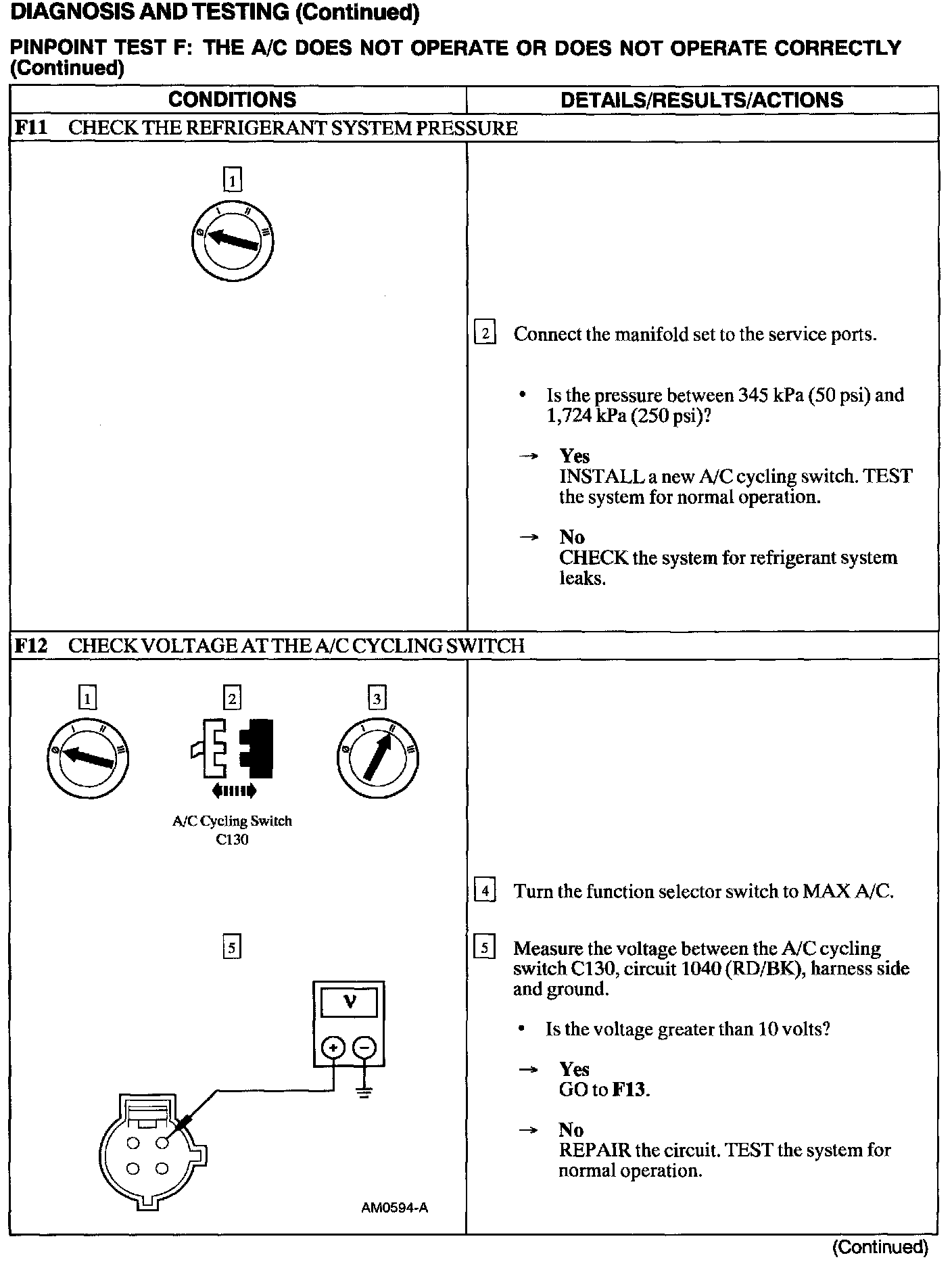

F11 - F12:
F13 - F14:

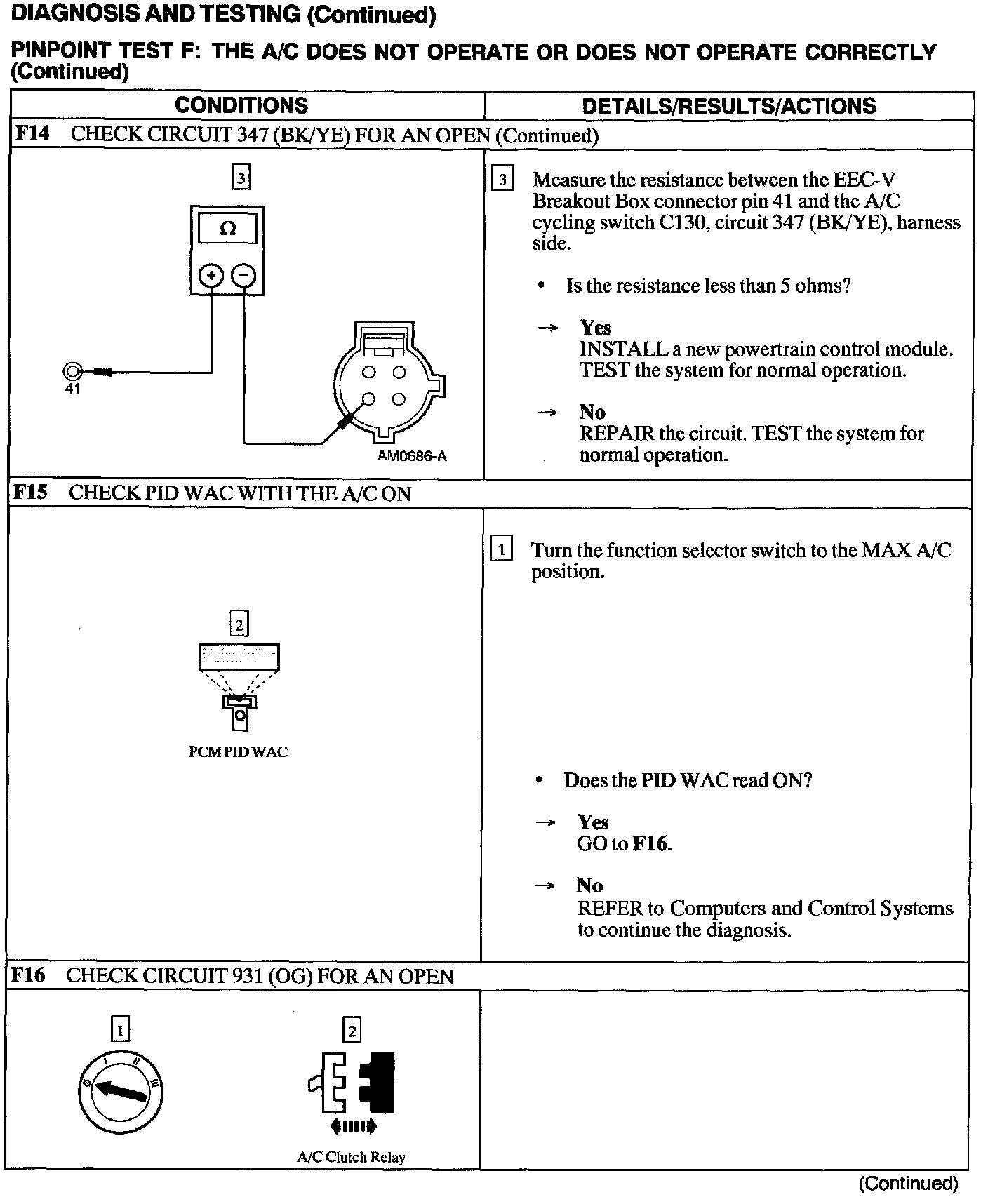

F14 - F16:

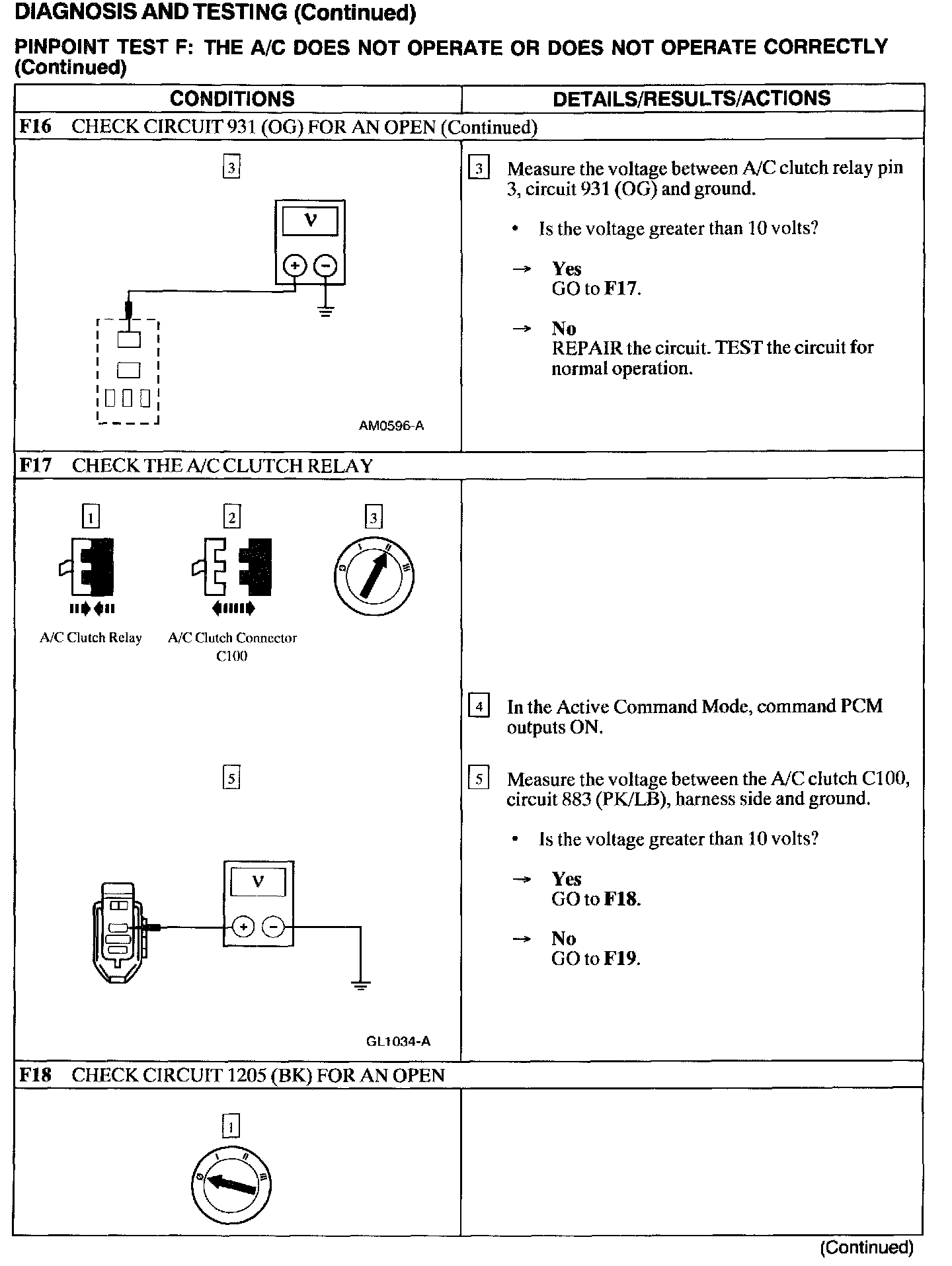

F16 - F18:
F18 - F19:

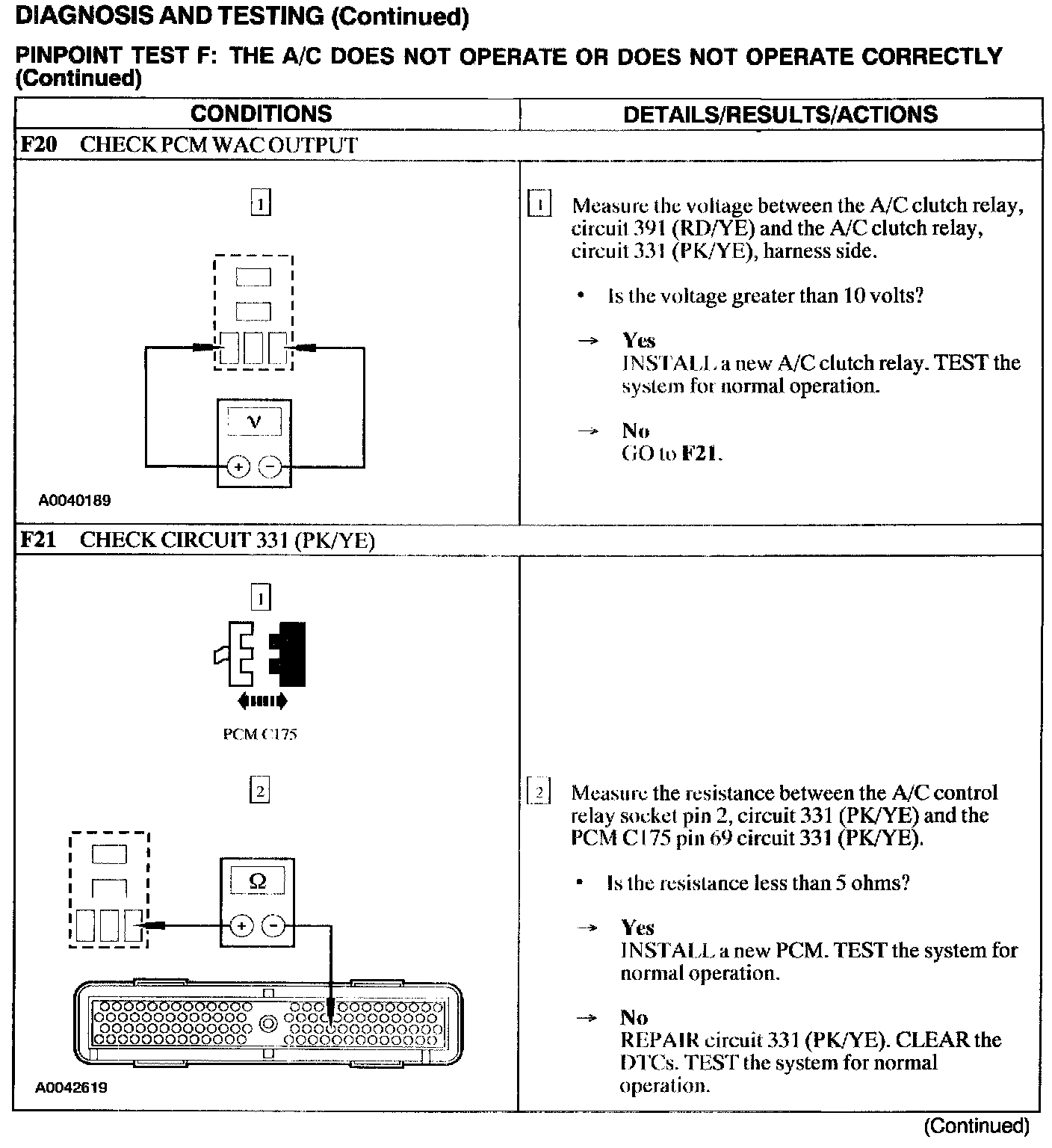

F20 - F21:
F22 - F23:

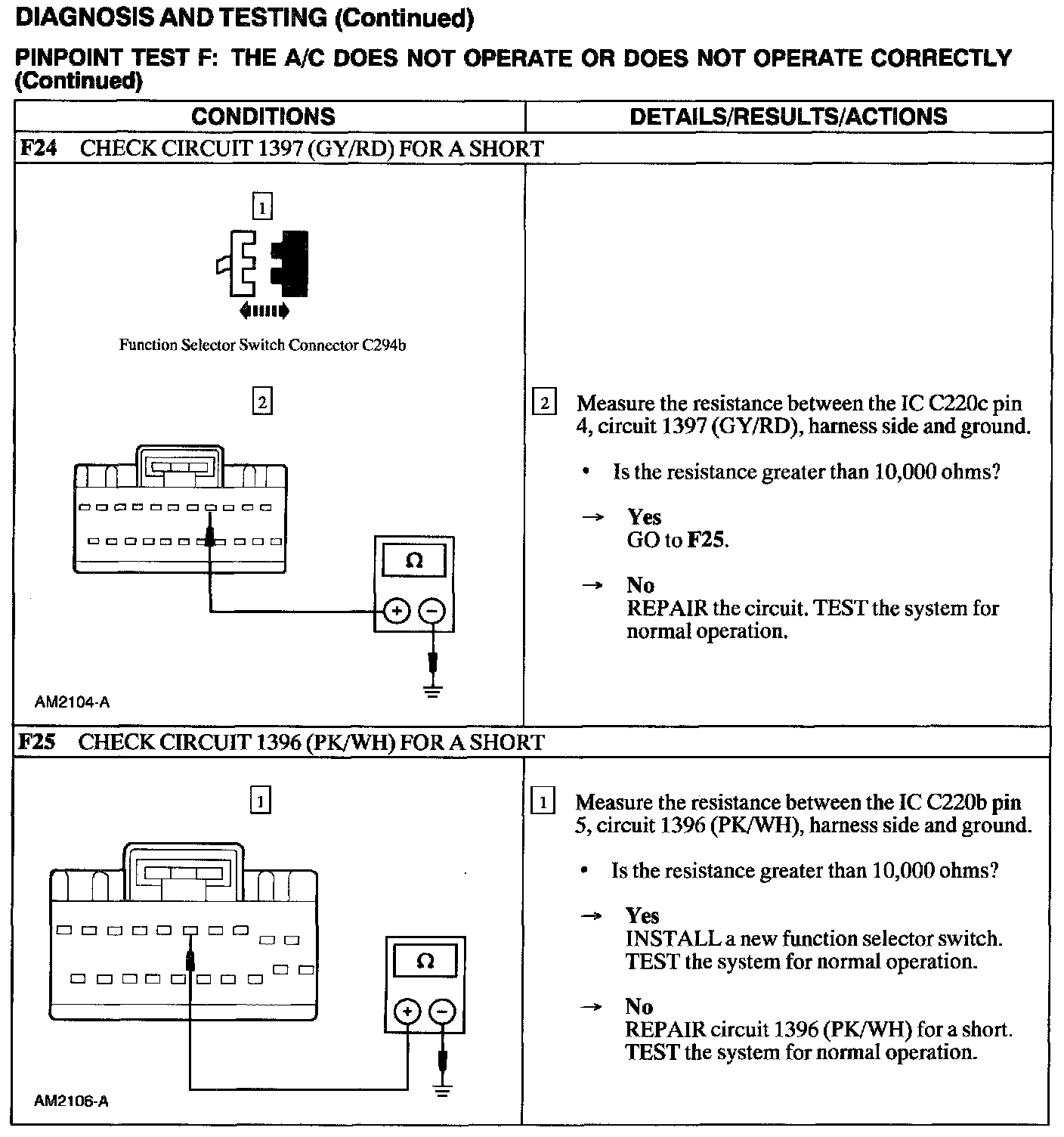

F24 - F25:
