Test P: Panel/Floor Controls Do Not Operate Using Aux. Controls
Test P: Panel/Floor Controls Do Not Operate Using Aux. Controls

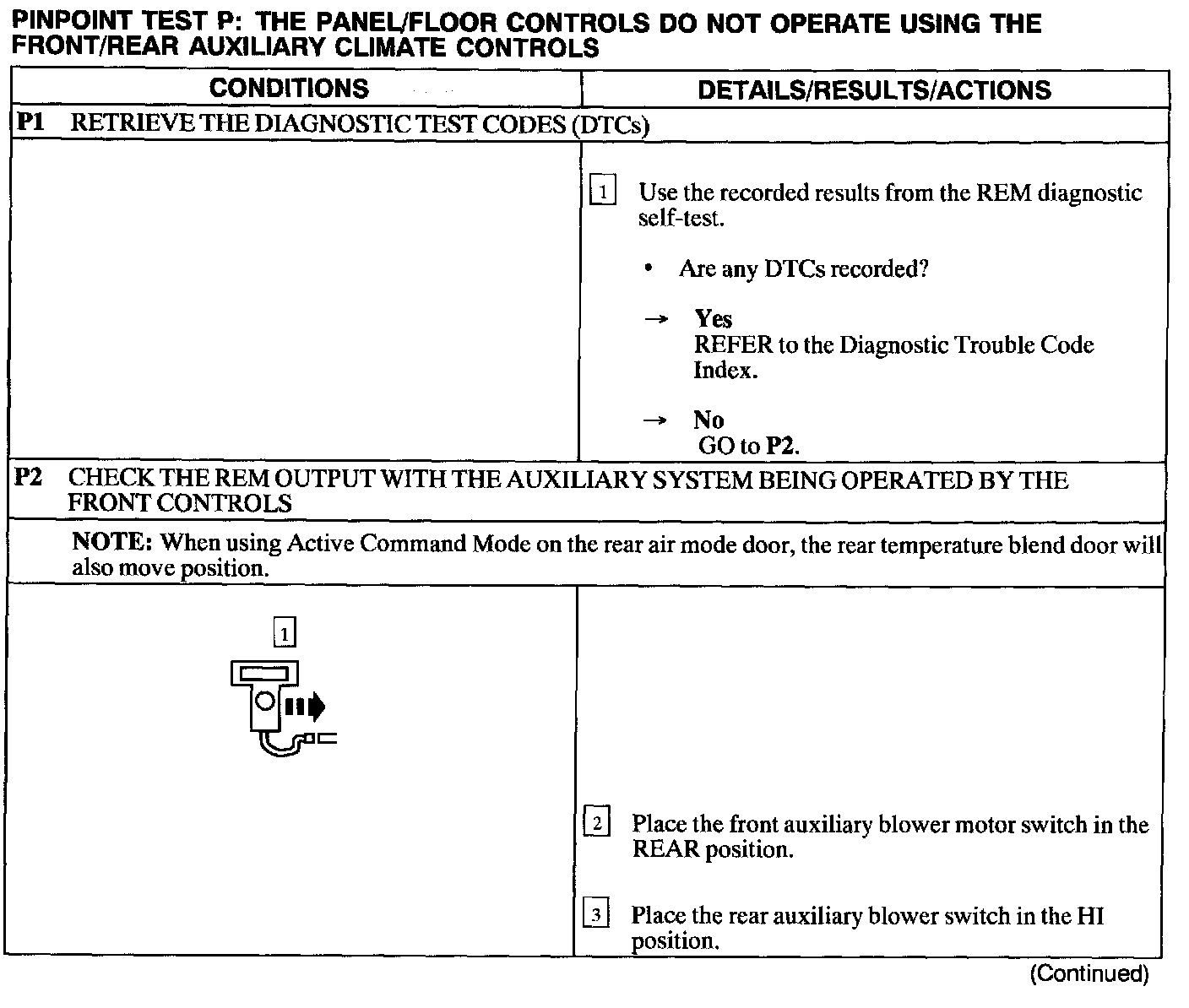

P1 - P2:

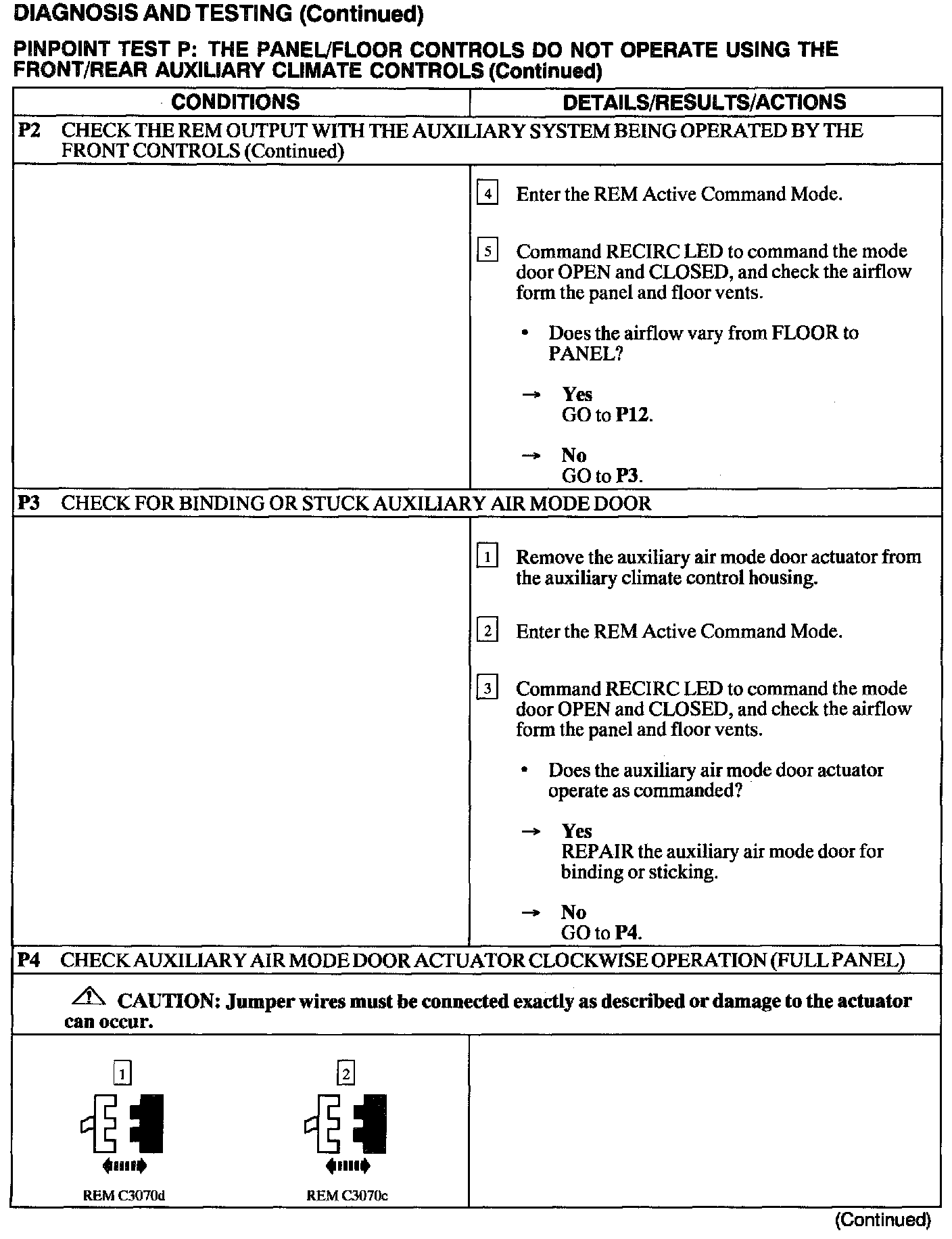

P2 - P4:
P4 - P5:

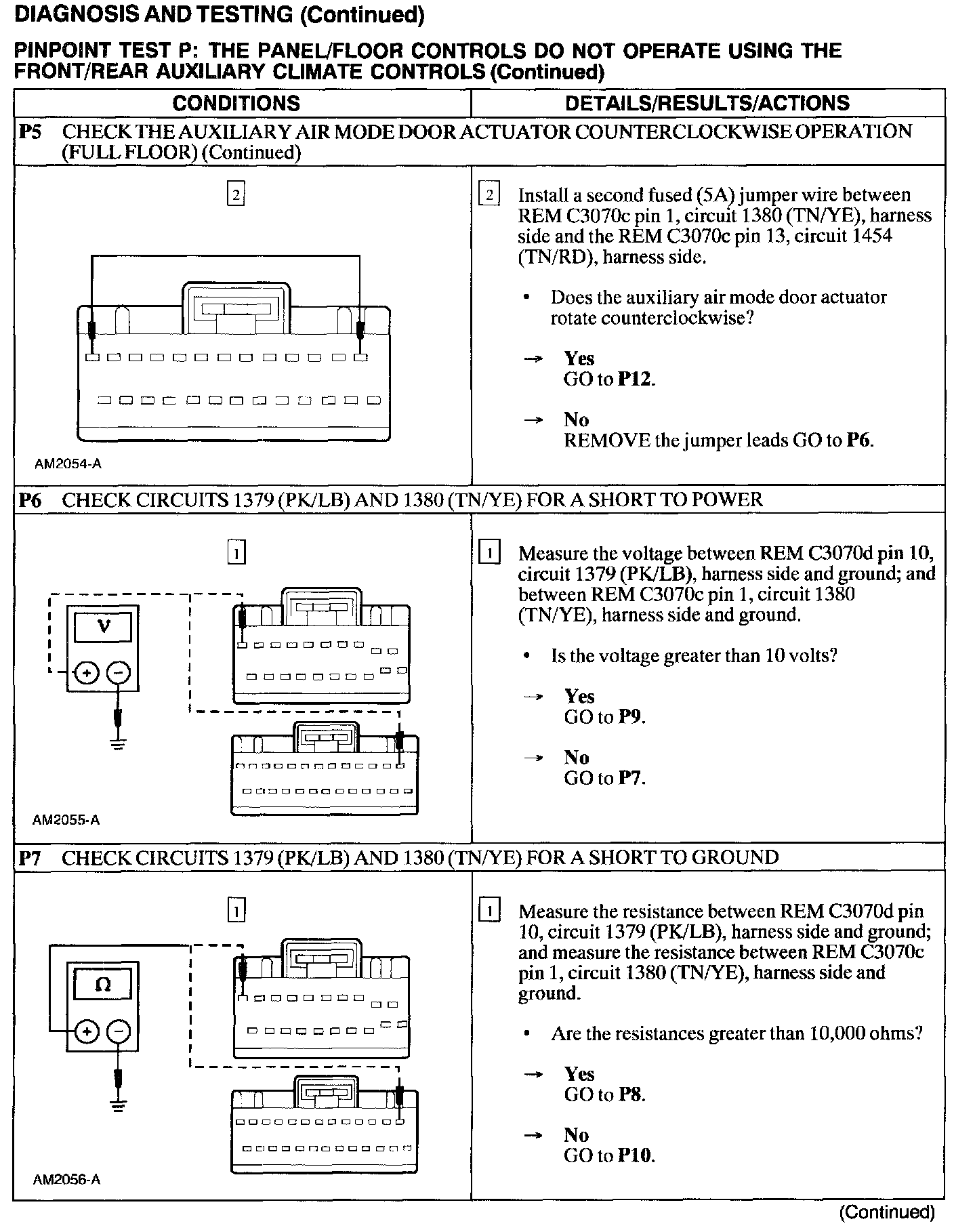

P5 - P7:

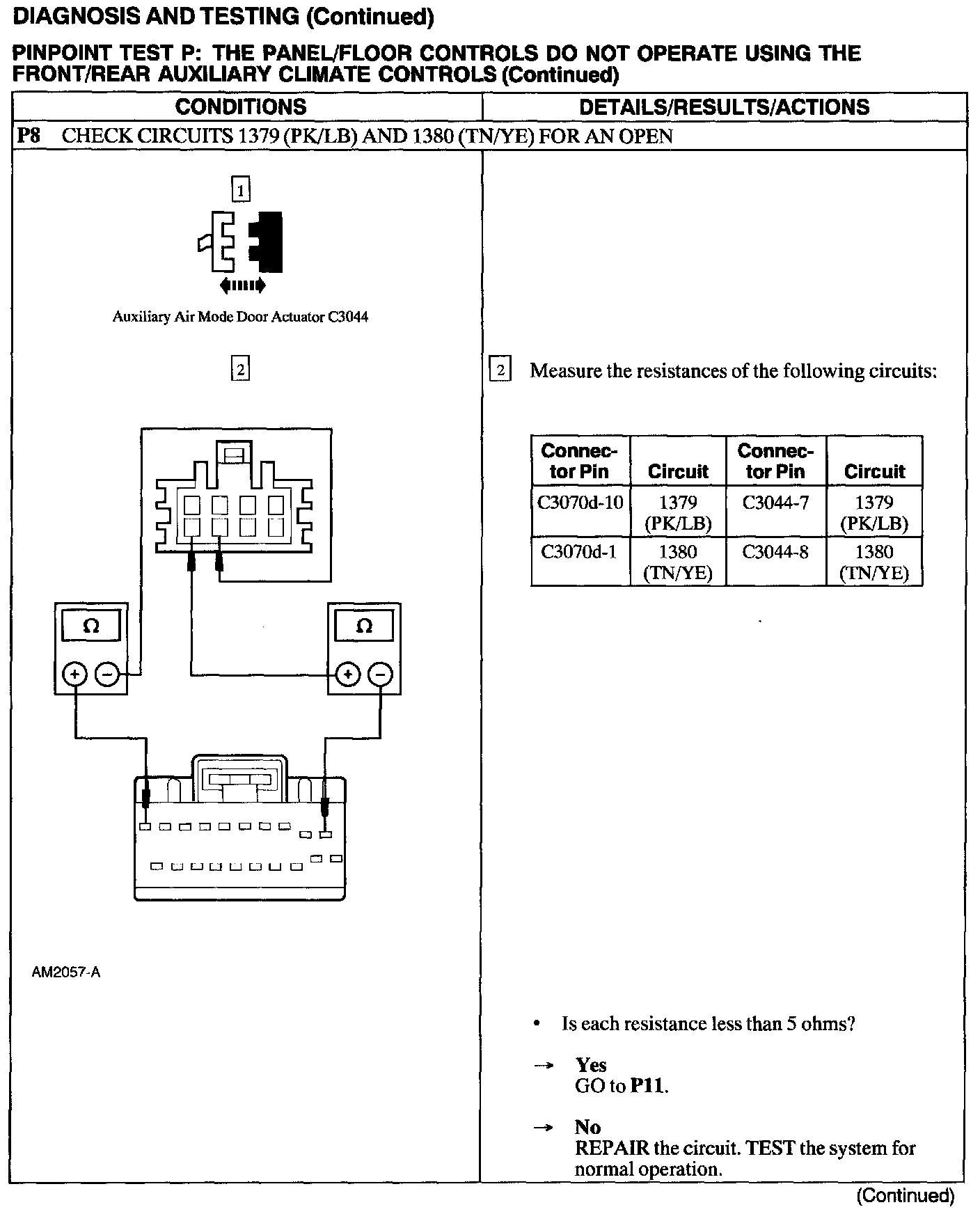

P8:

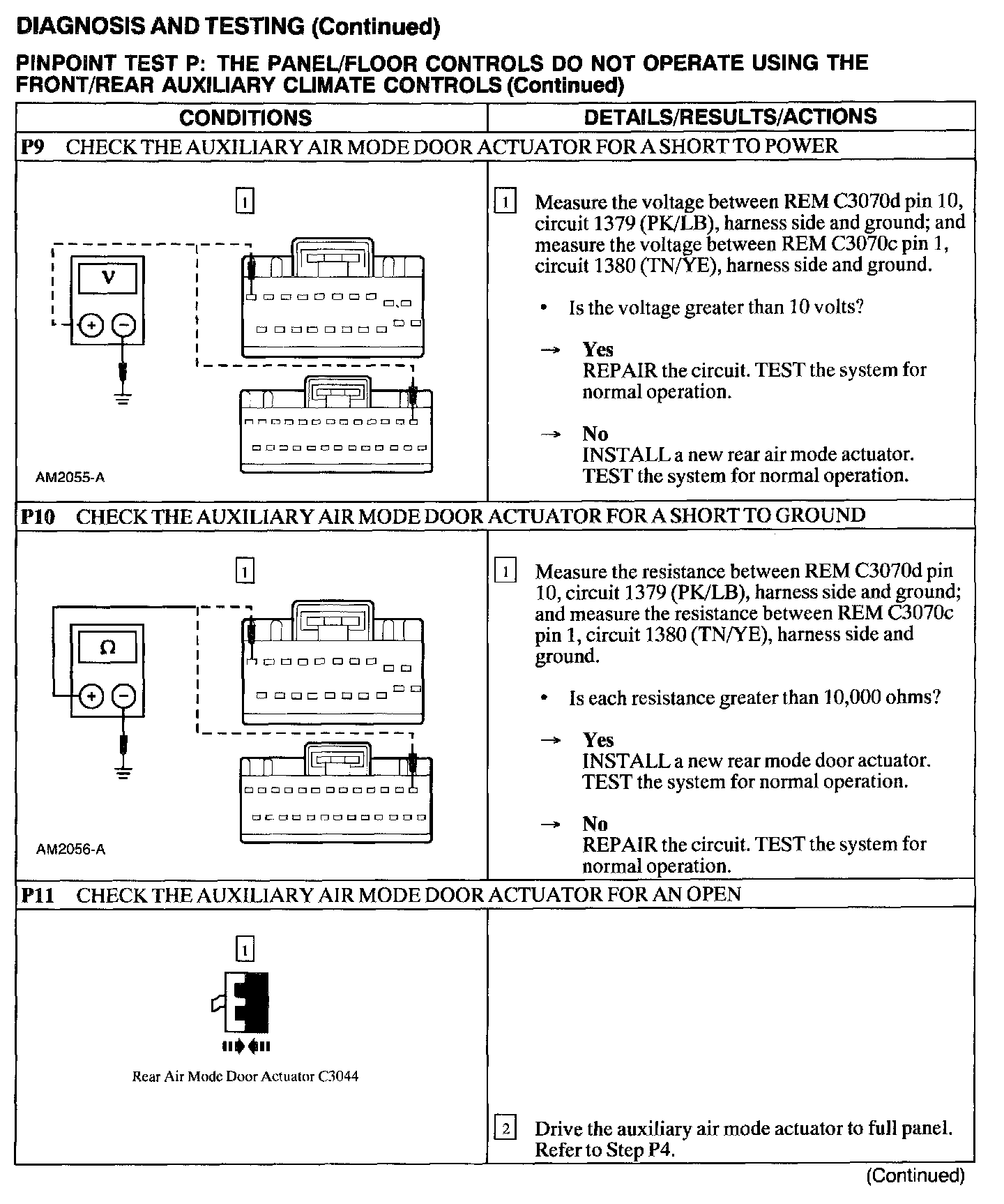

P9 - P11:

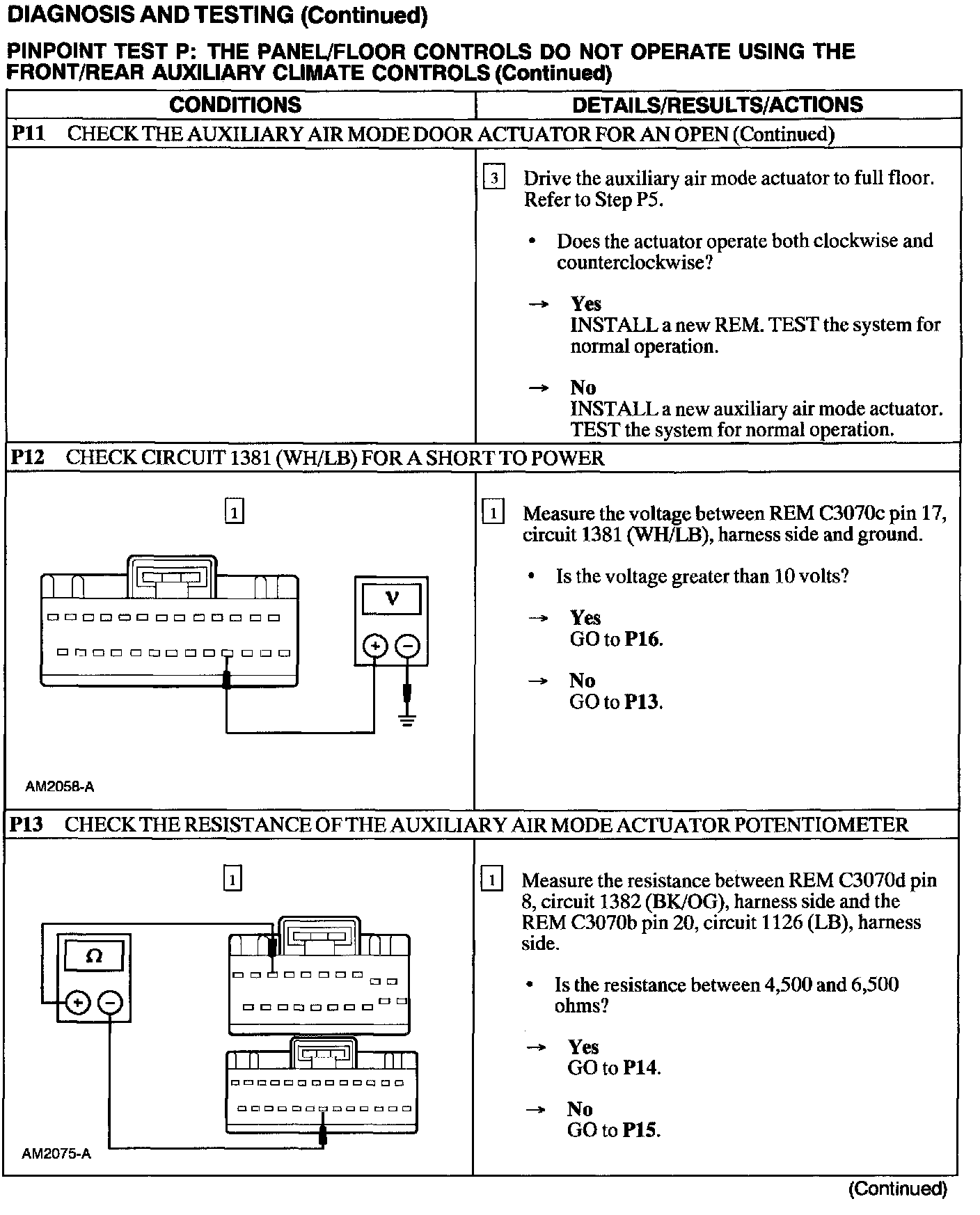

P11 - P13:

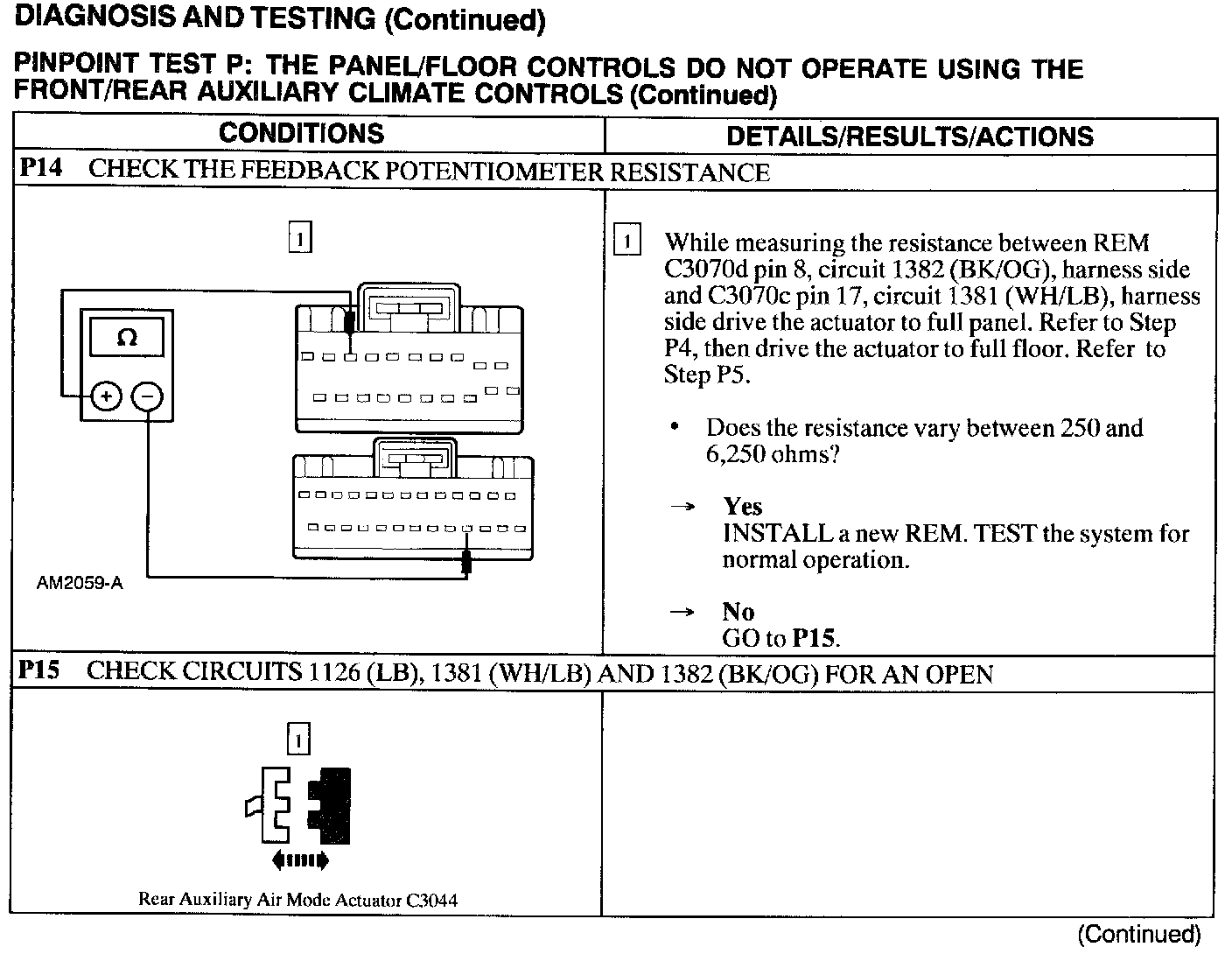

P14 - P15:

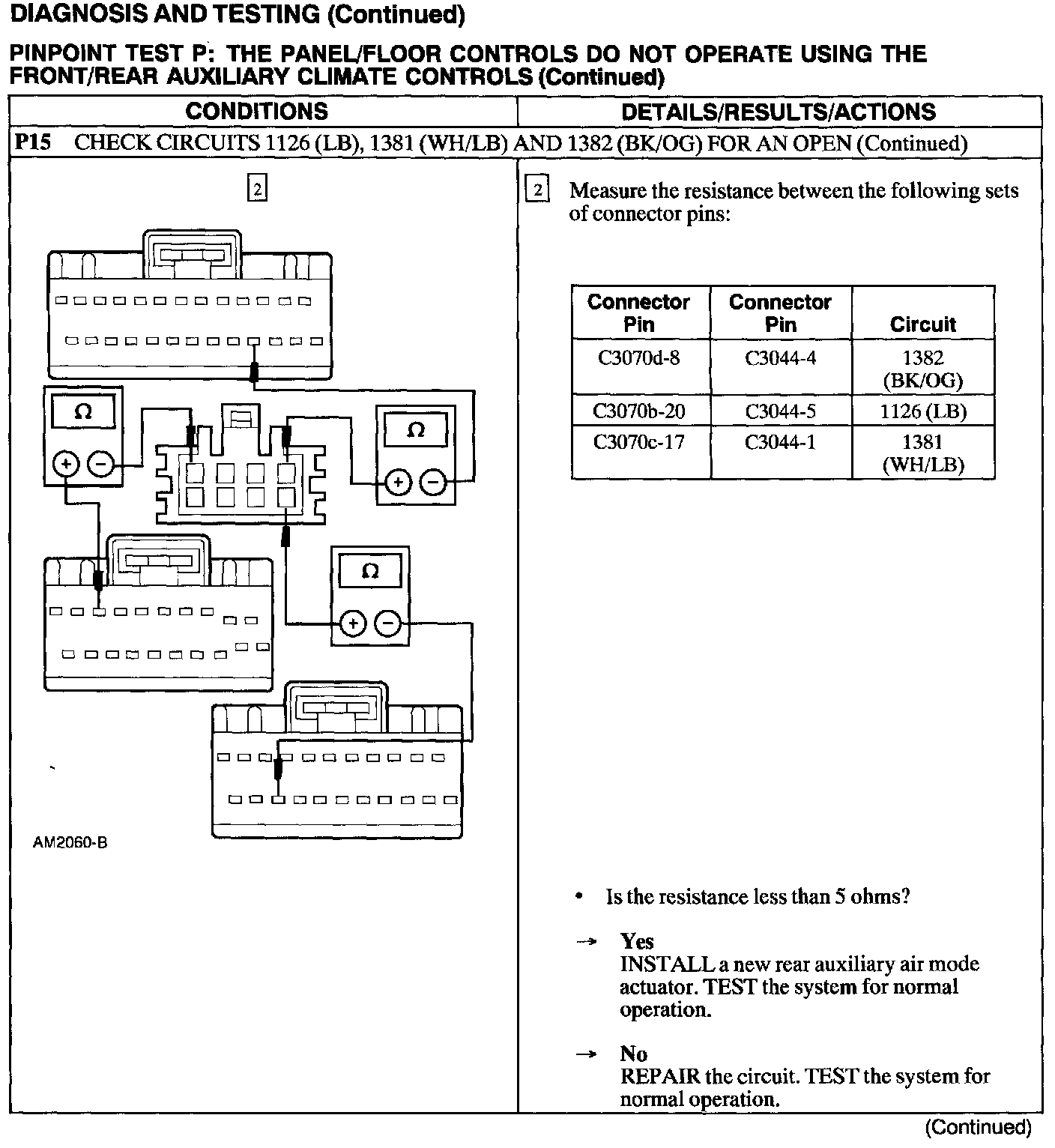

P15:

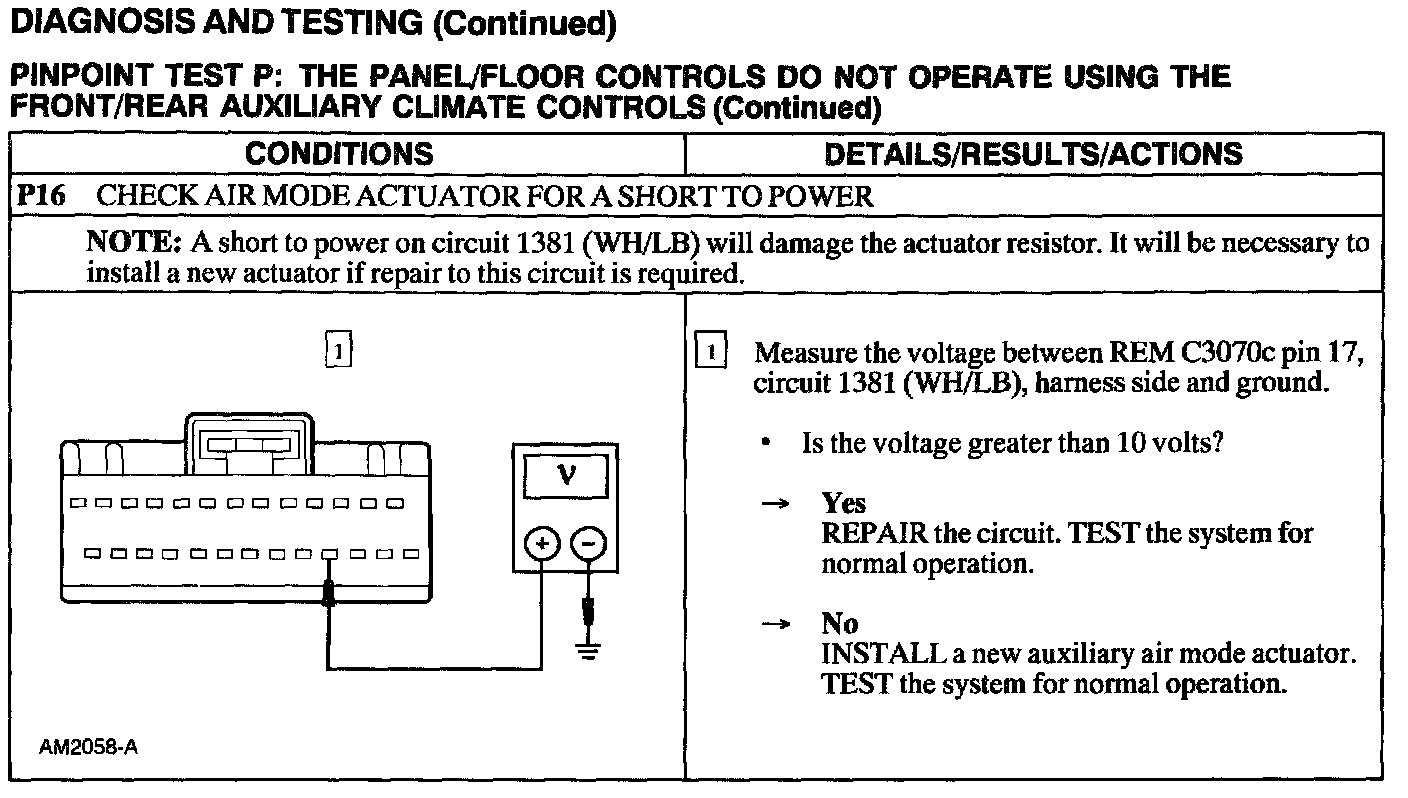

P16:
