Reading Lamp Assembly

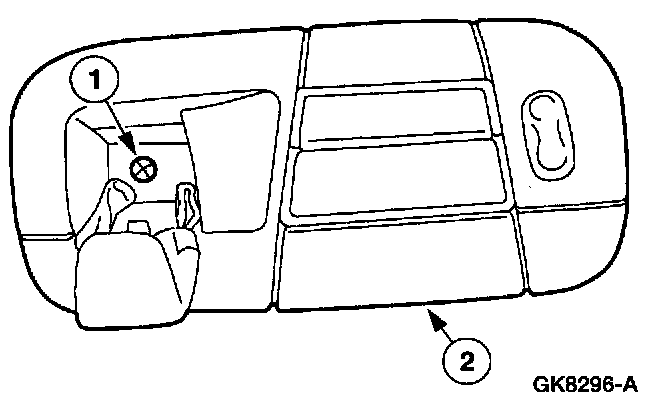

REMOVAL 1.
Position the reading lamp aside.
1
Remove the screw.
2
Position the reading lamp aside.
CAUTION: When removing lamp assembly, use care to avoid damaging the lamp assembly.

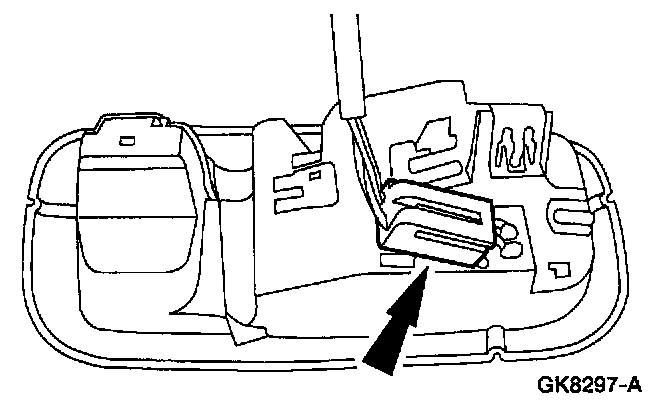

2.
Remove the reading lamp.
^
Disconnect the electrical connector.
INSTALLATION 1.
To install, reverse the removal procedure.
