Drive Belt: Service and Repair
BeltRemoval and Installation

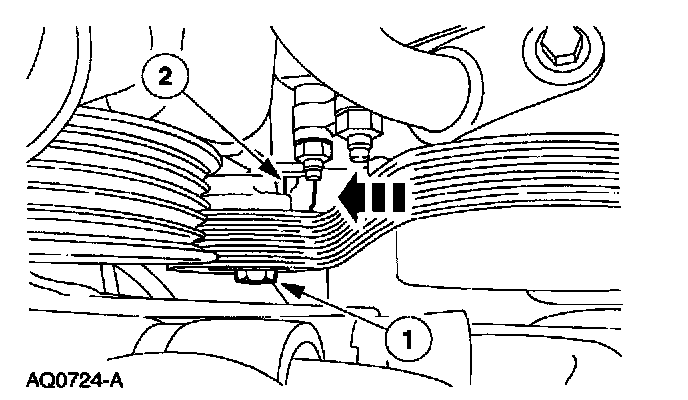

1. Remove the drive belt.
1 Rotate the belt tensioner counterclockwise.
2 Push the spring clip towards the belt tensioner to lock belt tensioner in place.
2. To install, reverse the removal procedure.
