Leak Detection Valve: Service and Repair

REMOVAL
1. Remove the Evaporative Emission (EVAP) canister.

NOTE: It is not necessary to remove the lower canister to remove the vent solenoid.

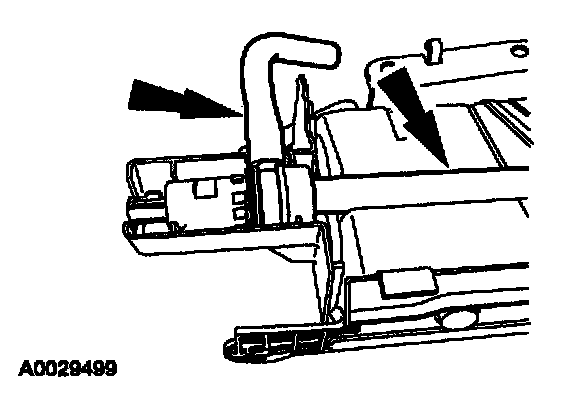

2. Disconnect the hose, then remove the canister vent solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the leak test. Evaporative Emission System Leak Test
^ Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
