EGR Tube: Service and Repair

REMOVAL
1. Raise and support the vehicle.

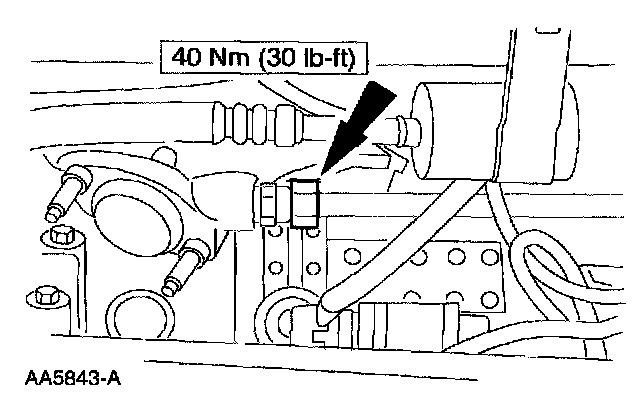

2. Disconnect the Exhaust Gas Recirculation (EGR) tube nut at the manifold connector.
3. Lower the vehicle.

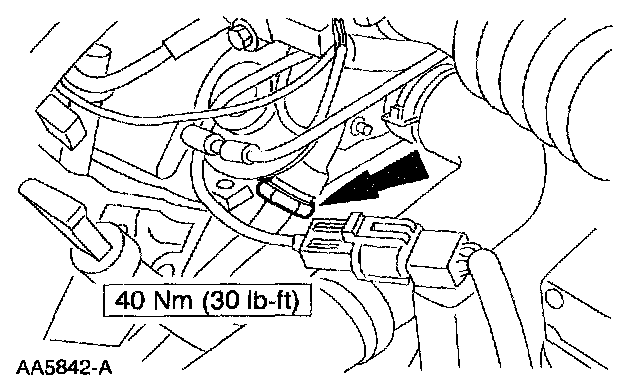

4. Disconnect the nut at the EGR valve.

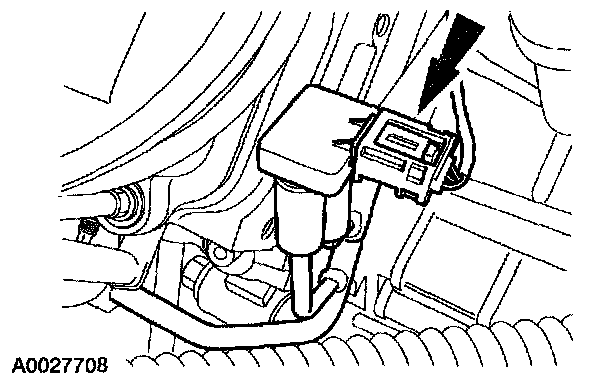

5. Disconnect the differential pressure feedback EGR sensor.

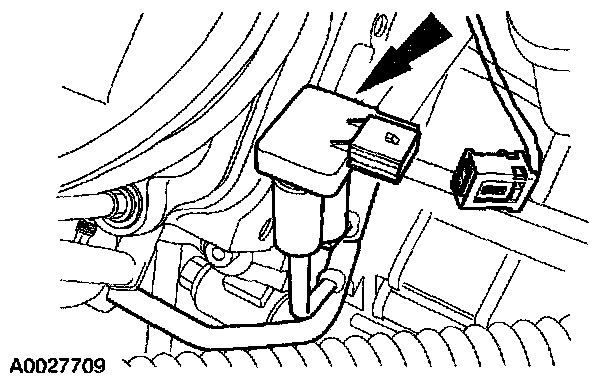

6. Remove the differential pressure feedback EGR sensor and hoses and the EGR valve tube.

INSTALLATION







1. To install, reverse the removal procedure.
