Test G: Defrost System Is Inoperative

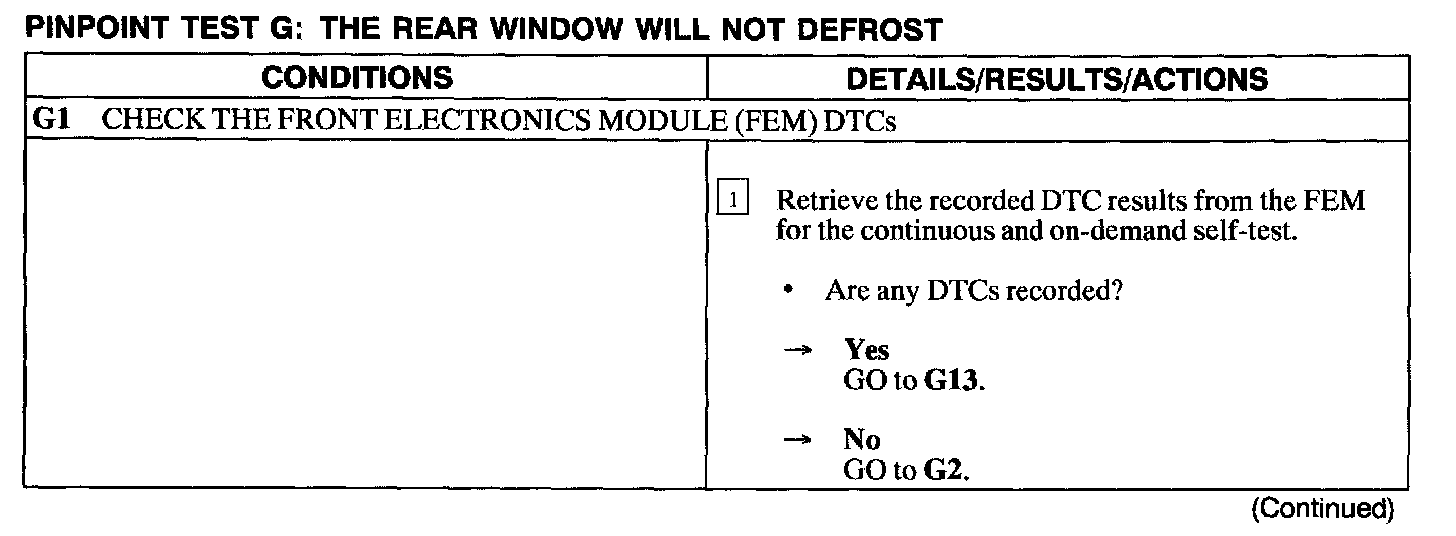

G1:

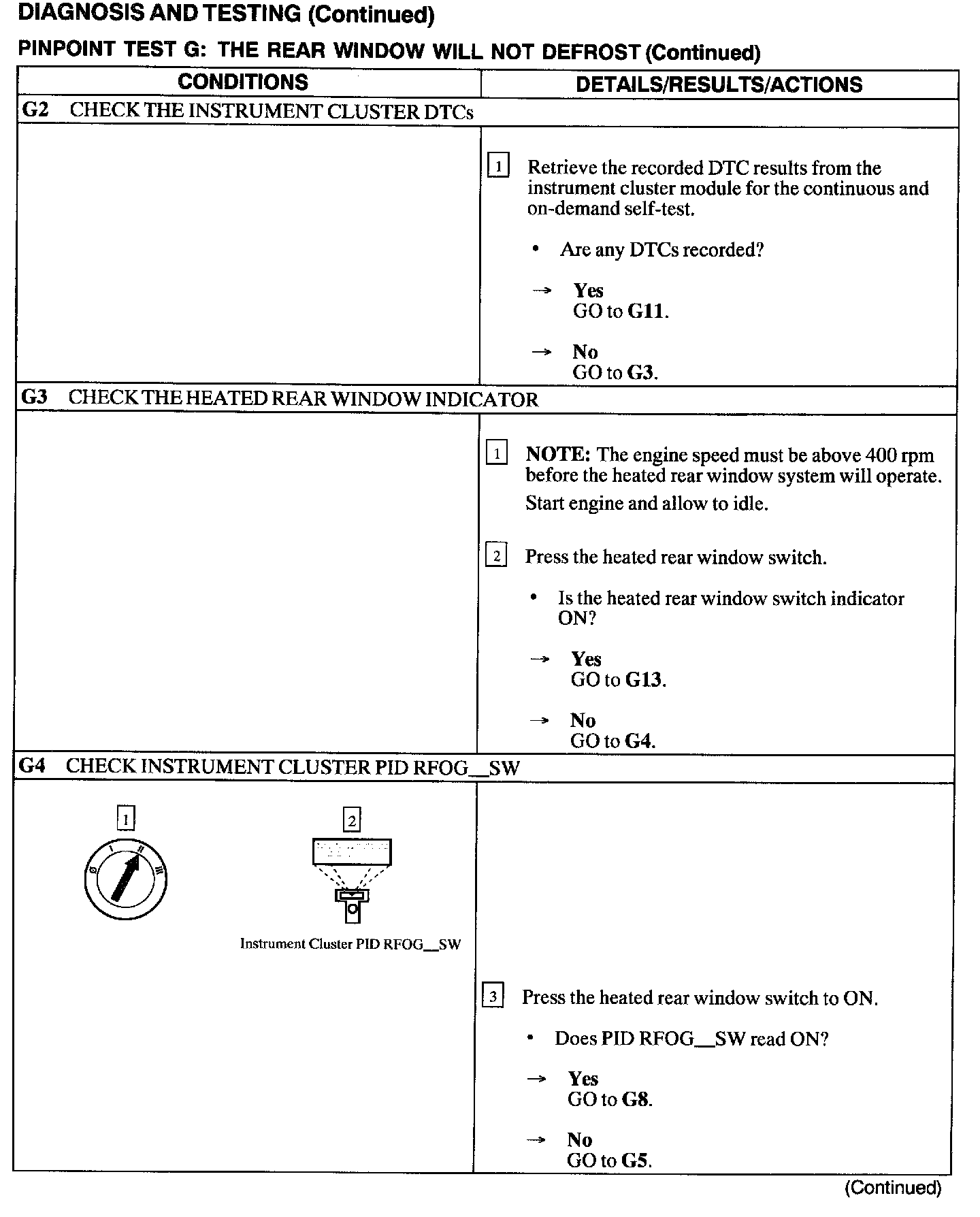

G2 - G4:

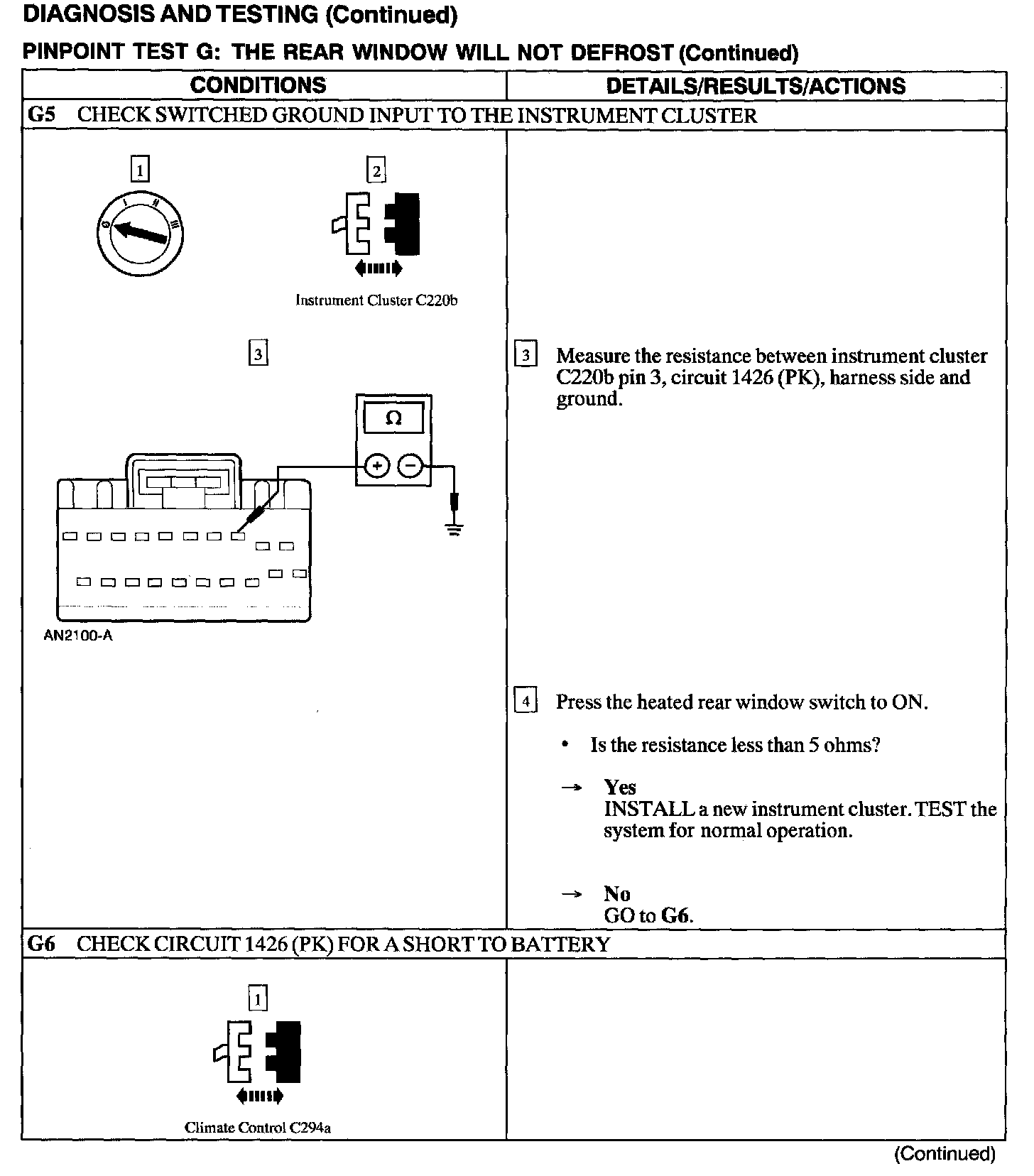

G5 - G6:

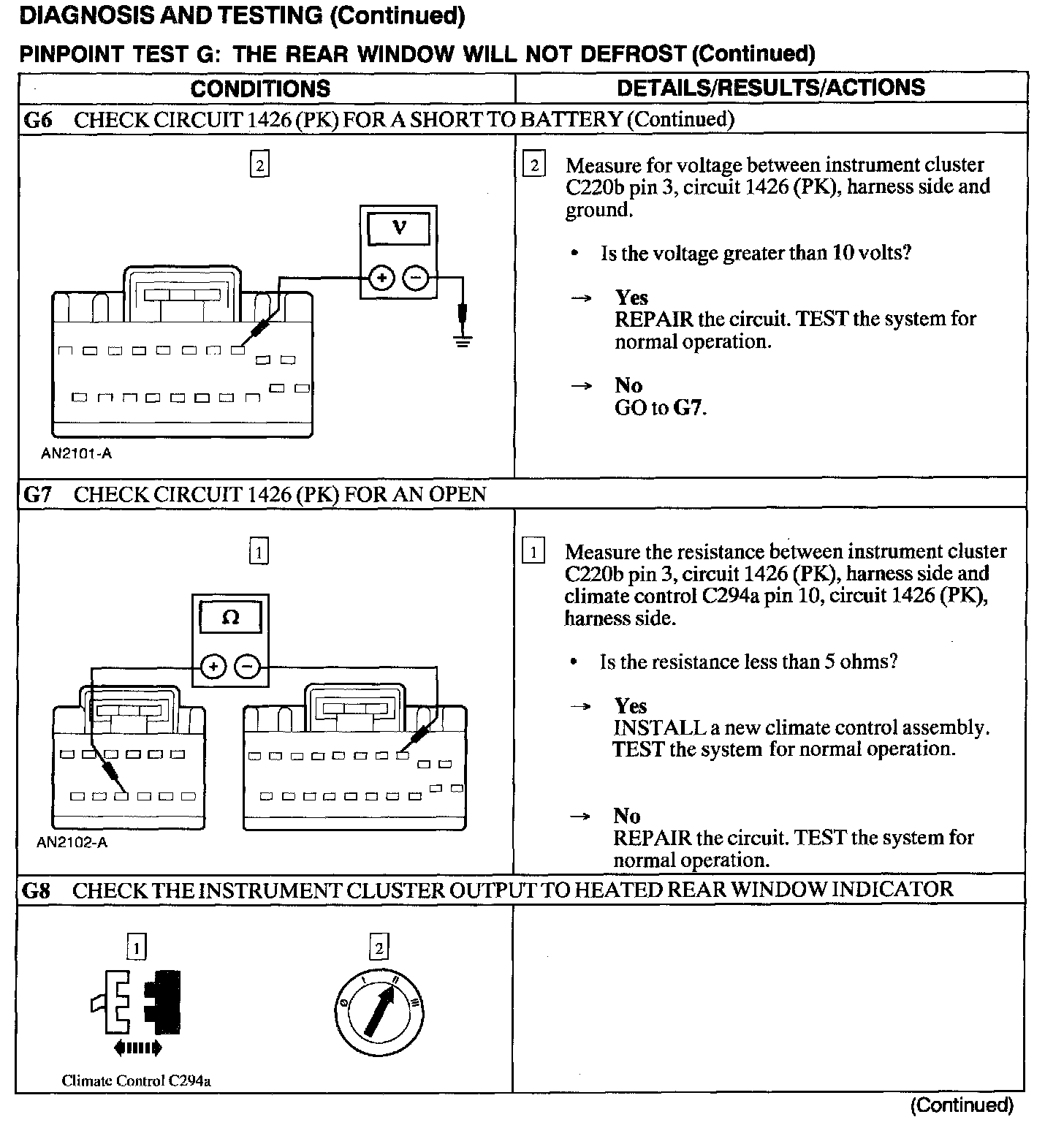

G6 - G8:

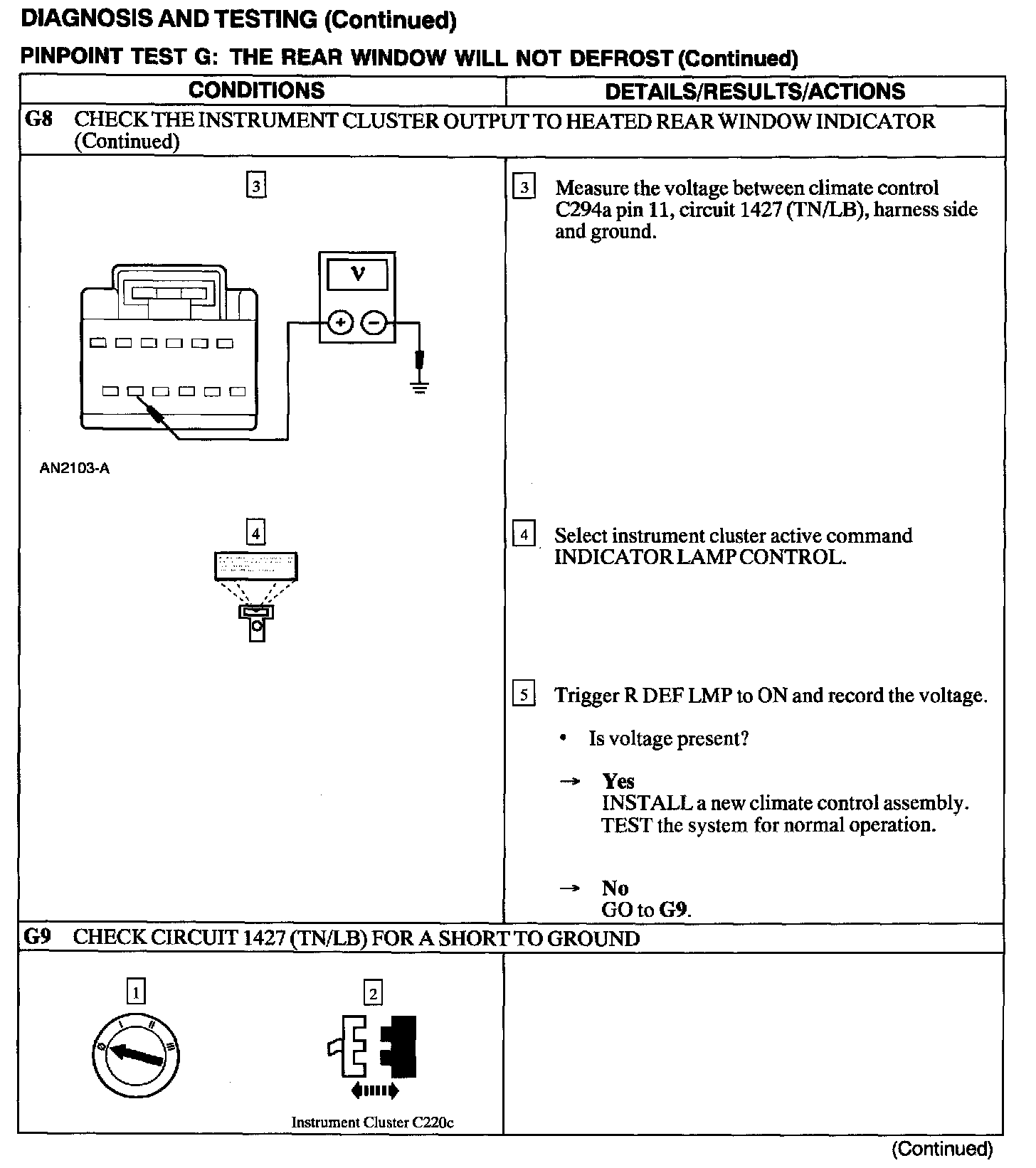

G8 - G9:

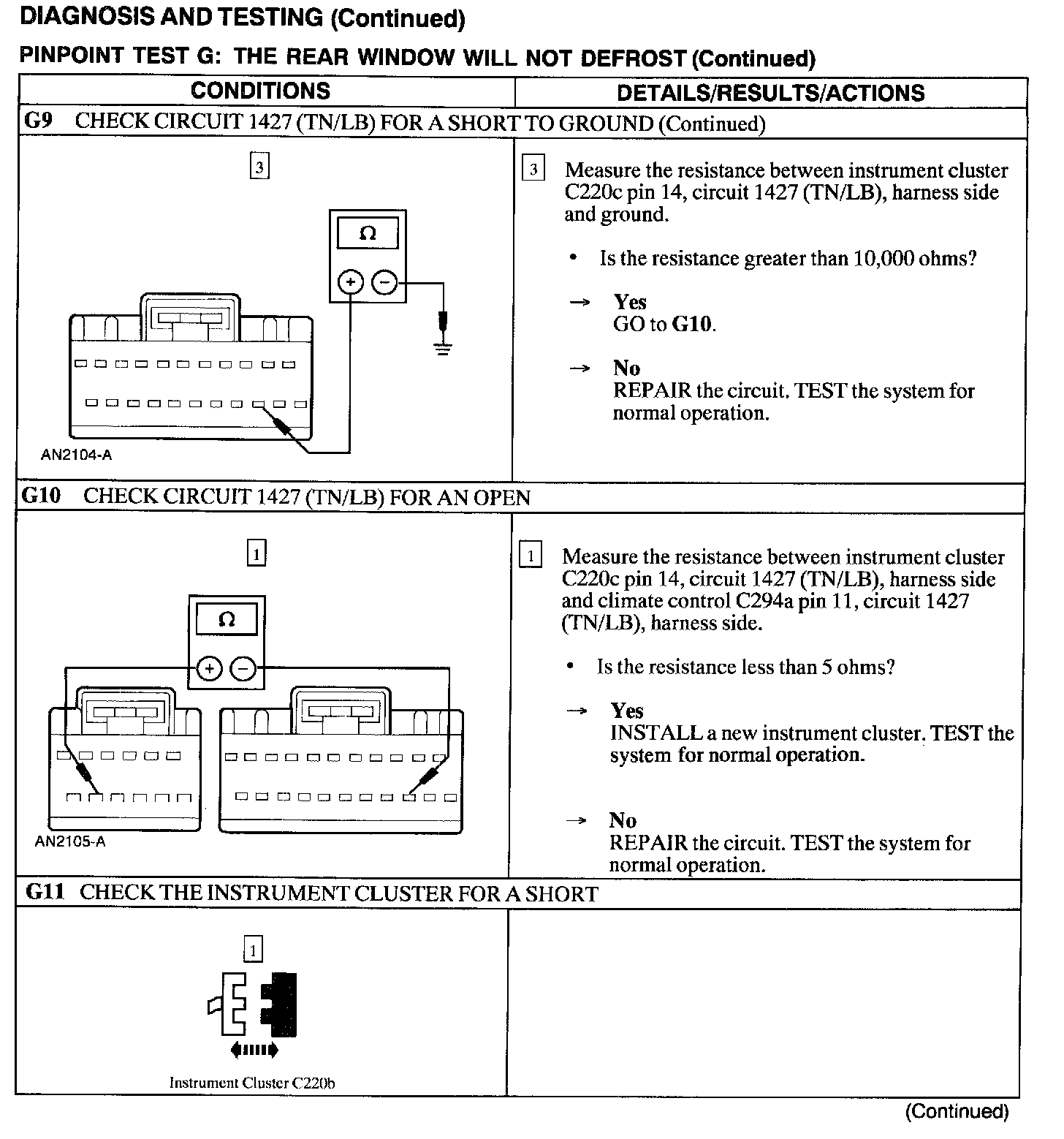

G9 - G11:

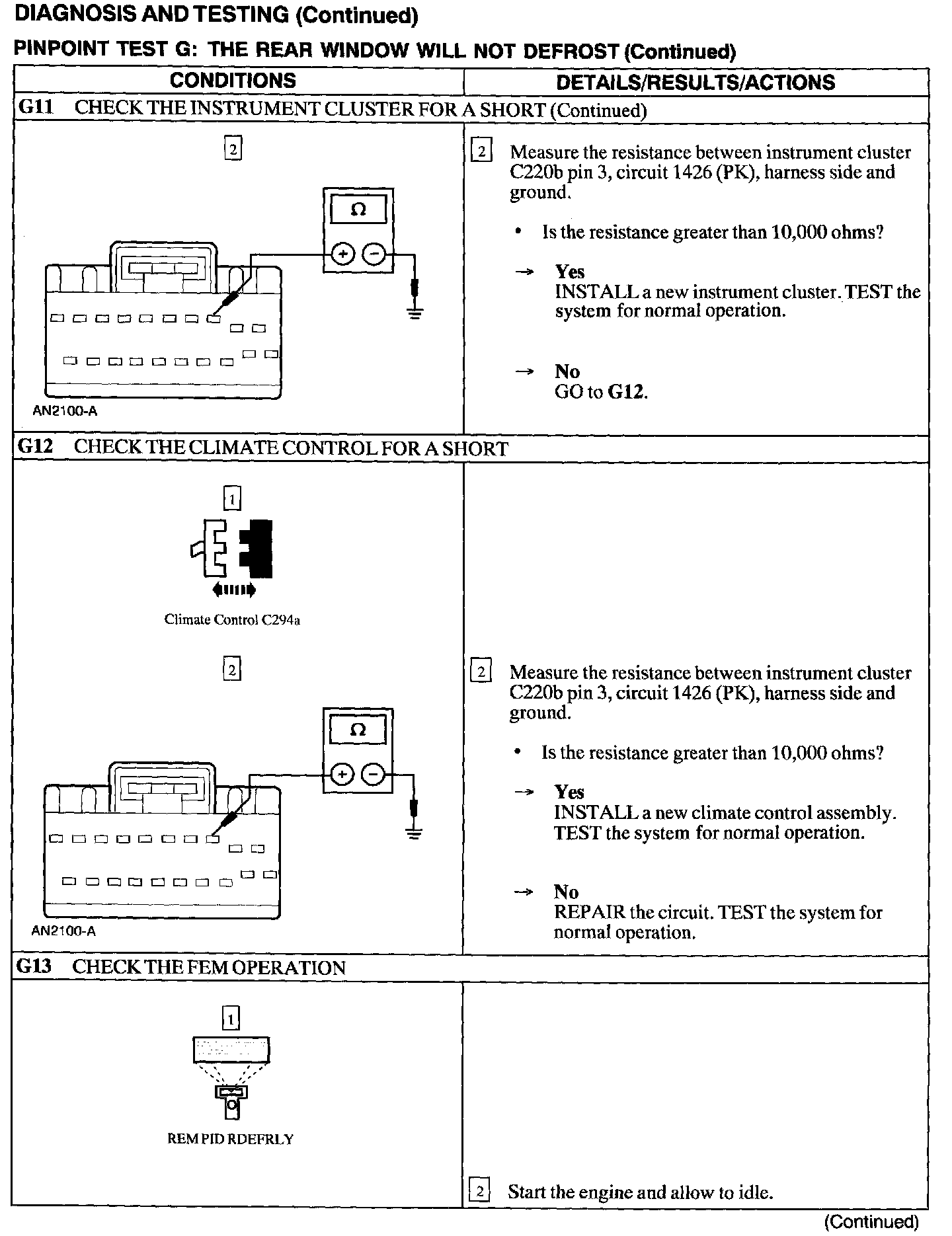

G11 - G13:

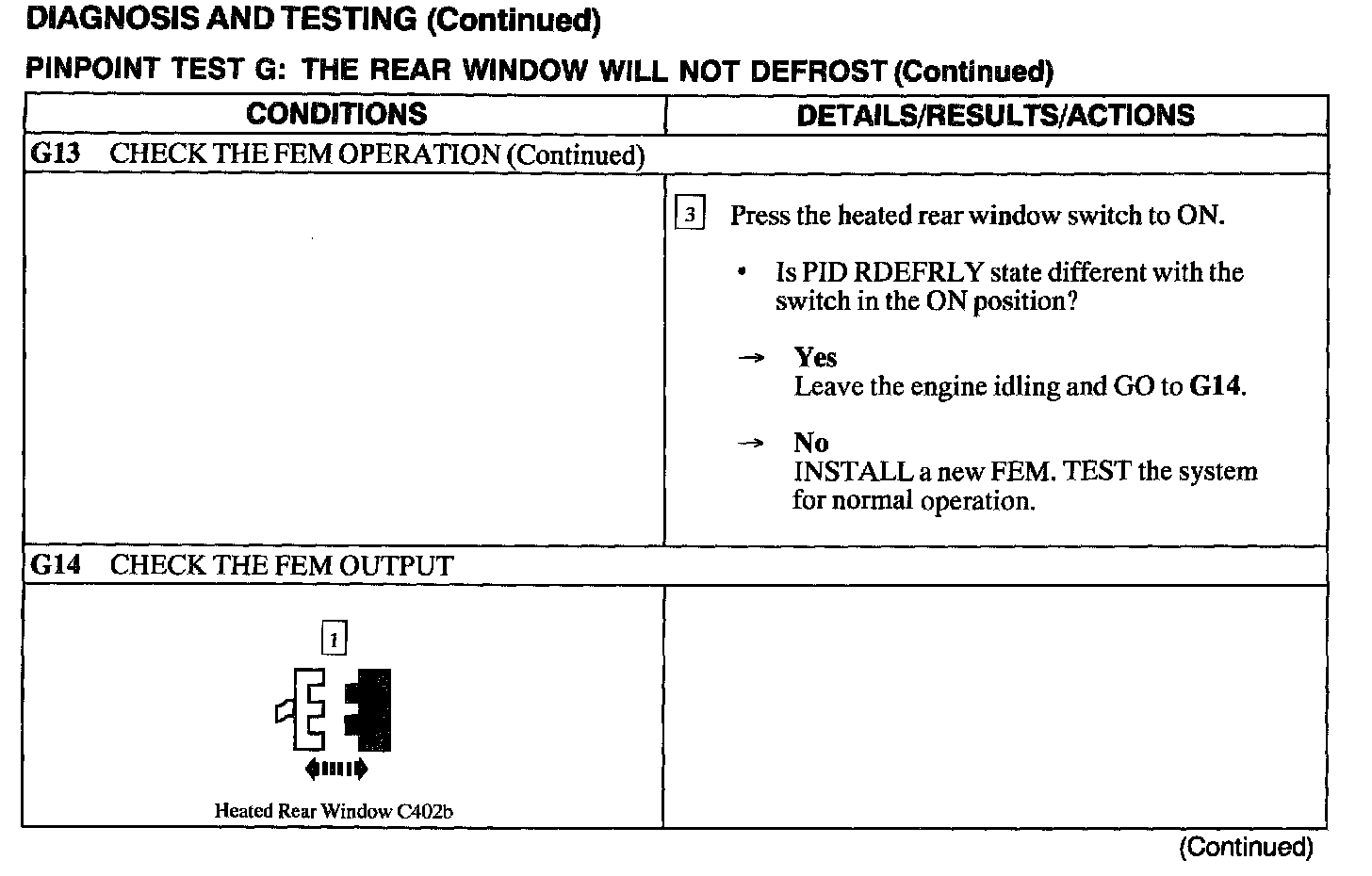

G13 - G14:

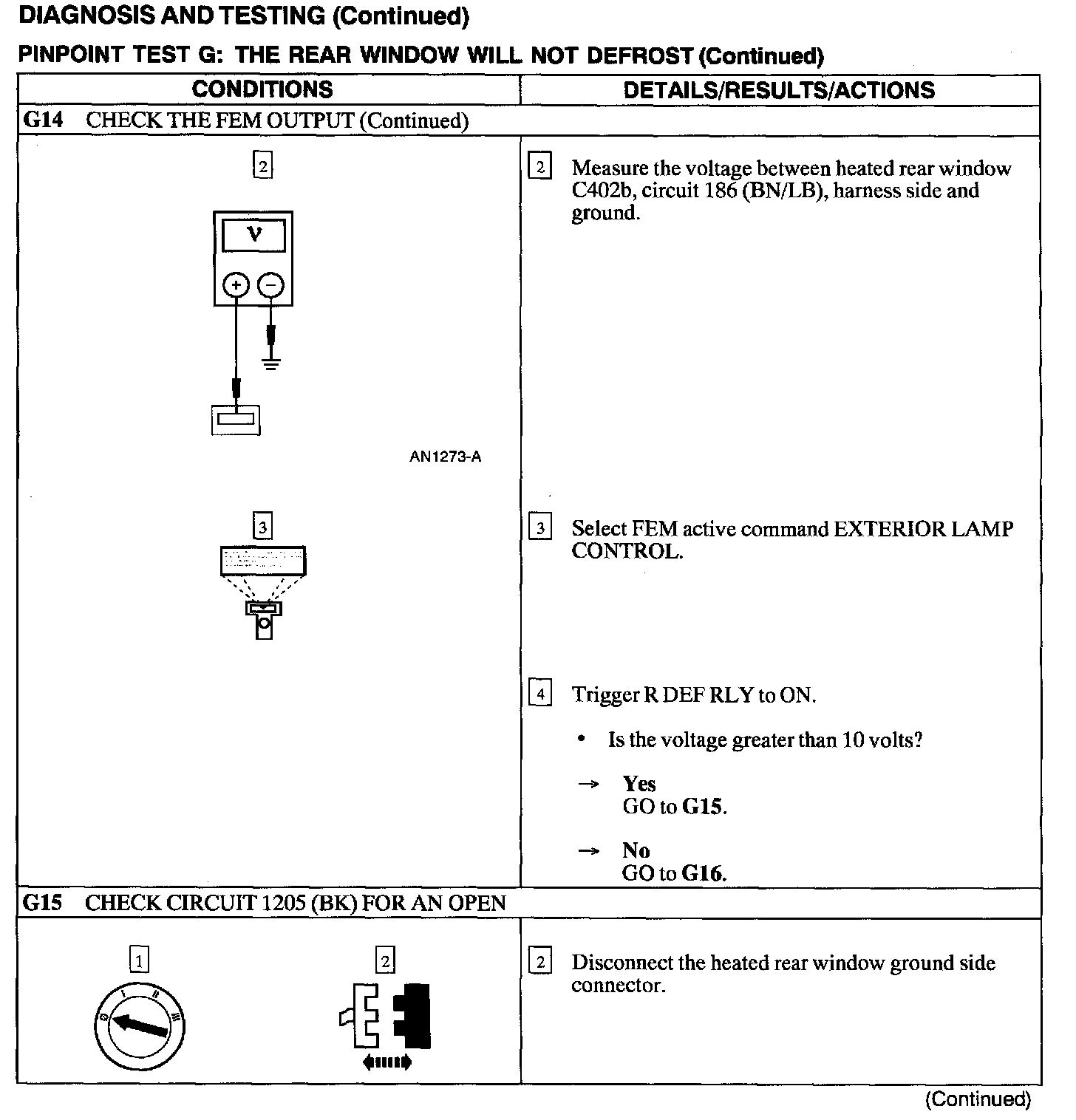

G14 - G15:

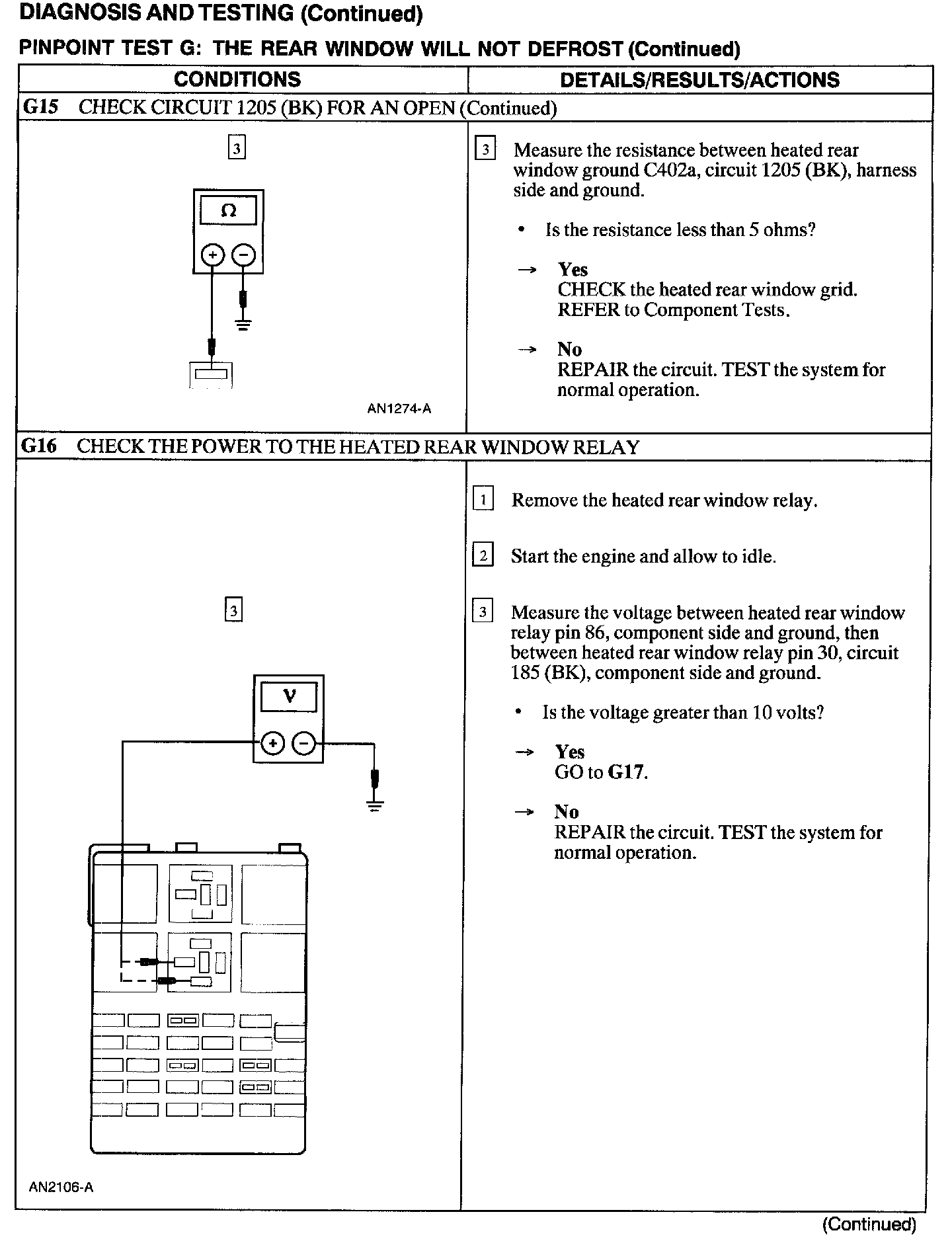

G15 - G16:

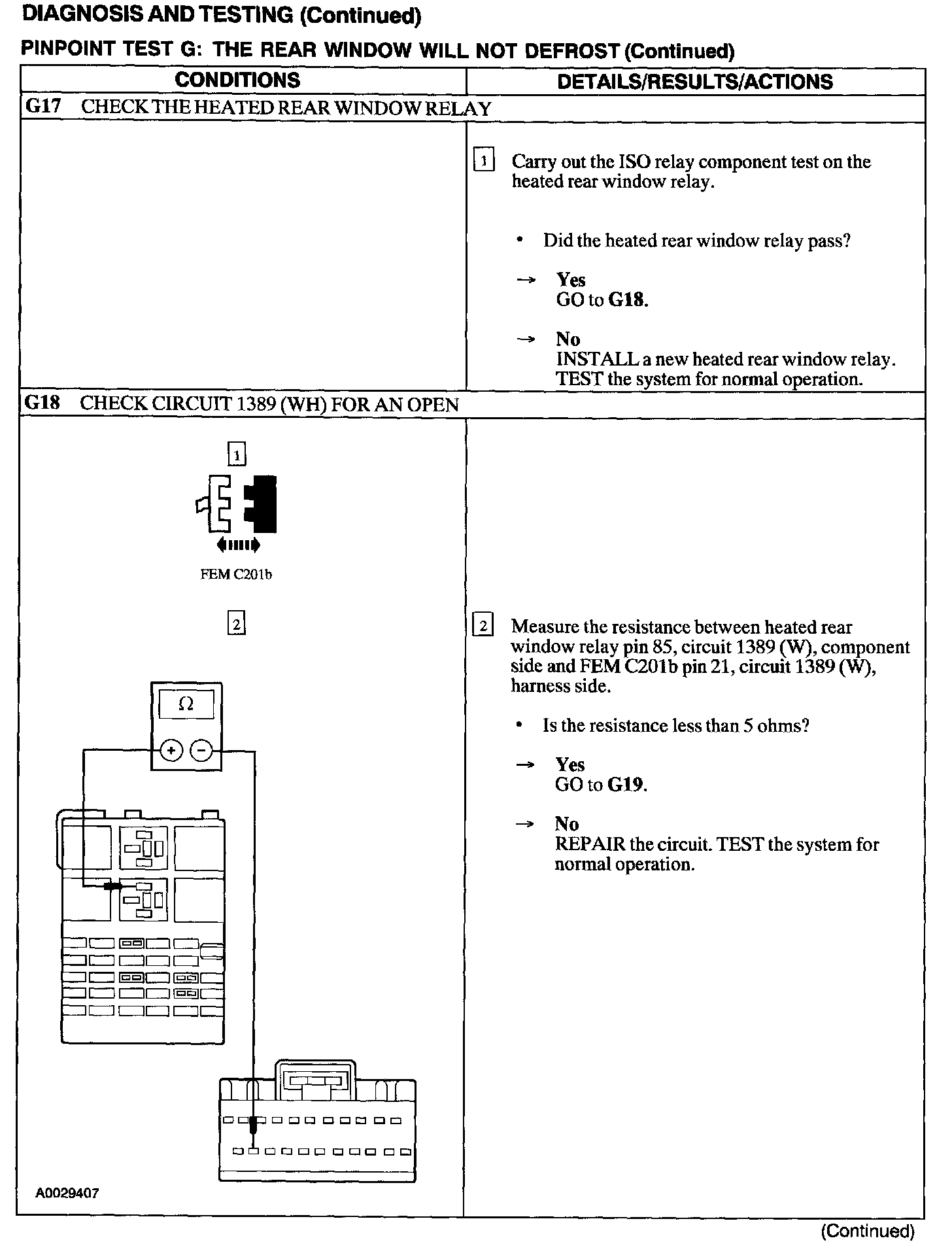

G17 - G18:

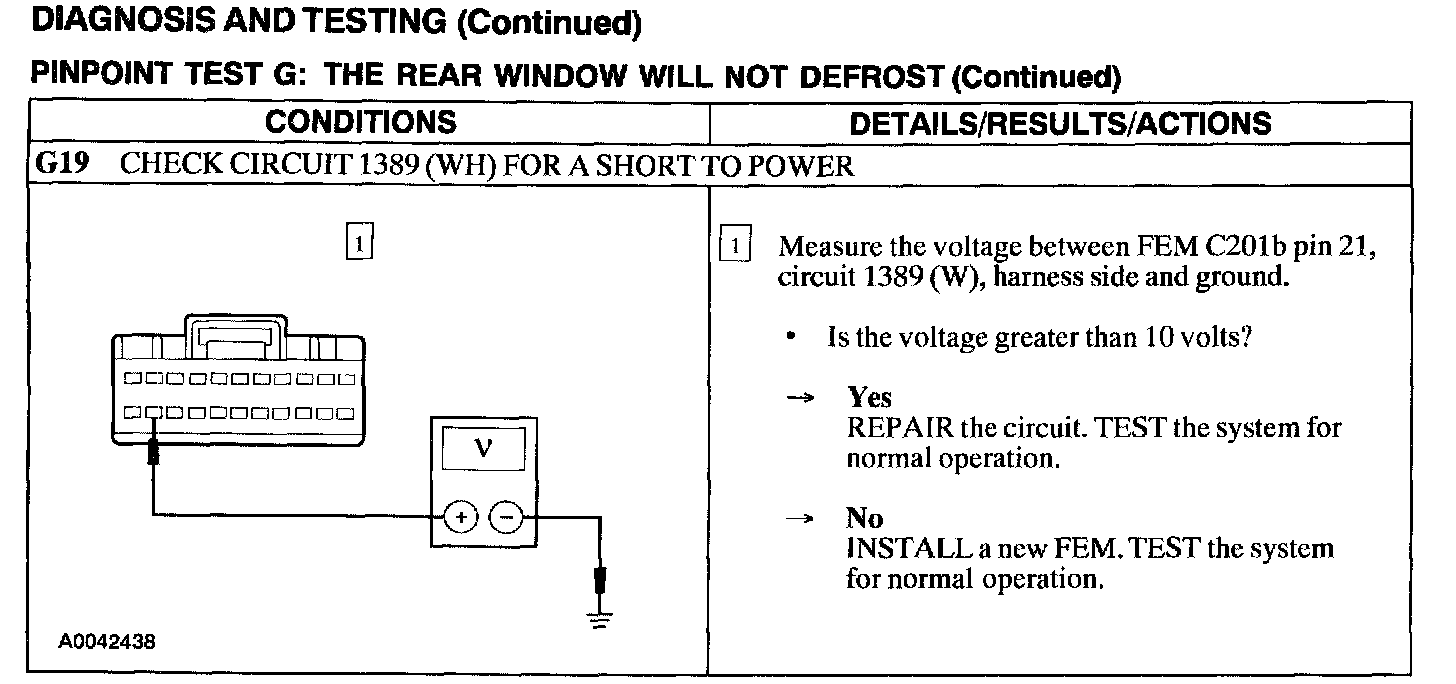

G19:
