Power Window Switch: Service and Repair

REMOVAL

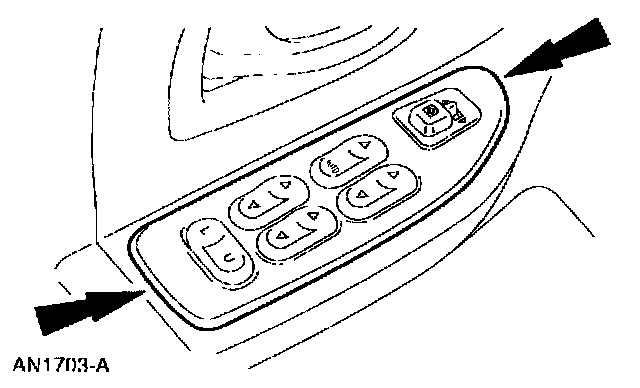

1. Disengage the window regulator control switch.

CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.

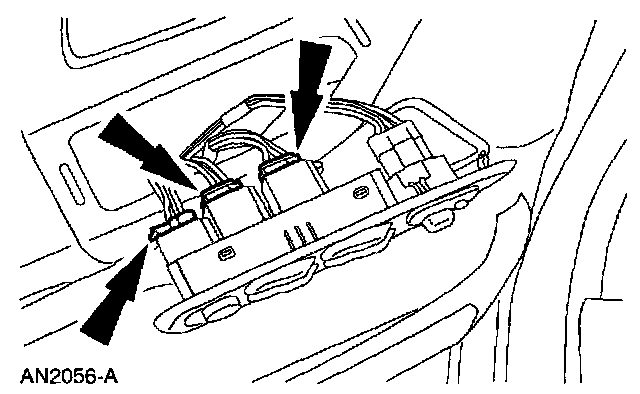

2. Disconnect the electrical connectors.
3. Release the clips and remove the window regulator control switch.

INSTALLATION
1. To install, reverse the removal procedure.
