Late Build Vehicles

SPECIAL TOOL(S)

REMOVAL

WARNING: TO PREVENT GLASS SPLINTERS FROM ENTERING EYES OR CUTTING HANDS, WEAR SAFETY GLASSES AND HEAVY GLOVES WHEN CUTTING GLASS FROM THE VEHICLE.

NOTE: The four door version is shown, the three door version and fixed LH midship glass is similar.

1. Remove the sliding door trim panel
2. Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.

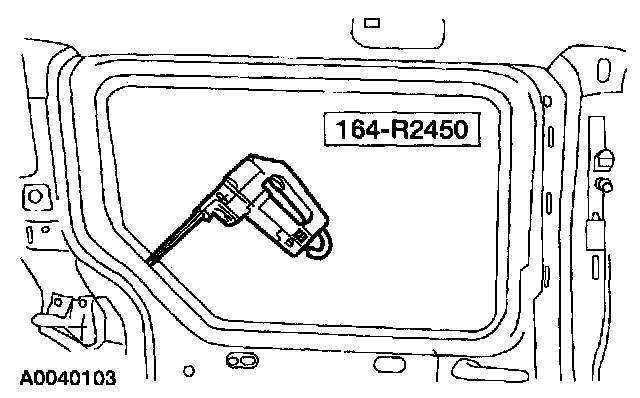

3. Using the special tool, cut adhesive from the sliding door window glass.

CAUTION: Care must be taken to avoid scratching the pinch weld.

NOTE: Lubricate the existing adhesive with water to aid the special tool while cutting.

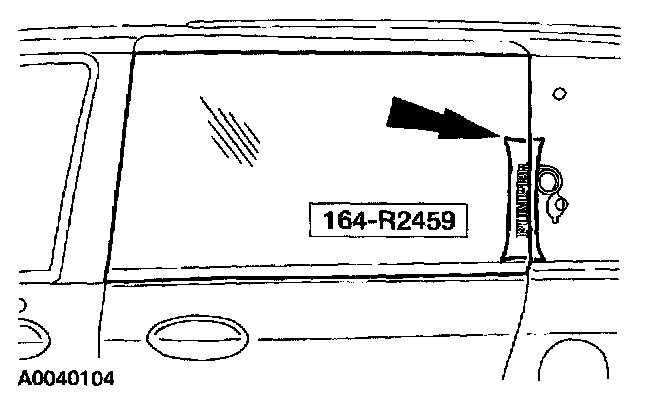

4. Using the special tool, distance the sliding door glass from the sliding door.

CAUTION: Use care to avoid damage to the glass.

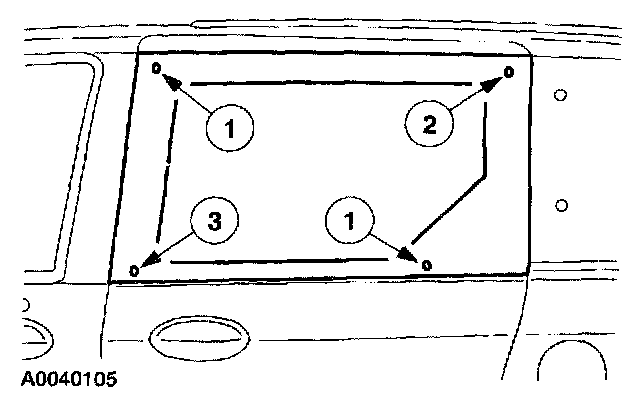

NOTE: There are four locator pins on the sliding door window glass that hold the glass in place during assembly.







5. Remove the locator pins from the door skin.
1 Rock the pins back and forth applying pressure to remove the pins.
2 Rotate the pin 90 degrees left or right and remove the pin.
3 Using a suitable tool, cut the head off the pin and retrieve it from the bottom of the door.

6. Using a soft brush or vacuum, remove any dirt and foreign material from the pinch weld.

INSTALLATION







1. Trim the remaining urethane adhesive on the pinch weld using only the full-cut method. In this method, most of the existing urethane adhesive is removed leaving a level bead around the entire pinch weld.

CAUTION: Care must be taken to avoid scratching the pinch weld.

2. Use the wool applicator to apply Urethane Metal Primer Essex U-413 meeting Ford specification WSB-M2G234-C to any exposed metal on the pinch weld. Allow 6 to 10 minutes to dry.

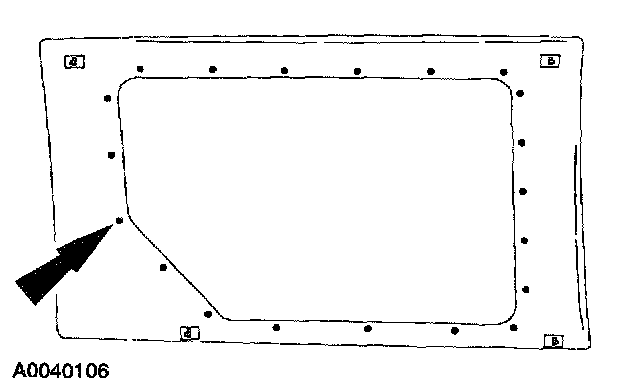

3. Apply Urethane Glass Prep Essex U-401 meeting Ford specification WSB-M2G314-B twice around the glass surface to be prepped in the area indicated by the dots marked on the glass.

CAUTION: Wipe off the urethane glass prep immediately after each application because it flash dries. Apply deliberate strokes, making sure not to overlap the applied area.

4. Apply Urethane Glass Primer Essex U-402 meeting Ford specification WSB-M5B280-C to the same area that was prepped in the previous step. Allow five minutes to dry.

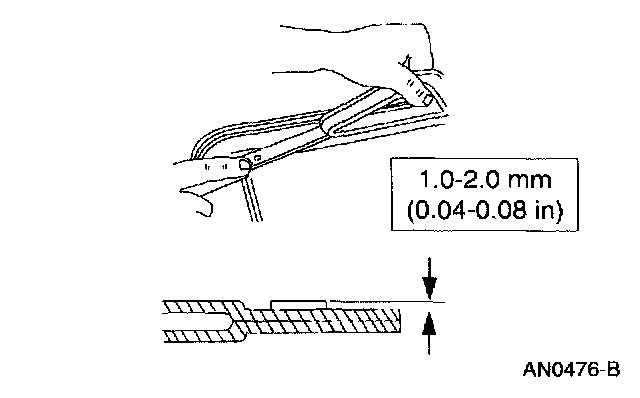

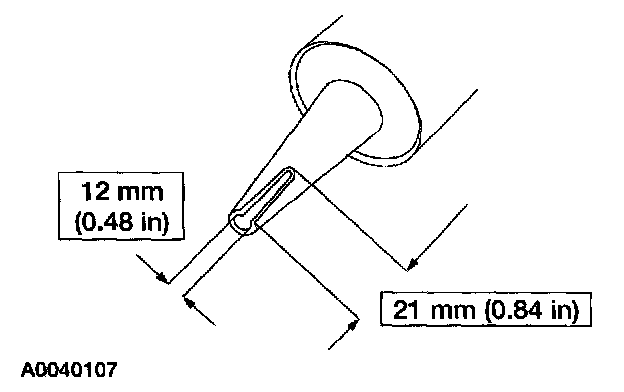

5. Cut the urethane adhesive applicator tip to specification.
6. Apply a bead of Urethane Adhesive Essex 400-HV or Essex U-216 meeting Ford specification WSB-M2G316-B to the sliding door glass.

CAUTION: If vehicle is to be driven within 24 hours of urethane adhesive application, Urethane Adhesive Essex U-216 meeting Ford specification WSB-M2G316-B must be used due to its one hour cure time.

7. Install the sliding door glass.

CAUTION: Open the windows to prevent the sliding door glass from being pushed out by air pressure if a door is closed.

8. After the urethane adhesive has cured, check for water leaks and add urethane adhesive where needed.
9. Install the sliding door trim panel.
