Front Door Window Regulator: Service and Repair

REMOVAL
1. Remove the front door trim panel

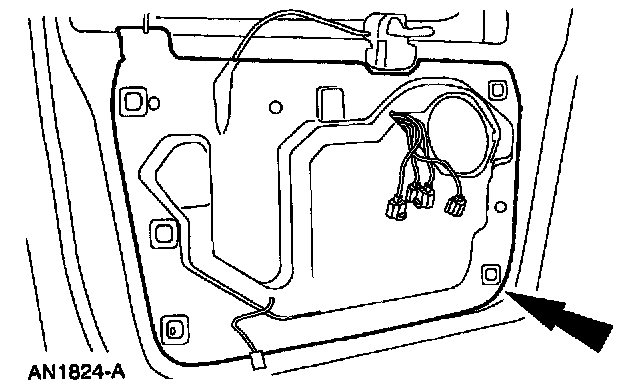

2. Remove the watershield.
3. Remove the front door window glass.

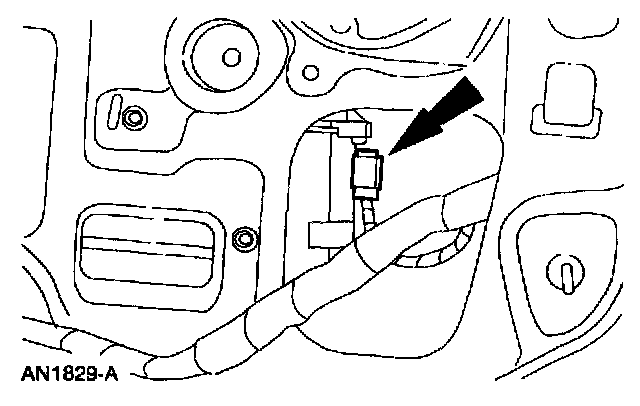

4. Disconnect the window regulator motor electrical connector.

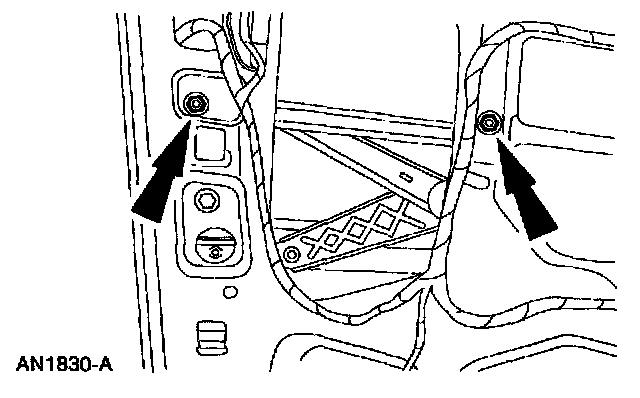

5. Remove the window regulator rivets.

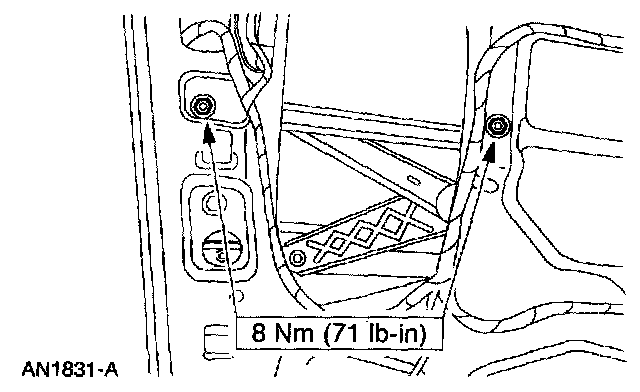

6. Remove the nuts and the window regulator.

INSTALLATION

1. To install, reverse the removal procedure.

NOTE: The front door window channel bracket and window regulator motor are installed into the vehicle as an assembly.
