Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Econoline E150 1/2 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Unit
>>

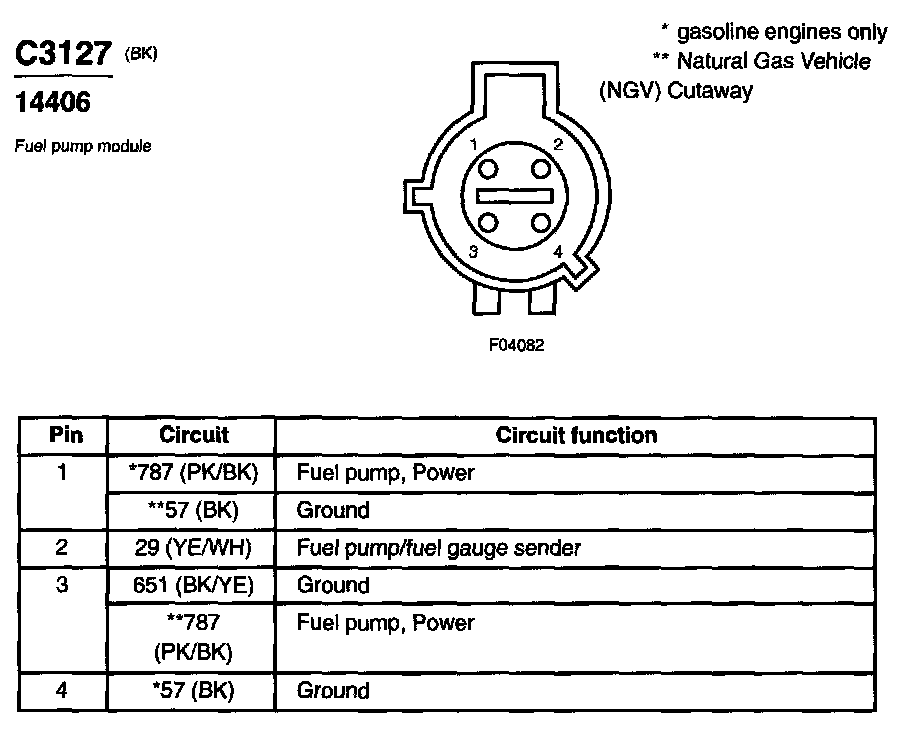

Fuel Pump Module
Fuel Pump Module
