Ford 8.8-Inch Ring Gear

Rear Drive Axle and Differential

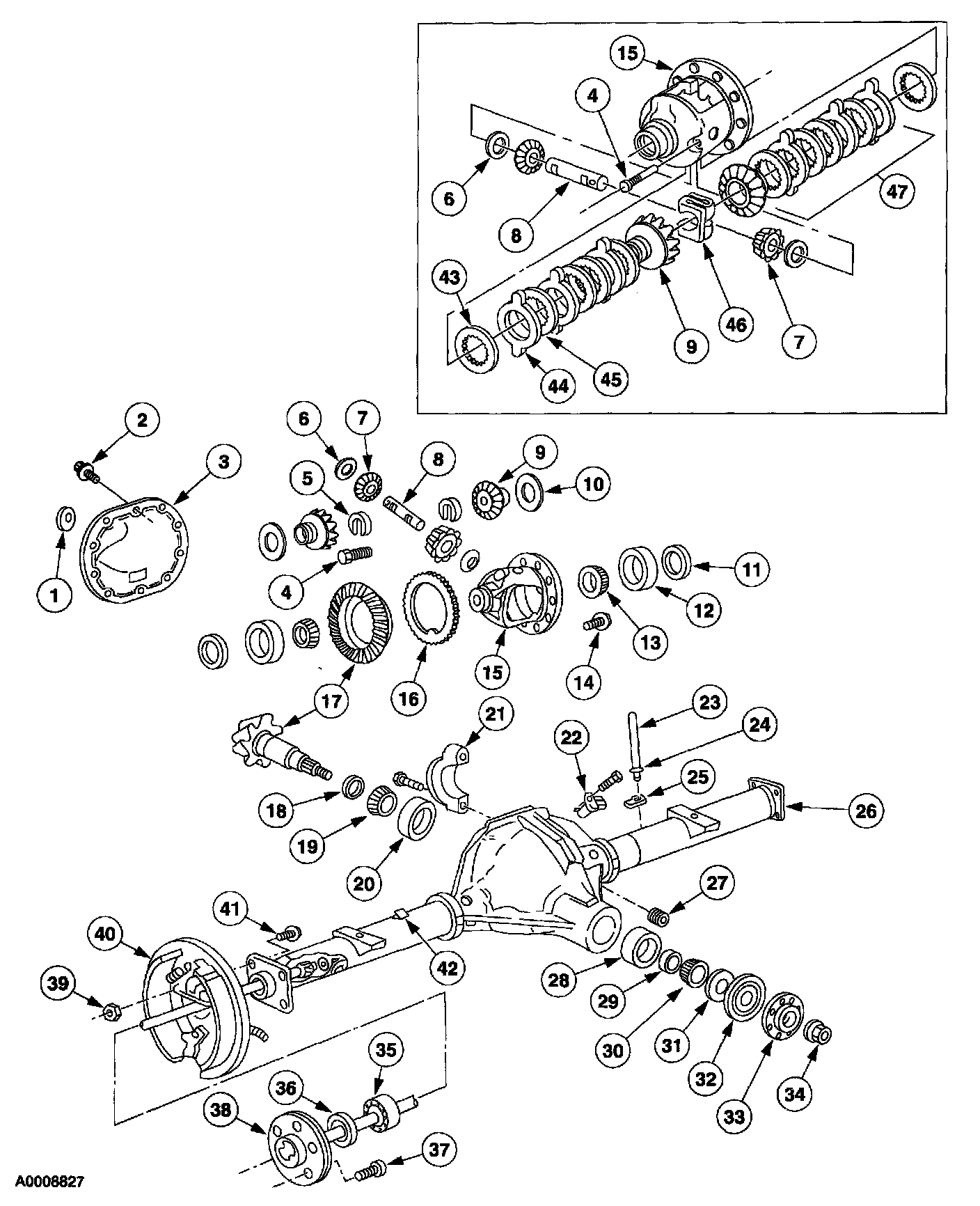

Part 1 Of 3:

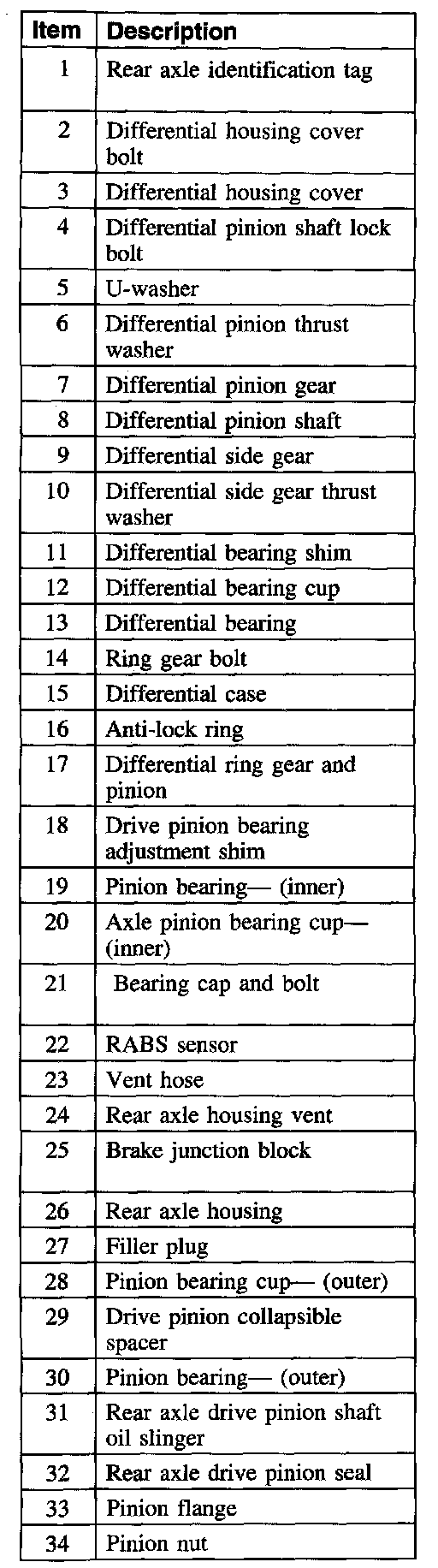

Part 2 Of 3:




Part 3 Of 3:
