Upper and Lower Intake Manifolds

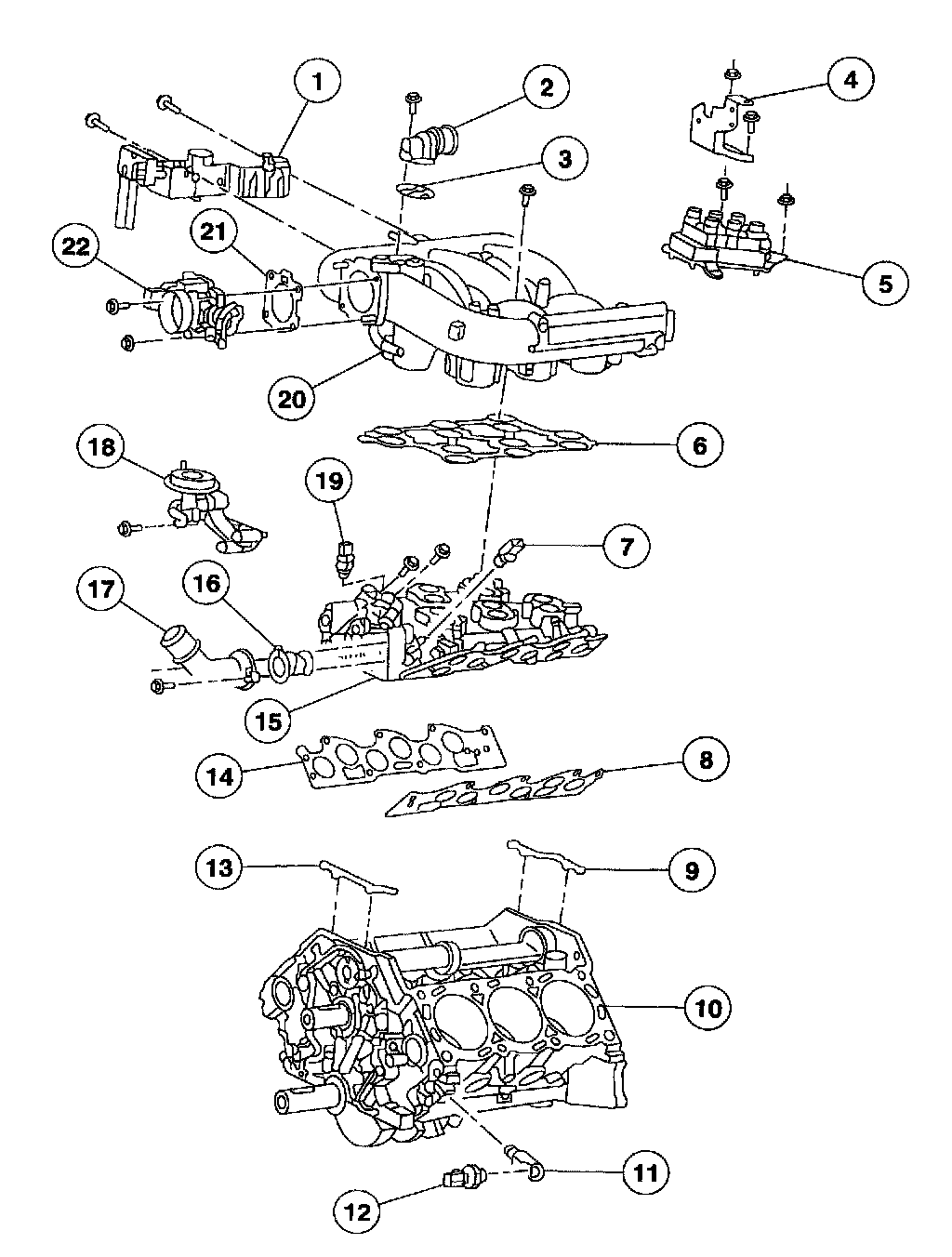

Engine Disassembled View-Upper and Lower Intake Manifolds

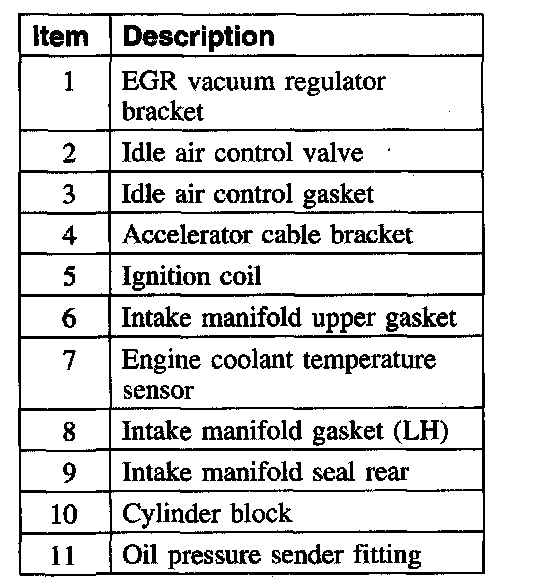

Part 1 Of 2:

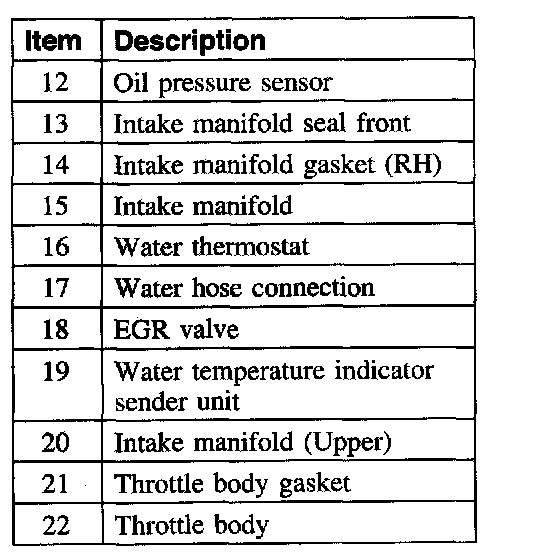

Part 2 Of 2:
