Home >> Ford >> 2003 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

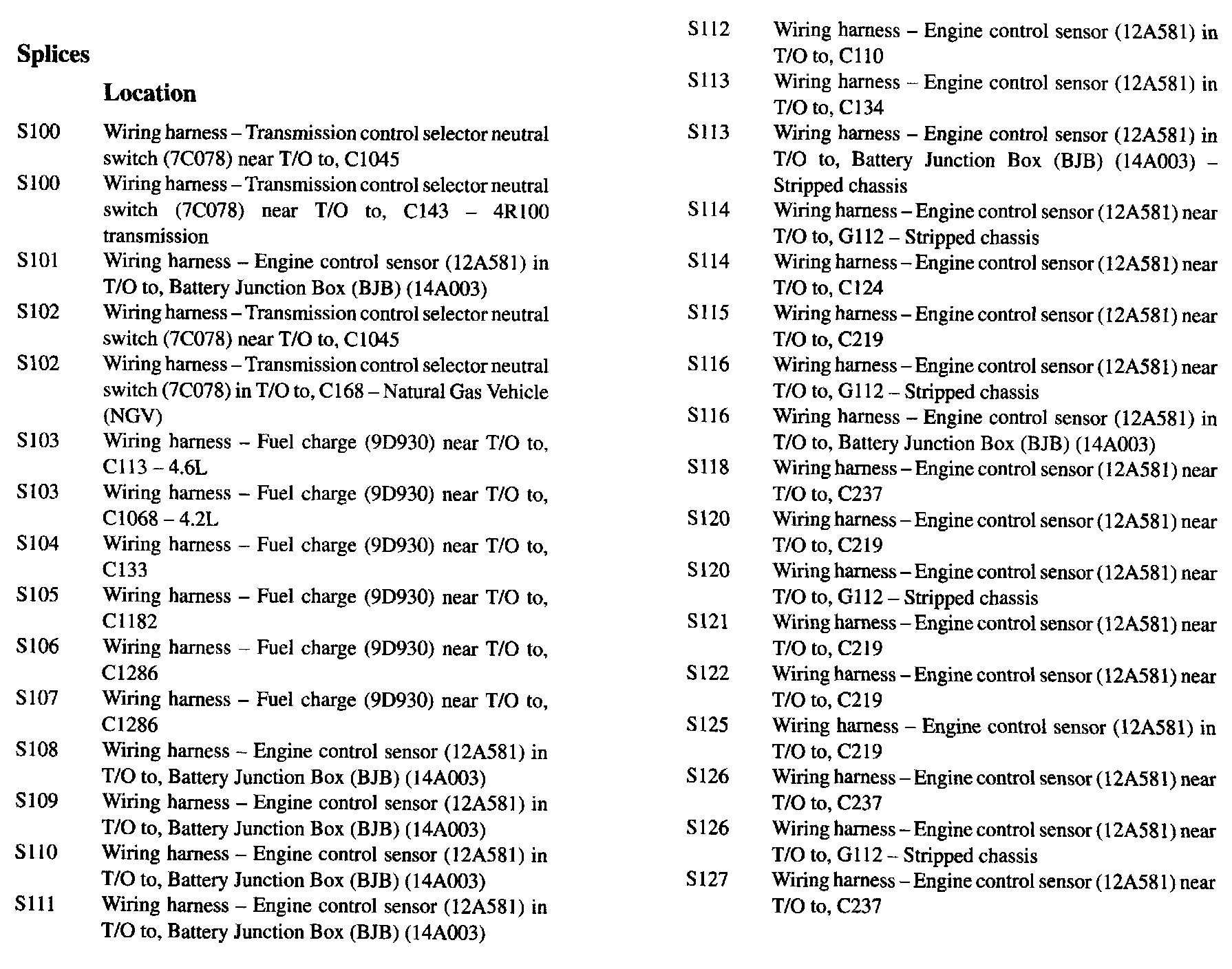

S100 - S127:

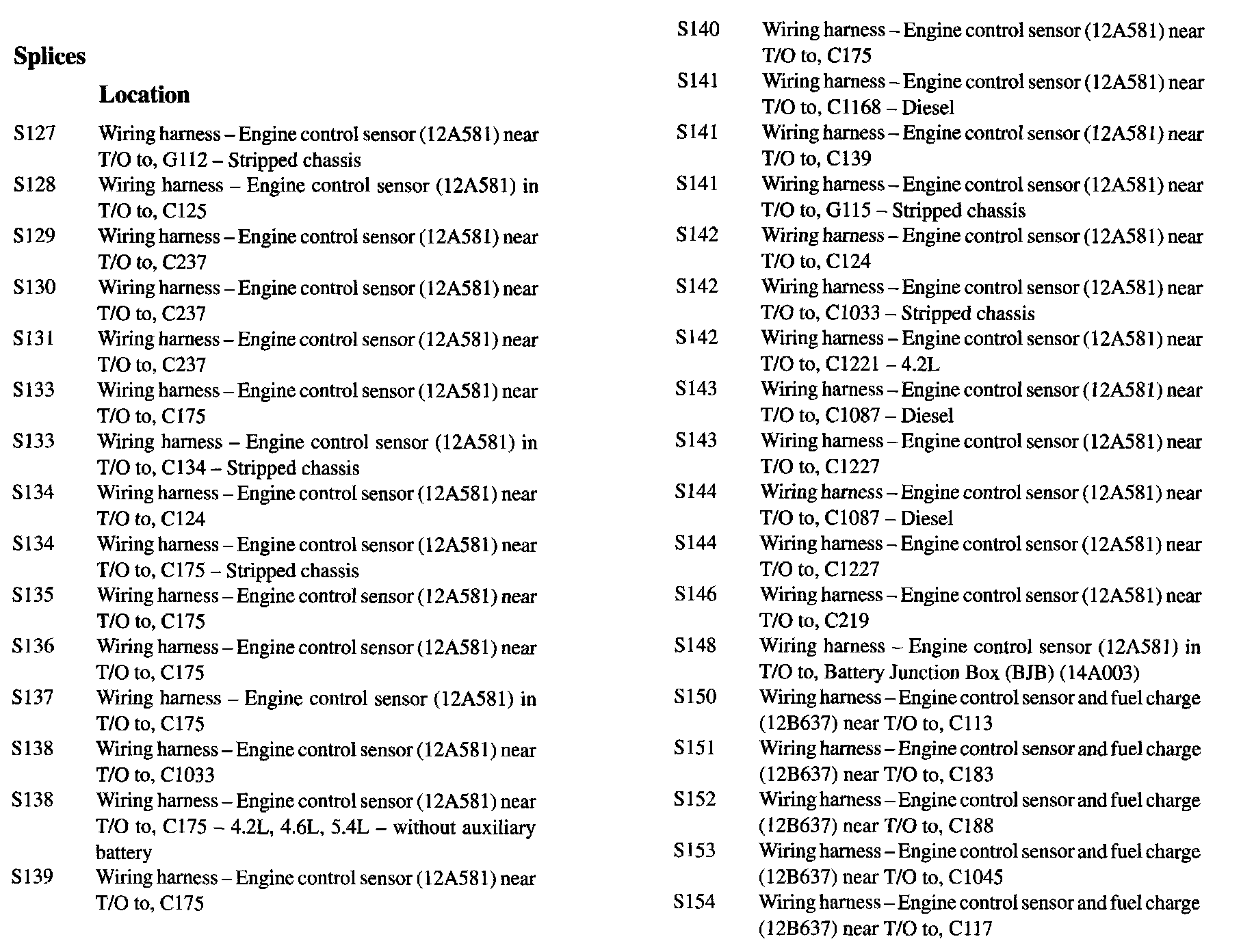

S127 - S154:

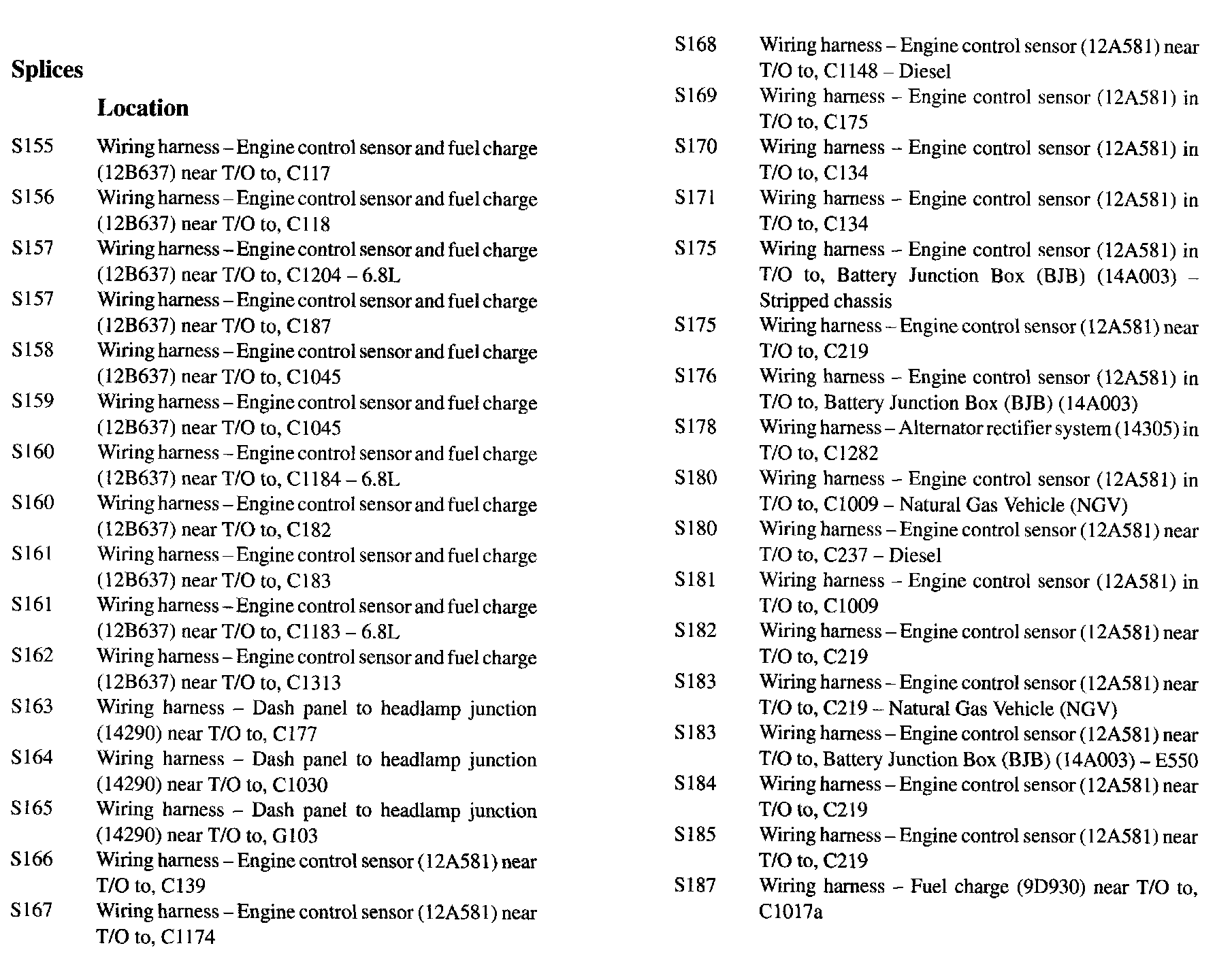

S155 - S187:

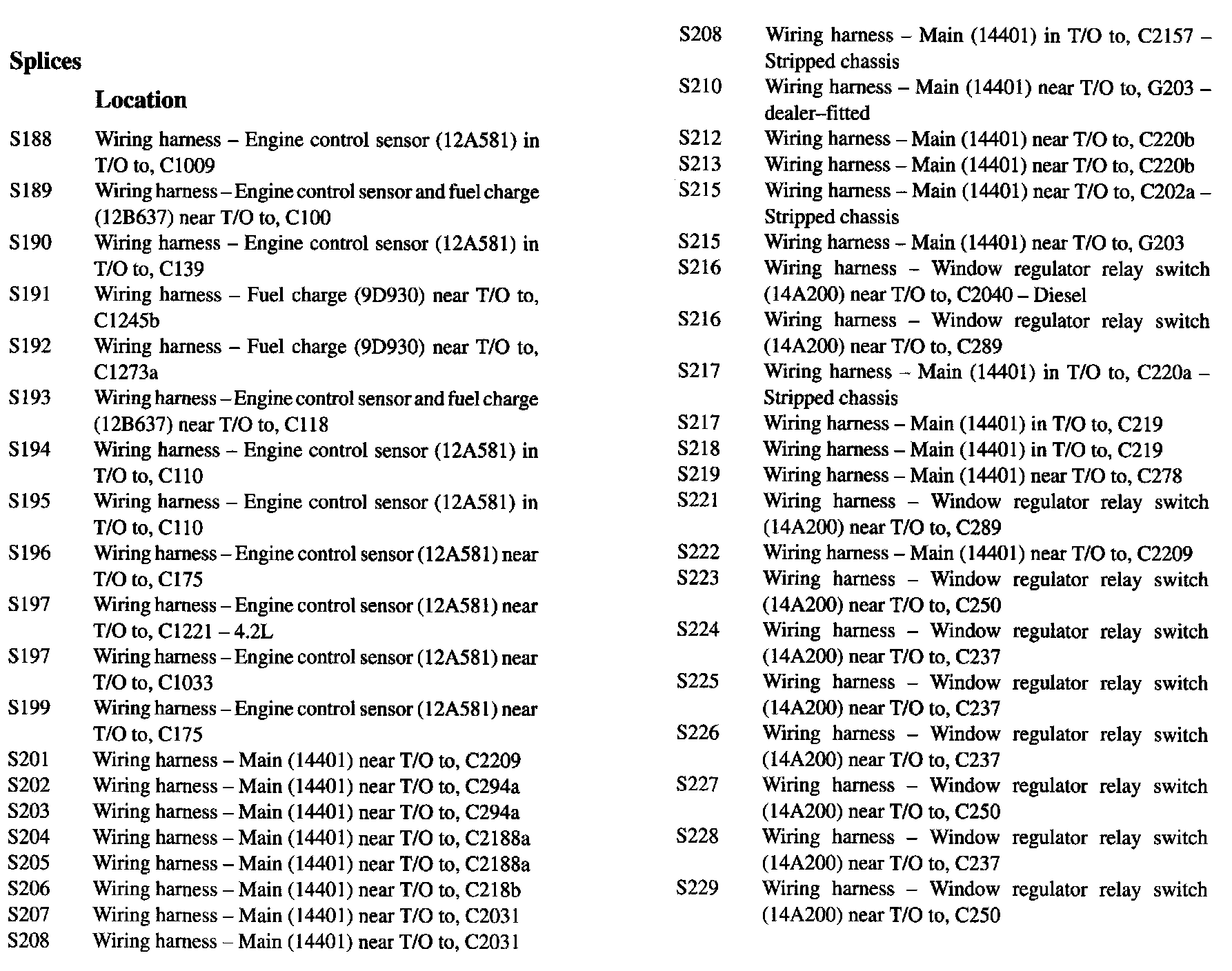

S188 - S229:

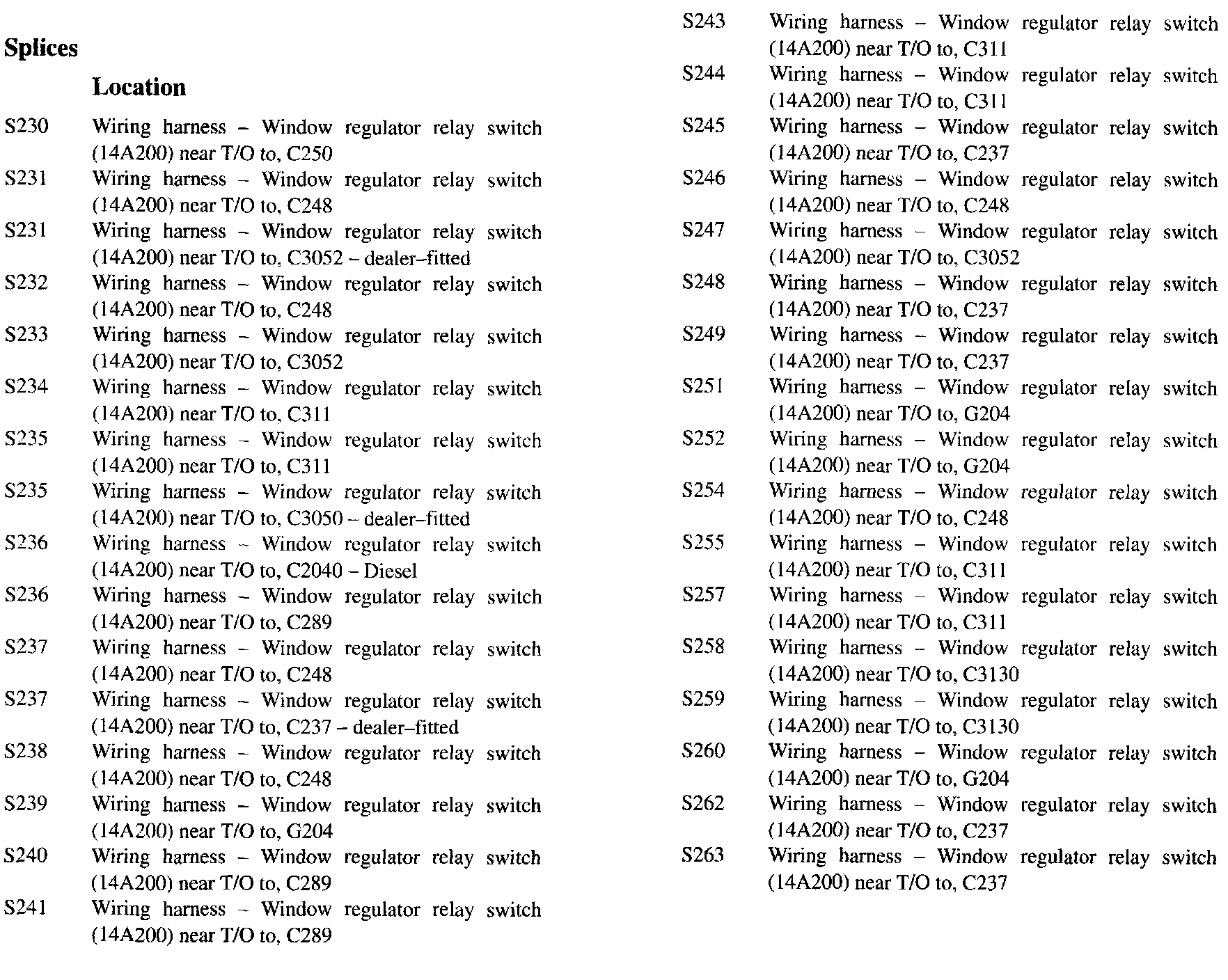

S230 - S263:

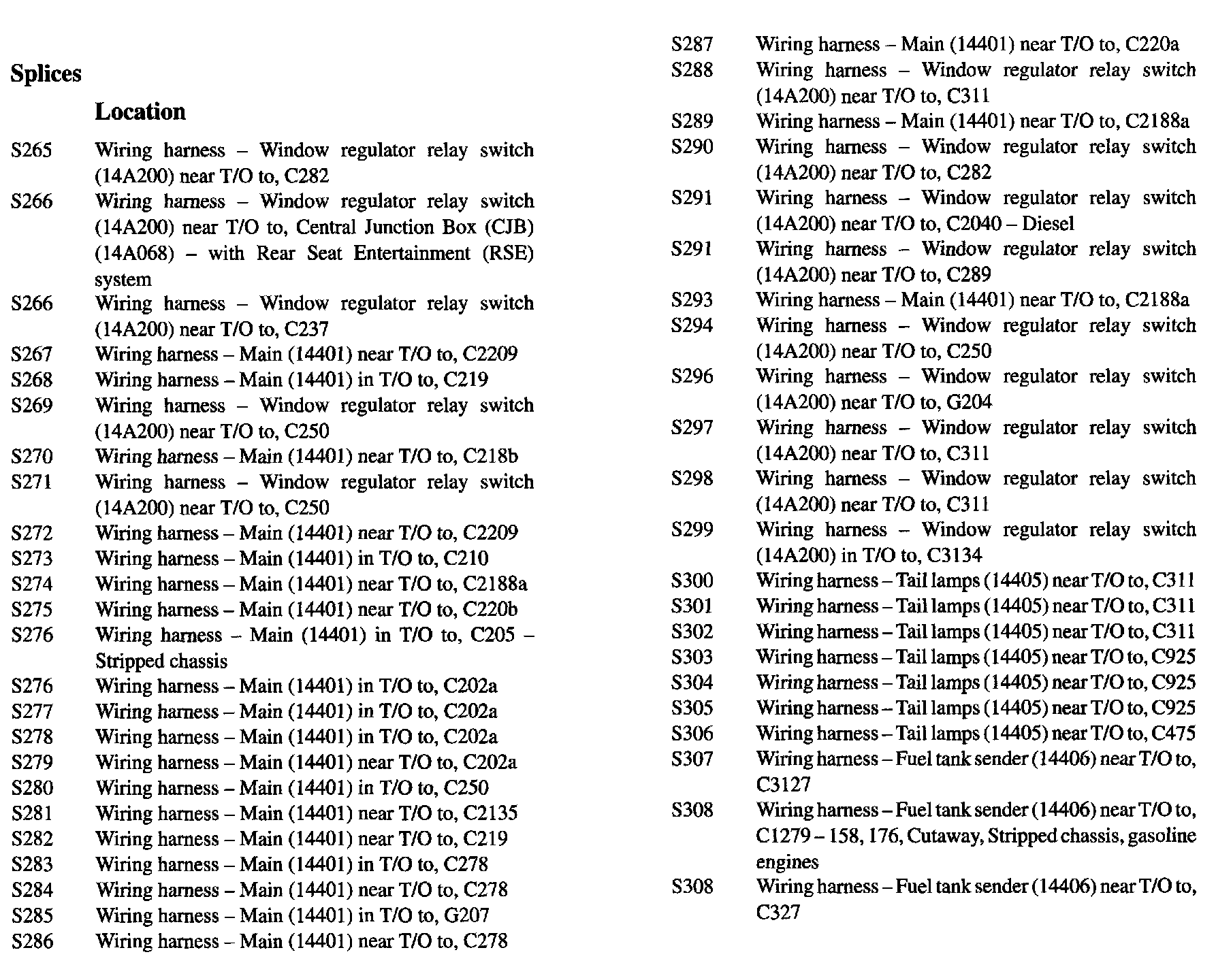

S265 - S308:






S309 - S506:

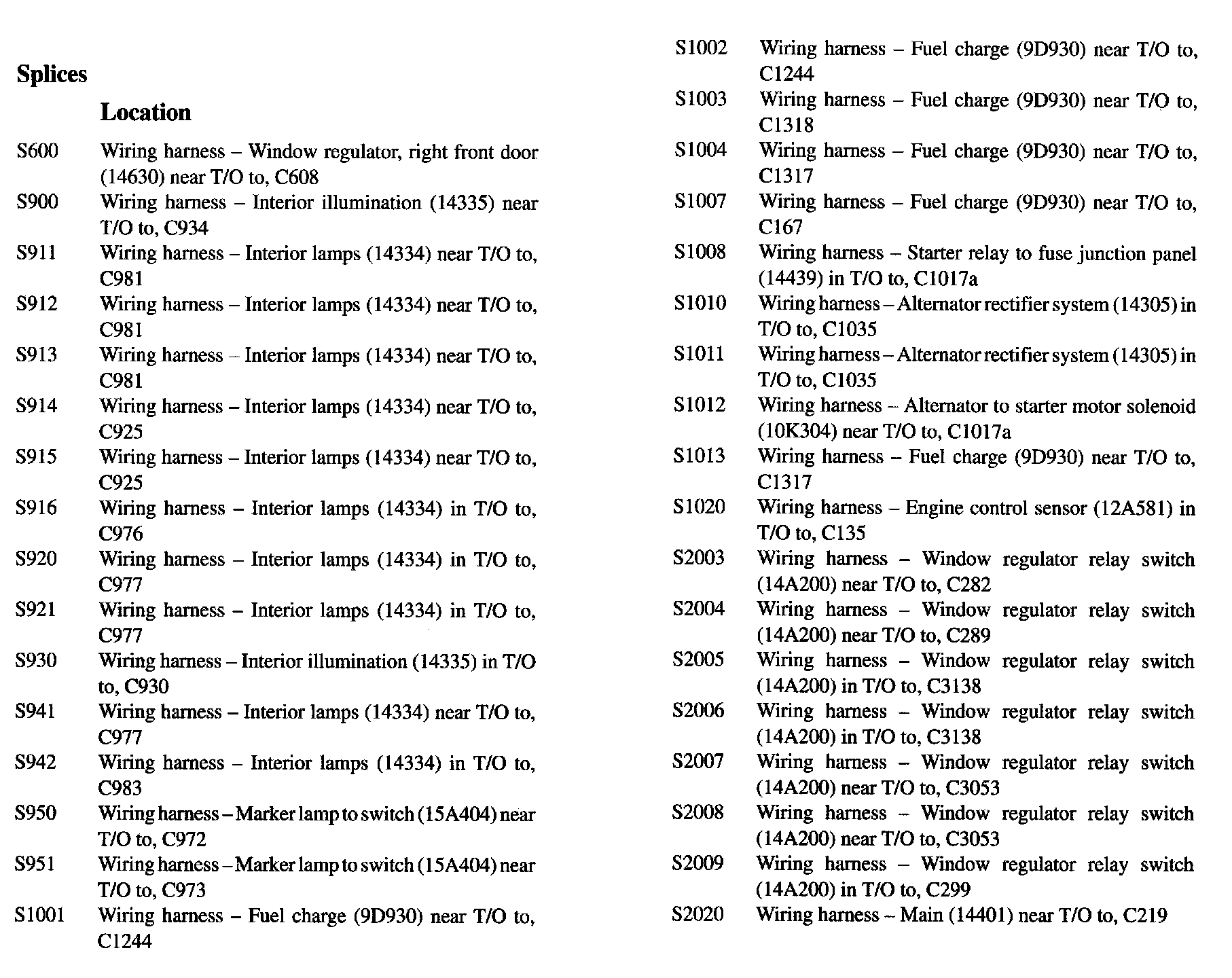

S600 - S2020:
