Test C

PINPOINT TEST C: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - POWERTRAIN CONTROL MODULE (PCM)

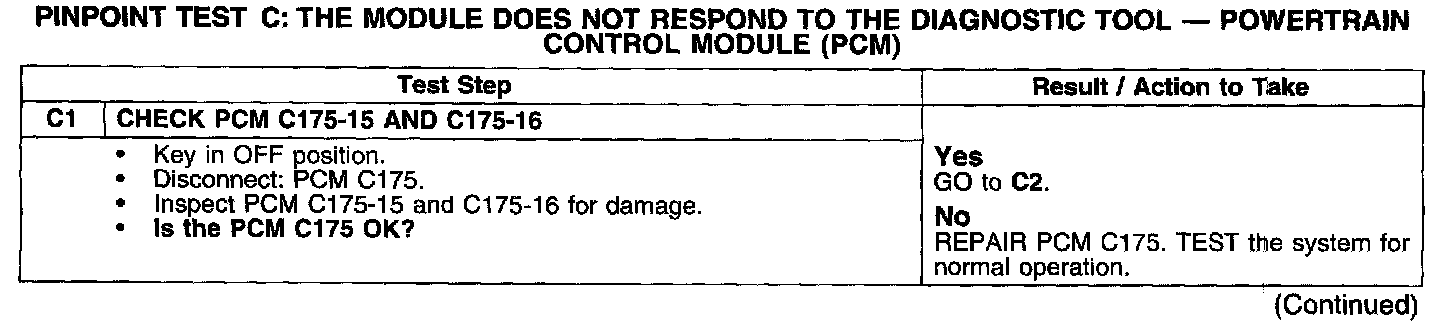

Test C1:

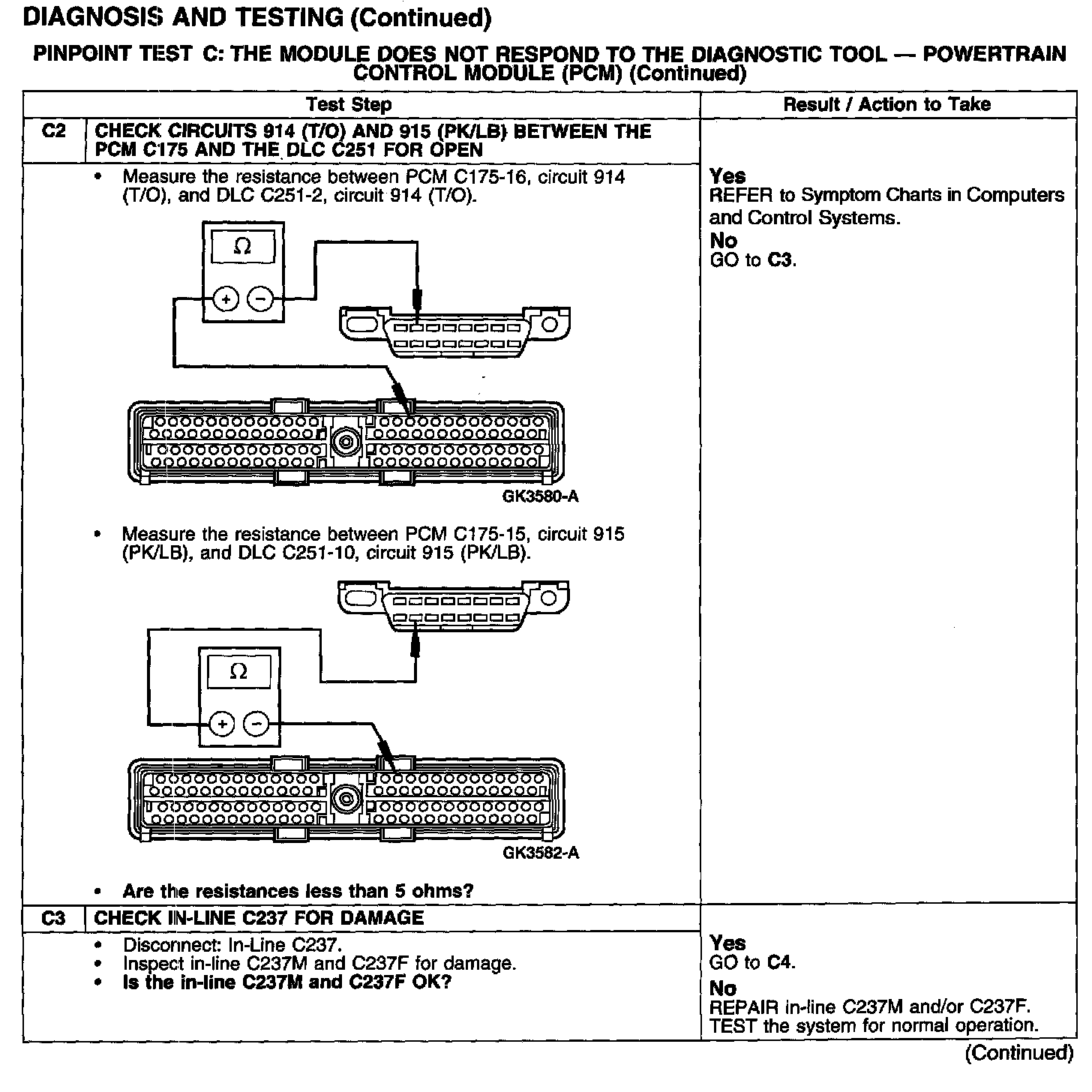

Test C2-C3:

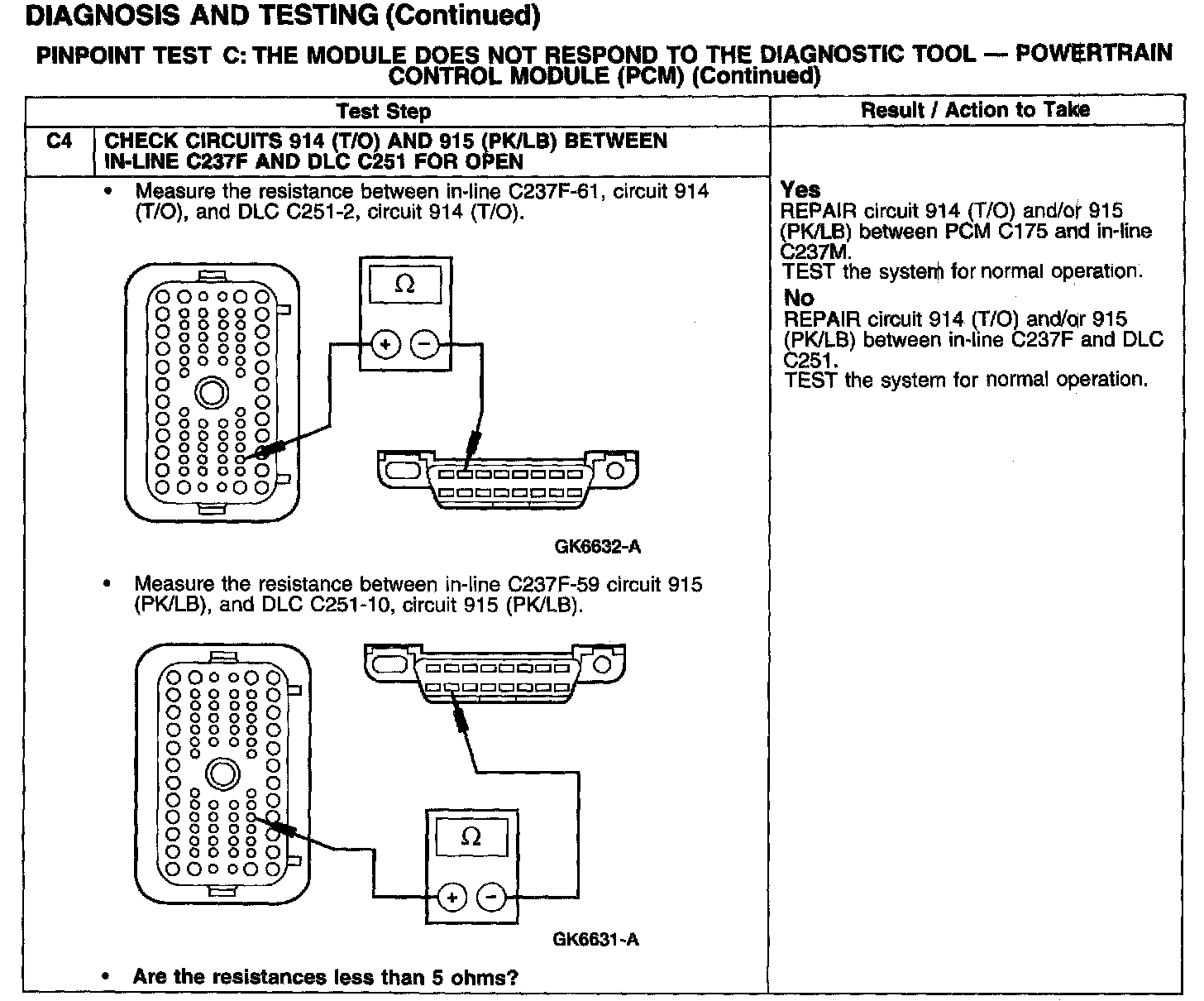

Test C4:
