Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Econoline E150 1/2 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D
Test D
PINPOINT TEST D: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - AUXILIARY POWERTRAIN CONTROL MODULE (APCM)

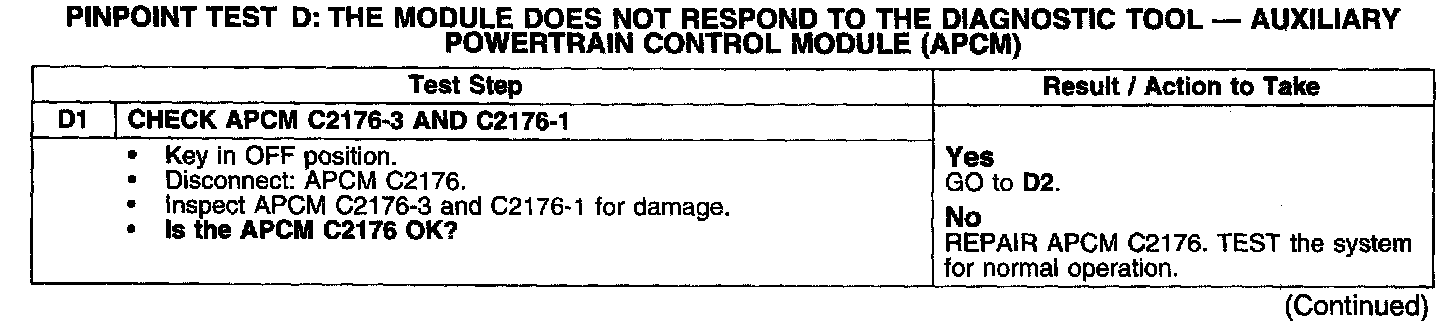

Test D1:

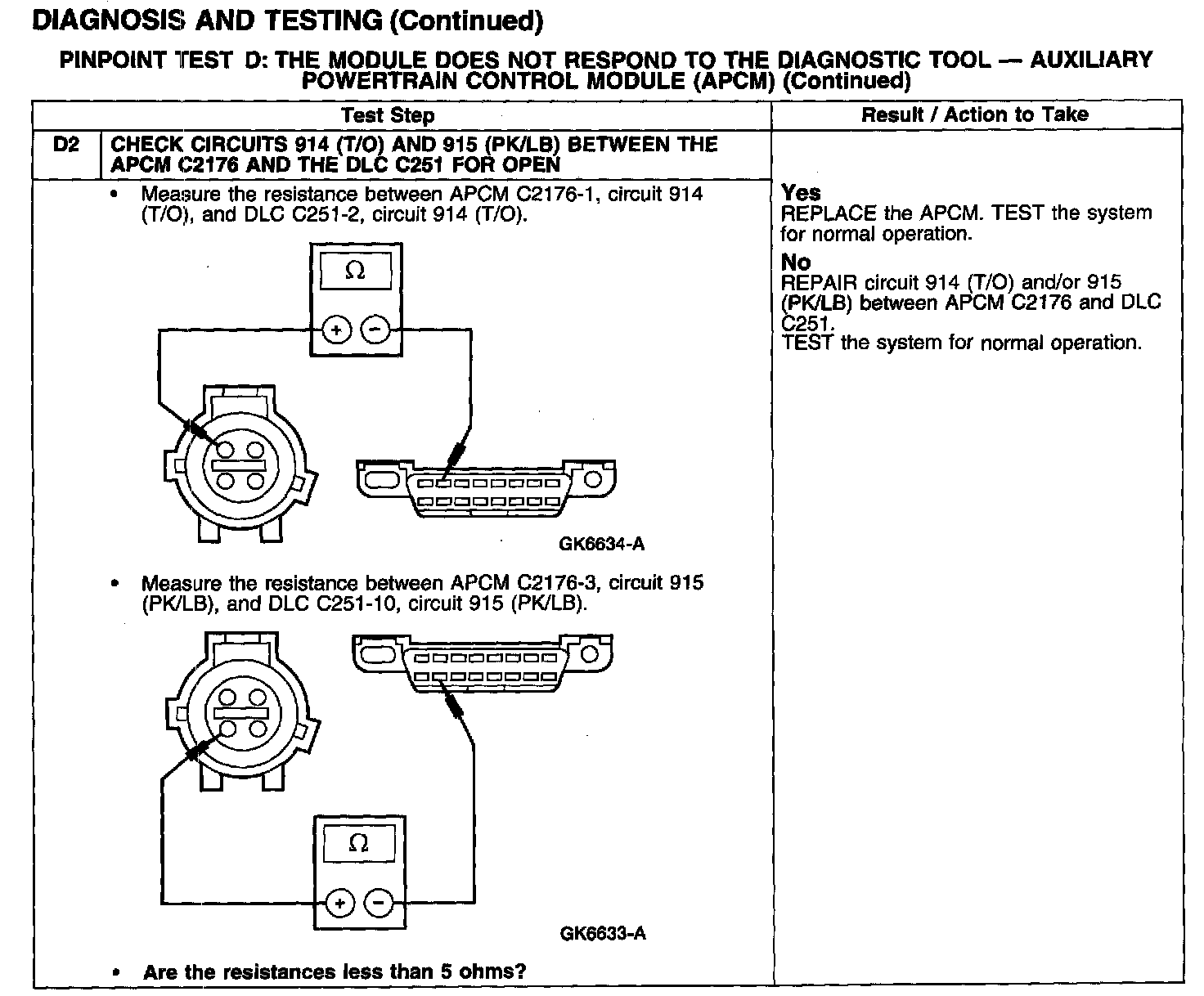

Test D2:
