PINPOINT TEST E: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - NATURAL GAS VEHICLE MODULE (NGVM)

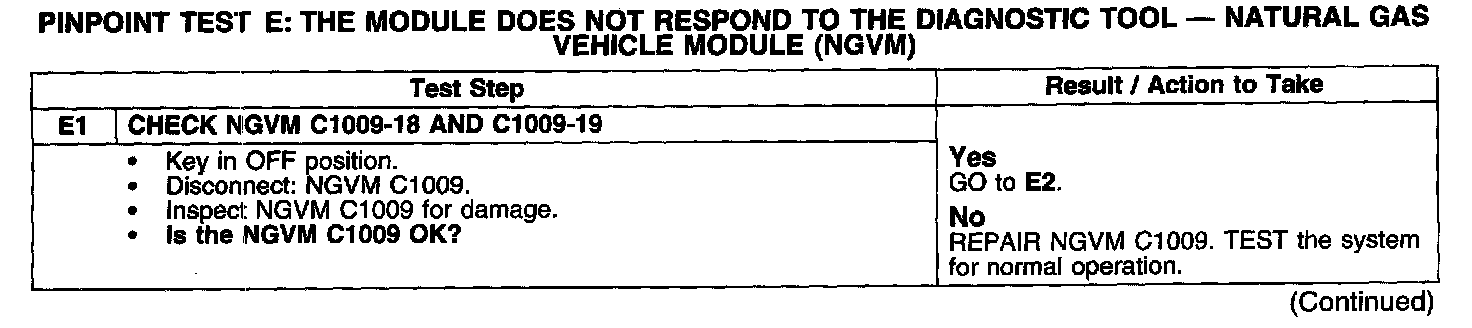

Test E1:
Test E2-E3:

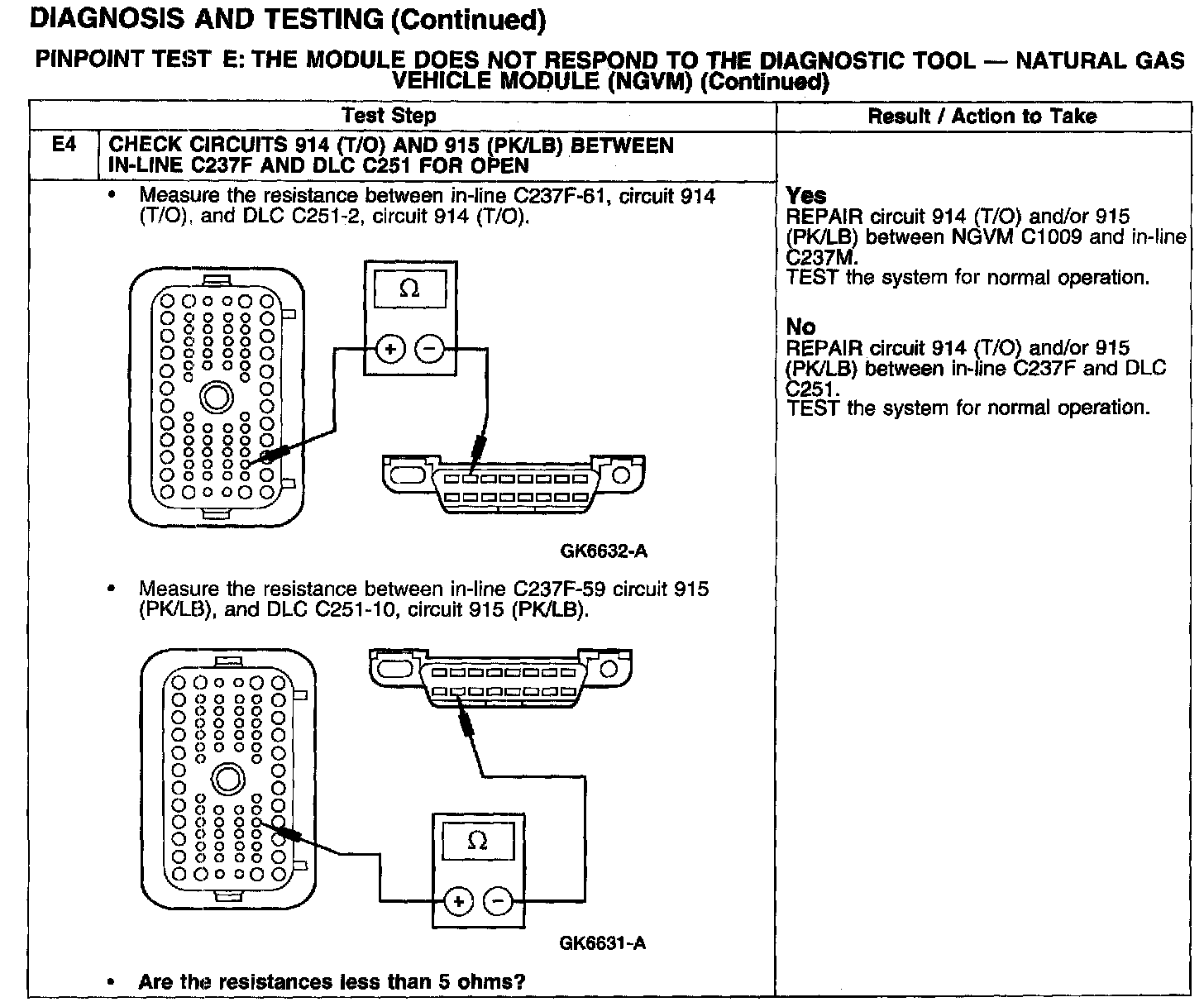

Test E4:
