EGR Tube: Service and Repair

REMOVAL
1. Remove the engine cover.

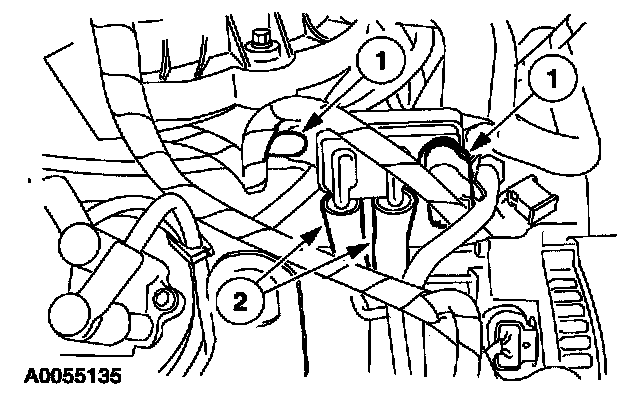

2. Remove the differential pressure feedback Exhaust Gas Recirculation (EGR) system.
1 Disconnect the electrical connector and the wiring harness pin-type retainer.
2 Remove the system vacuum hoses from EGR tube.







3. Remove the exhaust gas recirculation (EGR) valve tube.
^ Disconnect the EGR valve tube fittings.
^ Remove the EGR valve tube.

INSTALLATION
1. To install, reverse the removal procedure.
