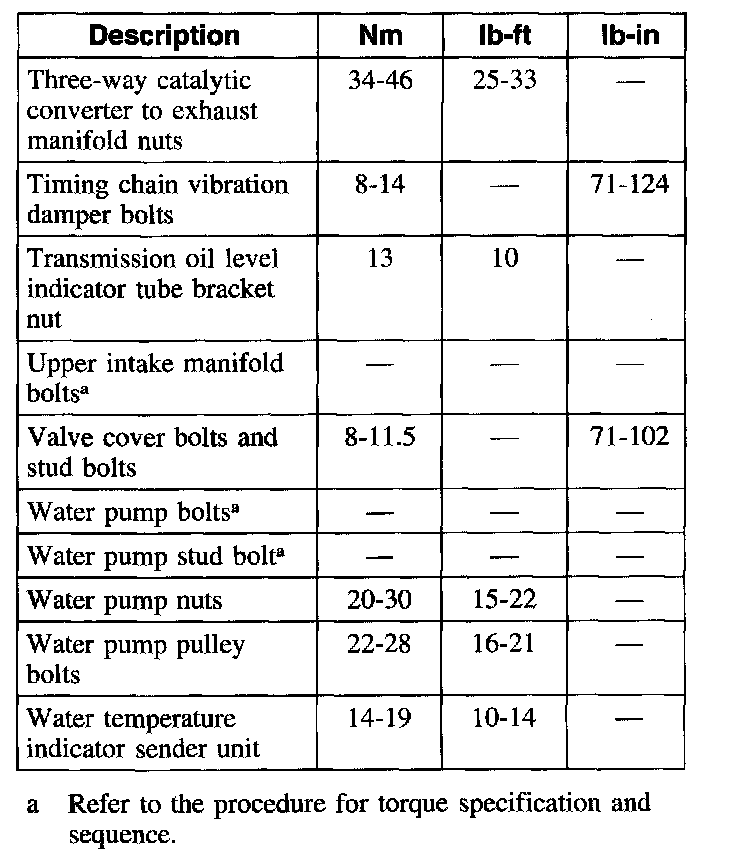

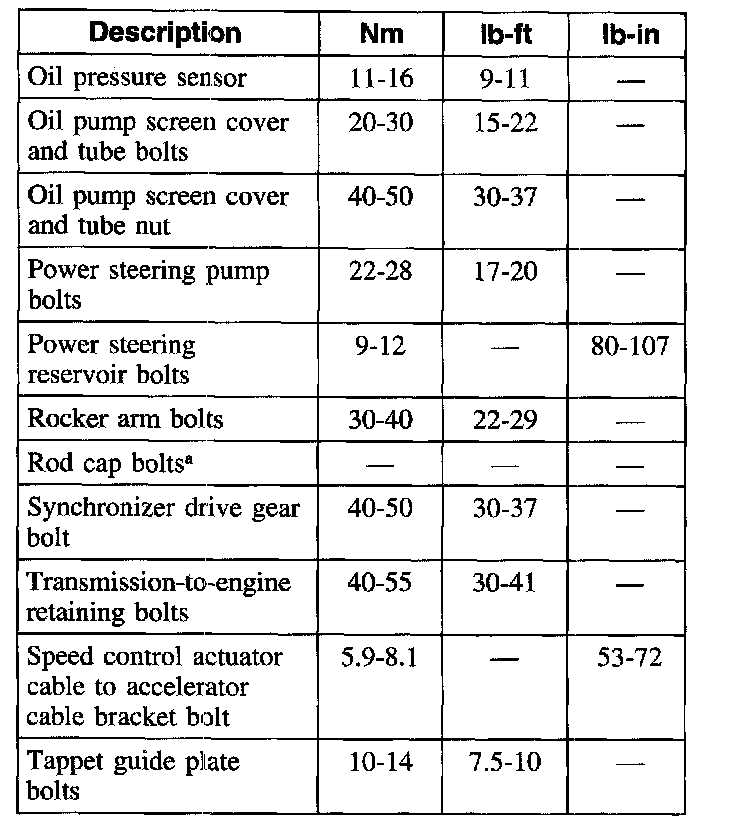

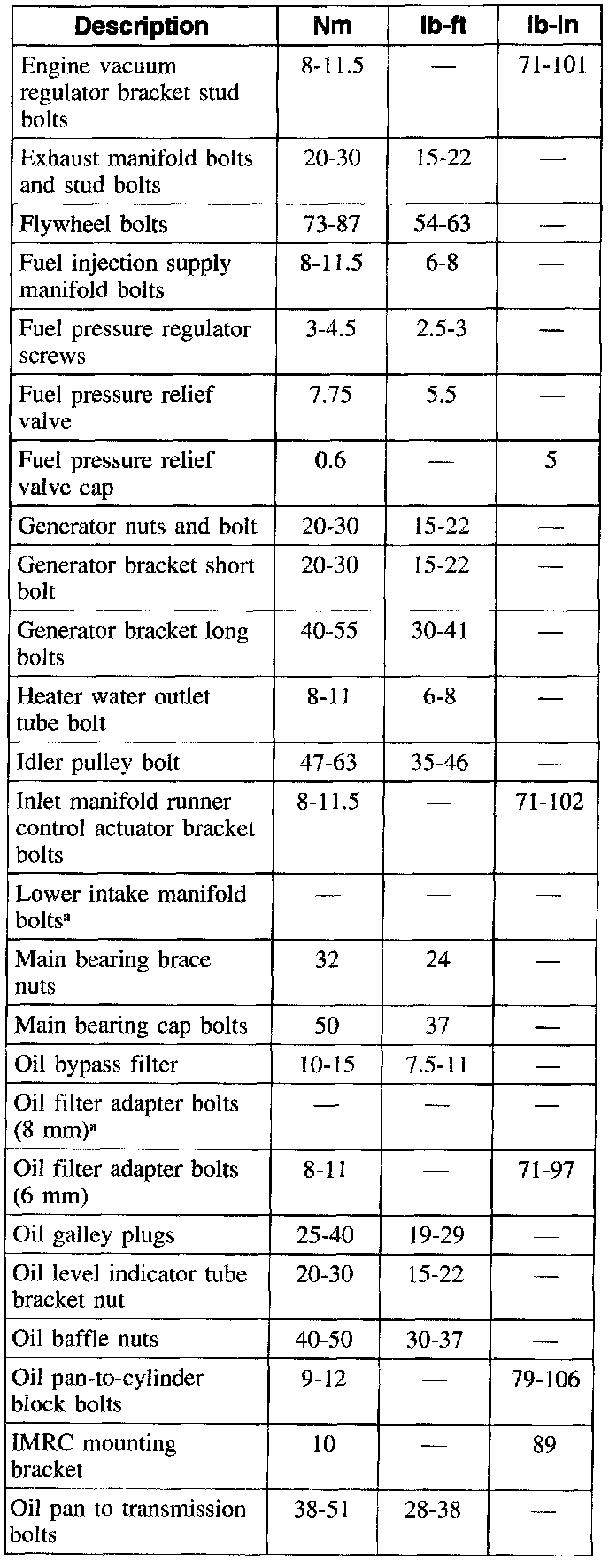

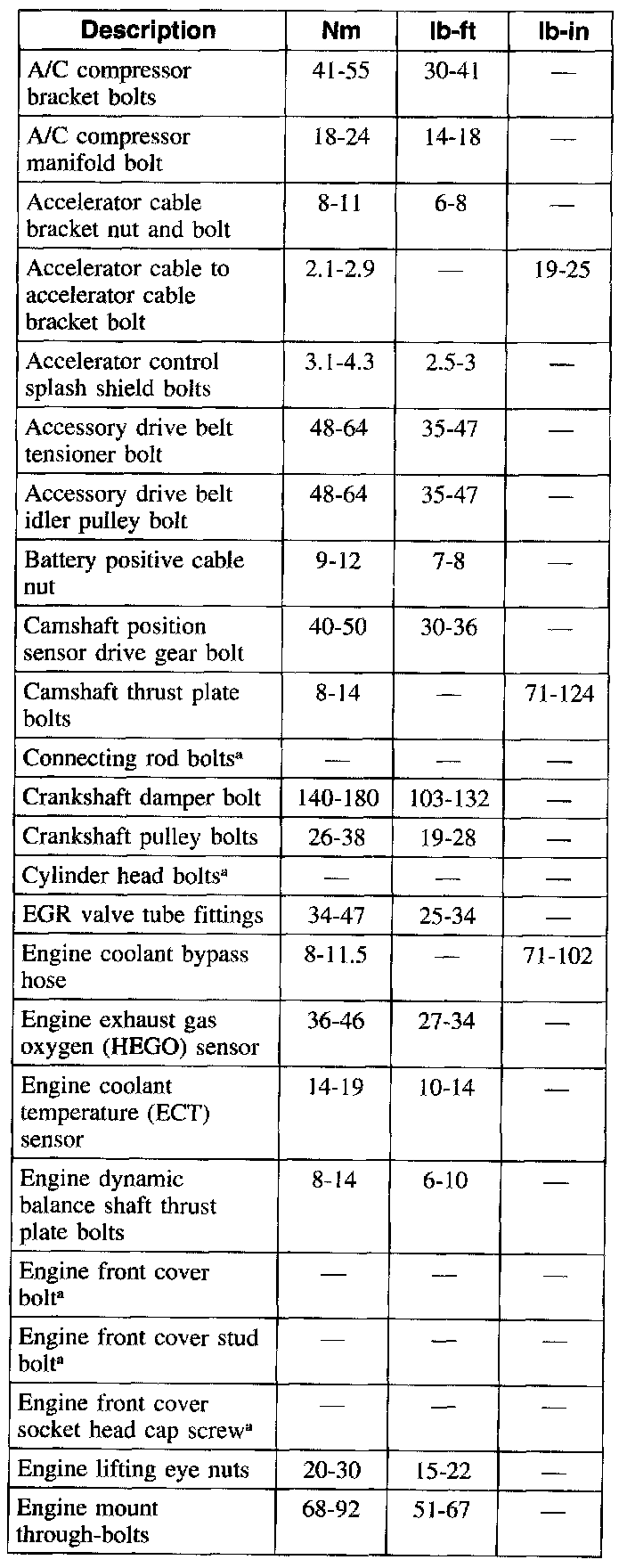

Torque Specifications

Torque Specifications

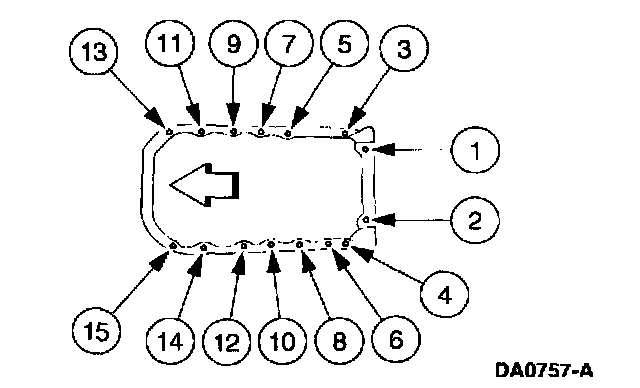

Oil Pan bolts.
Stage 1 4 - 5 Nm (35 - 44 inch lbs.)
Stage 2 9 - 12 Nm (79 - 106 inch lbs.)





Oil Pump Bolts

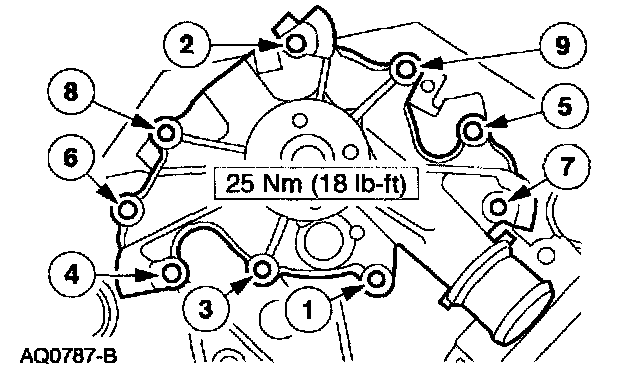

Water pump mounting bolts 25 Nm (18 ft. lbs.)
