Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Econoline E150 1/2 Ton V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

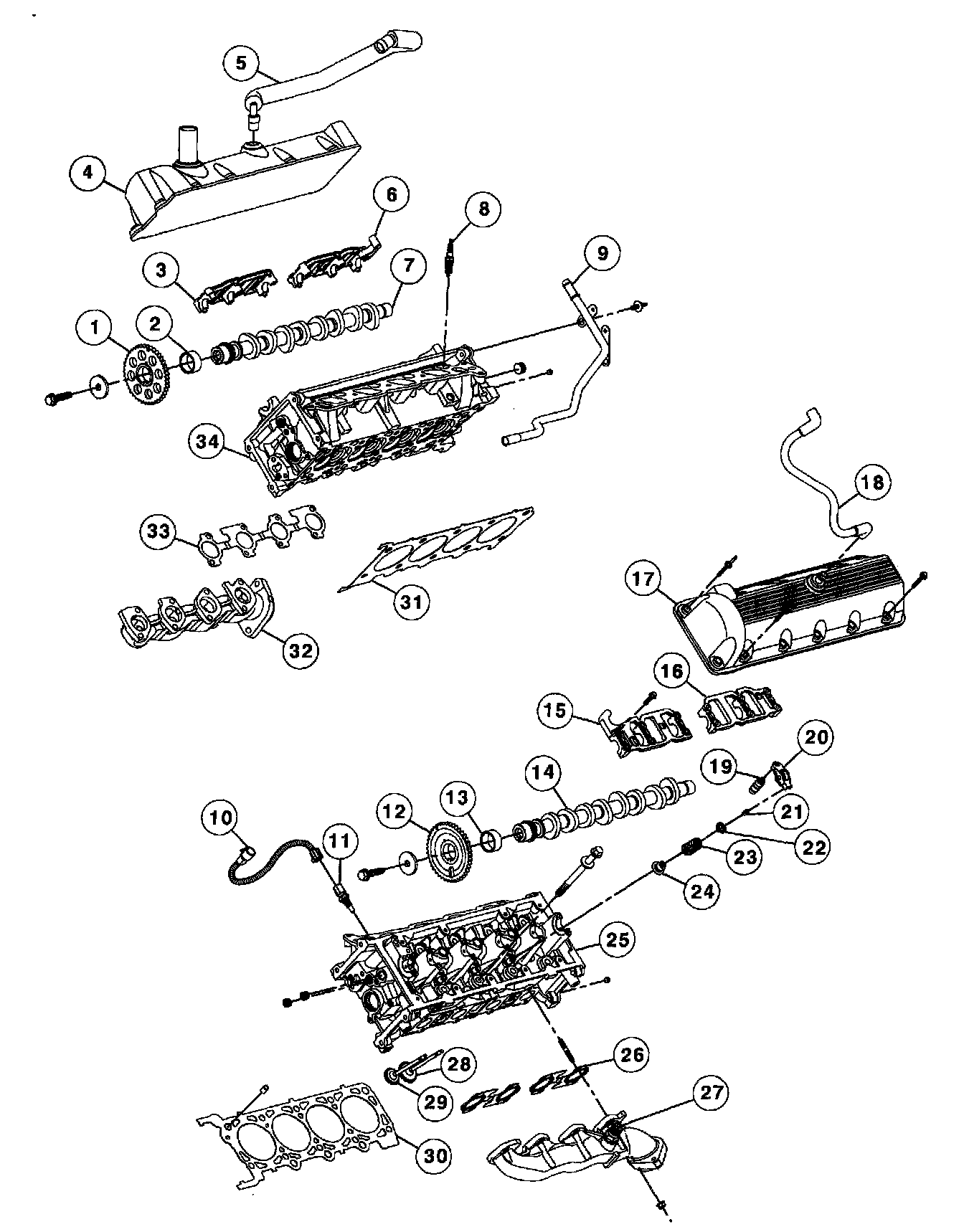

4.6L Upper End Components
4.6L Upper End Components
4.6L Upper End Components

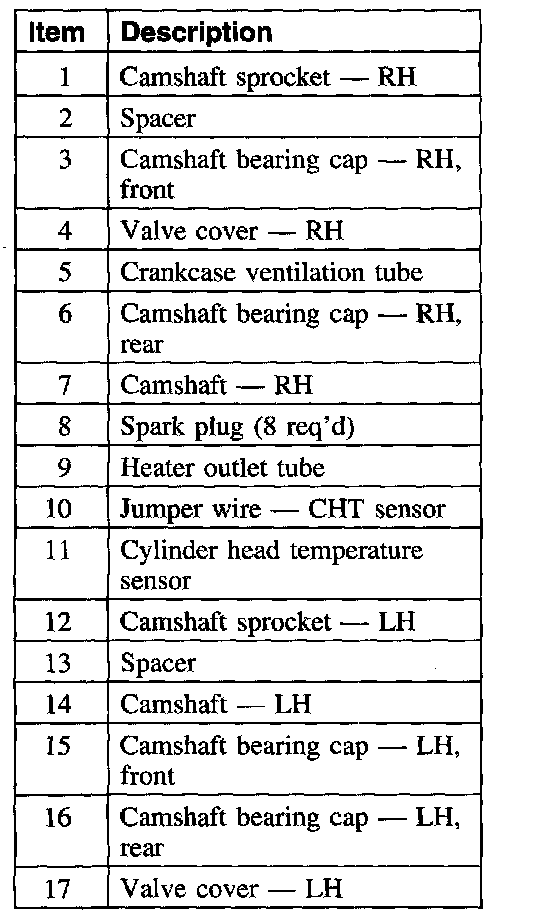

Part 1 Of 3:

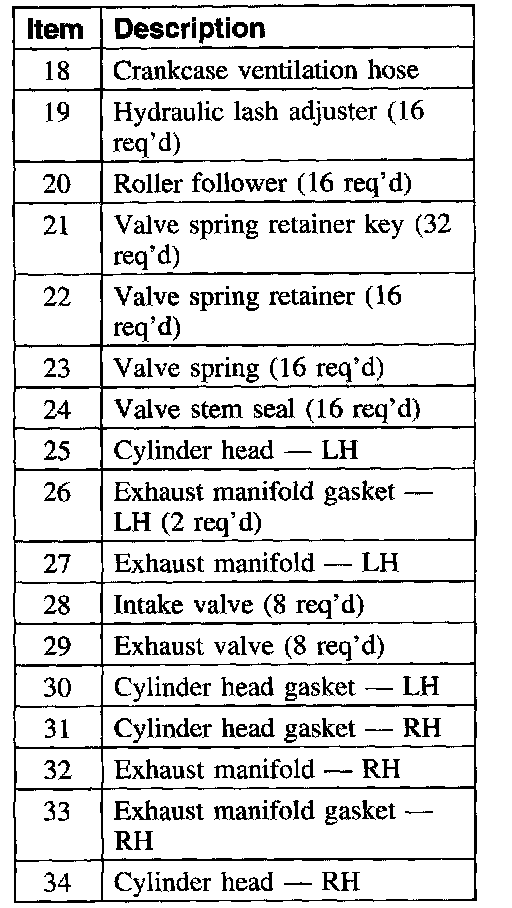

Part 2 Of 3:
Part 3 Of 3:
