Wiper Motor: Service and Repair

MOTOR - WINDSHIELD WIPER

REMOVAL
1. Remove the windshield wiper pivot arms.
2. Raise and support the hood.
3. Remove the cowl top vent panels.







4. Disconnect the windshield wiper mounting arm and pivot shaft.
1 Remove the access cover from the dash panel.
2 Remove the retaining clip.
3 Disconnect the windshield wiper mounting arm and pivot shaft from the windshield wiper motor.

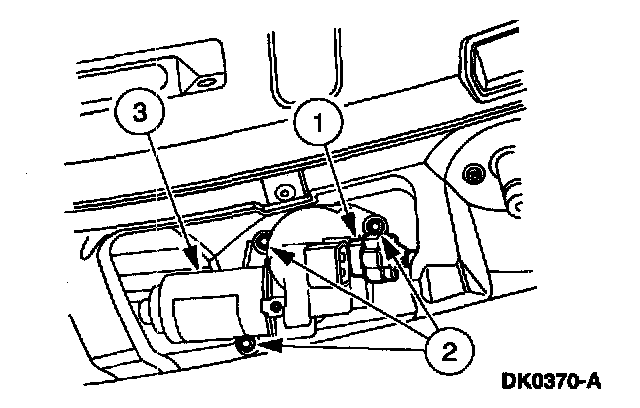

5. Remove the windshield wiper motor.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the windshield wiper motor.

INSTALLATION







1. Install the mounting arm and pivot shaft retaining clip on the windshield wiper mounting arm and pivot shaft.







2. Install the windshield wiper motor.
1 Position the windshield wiper motor in the dash panel.
2 Install the bolts.
3 Connect the electrical connector.







3. Connect the windshield wiper mounting arm and pivot shaft.
1 Press upward on the windshield wiper mounting arm and pivot shaft after it is aligned with the windshield wiper motor.
2 Install the access cover in the dash panel.

4. Install the cowl top vent panels.
5. Install the windshield wiper pivot arms.
