Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Econoline E250 3/4 Ton V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

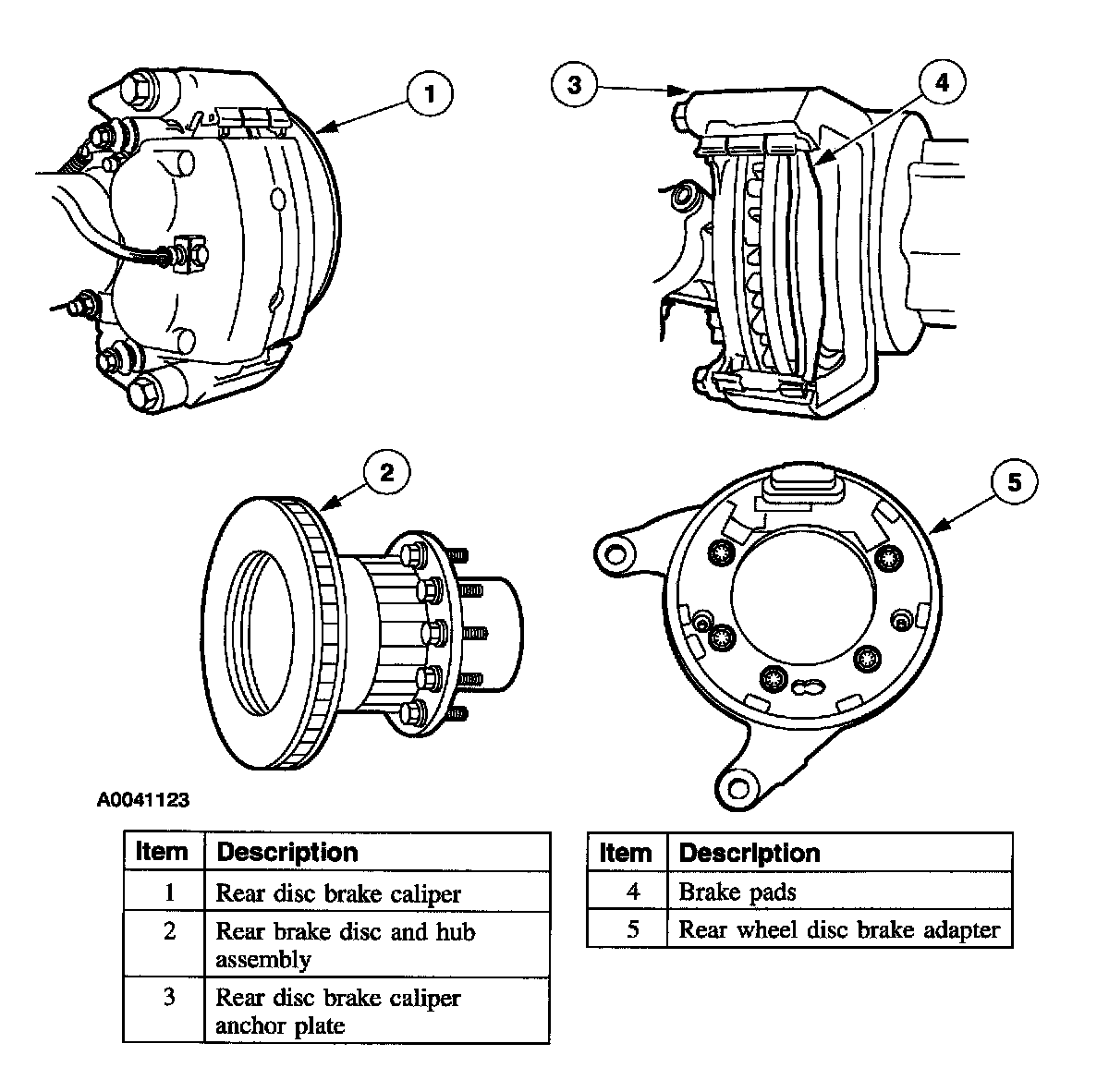

Rear Disc Brake
Rear
Disc Brake System

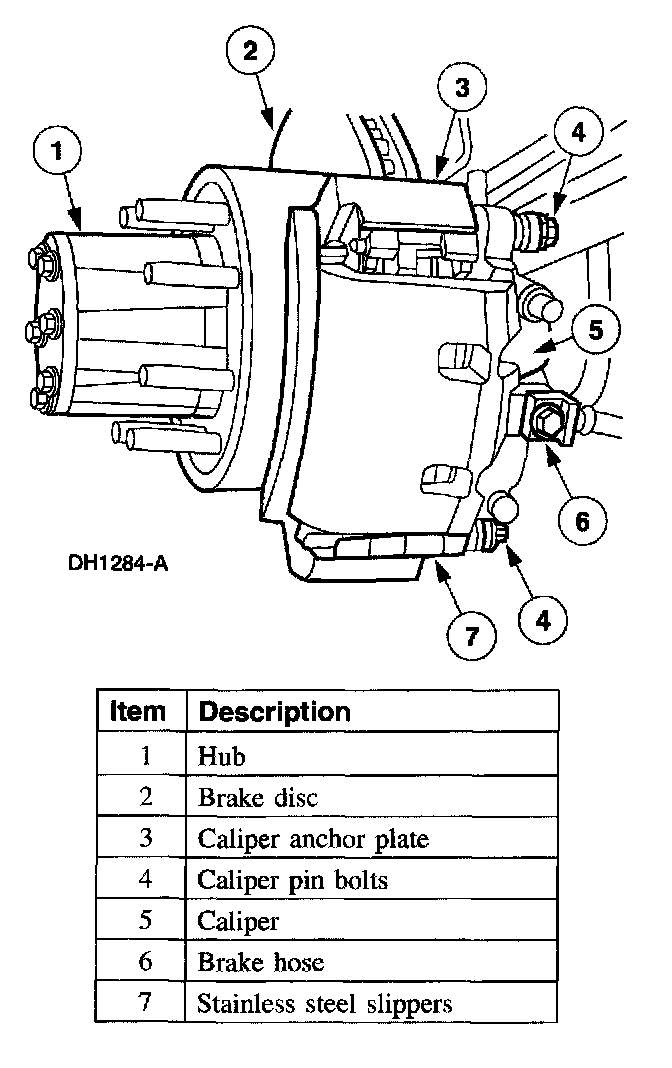

Components - Dual Rear Wheel

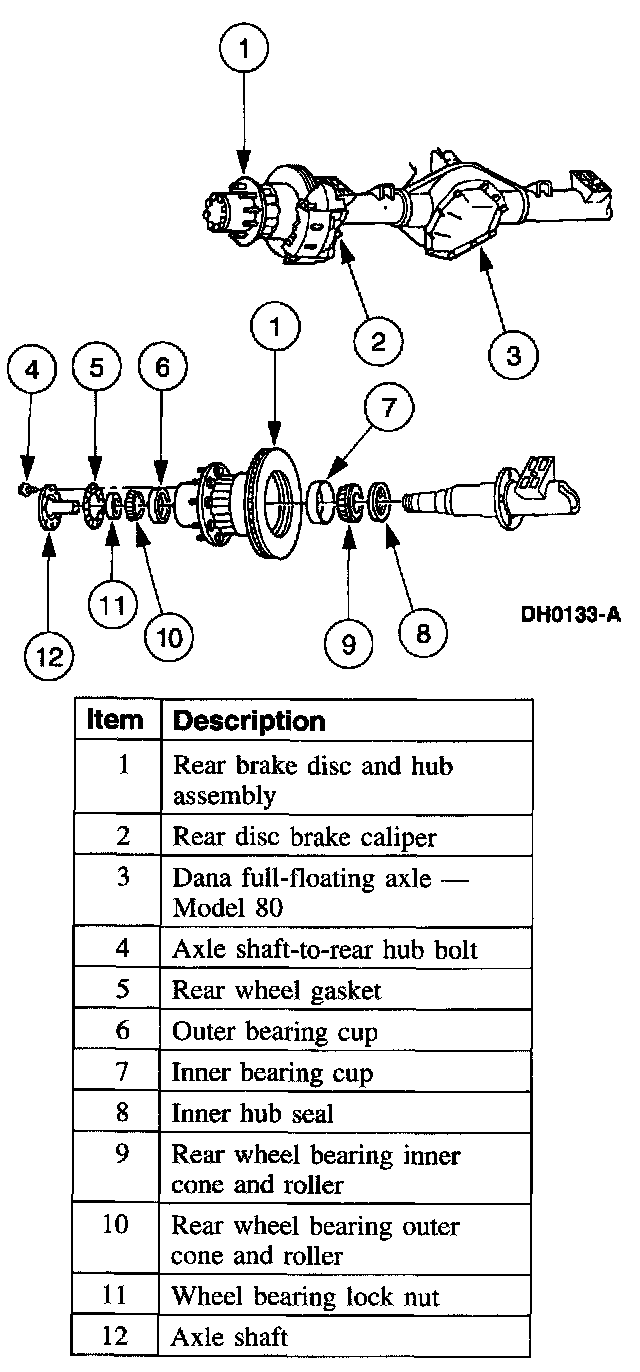

Brake Disc and Hub
