Oil Pan, Engine

Oil pan drain plug 13 Nm (10 ft. lbs.)





NOTE: Tighten the bolts in three stages.

Oil Pan

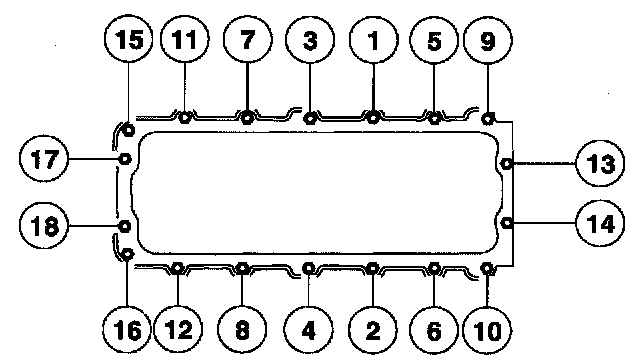

Tighten the bolts in the sequence shown.
^ Stage 1: Tighten to 2 Nm (18 inch lbs.).
^ Stage 2: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 3: Tighten an additional 90°.
