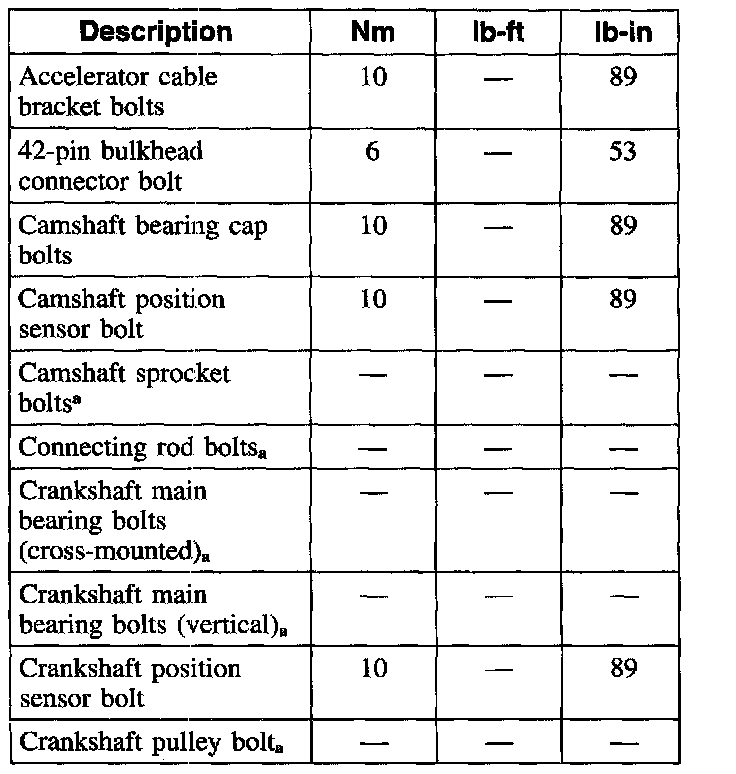

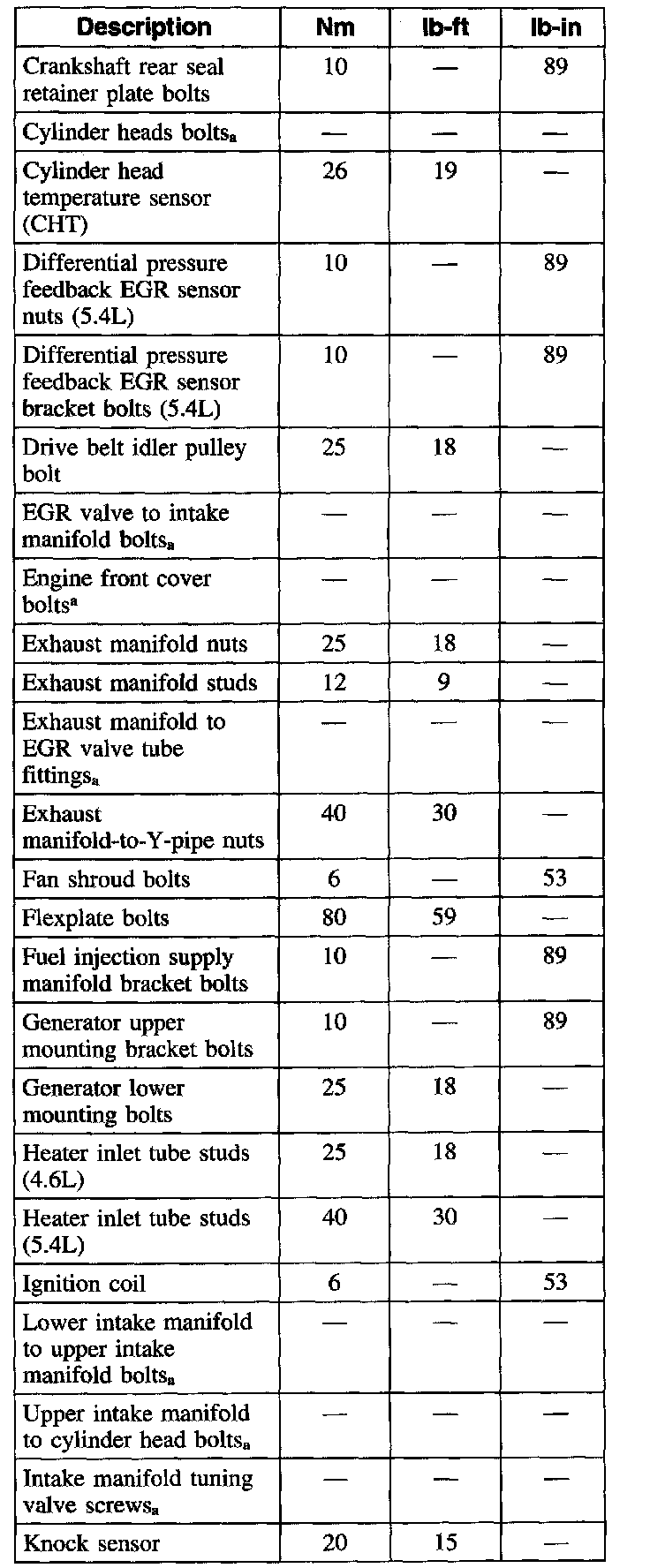

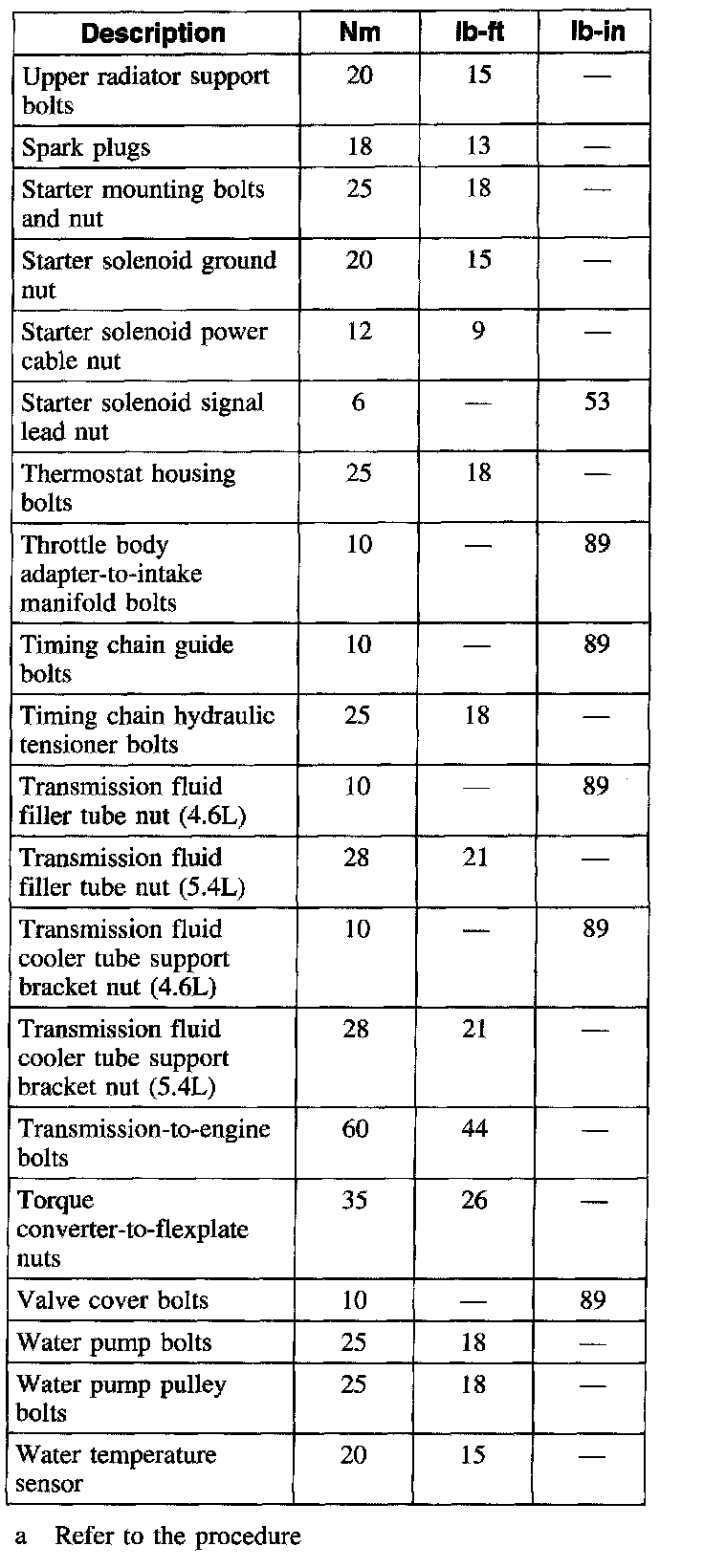

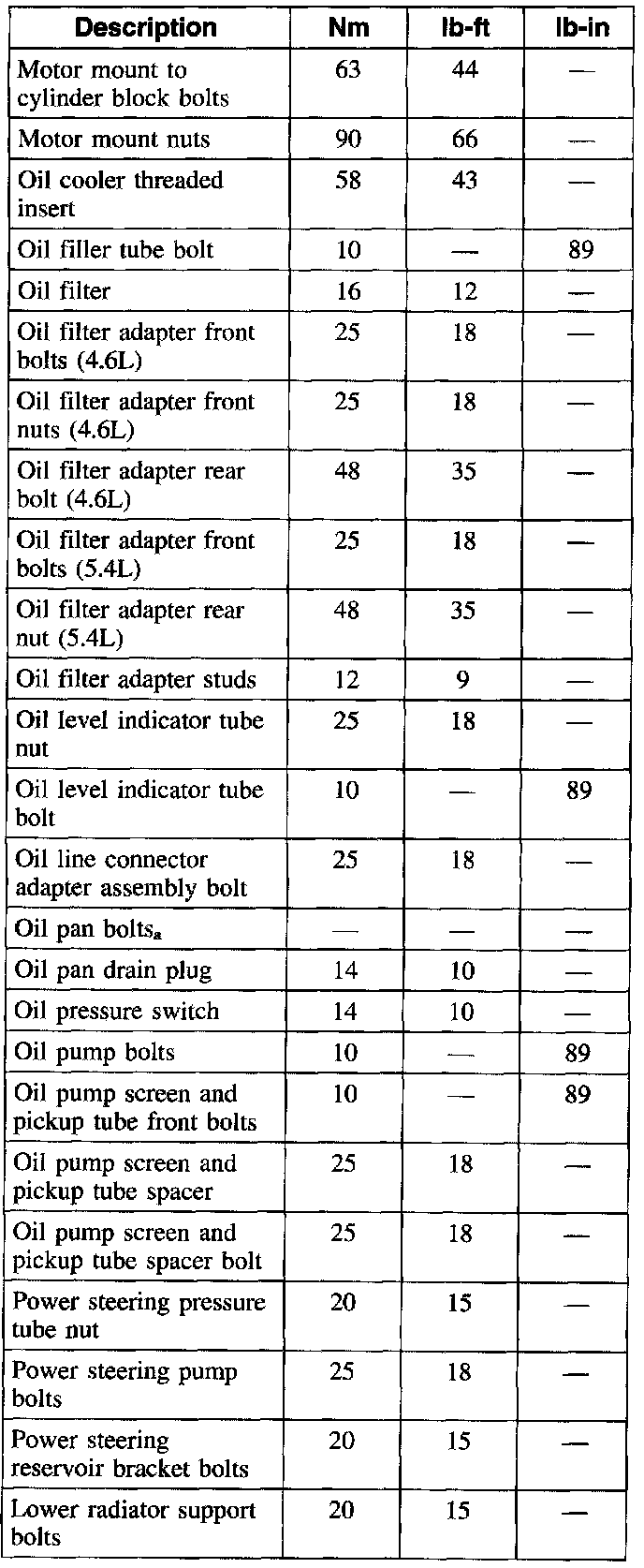

Torque Specifications

Torque Specifications

Exhaust Manifold Sequence:

Exhaust Manifold nuts

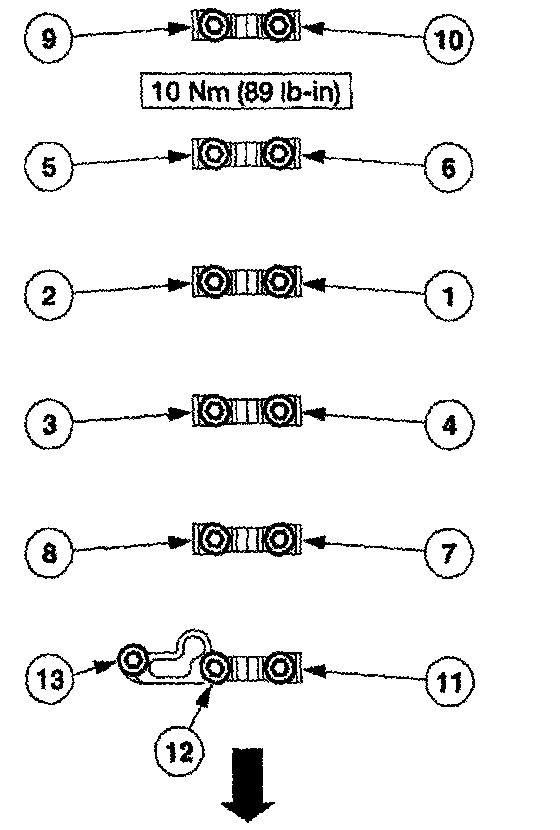

Camshaft bearing caps bolts

5.4L - Flywheel Bolt Sequence:

Flexplate bolts 80 Nm (59 ft. lbs.)





Oil Pump Bolts

Water pump bolts 25 Nm (18 ft. lbs.)
