Test K: Aux. Blower Motor Is Inop. - Veh. Without Rear Switch

PINPOINT TEST K: THE AUXILIARY BLOWER MOTOR IS INOPERATIVE - VEHICLES WITHOUT REAR AUXILIARY BLOWER MOTOR SWITCH

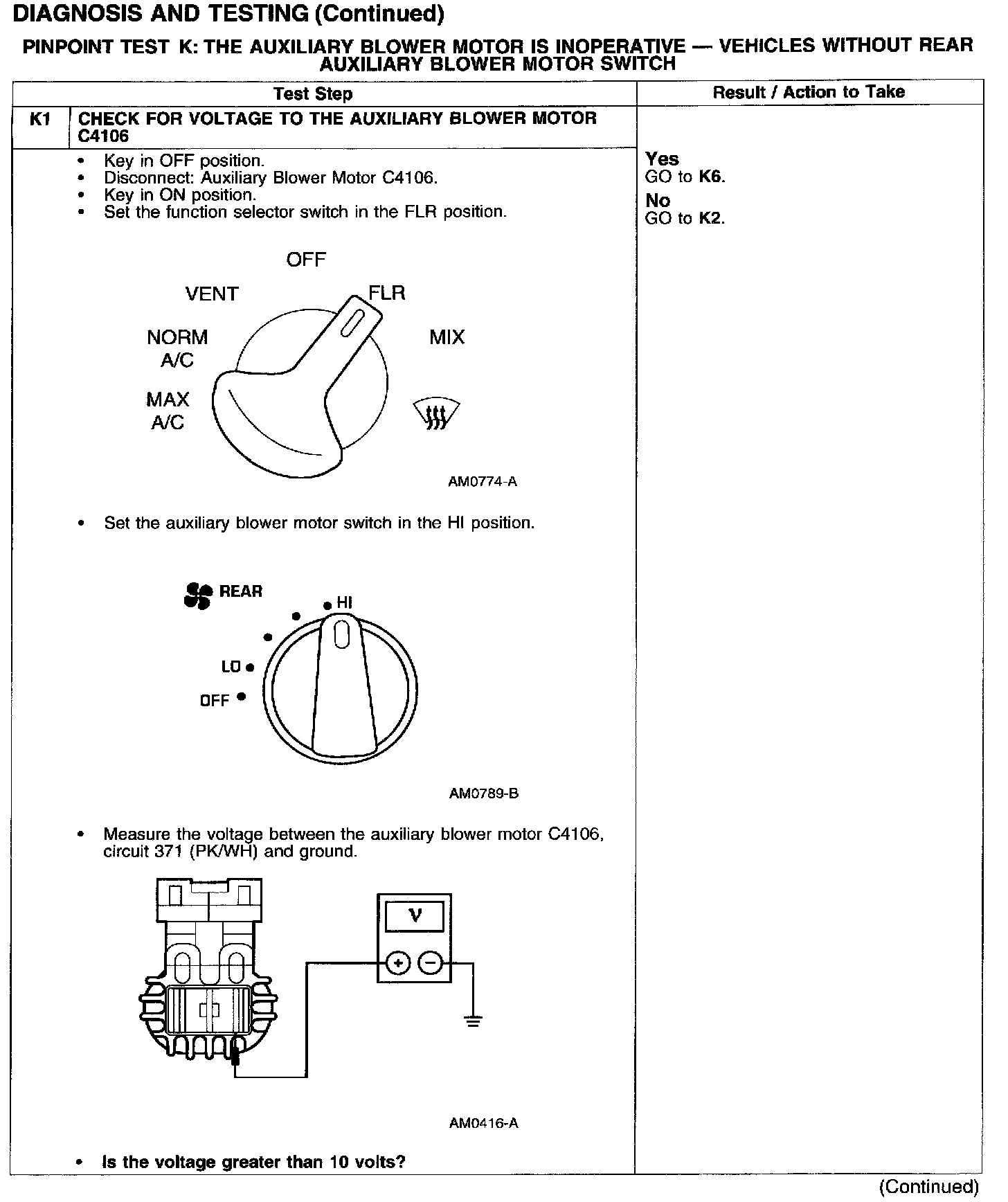

Test K1:

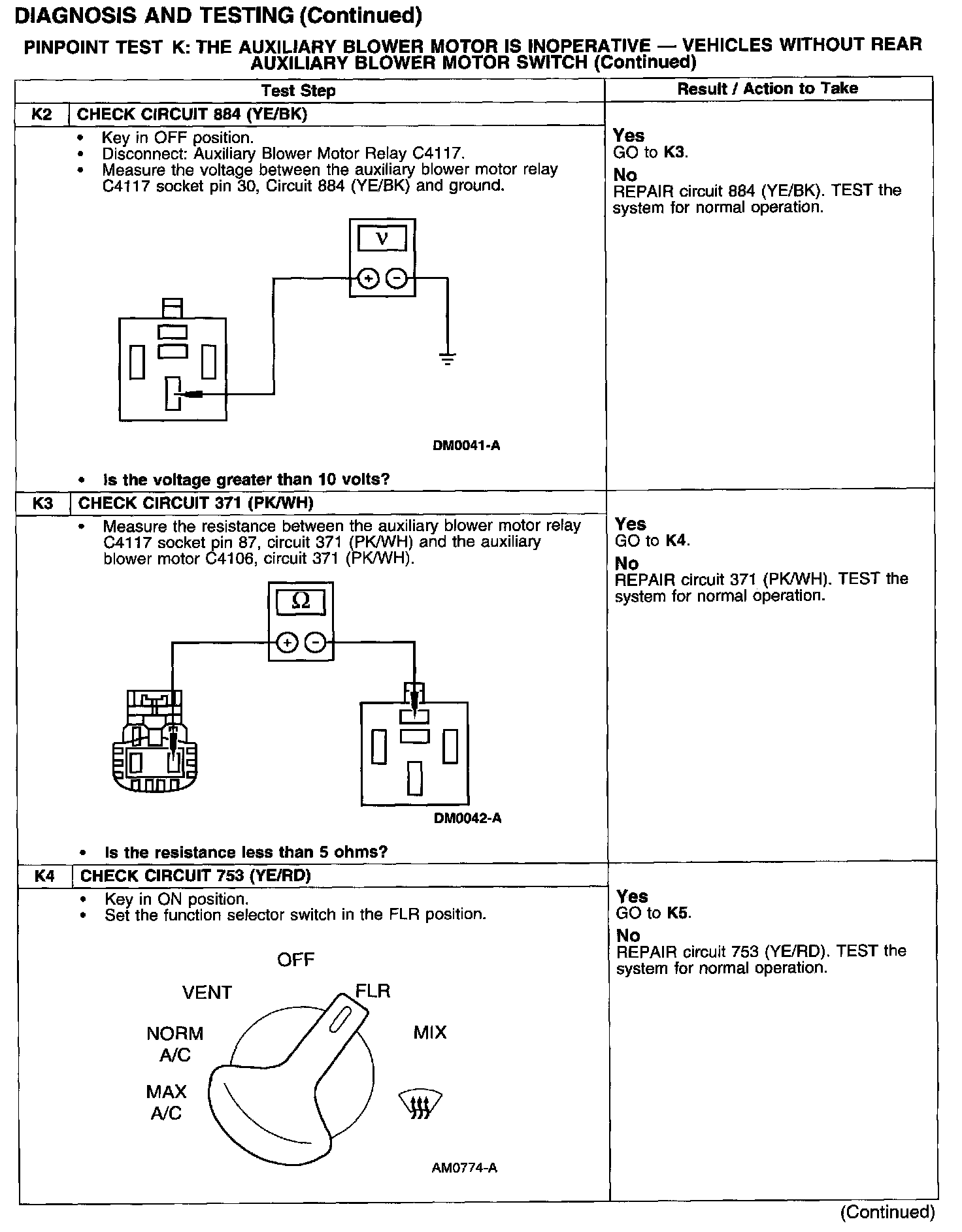

Test K2-K4:

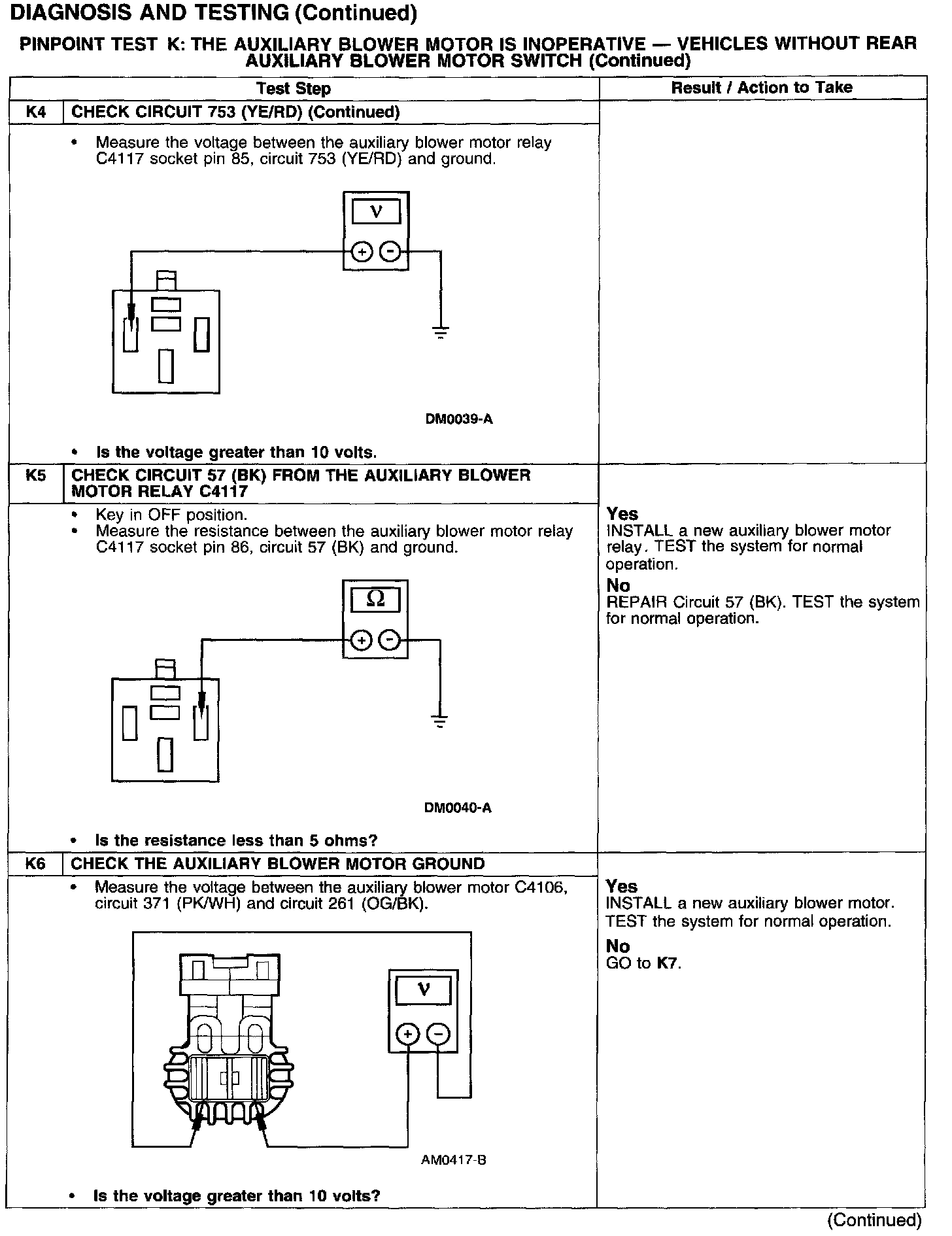

Test K4-K6:






Test K7-K9:

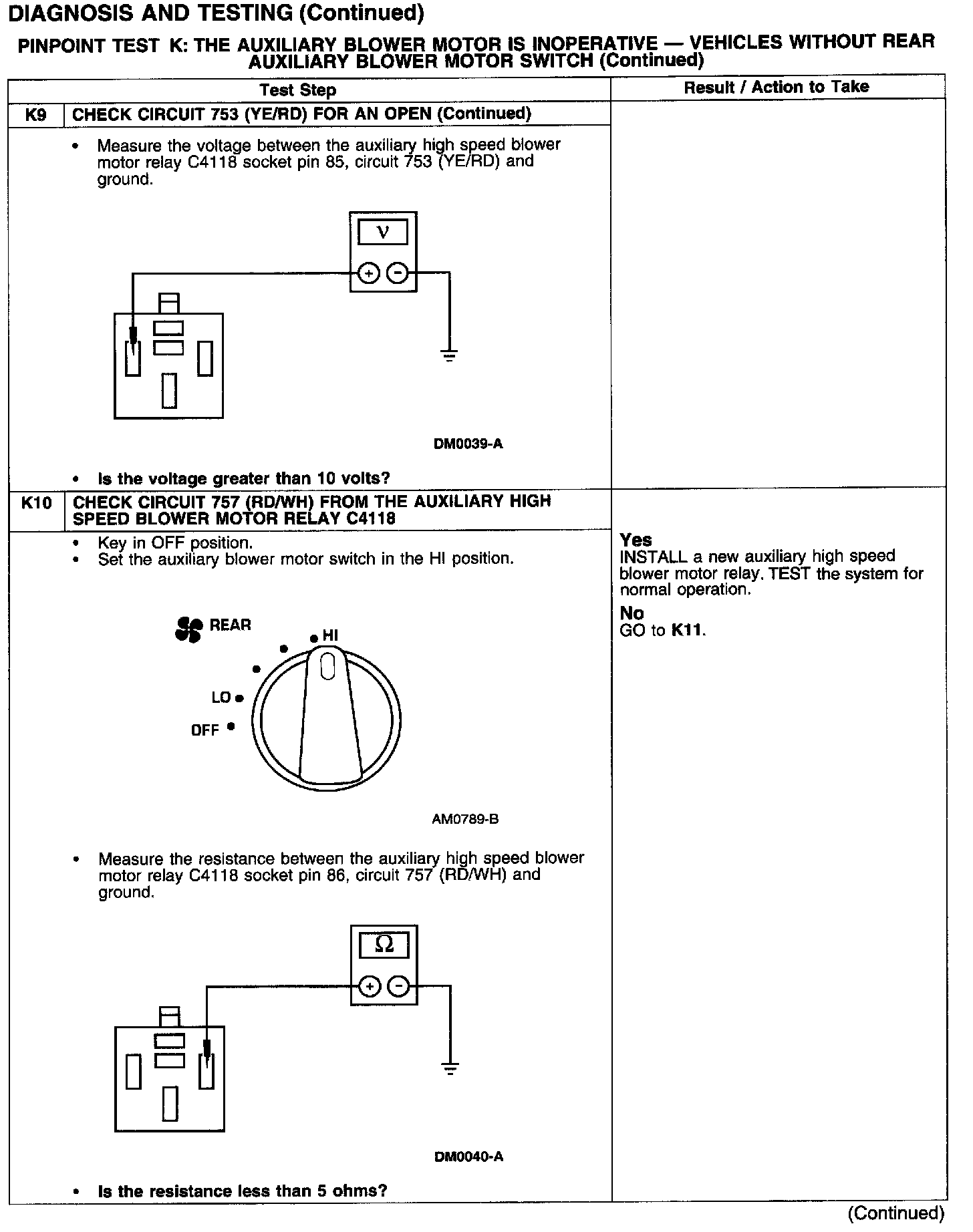

Test K9-K10:

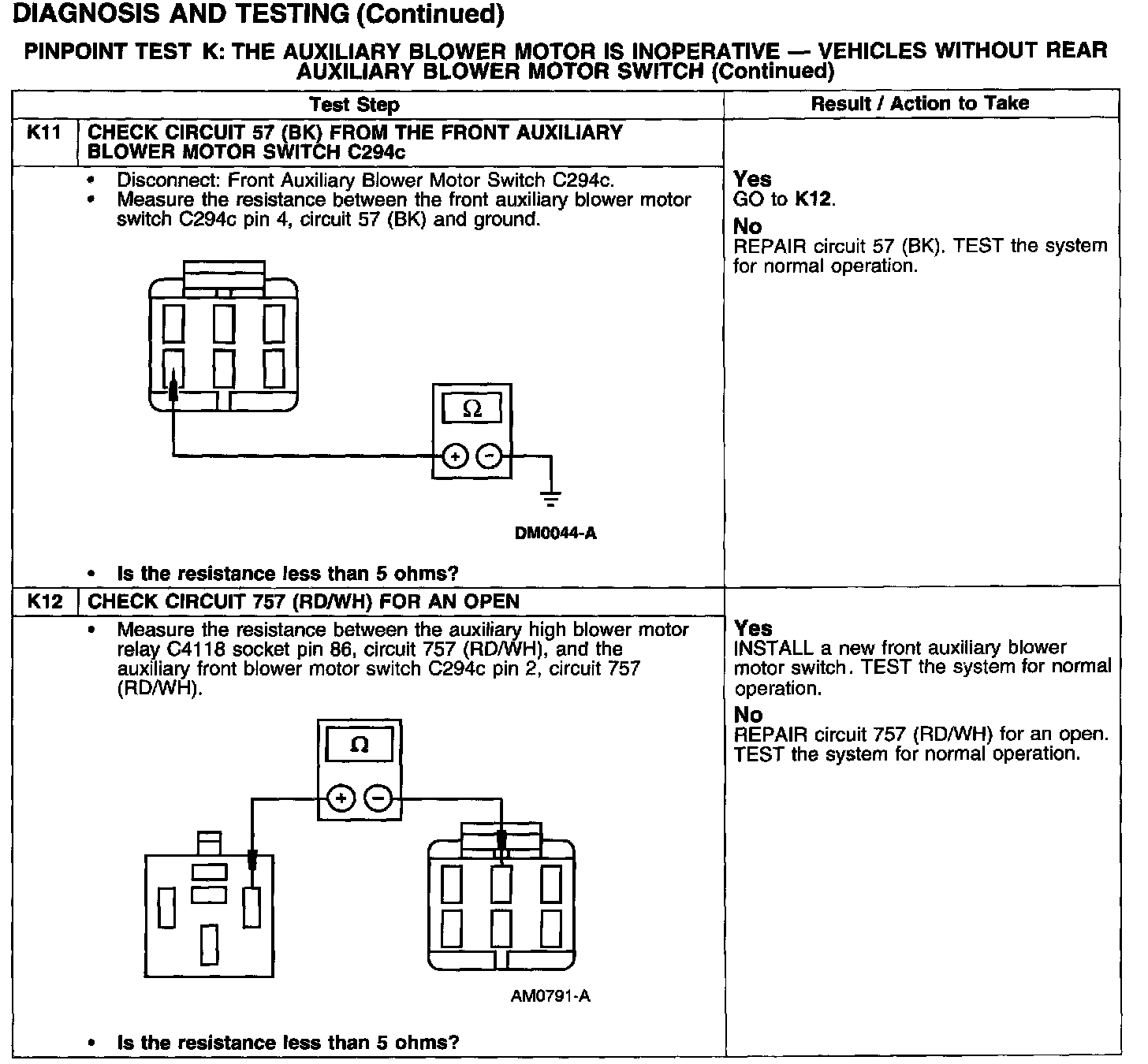

Test K11-K12:
