Drive Belt: Diagrams
Accessory Drive
4.2L With A/C:
4.2L Without A/C:

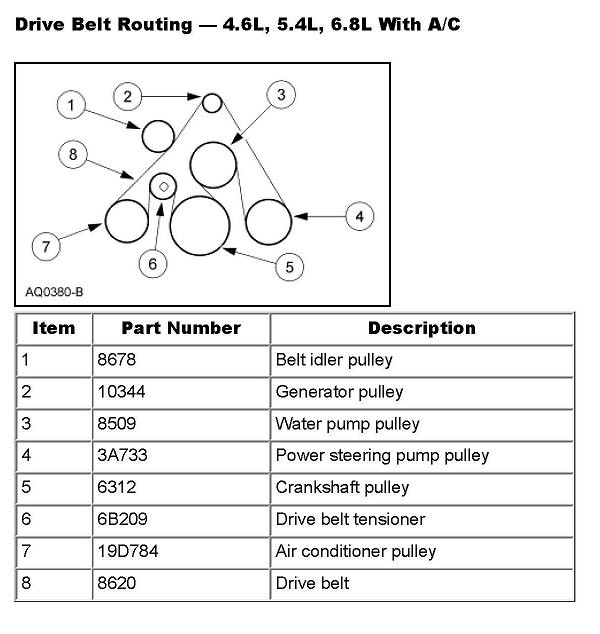

4.6L, 5.4L, 6.8L With A/C:

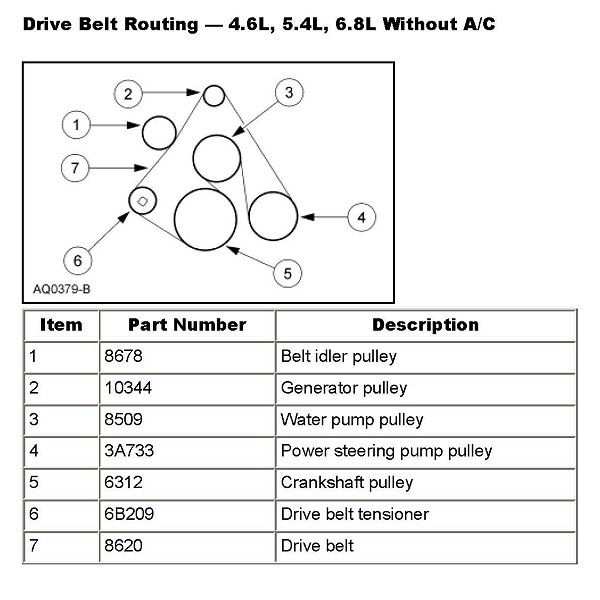

4.6L, 5.4L, 6.8L Without A/C:

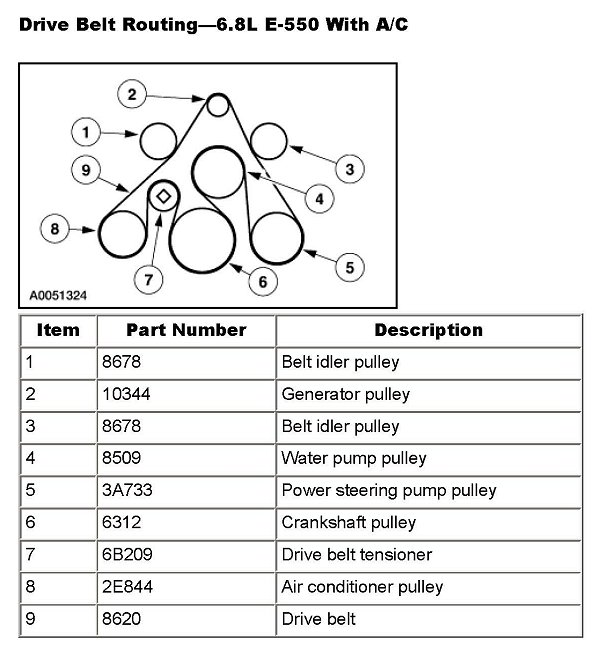

6.8L E-550 With A/C:
6.8L E-550 Without A/C:

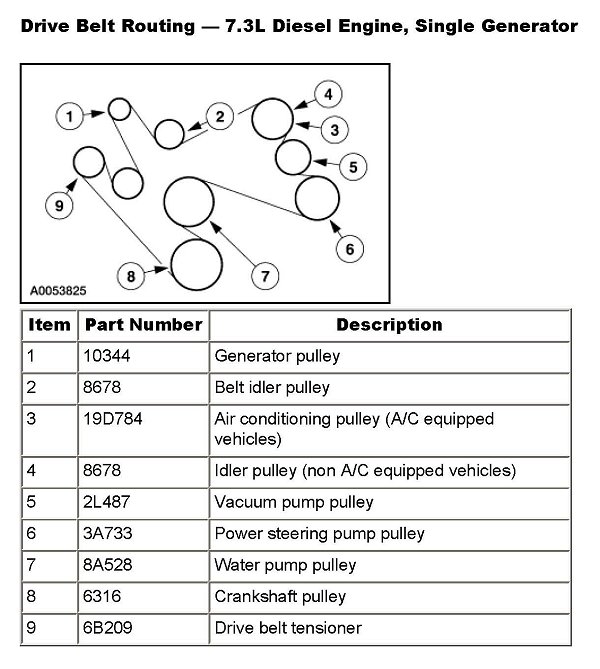

7.3L Diesel Engine-Single Generator:
7.3 Diesel Engine-Dual Generator:
Accessory Drive
