Home >> Ford >> 2003 >> Econoline E350 1 Ton V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations >> Component Locations

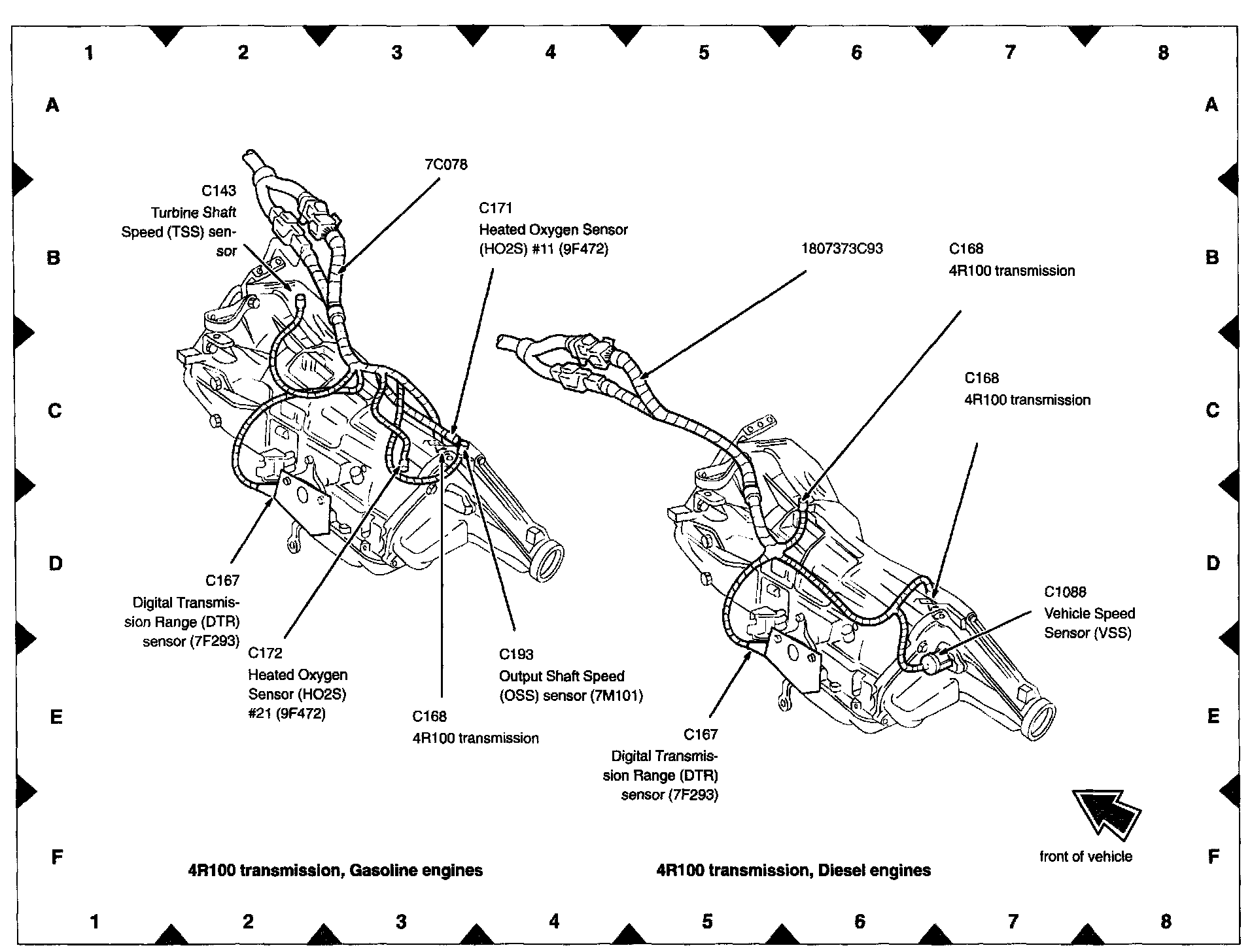

Component Locations

View 151-25:
