Test A: Vehicle Battery

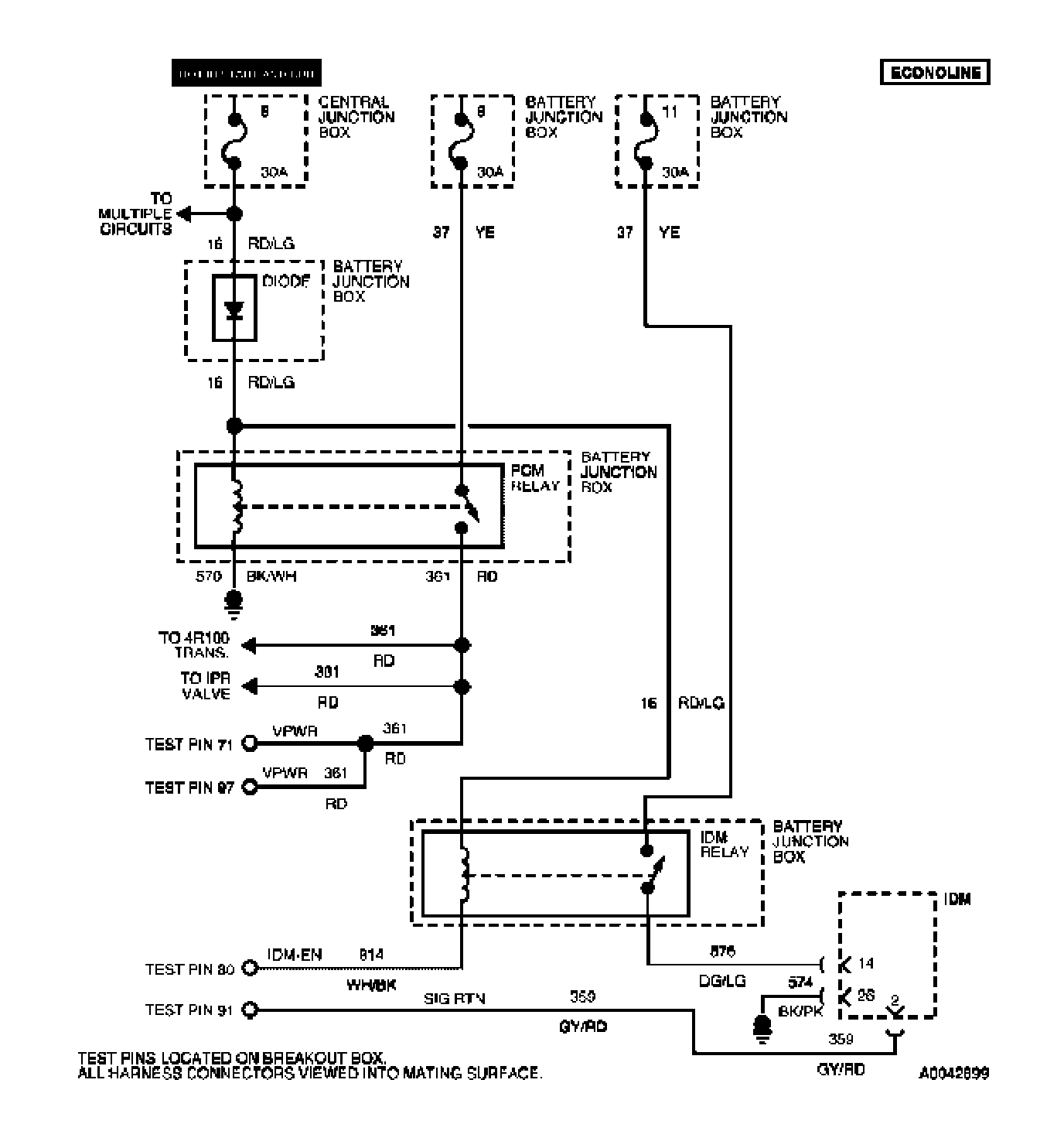

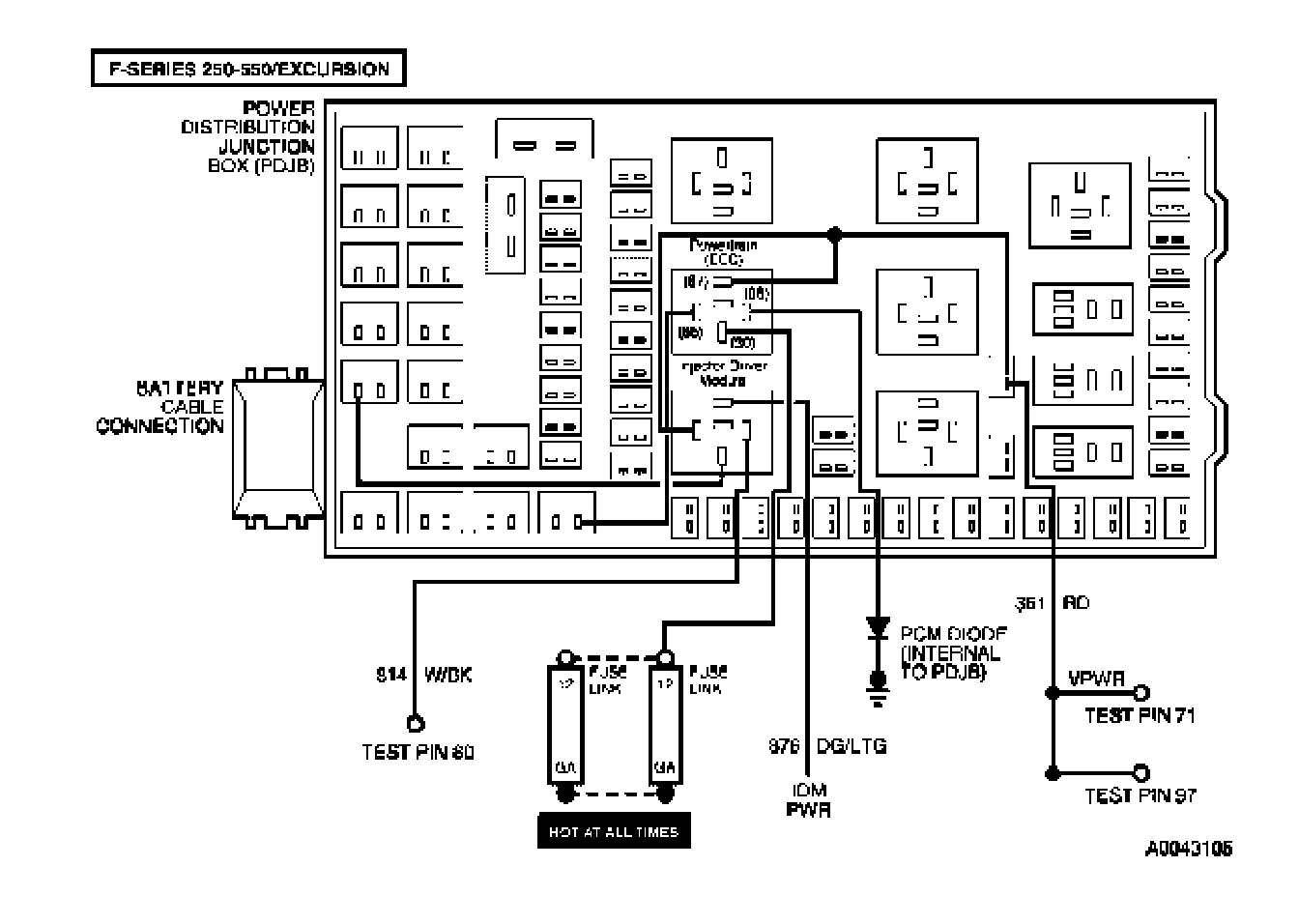

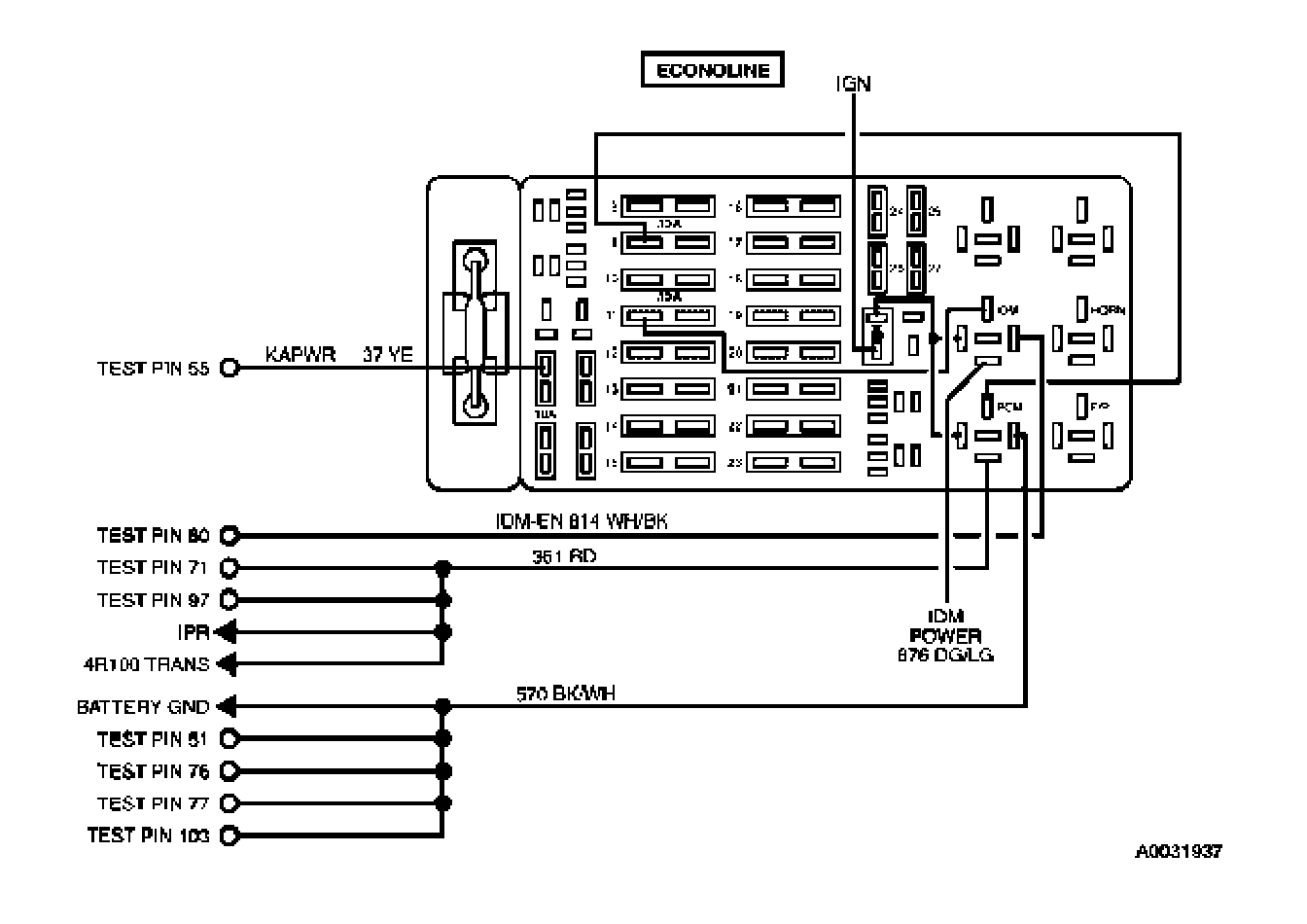

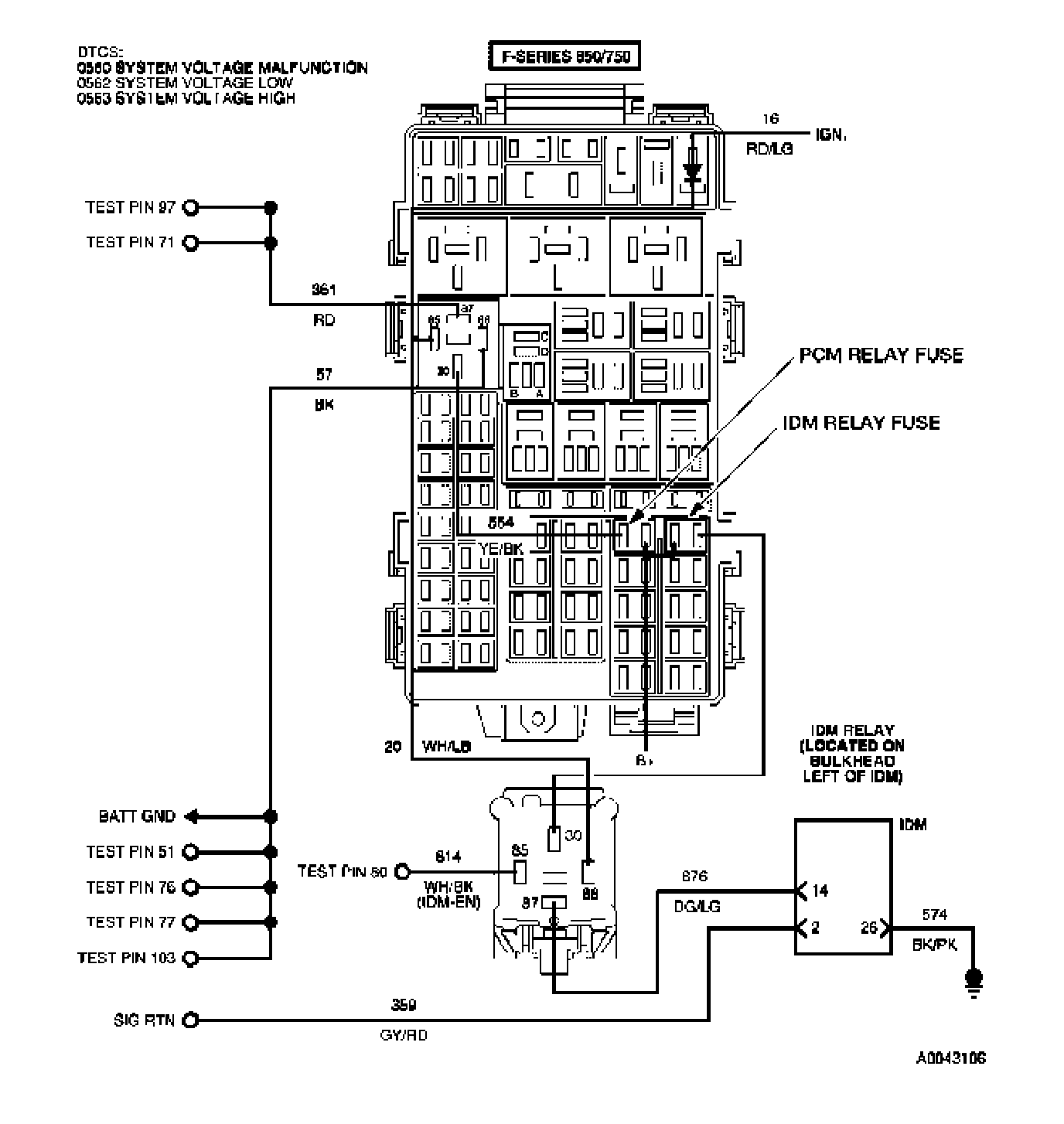

A Introduction:

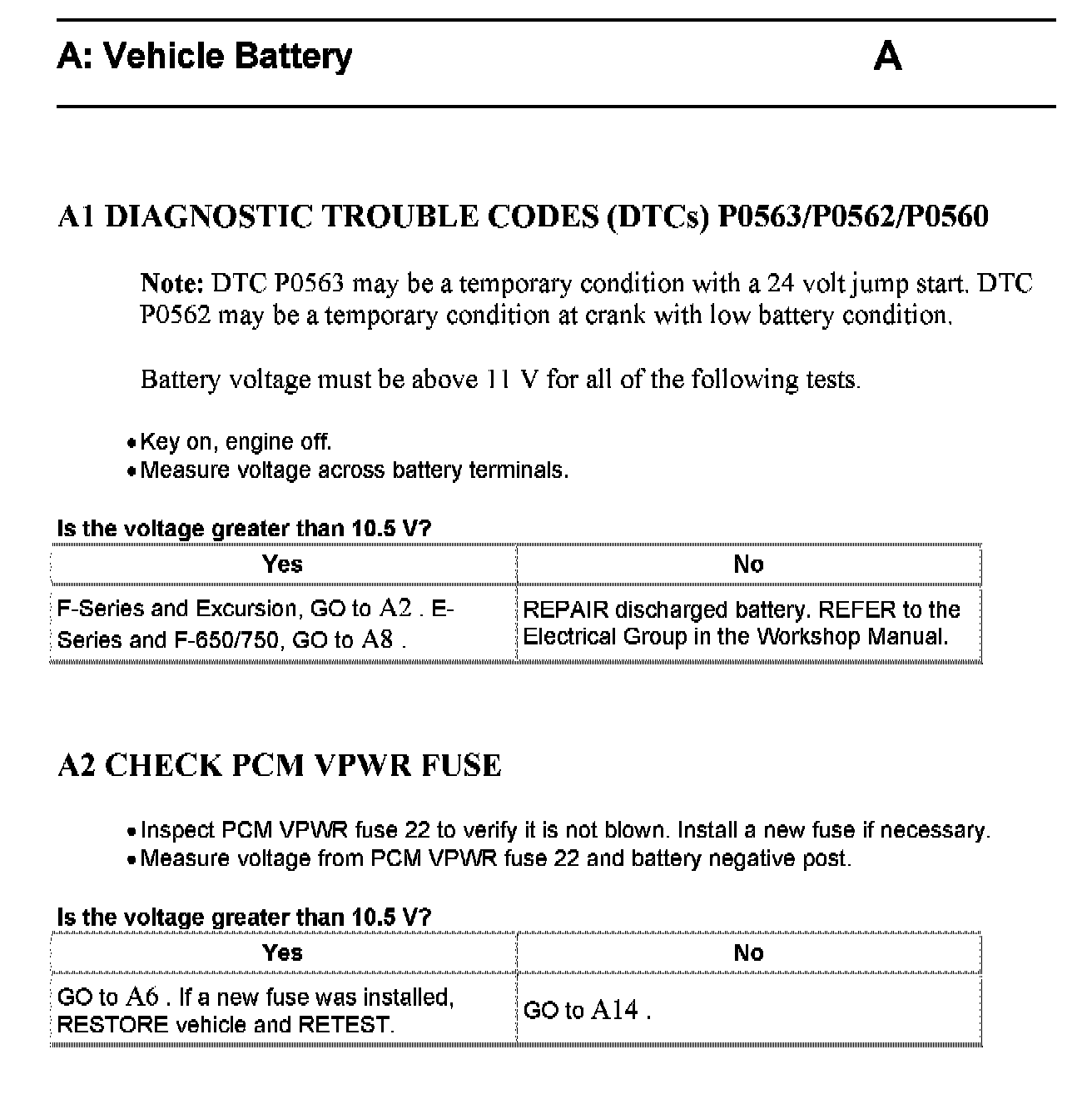

A1 - A2:

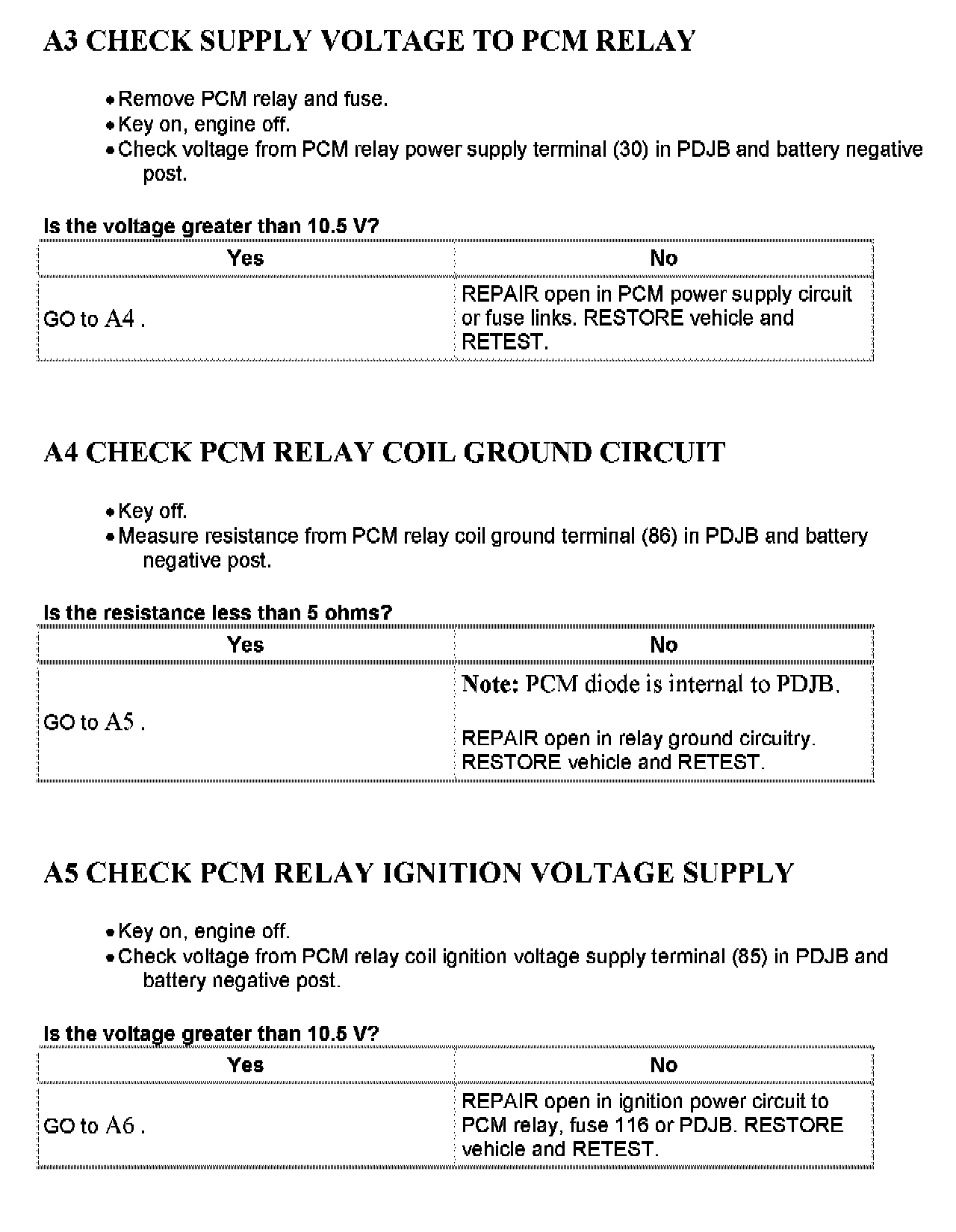

A3 - A5:





A6 - A8:

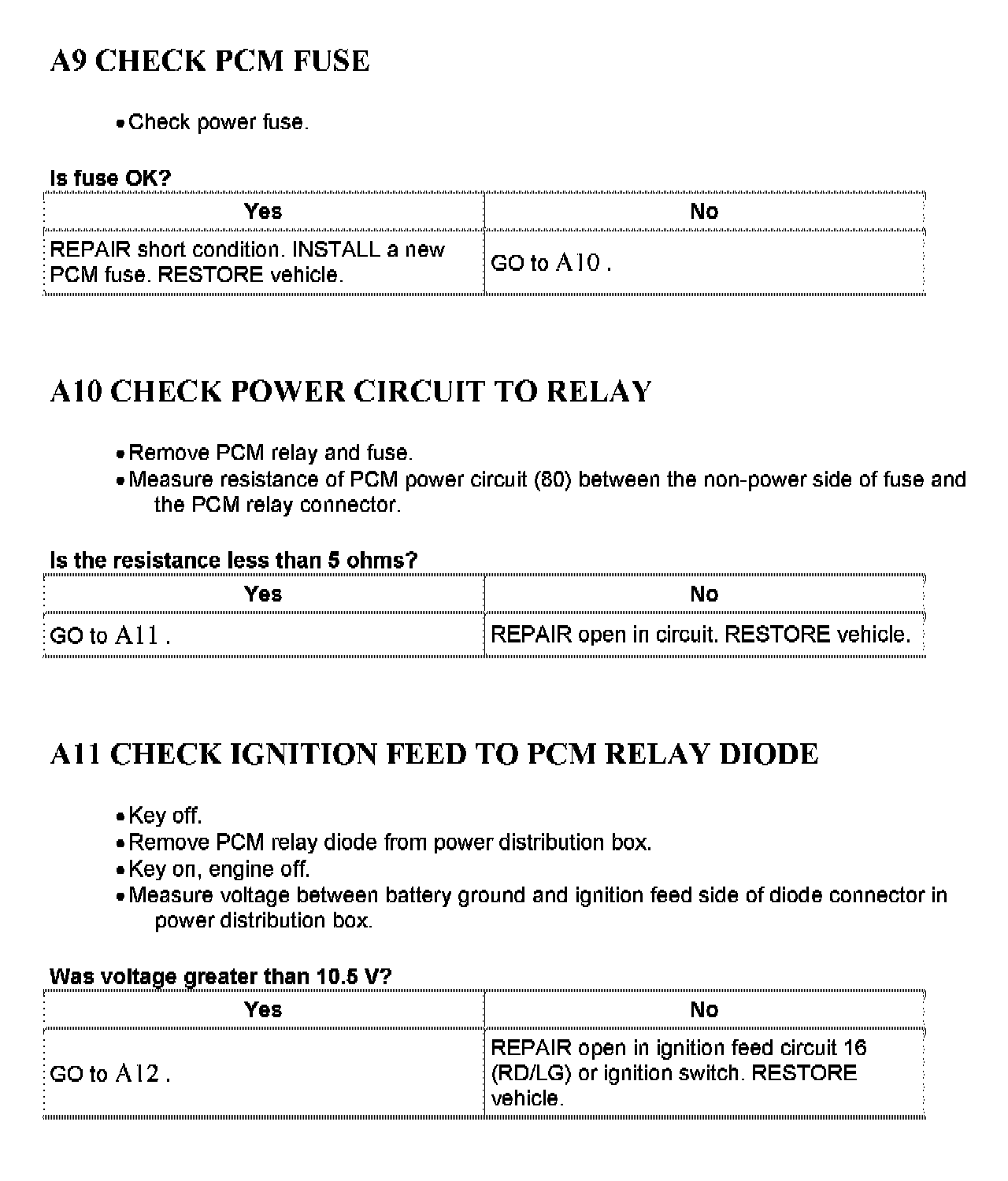

A9 - A11:

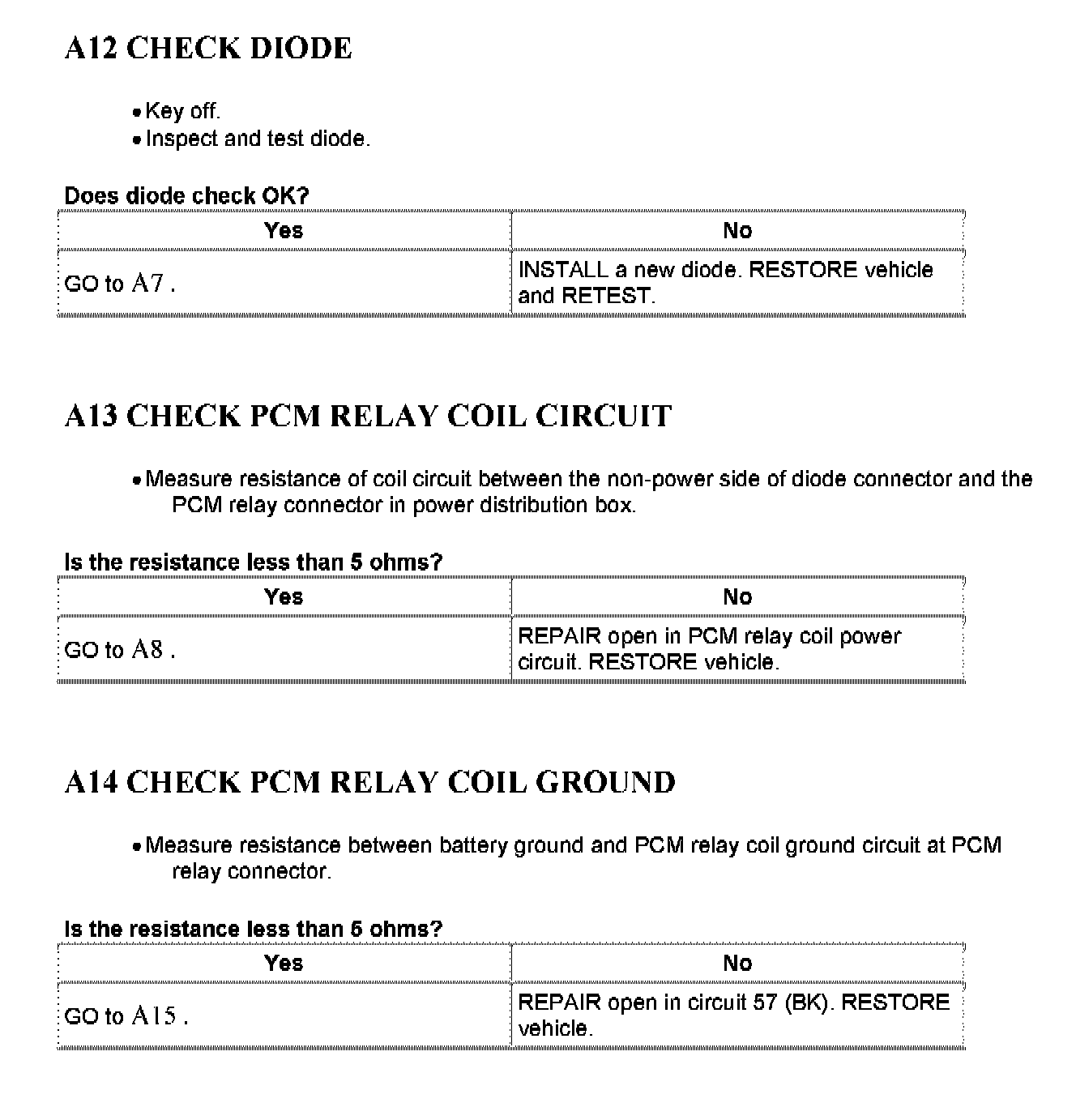

A12 - A14:

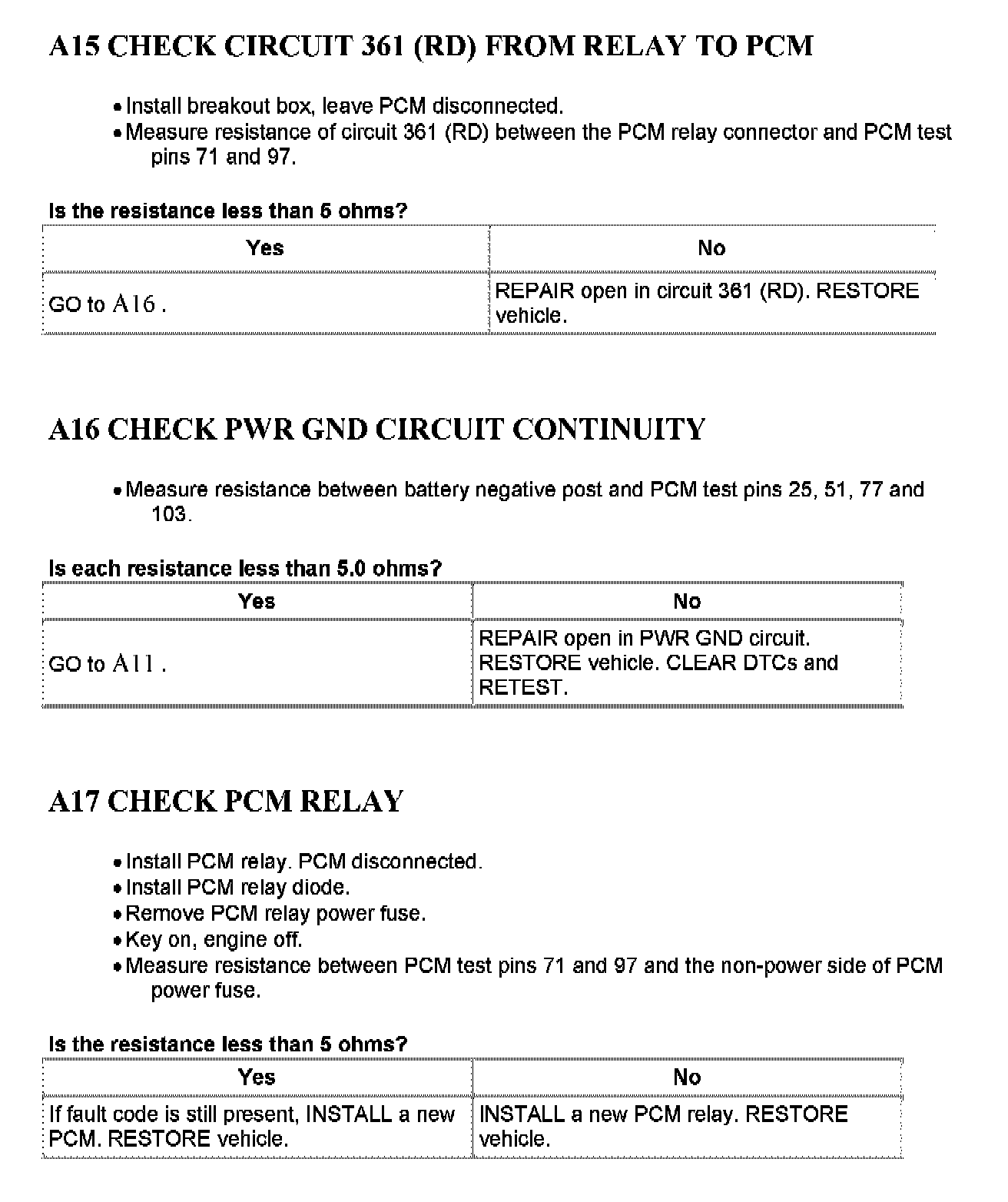

A15 - A17:
