Tests DH: Manifold Absolute Pressure (MAP) Sensor, Analog

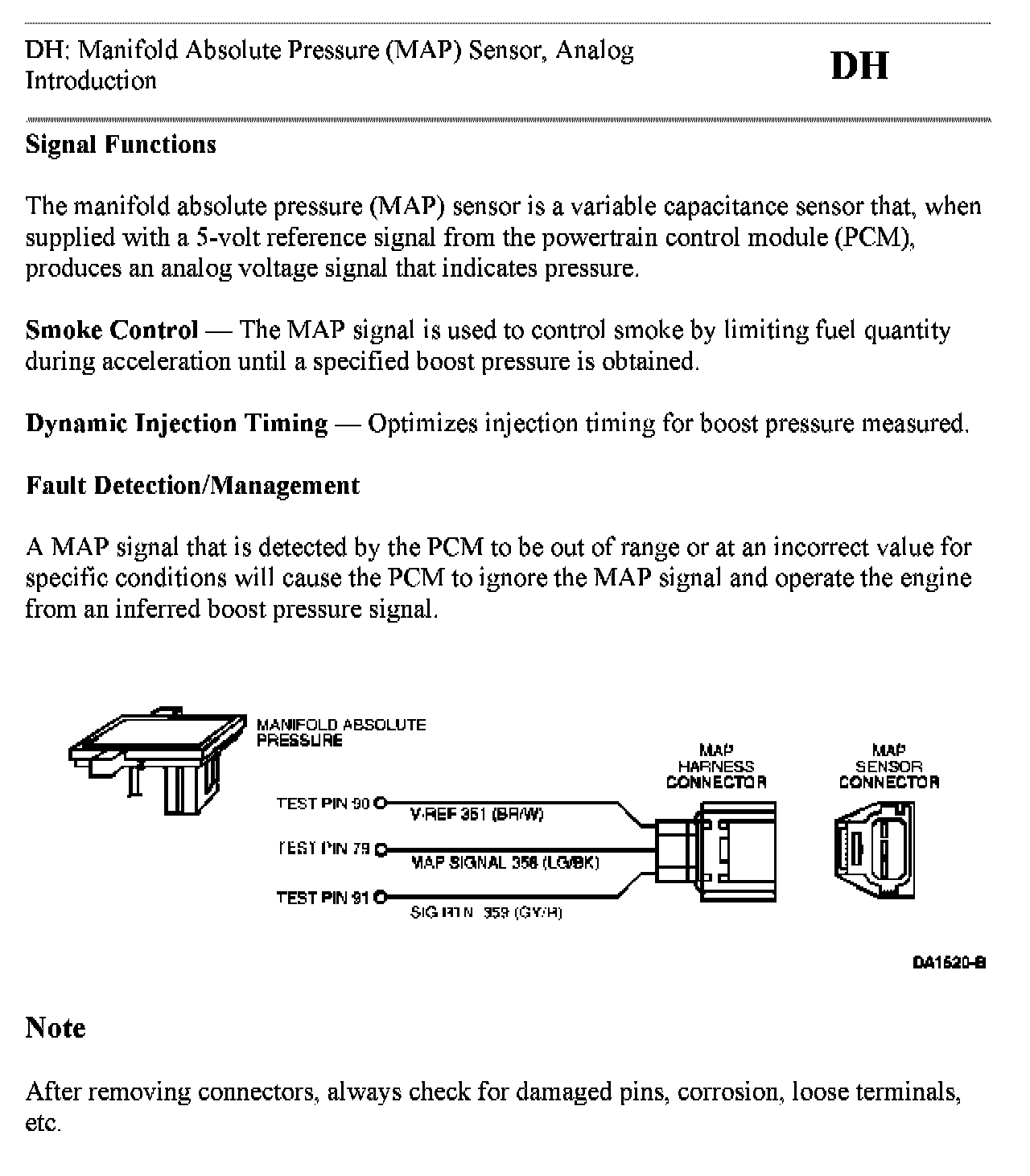

DH Introduction:

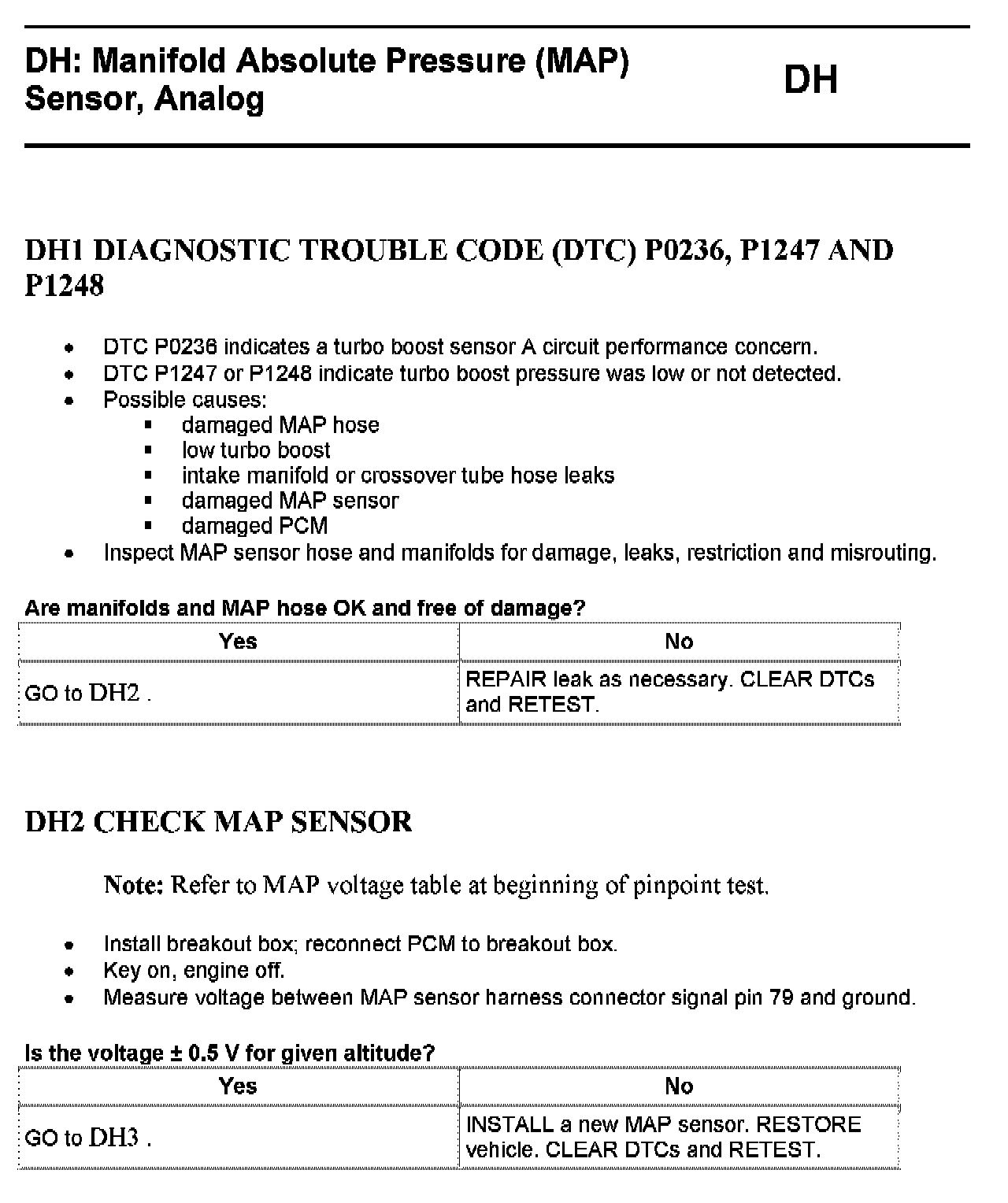

DH1 - DH2:

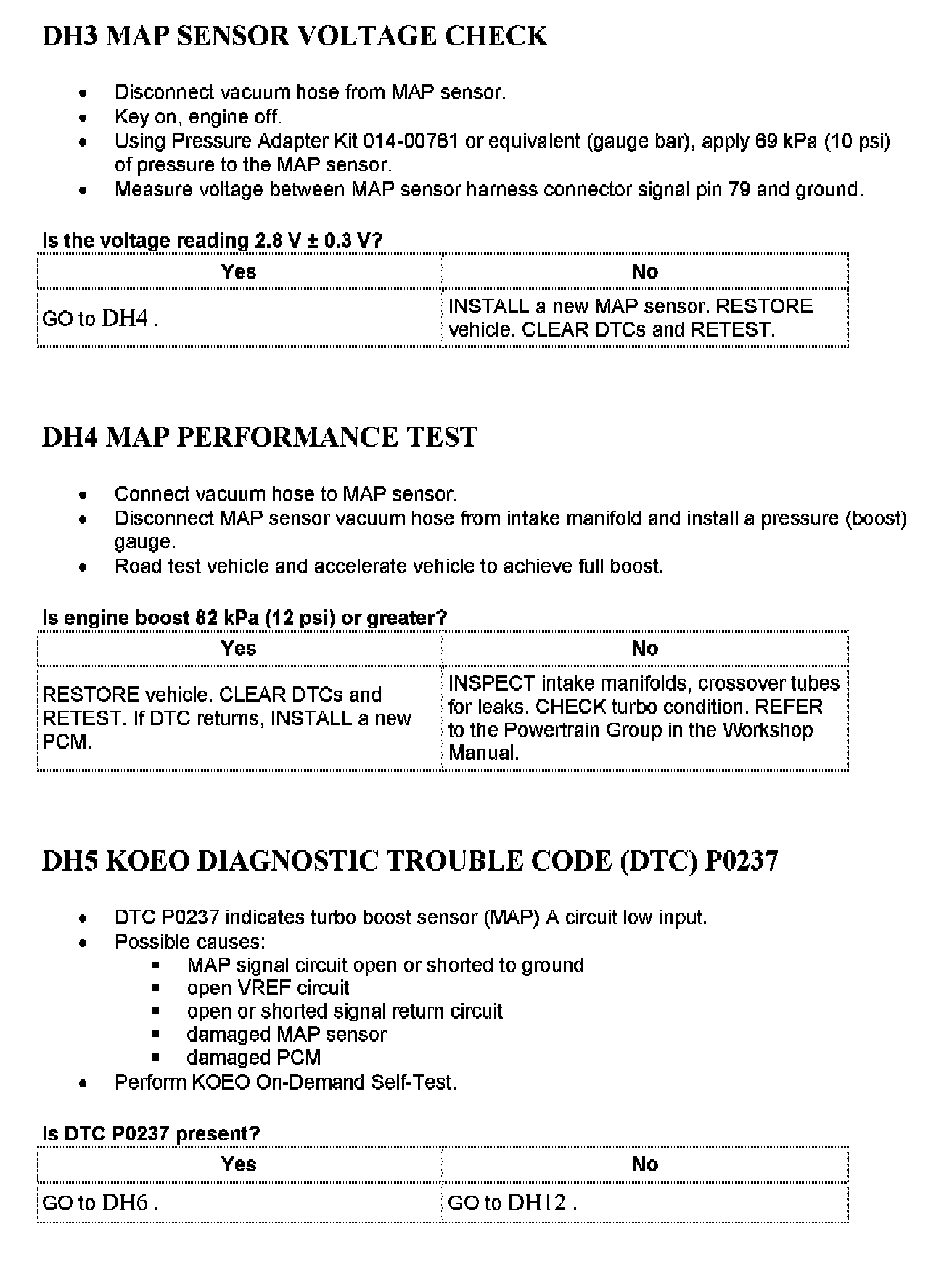

DH3 - DH5:

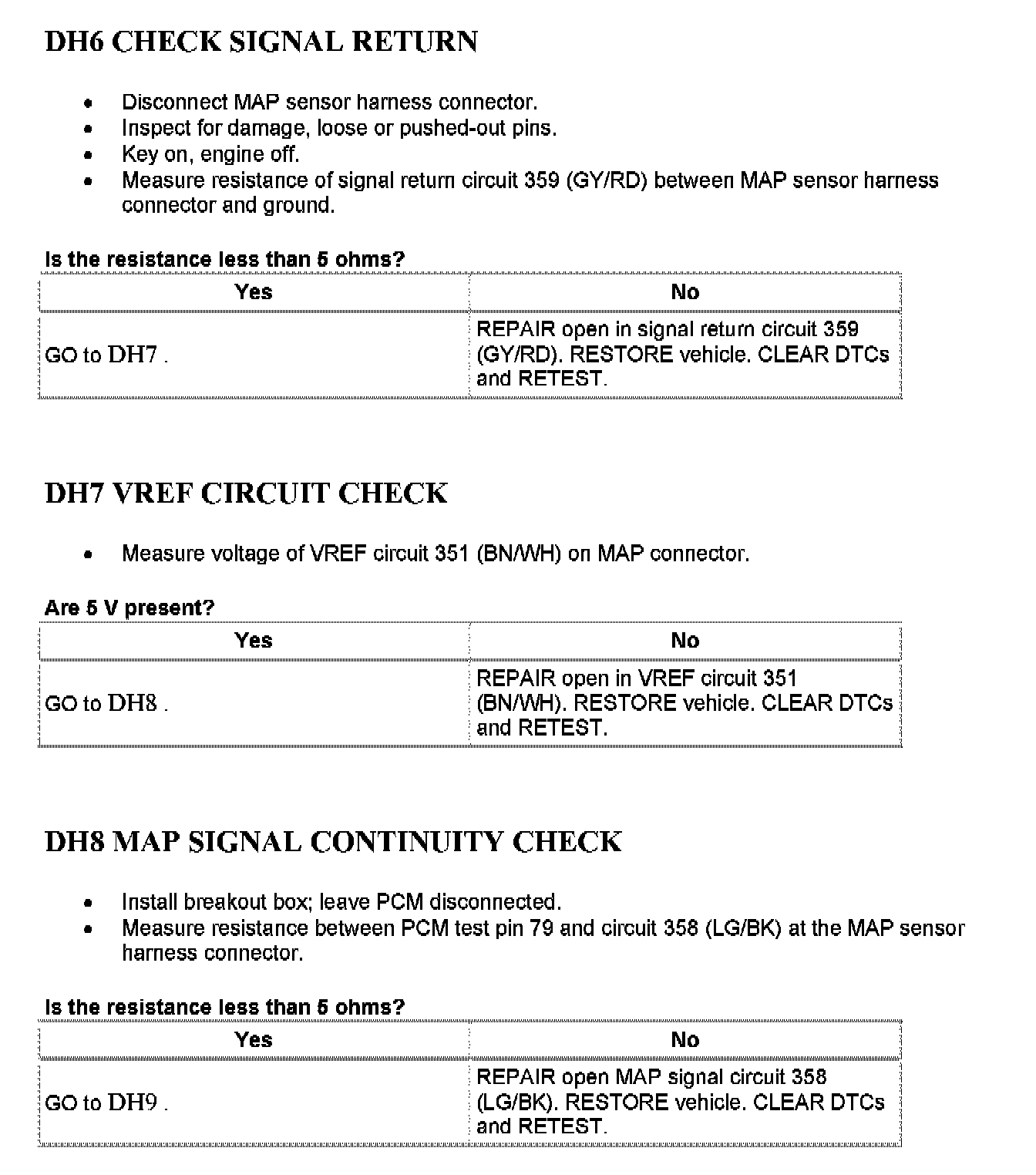

DH6 - DH8:

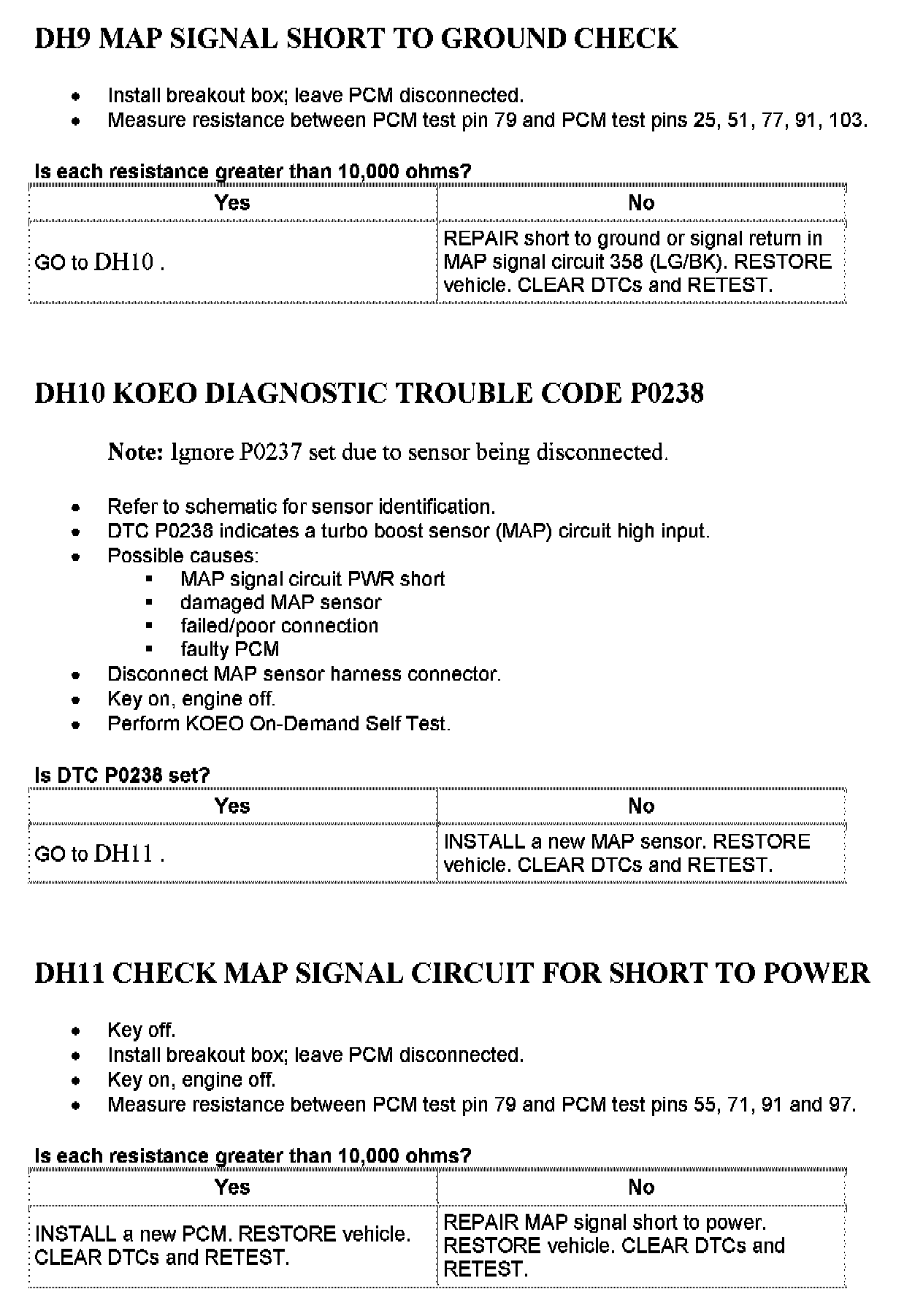

DH9 - DH11:





DH12 - DH13:

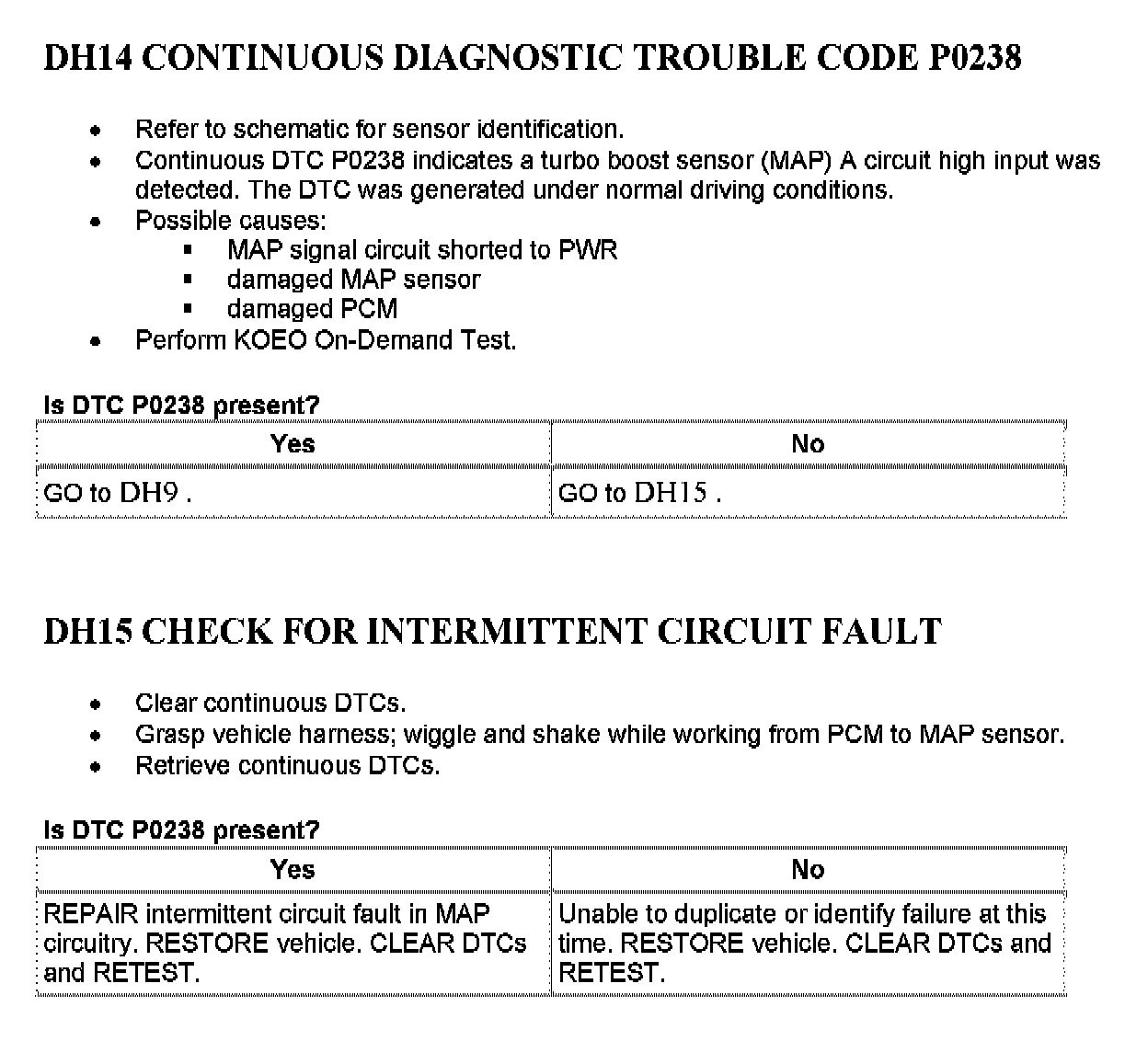

DH14 - DH15:
