Tests FB: Brake Pressure Applied (BPA) Switch



FB Introduction:

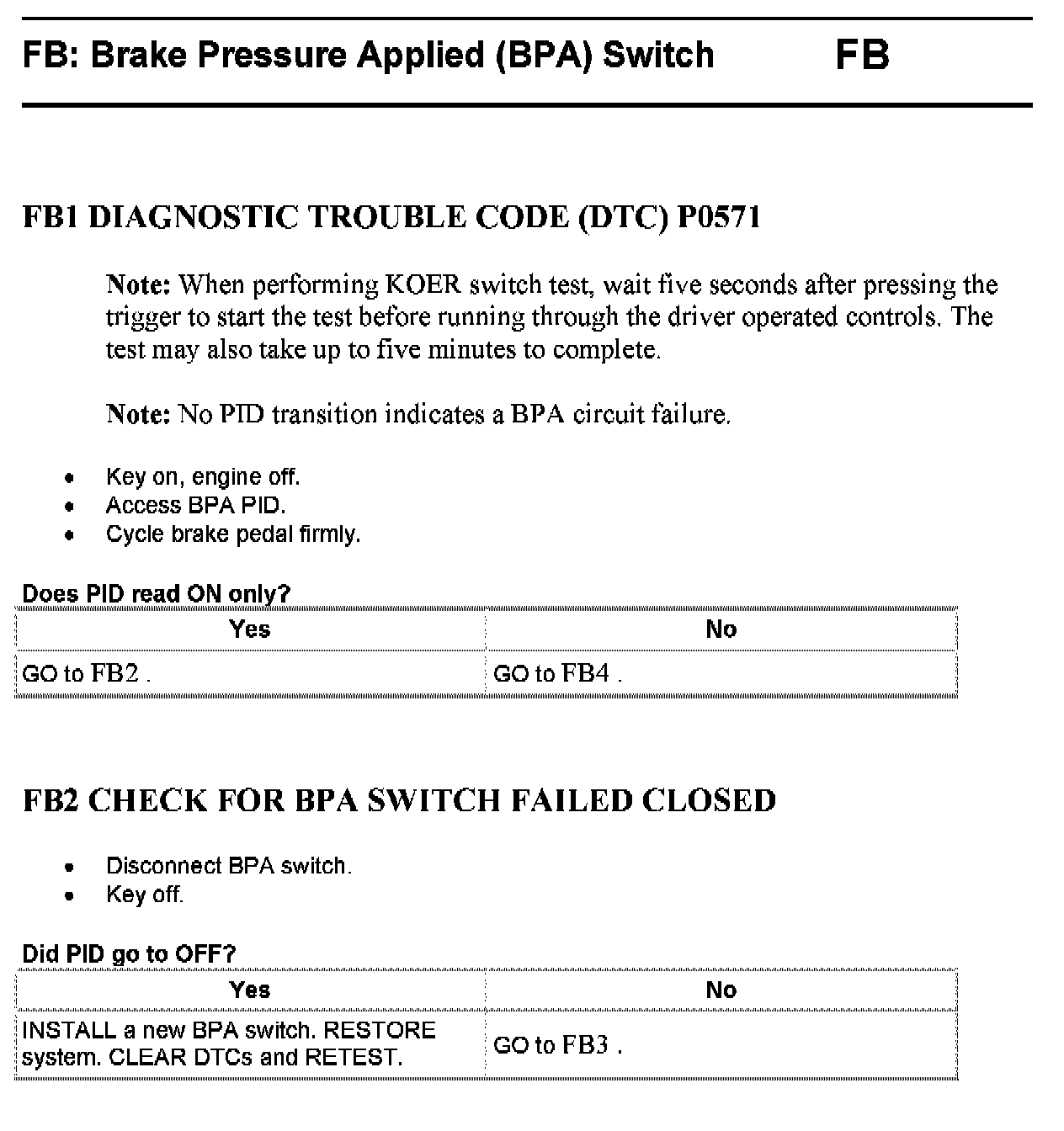

FB1 - FB2:

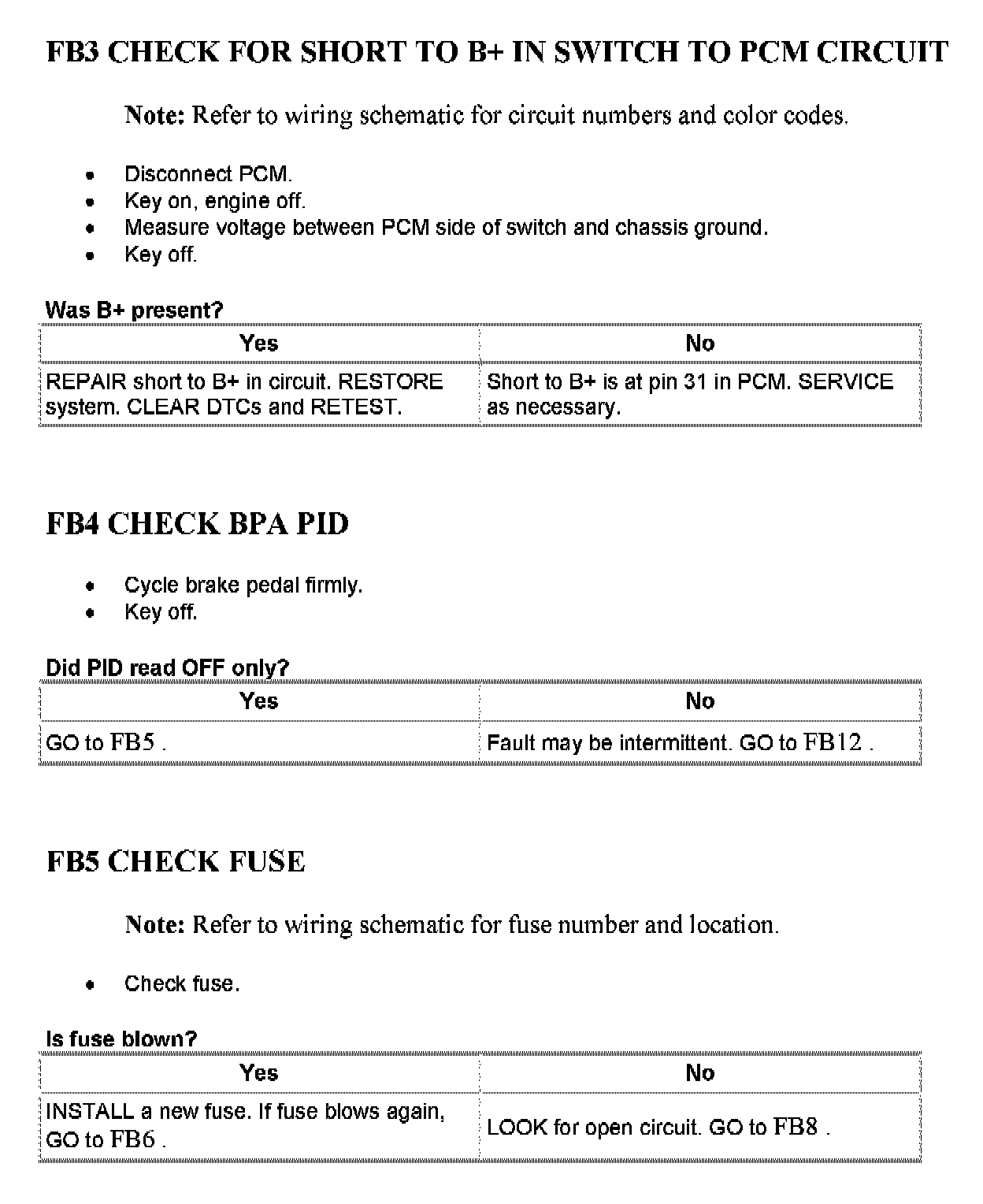

FB3 - FB5:

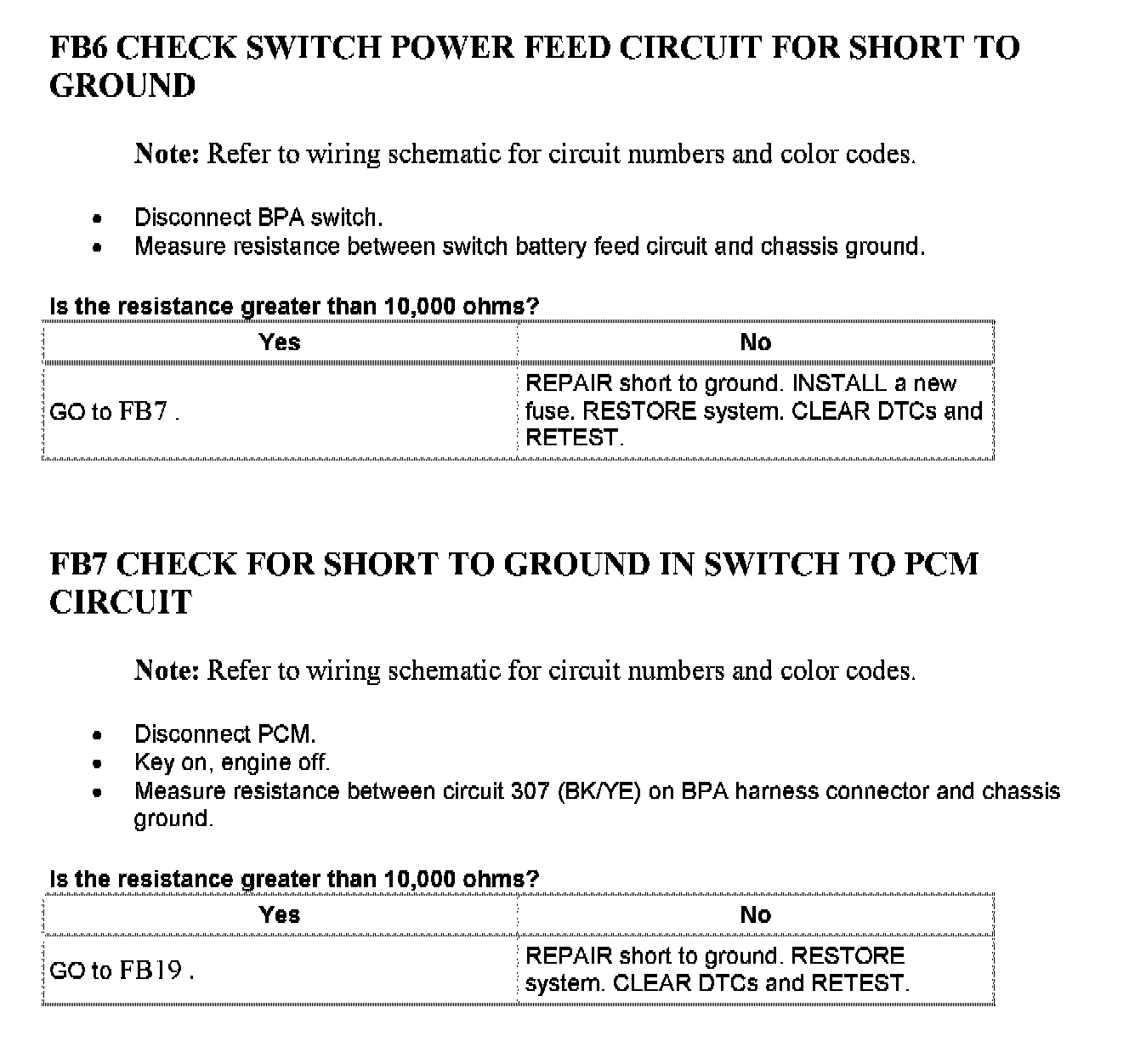

FB6 - FB7:

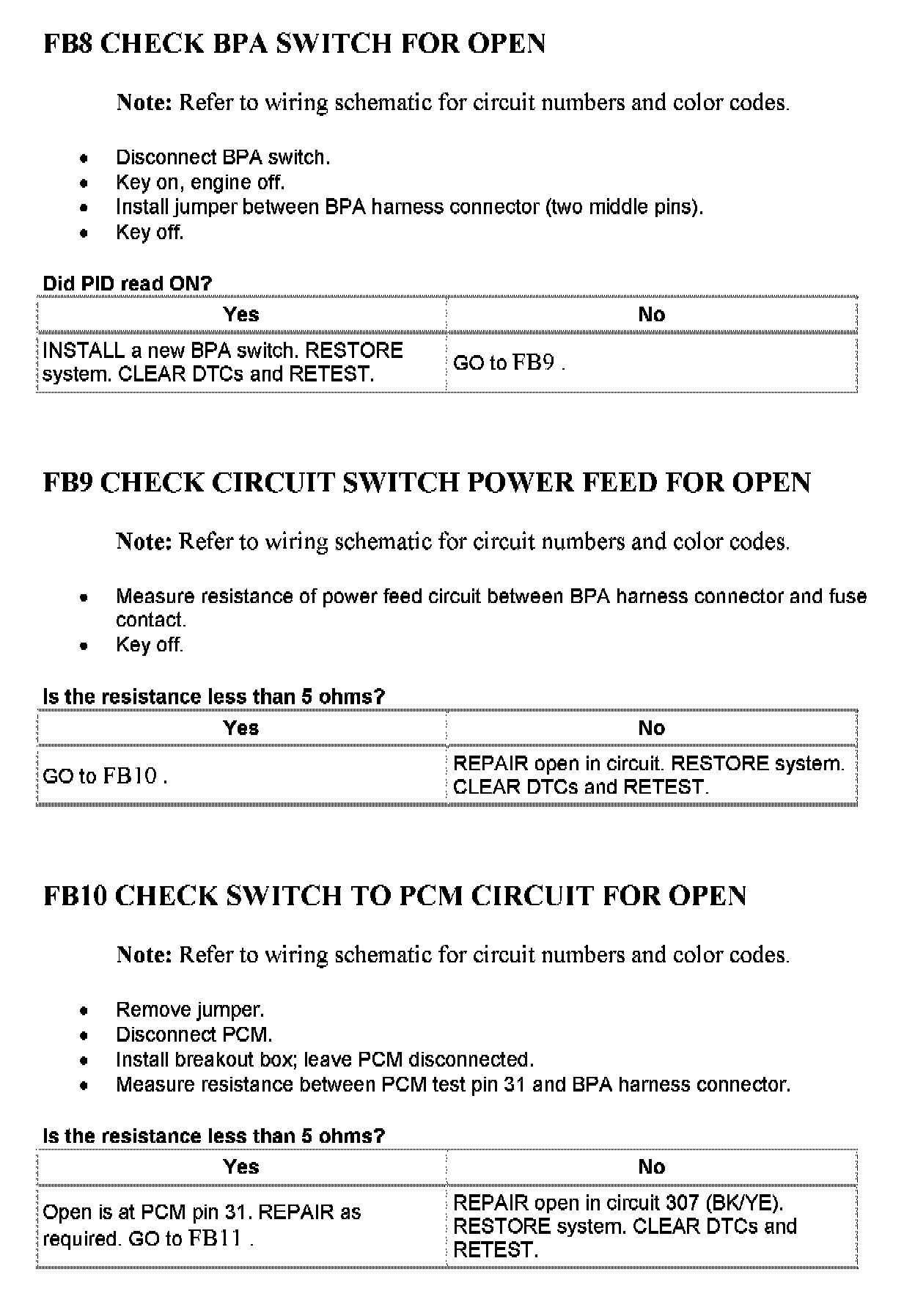

FB8 - FB10:

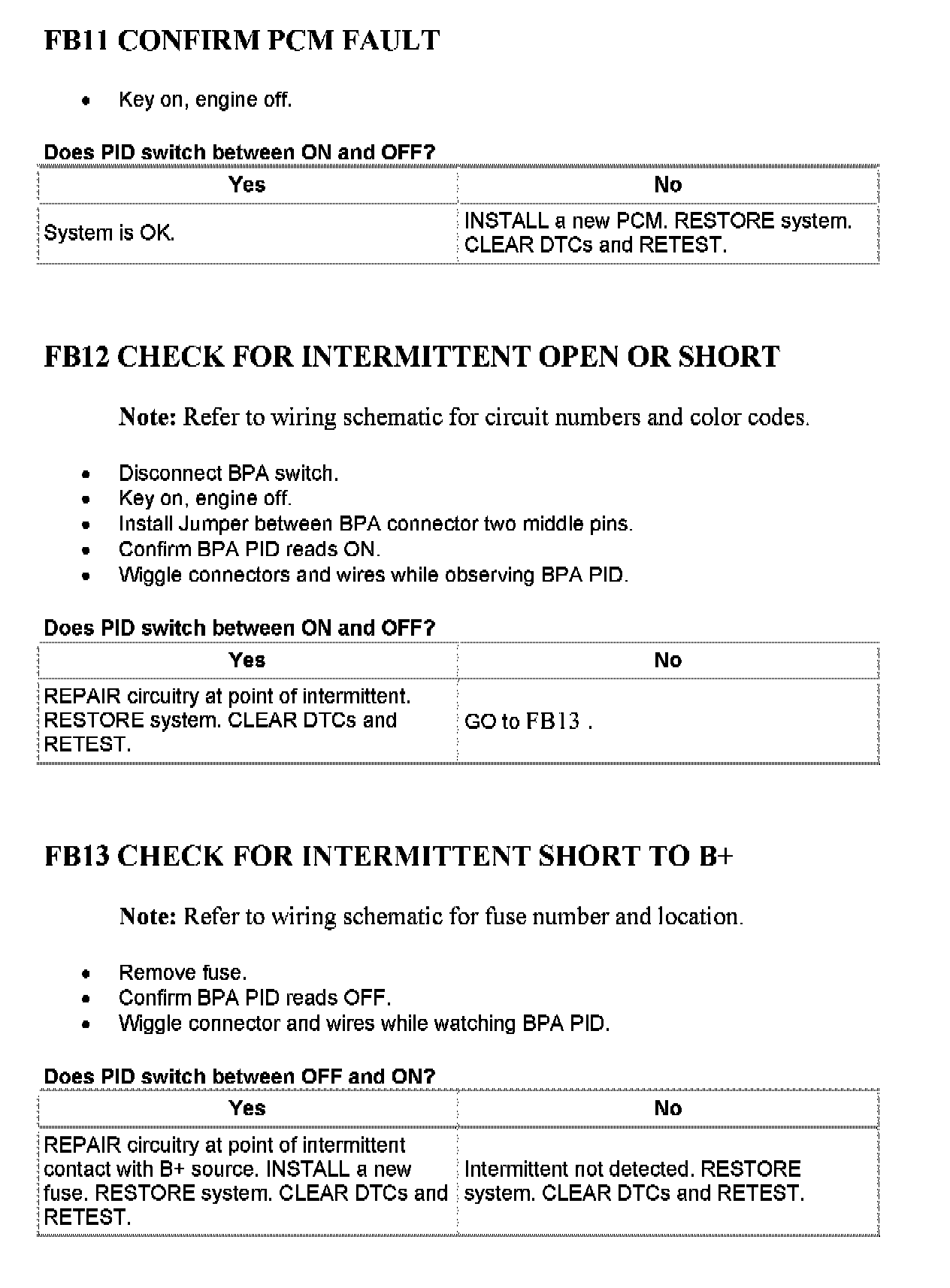

FB11 - FB13:

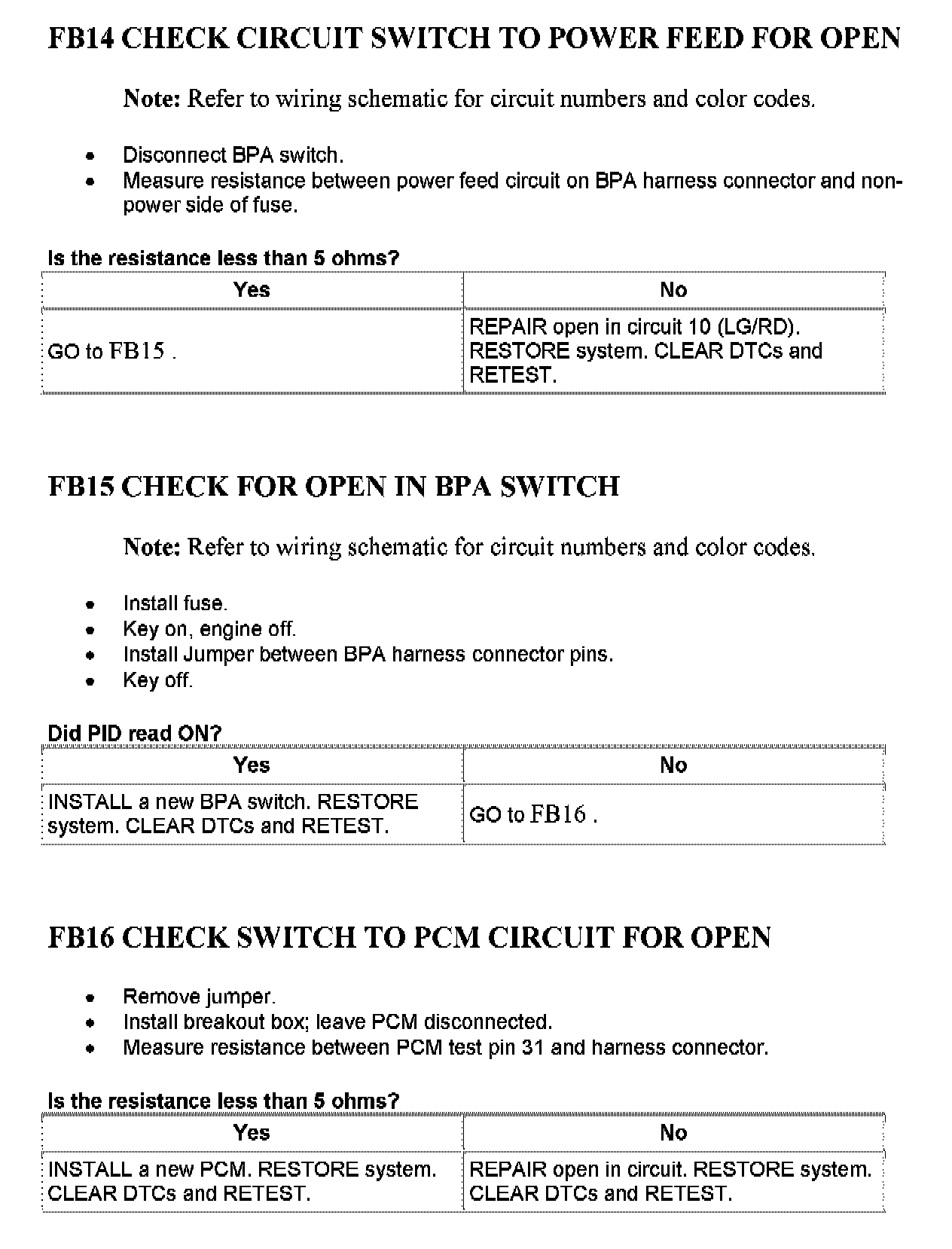

FB14 - FB16:

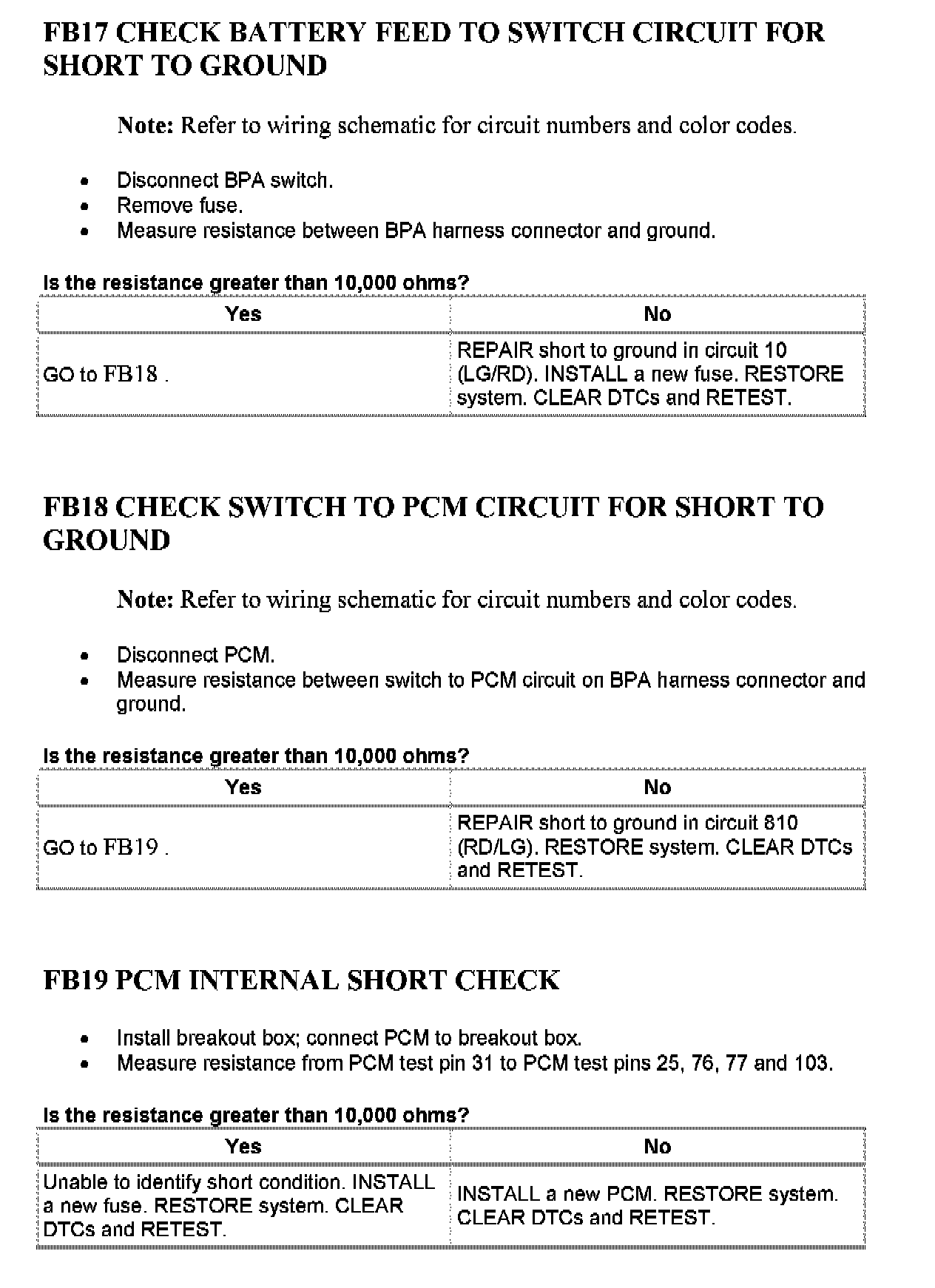

FB17 - FB19:
