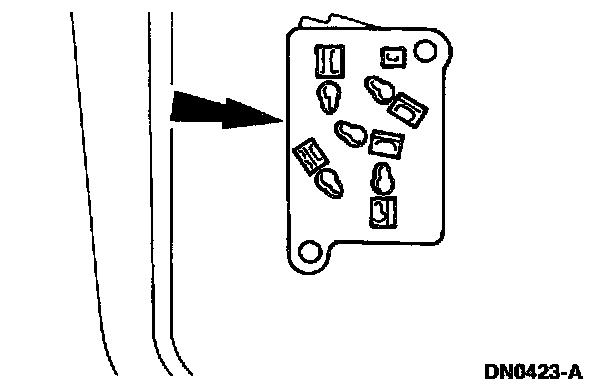

SWITCH - REAR DOOR
REMOVAL
1.
Remove the door trim panel.
2.
Disconnect the switch connector.
3.
Carefully pry the switch from the door trim panel.
INSTALLATION
1.
Follow the removal procedure in reverse order.
