Test Q: Indicator On W/Engine Running (Volts Do Not Increase)

PINPOINT TEST Q: THE CHARGING WARNING INDICATOR IS ON WITH THE ENGINE RUNNING (BATTERY VOLTAGE DOE S NOT INCREASE)

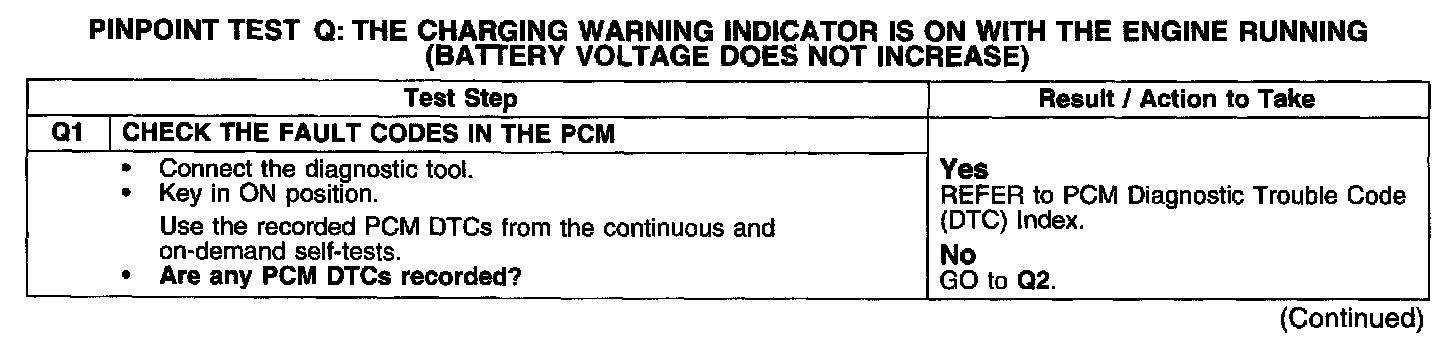

Test Q1:

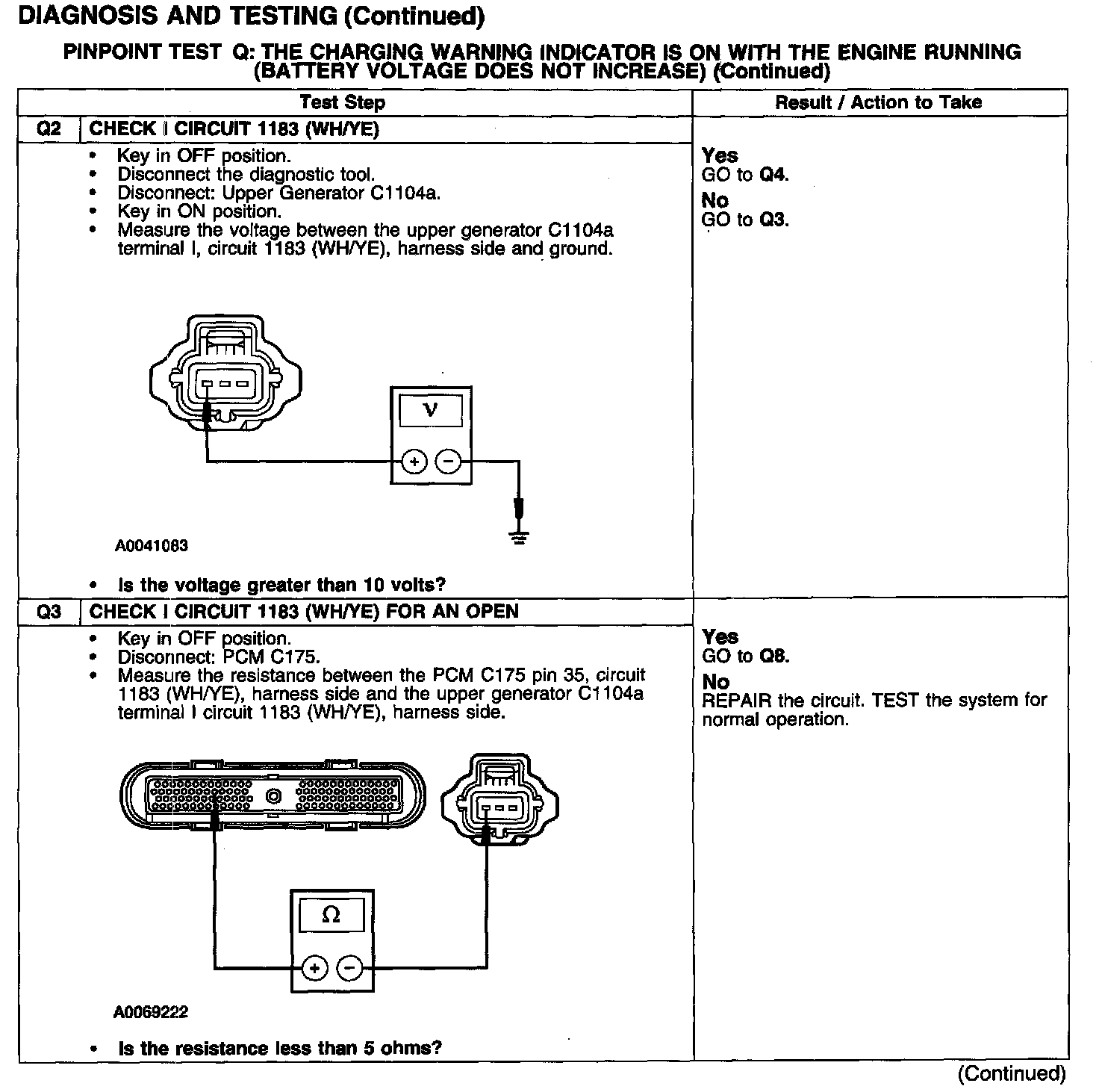

Test Q2-Q3:

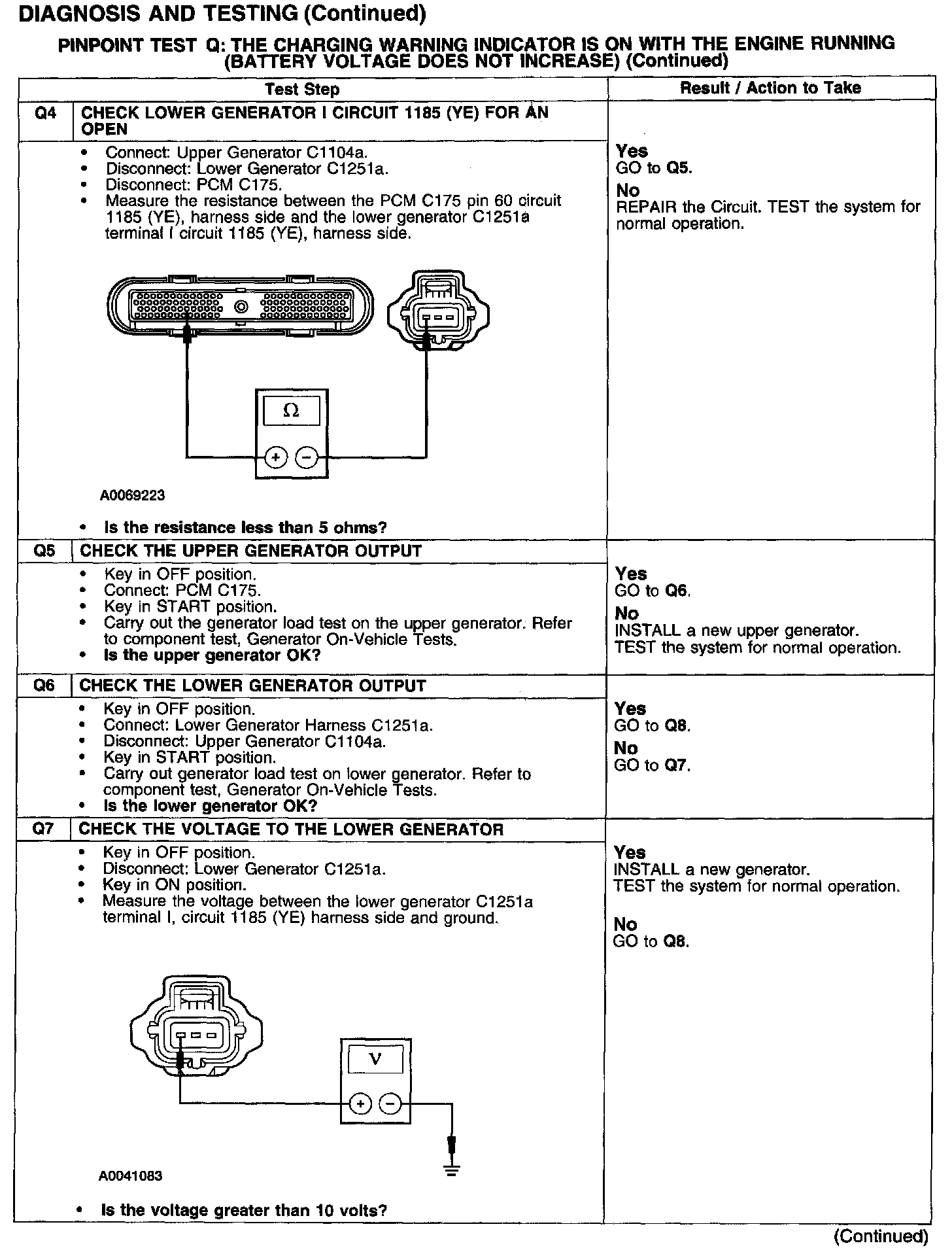

Test Q4-Q7:

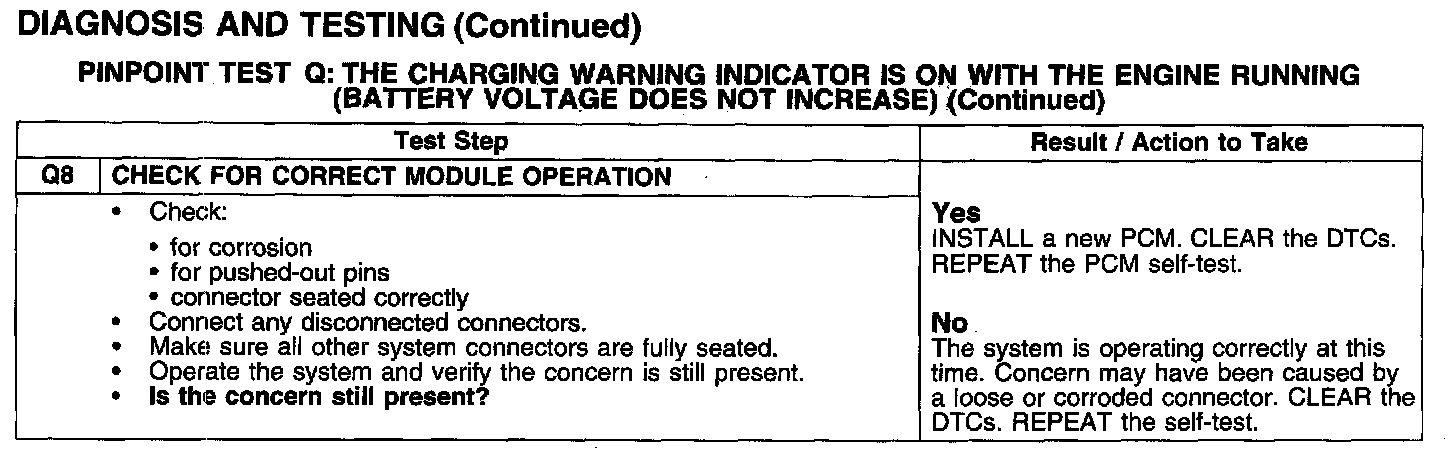

Test Q8:
